E Bike PAS Assistant Sensor Electric Bicycle Pedal System 12Magnet

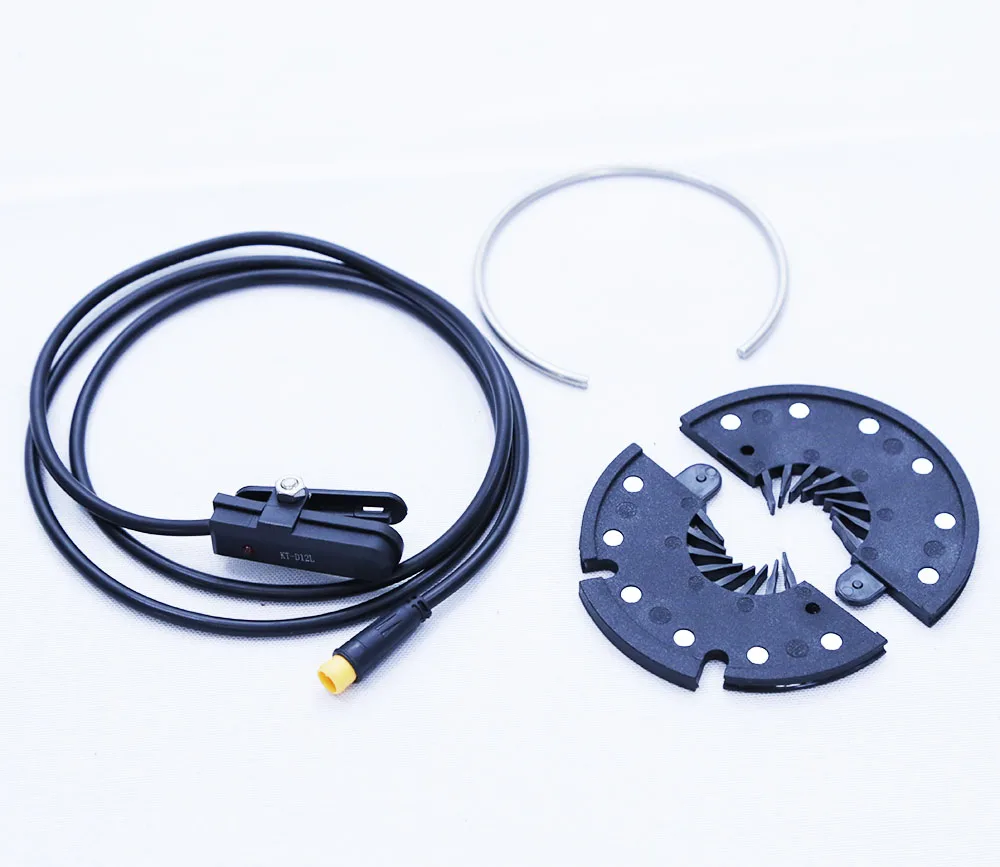

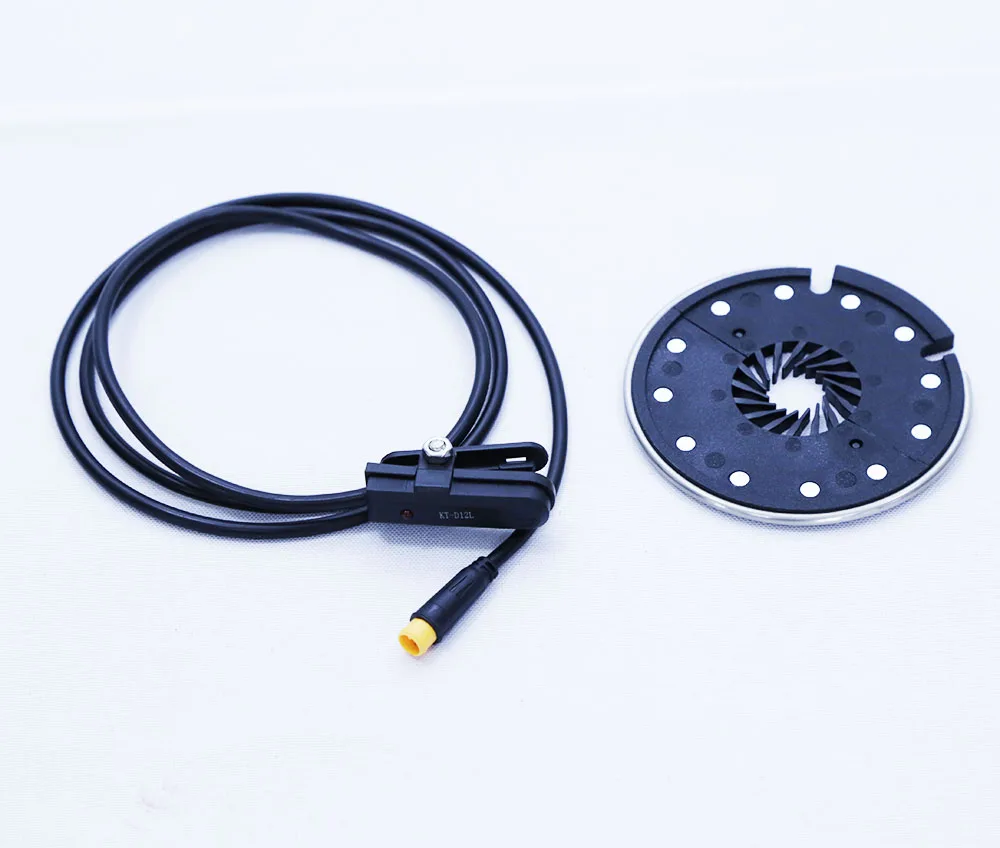

NC-D12L power-assistant sensor is with the characteristics of 12 signal outputs, fast power response, good accuracy, strong water resistance, high reliability, etc. Its installation and removal is quick and easy. Sensor is divided into two models of left installation and right installation, which can be installed in different locations to adapt to a variety of vehicle models.
Note: It is only fit on the left side pedals.
There are normal connector and waterproof connector for choose.
1, The waterproof connector is 3pins of Julet Cable. Its lenght is 350mm.
2, The Normal connector is 3pins too, its length is 800mm.
please take care about the 3wires' connection way to the controller.
E BIKE PAS Pedal Assistant Sensor Electric Bicycle PAS system 12Magnet

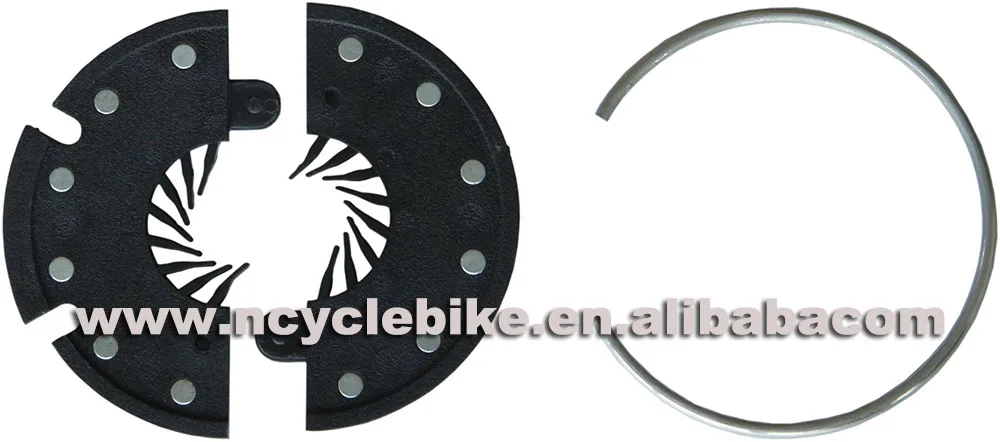

Magnet plate assembly should plug the two pieces of magnetic steel plate according to the following diagram, which is then fixed by using a circlip.
Left position installation instructions:

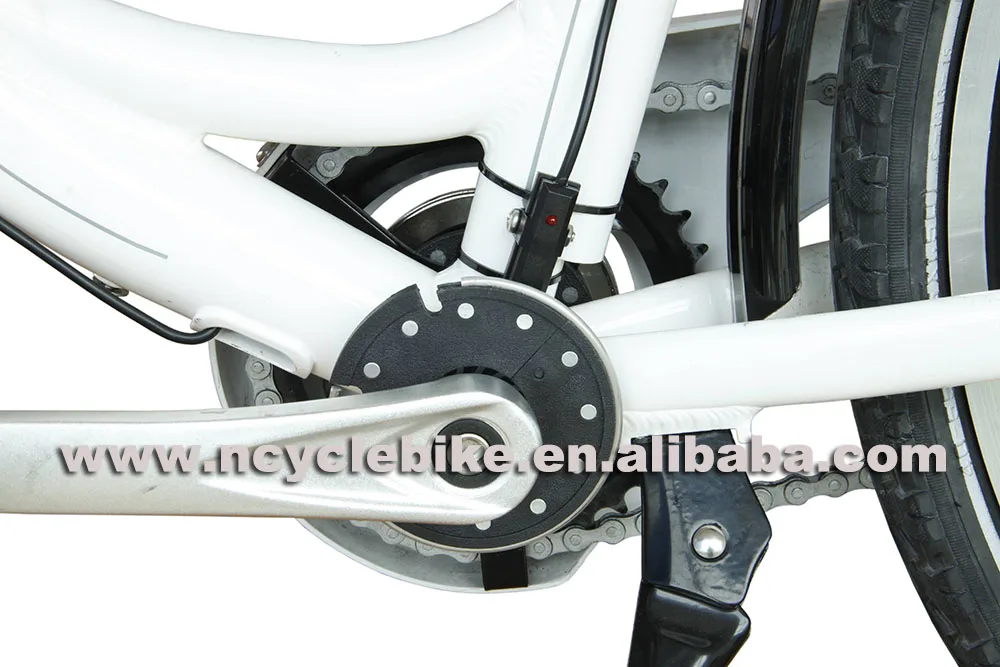

Installation of KT-D12L power-assistant sensor doesn’t need remove the crank, and the sensor can be installed directly on the electric bicycle axle.
