Thumb Throttle Electric Scooter E-bike Voltage Display Switch Handle Finger Scooter With Power LED Display

Regular price $18.00

Thumb Throttle Electric Scooter E-bike Voltage Display Switch Handle Finger Scooter With Power LED Display



Details:

1. Fit voltage:  12V-96V Universal.

2. Tube Size : fit for 22mm handlebar tube

3. Wire length : 150-160mm about

4. Cable type: random

5. Material: High-quality PVC

6.Work Voltage: DC 0.8V-42.V
7. Thumb throttle Without Handle with LCD display and power switch
.

Features and Benefits:
1:Suitable for all of Lithium battery, LiFePo4 battery and Lead acid battery.
2:Battery 12V-84V automatically Identify, Throttle DC 0.8-4.2V
3:Digital voltage display, intuitive and accurate judgment of remaining capacity, mileage.
4:Can indicate vehicle error according to voltage


About Wiring:( according your itmes wiring number,below date not only for one items)

4 wires : yellow is for voltage display wire, connect with electric bike power positive.

5 wires: blue wire connect with controller power lock output wire, yellow wire connected with controller electric switch input wire power positive,
6 wires ; yellow connected with power positive, blue wire and white is is function wire(can work as reverse switch, horn switch, cruise switch, power lock and so on)

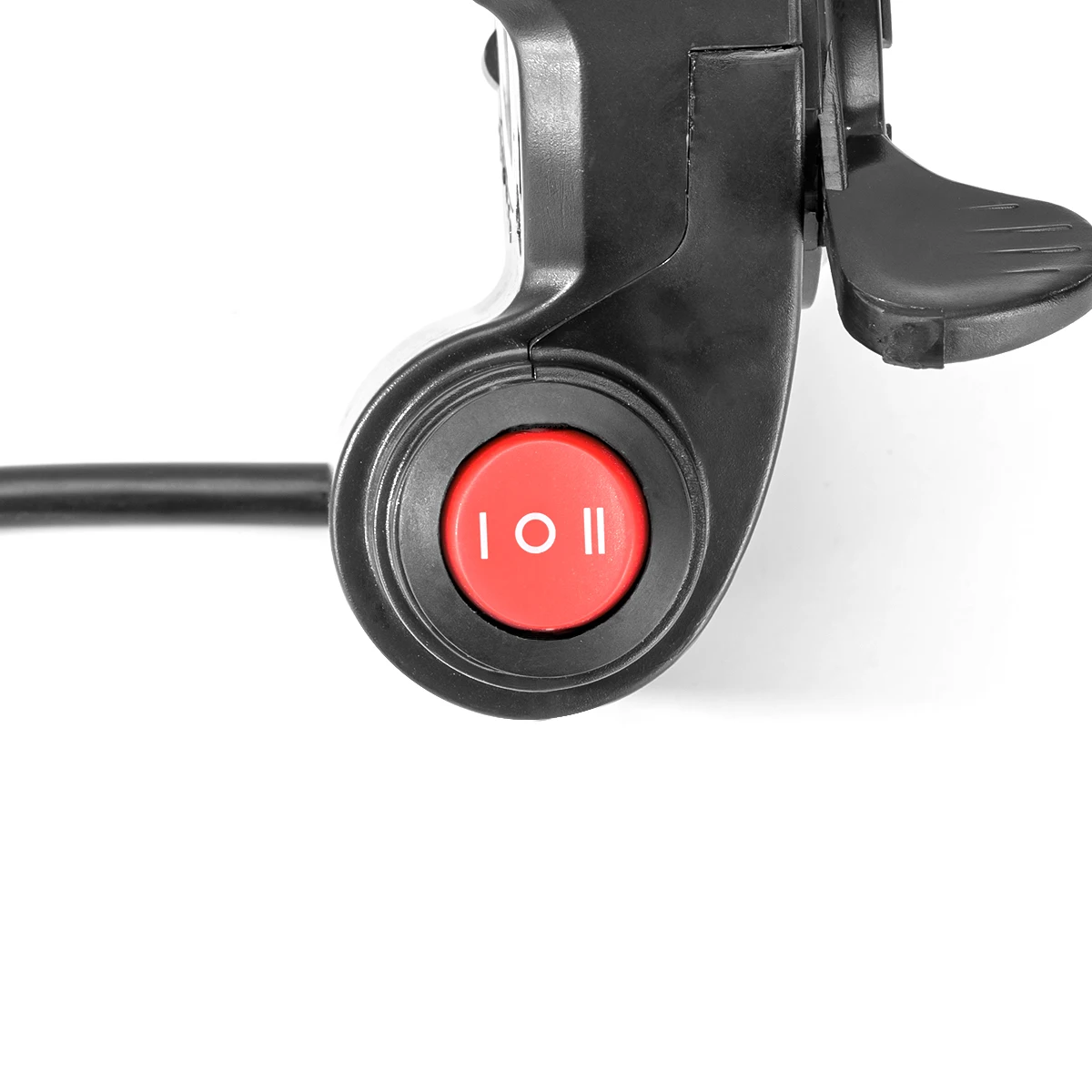

7 wires: yellow connected with power positive, blue is share wire, middle gear for 3 gears , white is high gear, brown is low gear.


Features or buyer note

For 12v electric bike, maximum voltage is about 12.6v, mini is about 9v or higher

For 24 electric bike, maximum voltage is about 29.4v, mini is about 21v or higher

For 36v electric bike, maximum voltage is about 42v, mini is about 29v or higher

For 48v electric bike, maximum voltage is about 54.6v, /58.8v, mini is about 40v or higher

For 60v electric bike, maximum voltage is about 72v, mini is about 49v or higher
For 72v electric bike, maximum voltage is about 84v, mini is about 60v or higher

For other electric bike with higher voltage there should be a voltmeter installed
