SiAECOSYS QS 3000W 72V 80kph Hub Motor with EM100SP controller kits for electric scooter

NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)

For 3000W motor kits, it could be used for electric scooter, which could be 72V 80KPH.

e.g. Electric Motorcycle

E-motorcycle weight, approx 108kg+1*100kg

Speed: 80 peak km/h

Climbing slope: 10 degree@208kg

Tire: 120/70-12

Battery: 72V40AH LG cell Lithium Battery

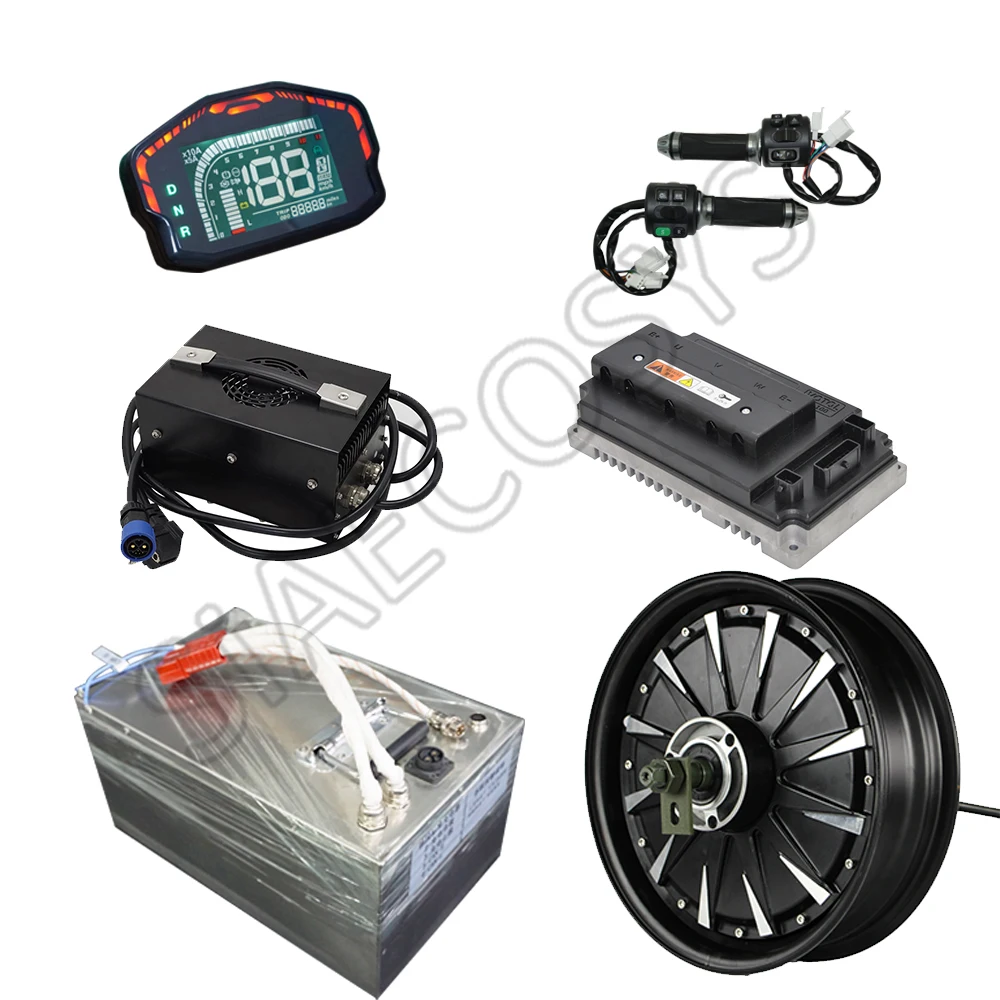

One set including below kits

Combo1.

1. 1pcs X QSMOTOR 3000W electric wheel hub motor

2. 1pcs X EM72100 sine wave motor controller with standard CAN-BUS

3. 1pcs X 1800W charger with CAN-BUS

4. 1pcs X DKD LCD speedometer

5. 1pcs X Z6 throttle with combination switch

Combo3.

1. 1pcs X QSMOTOR 3000W electric wheel hub motor

2. 1pcs X EM72100 sine wave motor controller with standard CAN-BUS

3. 1pcs X 1800W charger with CAN-BUS

4. 1pcs X 72V 40Ah Battery

5. 1pcs X DKD LCD speedometer

6. 1pcs X Z6 throttle with combination switch

(ps :The battery is difficult to transport, please communicate offline)

Key Features

1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

Product Description

1.QSMOTOR 12X3.5inch 3000W V1.2 Electric Scooter Hub Motor

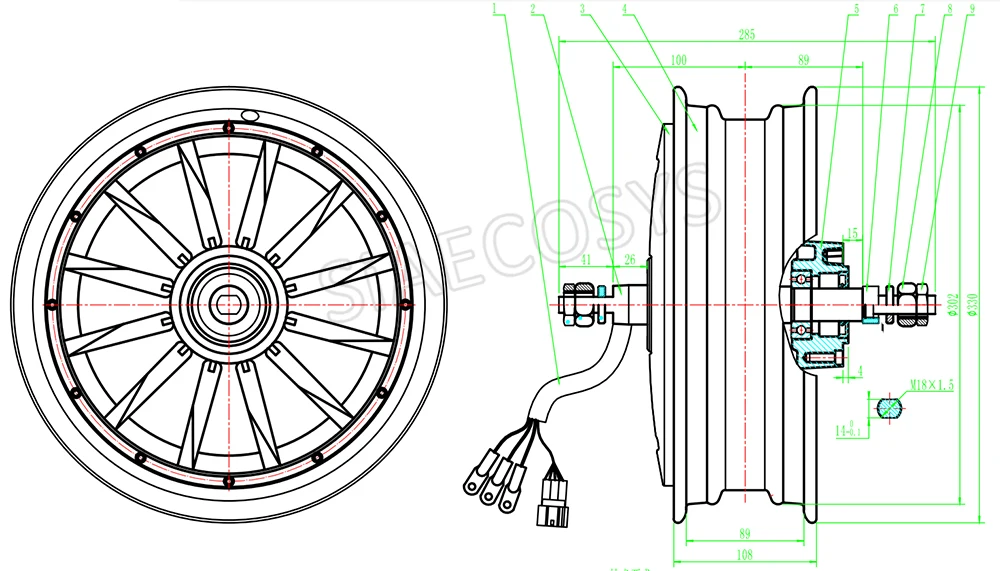

2. Drawing

3. Test report

Chassis dynamometer

2.EM100SP72V sinusoidal wave BLDC motor controller, with CAN BUS

Drawing

3. 1800W battery charger with CAN BUS (disable CAN as default, to fit with battery)

4. 72V40Ah Battery

(ps :The battery is difficult to transport, please communicate offline)

4.Vehicle Wiring suitable for EM50sp-EM150sp controller

Wiring Diagram

5. DKD LCD speedometer, can-bus(optional, LIN as default)

It display D N R, P, S gear, and battery current X5/10.

P.s.: If the working battery doesn't have can-bus communication, then the can-bus speedometer will shows lack of electricity always.

So, we suggest to do the speedometer as Line communication version if client can't get can-bus battery.

6. Z6 throttle with combination switch

With Reverse, Parking button( throttle on/off), 3 slide switch gear, s/boost button, Light and Horn.

It match with VOTOL controller well.

Please noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.

Application for 12x3.5inch 3kw in-wheel e-scooter hub motor
