Siaecosys/QSMOTOR 205 3KW Moped Conversion Kits E-Spoke Hub Motor with SVMC72150 controller

Regular price $910.68

Siaecosys/QSMOTOR 205 3KW Moped Conversion Kits E-Spoke Hub Motor with SVMC72150 controller



3KW Moped Conversion Kits is QS electric In-Wheel Scooter Spoke Hub Motor for Conversion Kits, which power range from 500w to 3000w rated, drop-outs 200mm with scooter disc brake.

Especially suit for electric bicycle/scooter, max. speed for 60km/h to 100km/h.

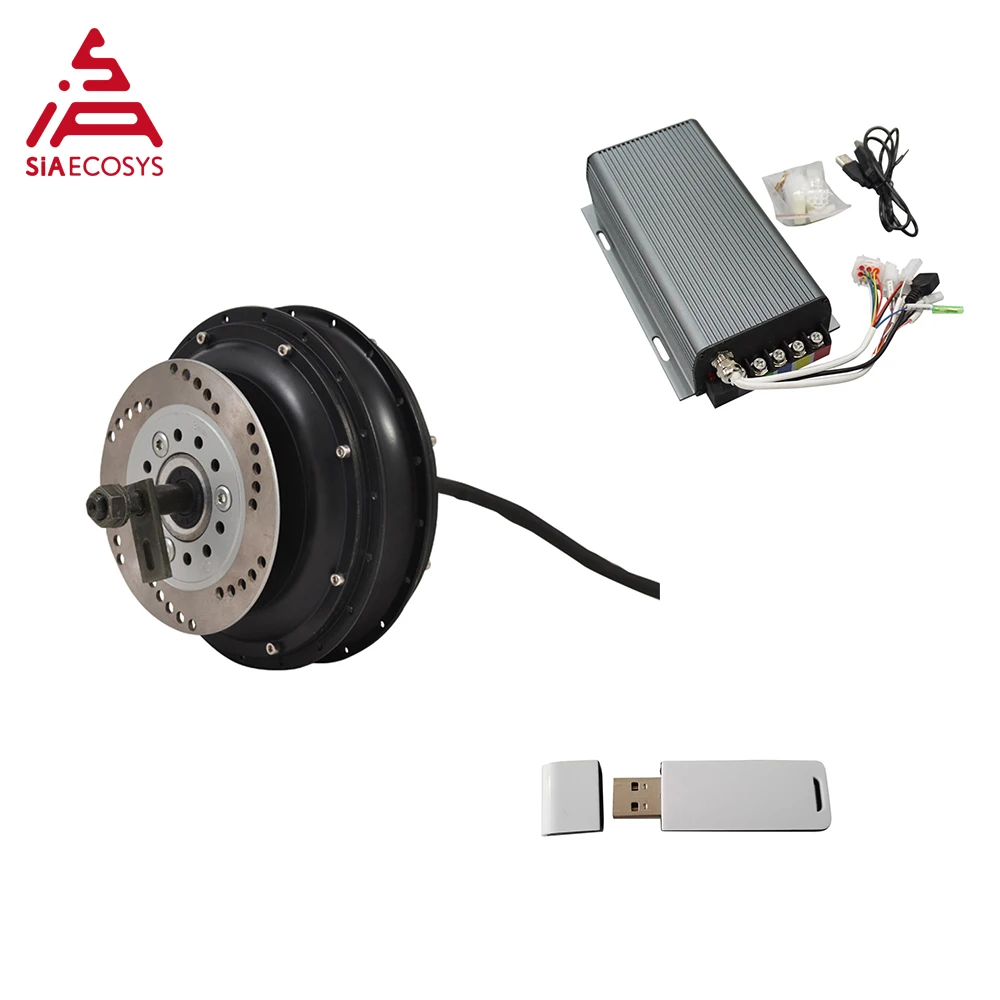

One set including below kits

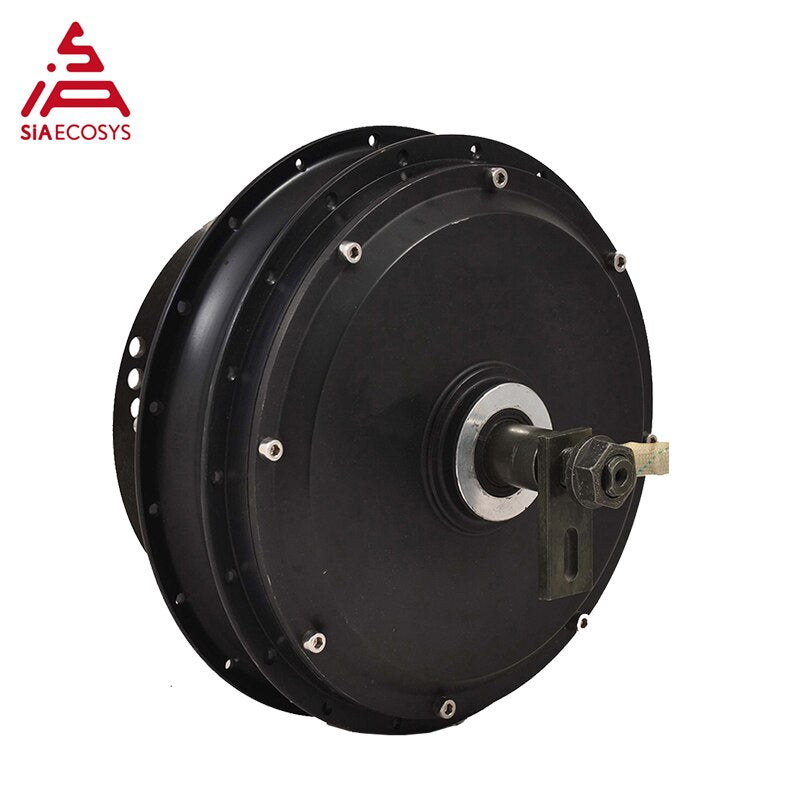

1. 1pcs QS 205 Moped Electric Spoke Hub Motor, 200mm drop-outs



2. 1pcs SVMC72150 Sine Wave Controller with Bluetooth adapter




Key Features


1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%



Product description


1. Genearlly Spec of QS 205 3kW V3 motor


Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor

Brand: QS Motor, QSMOTOR

Motor Design: Double axle without moped rim (integrated), 36 spoke holes, OD 4.2mm

Matching Rim Size: 24inch, 26inch E-Bike Wheel, 17inch, 18inch, 19inch moped wheel

Magnet Height: 50mm, 16 pole pairs

Stator: Aluminum Core

Rated Power: 3000W

Speed: 24KPH-100KPH, it's customized, genearlly we will design as 72V80KPH.

Work Voltage range: 48V-96V, will be 72V as default.

Max Torque approx 182.0N.m

KV: 6.25/7.29/8.33/9.03/11.9/16.32(optional)

Thermic Probe: KTY83-122 (as default, optional)

Max Efficiency approx 84%

Working Temperature: 70-120℃ , peak 150 ℃

Brake type: Disc brake (as default), PCD3*80mm for motorcycle

Drop-outs/Rear fork Width for installation: 200mm/190mm(Optional)

Dual Halls with waterproof connectors(One for using, one for spare

12mm axle flats

10mm² Cross Section of Phase Wire(not including insulation layer)

Waterproof Grade: IP54

Color: Black (As default)

N.W/ G.W: 13.5kg/14.5kg


2. Dimension Drawing:


  • QS 205 200mm drop-outs e-scooter spoke hub motor


Please noted:


Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.

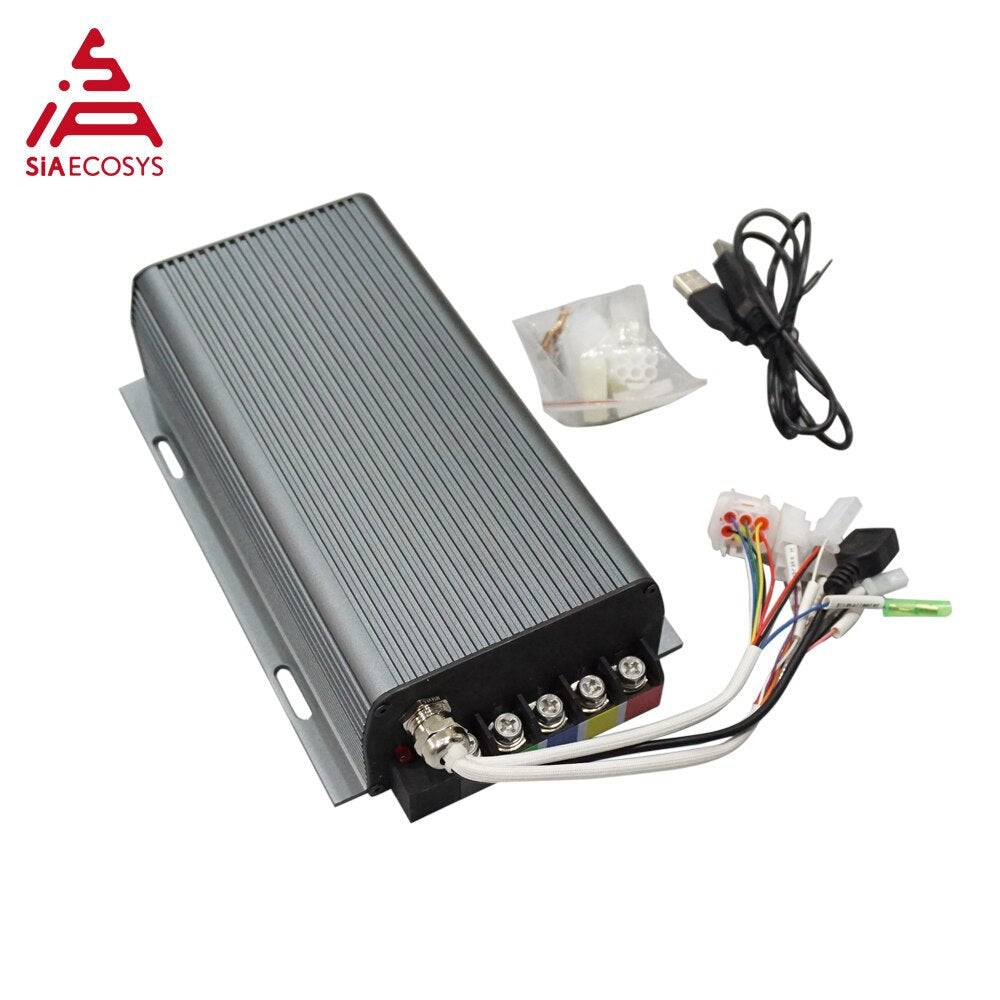

SVMC72150 Controller description


1). Sine wave controller, programmable, with regen braking function

2). DC Current Limit: 150A

3). Max. Phase Current: 350A

4). Protect Phase Current: 450A

5). Battery Voltage: 24V-72V rated, Max. 95V

6). Thermic Probe: KTY83-122

7). Including one controller + USB convertor cable + matched plug

8). Controller size: 247mm*146mm*62mm

9). Net weight: 2.35kg

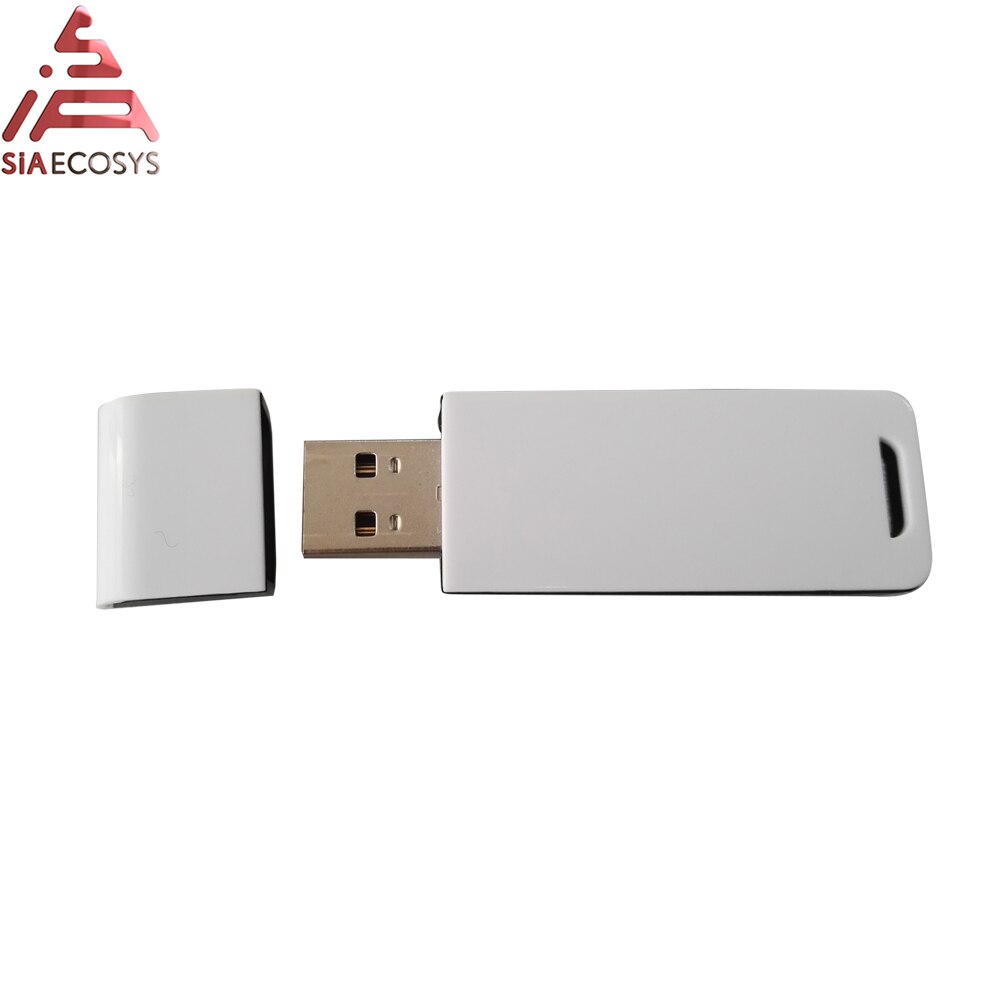

10). Including bluetooth adapter

11). Default function: Hall, Throttle, Electric Lock, High Brake Level, Temp sensor, 0-5v e-brake, three speed Button, Hall speedometer, Reverse, Curise.

If you're interested in buying SVMC72150 controller separately, please kindly click below picture.




Application For QS E-Bike Spoke Hub Motor
