SiAECOSYS 3000W Side Drive Motor powertrain Max 72V 100KPH Suitable for Electric Scooter

SiAECOSYS 3000W Side Drive Motor powertrain Max 72V 100KPH Suitable for Electric Scooter

NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)

For3000W PMSM side drive motor powertrain kits,it could be used for electricscooter, which could be max 72V100KPH, Compare to hub motor, it’s good for climbing, and easy to change from hub motor kits to side drive motor kits.

e.g. E-Scooter

E-Scooter weight, approx 100kg+2*80kg

Speed: continuous 72V100kph@30s

Gear ratio: 1:6.15

Climbing slope: 20°@40kph @180kg@120s

Battery: 72V30h

Tire: 110/70-12

P.S. If you have any confused about the shipping cost, please feel free to contact with us.

Also could place order but don't pay first, then we could adjust the price.

One set including below kits

1. 1pcs X MLTQ3C145-72 sidedrive motorwith rim

2. 1pcs X MLMD72V280A motor controller with standard CAN-BUS

3. 1pcs X DKD LCD speedometer with LIN

4. 1pcs X Z6 throttle with combination switch

Key Features

1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 92%

Product Description

1. MLTQ3C145-72 sidedrive motor

Drawing

Test Report

Refer to single motor, not assembly

For complete test report, please contact with seller.

2. MLMD72V280A sine wave motor controller with standard CAN-BUS

Spec for MLMD72V280A Controller

Drawing for MLMD72V280A Controller

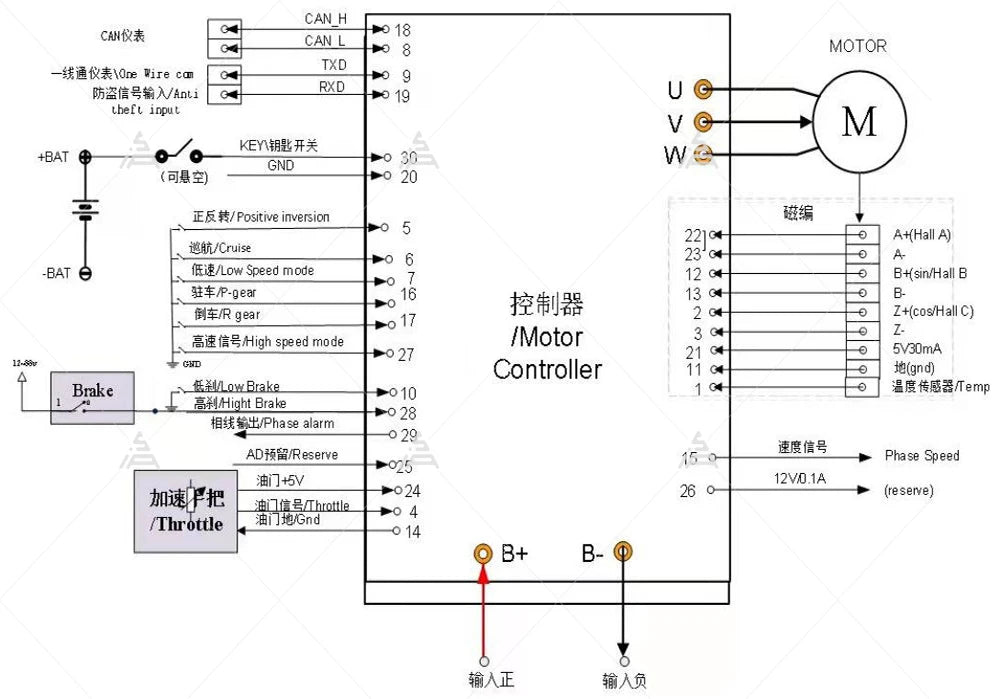

Controller Wiring Definition

3. DKD LCD speedometer, can-bus(optional, LIN as default)

It display D N R, P, S gear, and battery current X5/10.

P.s.: If the working battery doesn't have can-bus communication, then the can-bus speedometer will shows lack of electricity always.

So, we suggest to do the speedometer as Line communication version if client can't get can-bus battery.

Drawing

Mounting Dimension

Wiring Diagram

4. Z6 throttle with combination switch

With Reverse, Parking button( throttle on/off), 3 slide switch gear, s/boost button, Light and Horn.

Application
