QSMOTOR 273 8000W V3 72V 120kph High Speed E-Motorcycle Spoke Hub Motor with EM200-2 Controller Conversion Kit

Regular price $1,698.68

QSMOTOR 273 8000W V3 72V 120kph High Speed E-Motorcycle Spoke Hub Motor with EM200-2 Controller Conversion Kit


For 8000W  E-Motorcycle Conversion Kit 273 spoke hub motor, the dropout is 200mm, it could be used for electric motorcycle, high power electric motorcycle.

For 200mm dropout 273 spoke hub motor, we can provide from 3000W-8000W.


One set including below kits

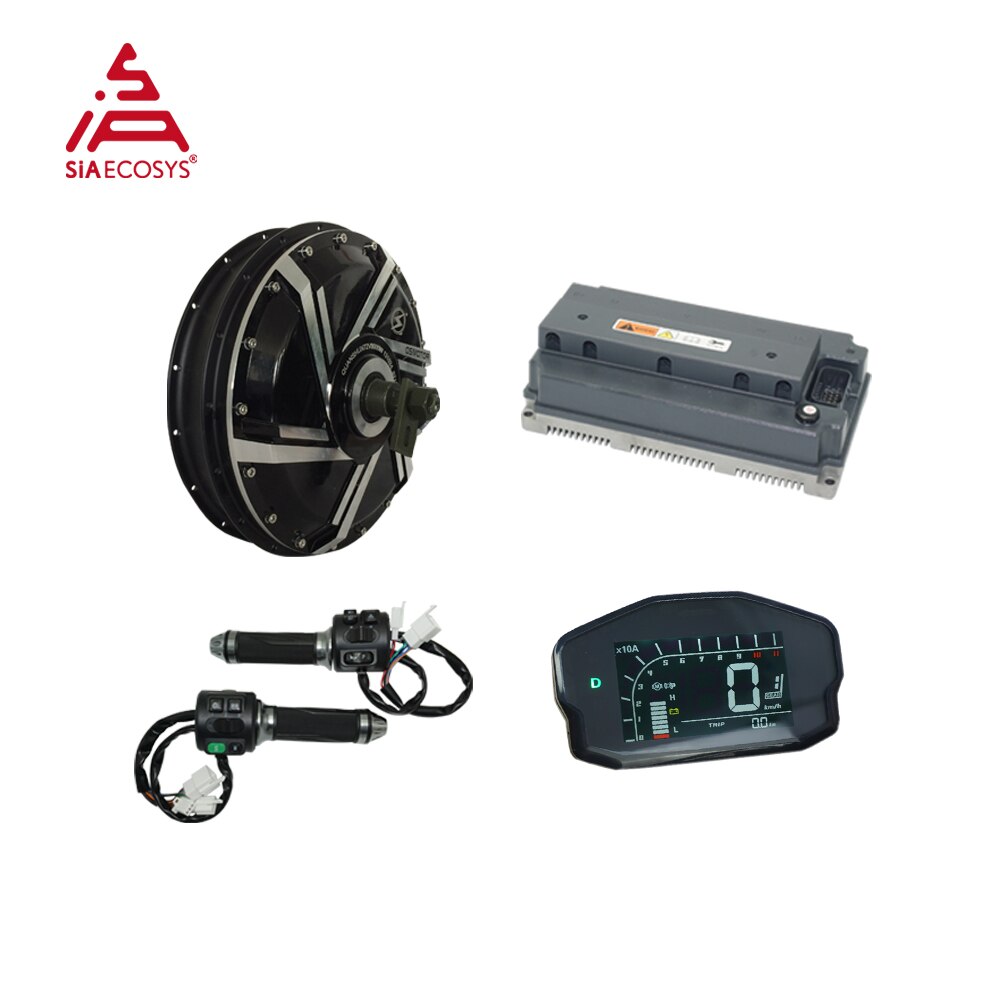

Combo 1

1. 1pcs X QSMOTOR 273 8000W V3 E-motorcycle spoke hub motor

2. 1pcs X Votol EM200-2SP sine wave motor controller with standard CAN-BUS

3. 1pcs X DKD LCD speedometer

4. 1pcs X Z6 throttle with combination switch

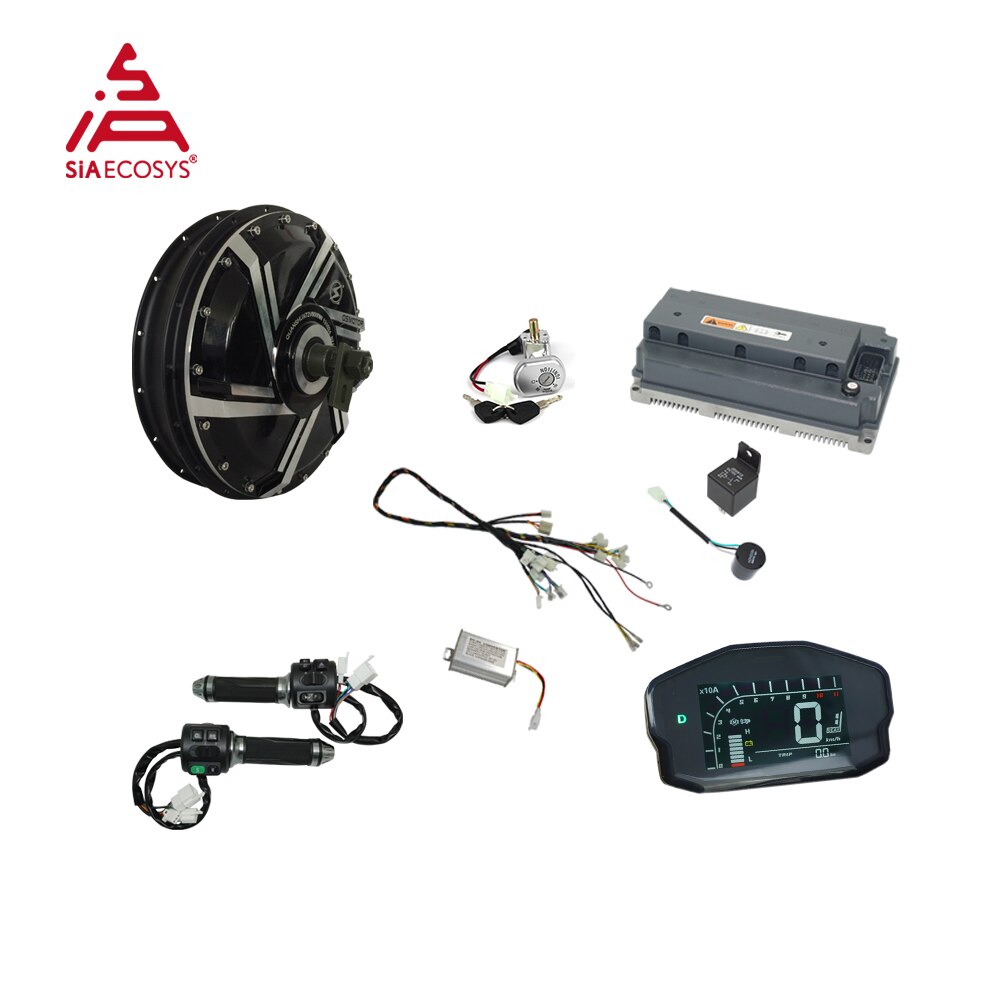

Combo 2

1. 1pcs X QSMOTOR 273 8000W V3 E-motorcycle spoke hub motor

2. 1pcs X Votol EM200-2SP sine wave motor controller with standard CAN-BUS

3. 1pcs X DKD LCD speedometer

4. 1pcs X Z6 throttle with combination switch

5. 1pcs XVehicle wiring harness for EM200-2 Controller(with 1pcs 4p 72V 40A relay, 1pcs flasher, 1pcs 72V to 12V10A DC converter, 1pcs Electric Lock Ignition)



Key Features

1). Simplify to make a electric-motorcycle. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%



Product Description

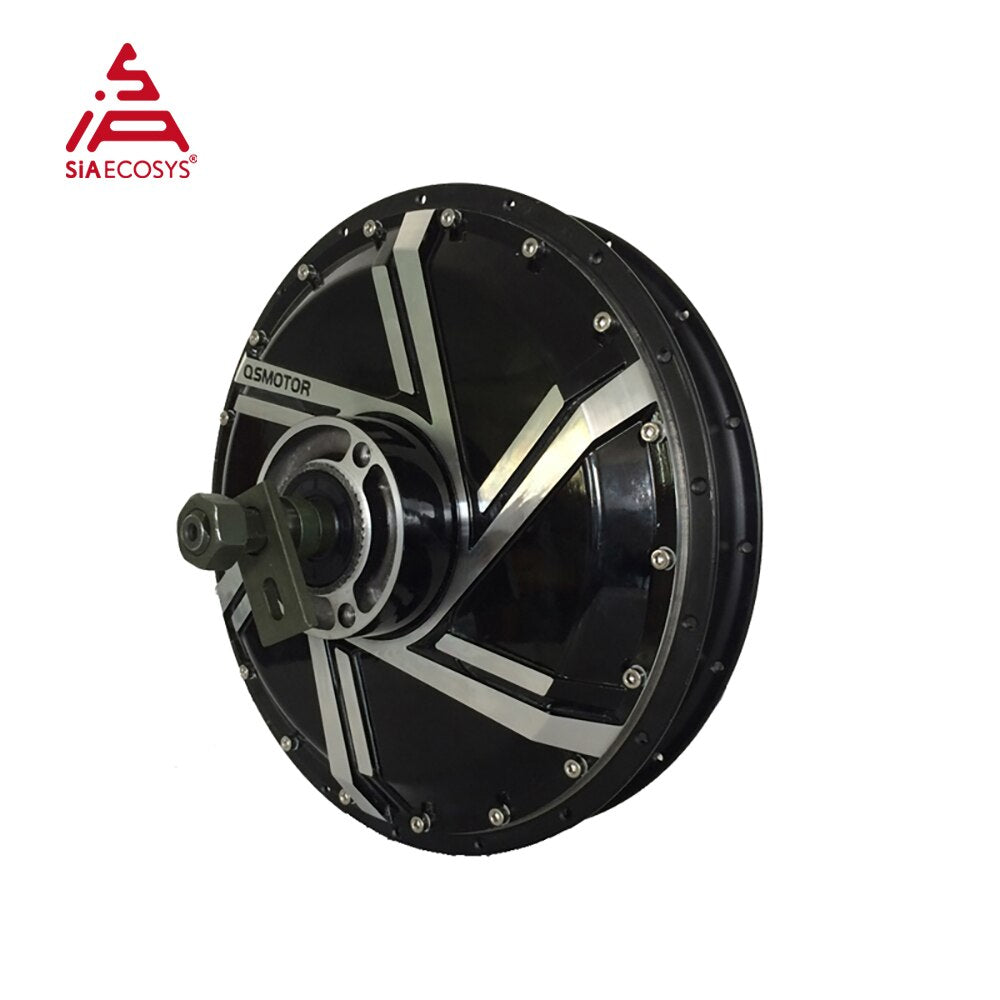

1.QS273 8000W V3 E-motorcycle spoke hub motor Spec




Drawing

QS 273 200mm drop-outs e-motorcycle spoke hub motor

Test Report

For reference only

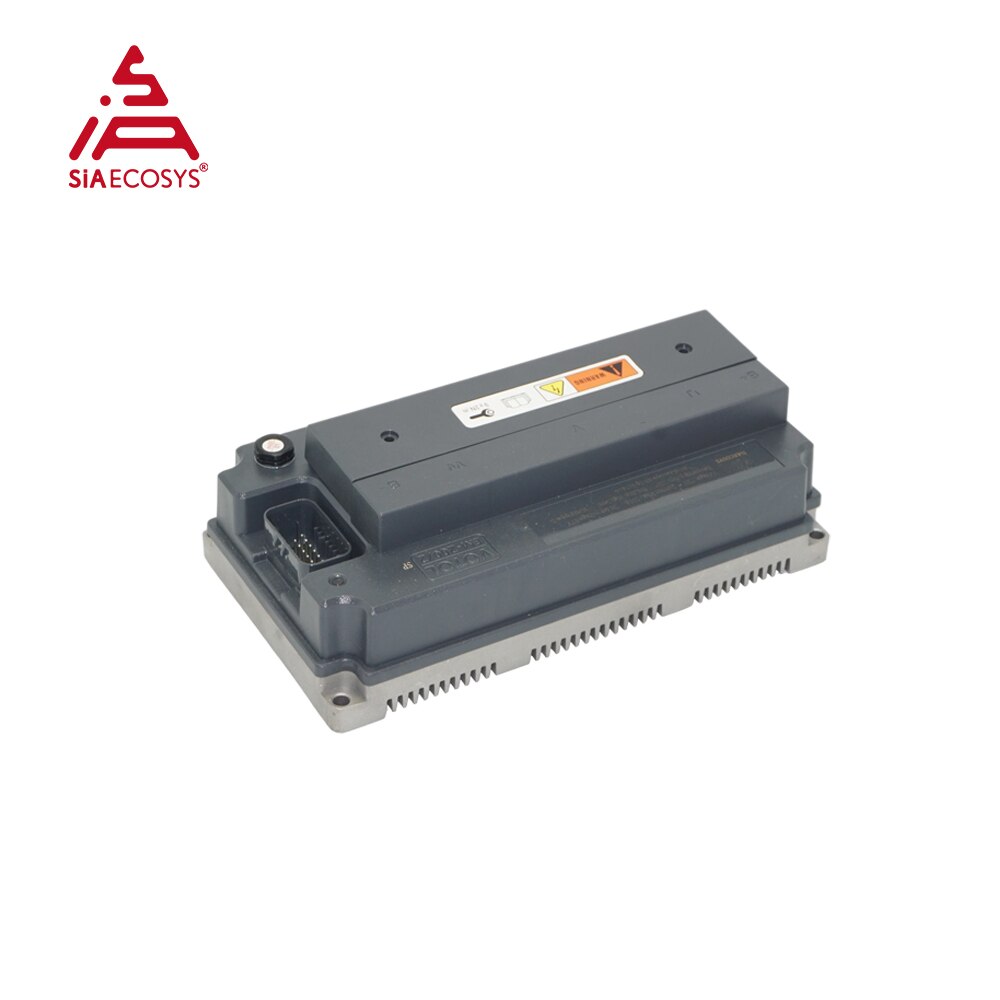

2EM200-2 Sine Wave Motor Controller


Key Features

1). The materials are imported.

2). Withthe aluminum substrate scheme, the Moss tube is laid on the aluminum substrate
and then placed on the PCB board

3). Smallin size

4). Highefficiency, low temperature rise, small running current

5).With flux weakening function


Product Description

EM200-2sp is cost effective controller withwaterproofing grade IP67, suit for 4-8kW motors.

Drawing


Debugging Cable



Software interface(PC)



Wiring Diagram

For the detail of wiring manual, pls contact our online service.

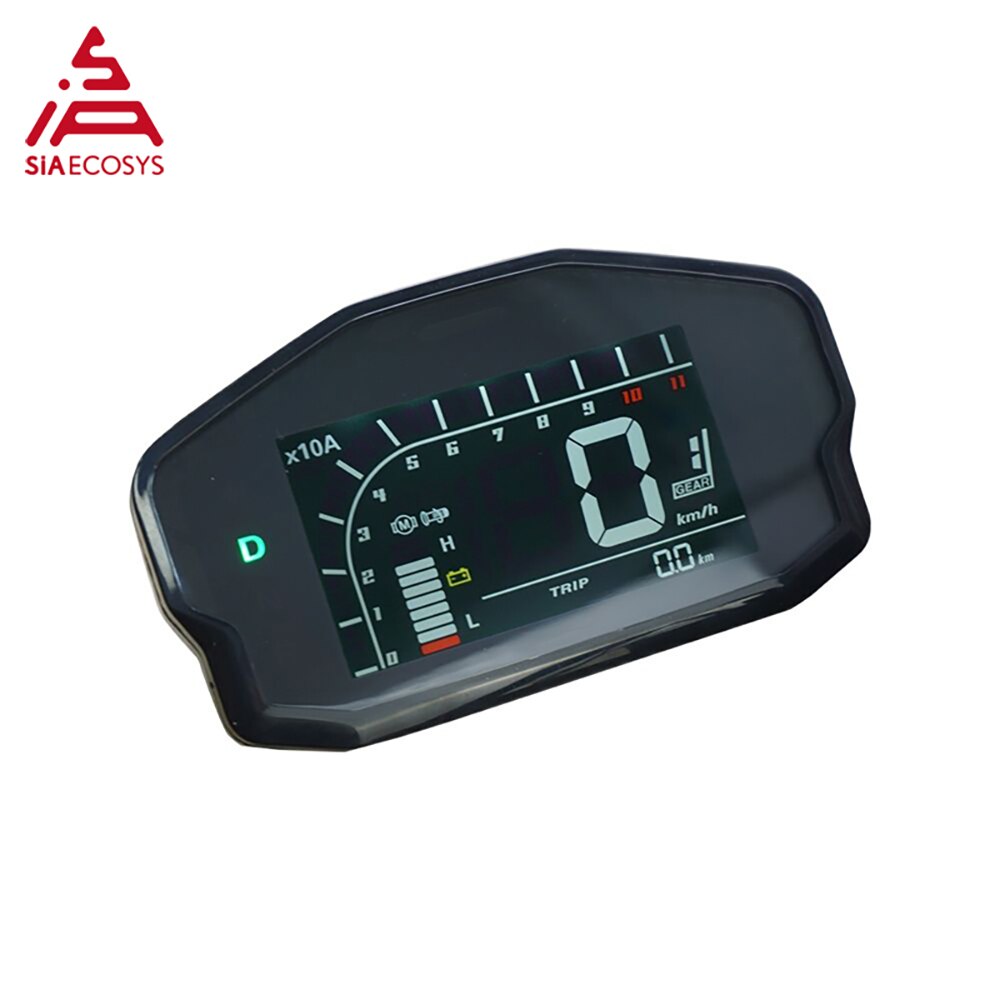

3. DKD LCD speedometer


Key Features

Both CAN and LIN communication are supported


Product Description

It display D N R, P, S gear, and battery current X5/10.

P.s.: If the working battery doesn't have can-bus communication, then the can-bus speedometer will shows lack of electricity always.

So, we suggest to do the speedometer as Line communication version if client can't get can-bus battery.

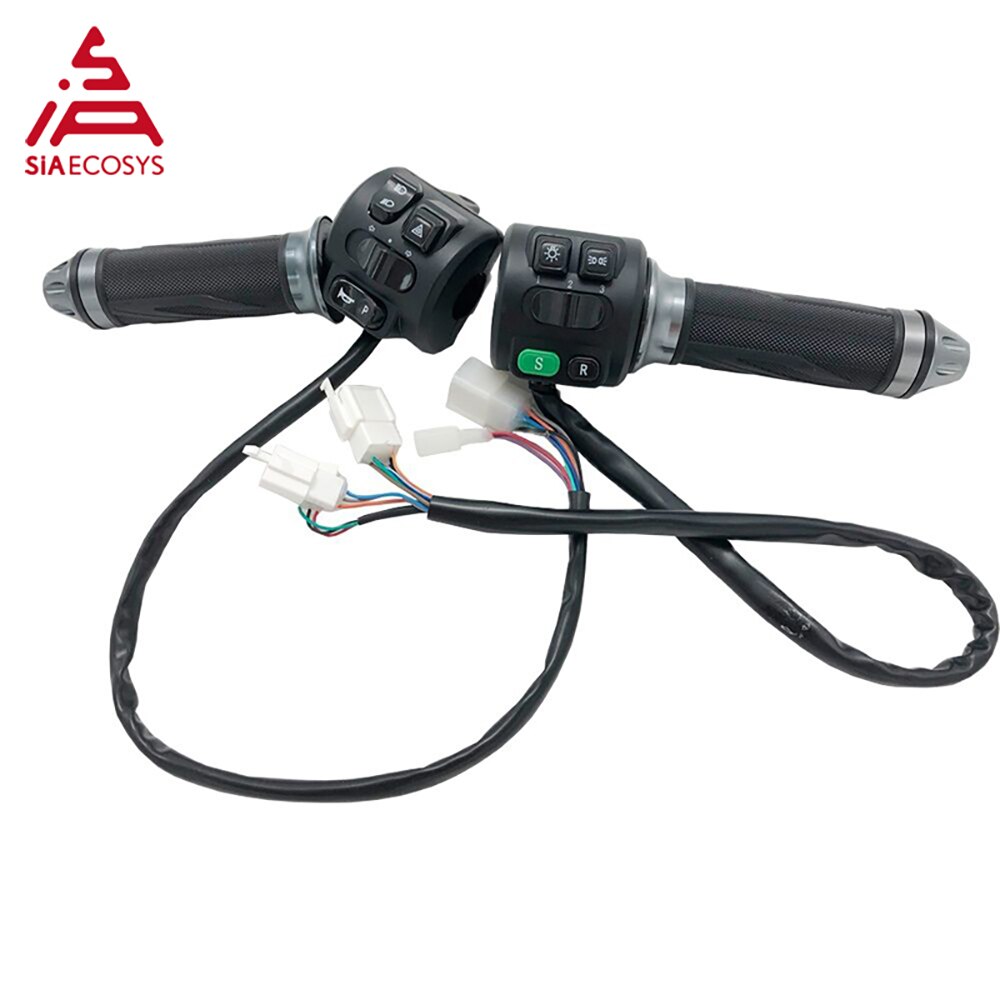

4. Z6 throttle with combination switch


Basic Parameters

Color: black

Rated operating voltage: DC+5V

Current: DC 10mA

Main material: ABS PVC

Right throttle pull force/ left handle pull pull force: ≥200N / ≥200N

Torsional strength: ≥ 9N.m

Output voltage: 0.8 ~ 4.2V

Service life: ≥100,000 times

Waterproof rating: IPX6

Number of core cable:5

Type of switch: half twist, with meter and key

Inner diameter of throttle: 22mm


Function

With Reverse, Parking button(throttle on/off), 3 slide switch gear, s/boost button, Light and Horn.

It match with VOTOL controller well.





5. Vehicle Wiring Harness


Programmable Software & User manual (Before you received the controller)

Pls. Contact with sales to get the link and password to download the manuals and software before/when you got the controllers.
