QSMOTOR 1kW 90 72V55KPH Mid drive motor

QS 1kW 90 72V55KPH Mid drive motor

NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support.

(special countries list contact seller)

For 90 1000W mid drive motor, it could be used for electric scooter, electric motorcycle.

It could be 72V 55KPH, available for 10inch wheel kits.

QS can provide customized 428 14 teeth sprocket to match with 1kW mid drive motor.

1. Belt axle QS 90 1kW mid drive motor

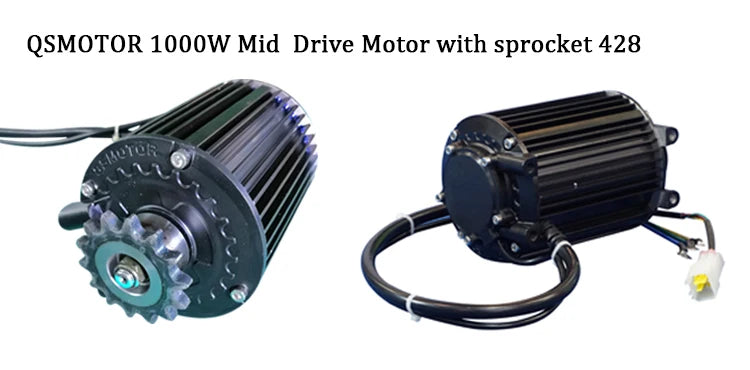

2. 428 Sprocket axle QS 90 1kW mid drive motor

Key Features

1). Simplify to make a electric-motorcycle. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

Product description

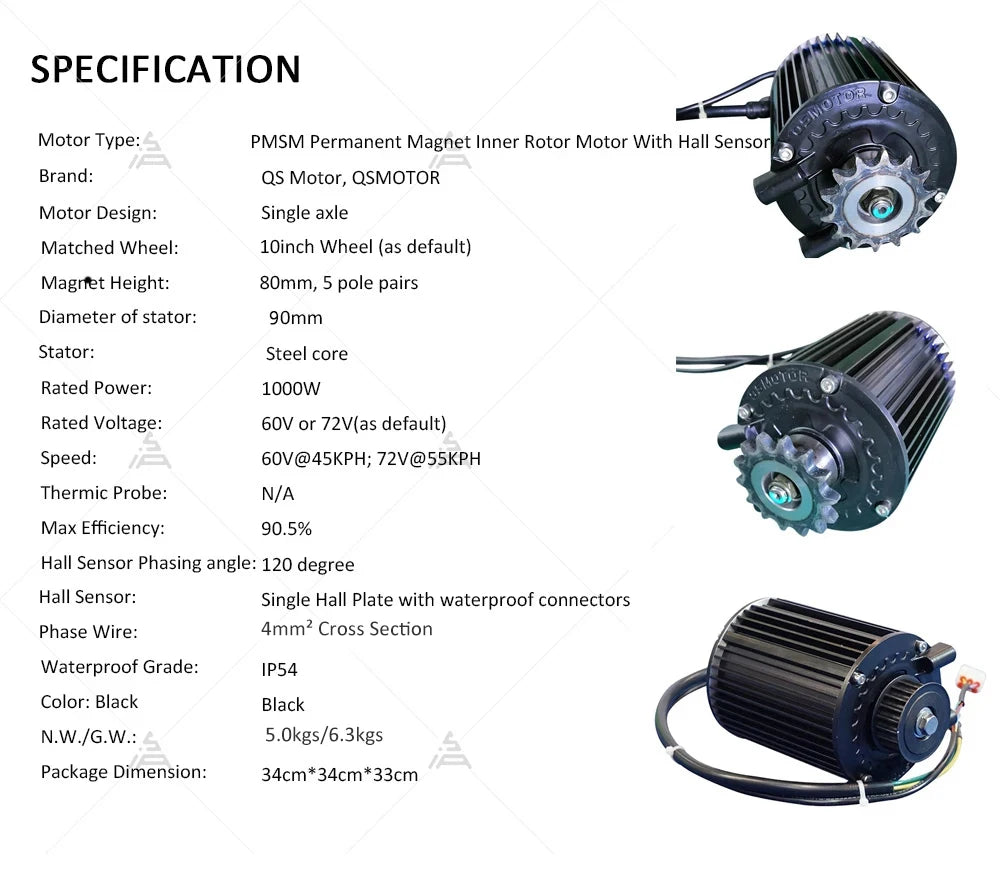

Genearlly Spec:

1.QSMOTOR 1000W 80H Mid Drive Motor

Dimension Drawing:

QS 1000W 90 mid drive motor(old appearance, belt driven)

Test report:

For 1kW 90 new appearance mid drive motor, we have matched assemble kits.

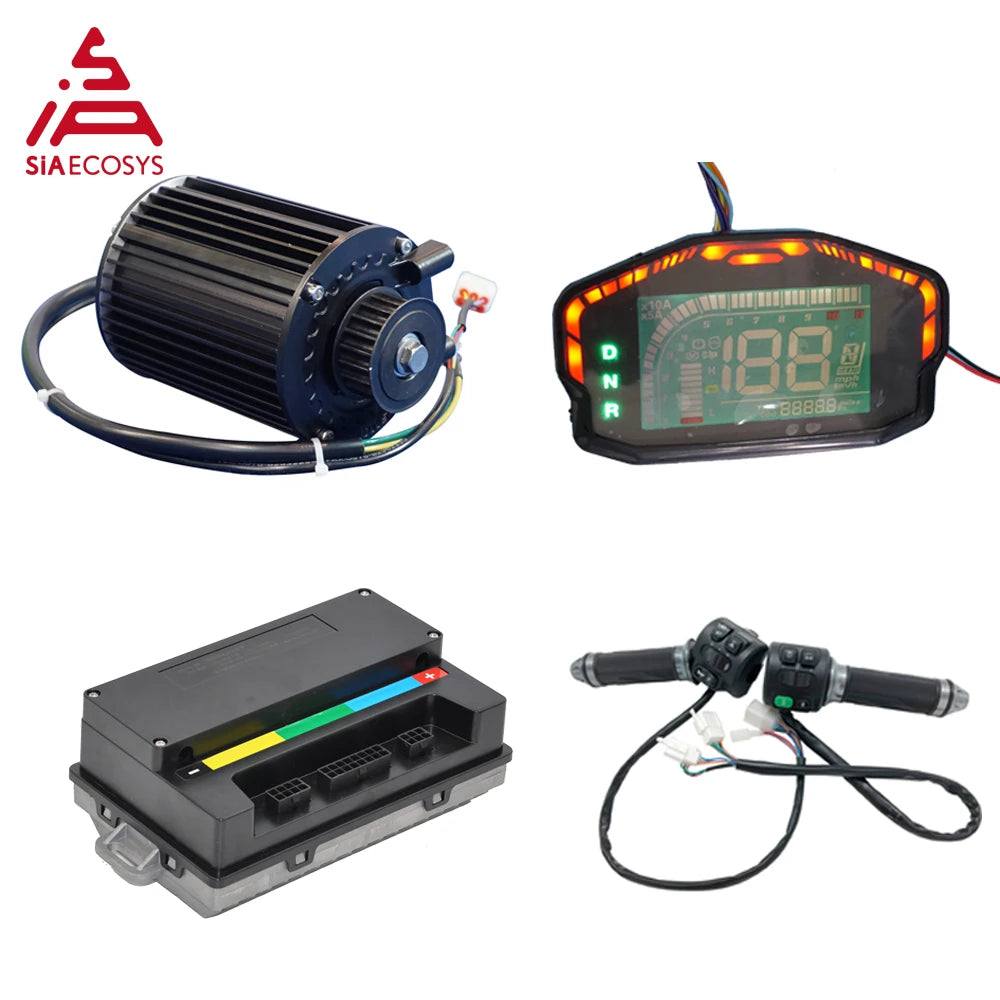

Conversion kits for QS 1kW mid dirve hub motor

We're able to supply Controller, display, twist throttle,..etc.

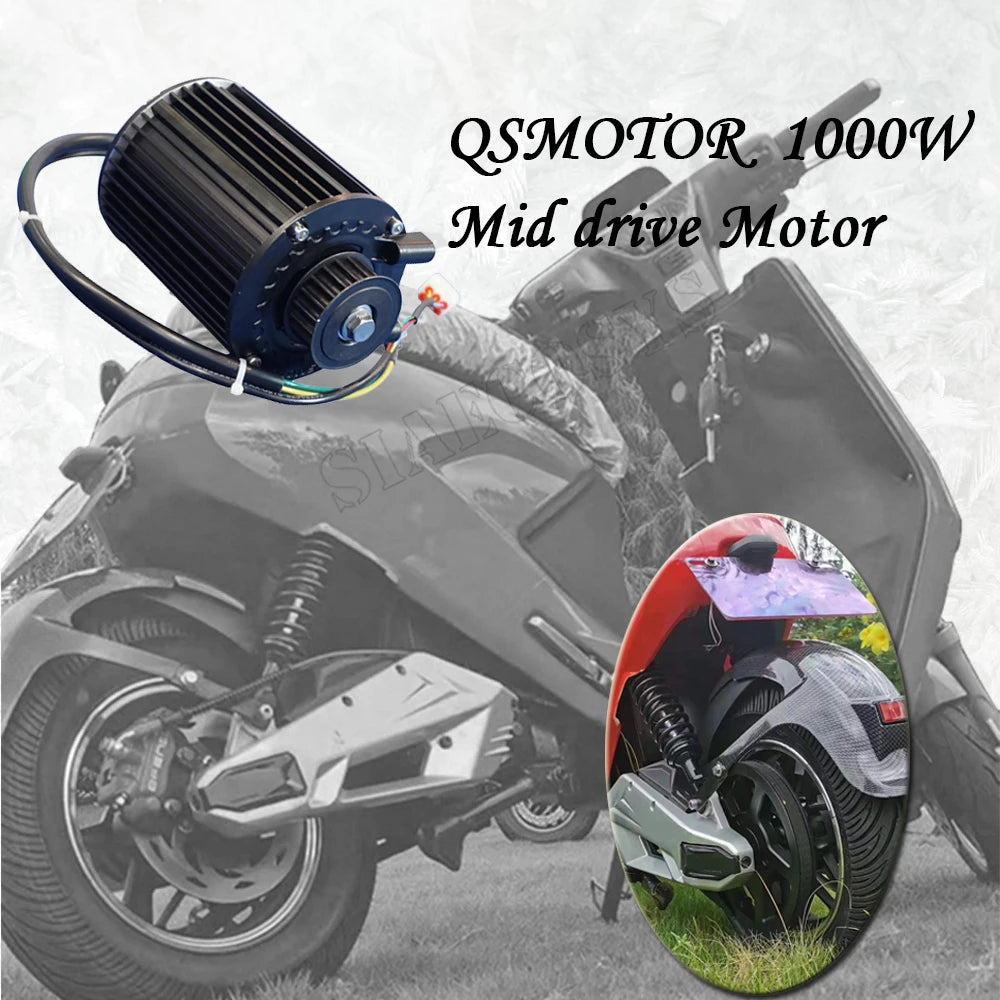

Application for E-Motorcycle mid drive motorApplication for E-Motorcycle mid drive motor
