QS Motor 16*3.5inch 3000W 260 V1.12 70kph with SVMC72200 BLDC in wheel hub motor kits with speedometer for electric motorcycle

NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)

For 16inch E-Motorcycle wheel hub motor kits, it could be used for electric motorcycle.

e.g. Electric Motorcycle

E-motorcycle weight, approx 100kg+75*2kg

Tire diameter: 120/70-16

Speed: 72V 70km/h @ fully charged

Climbing slope: 12degree @250kg

Battery: 72V30Ah lithium battery

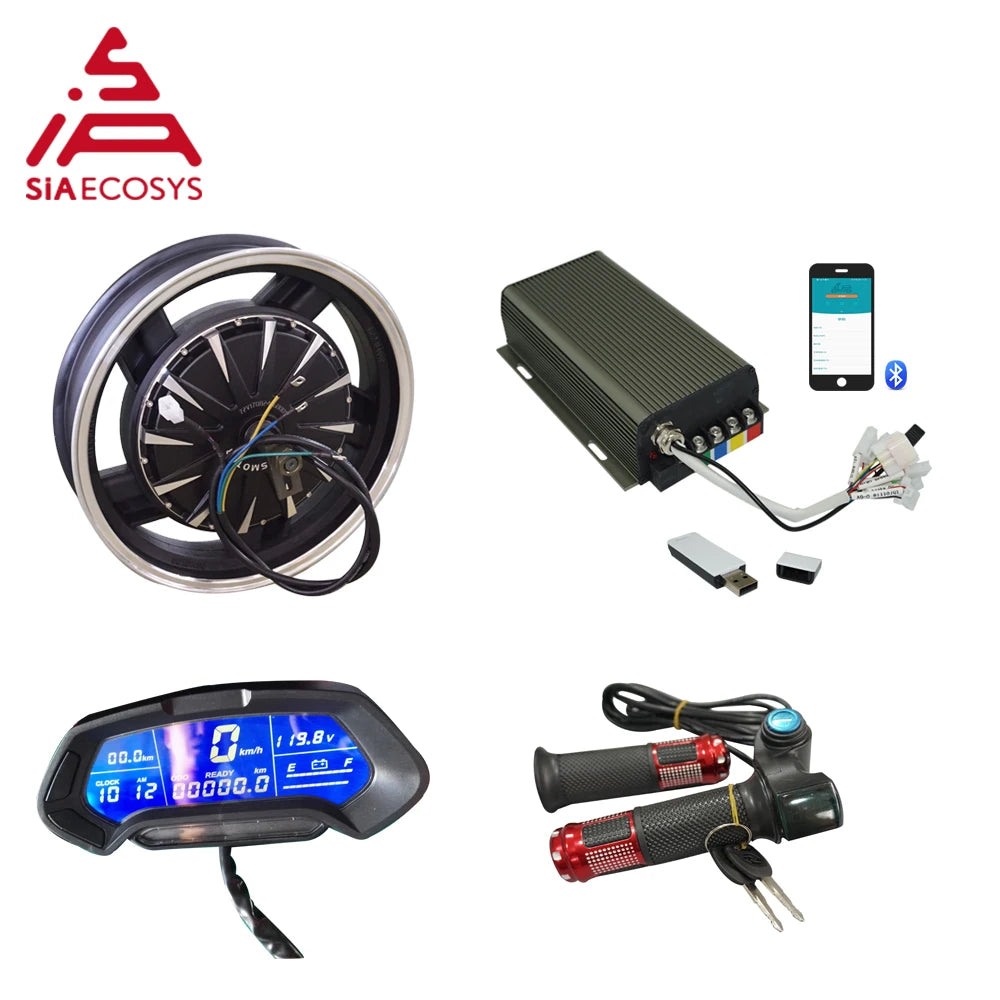

One set including below kits:

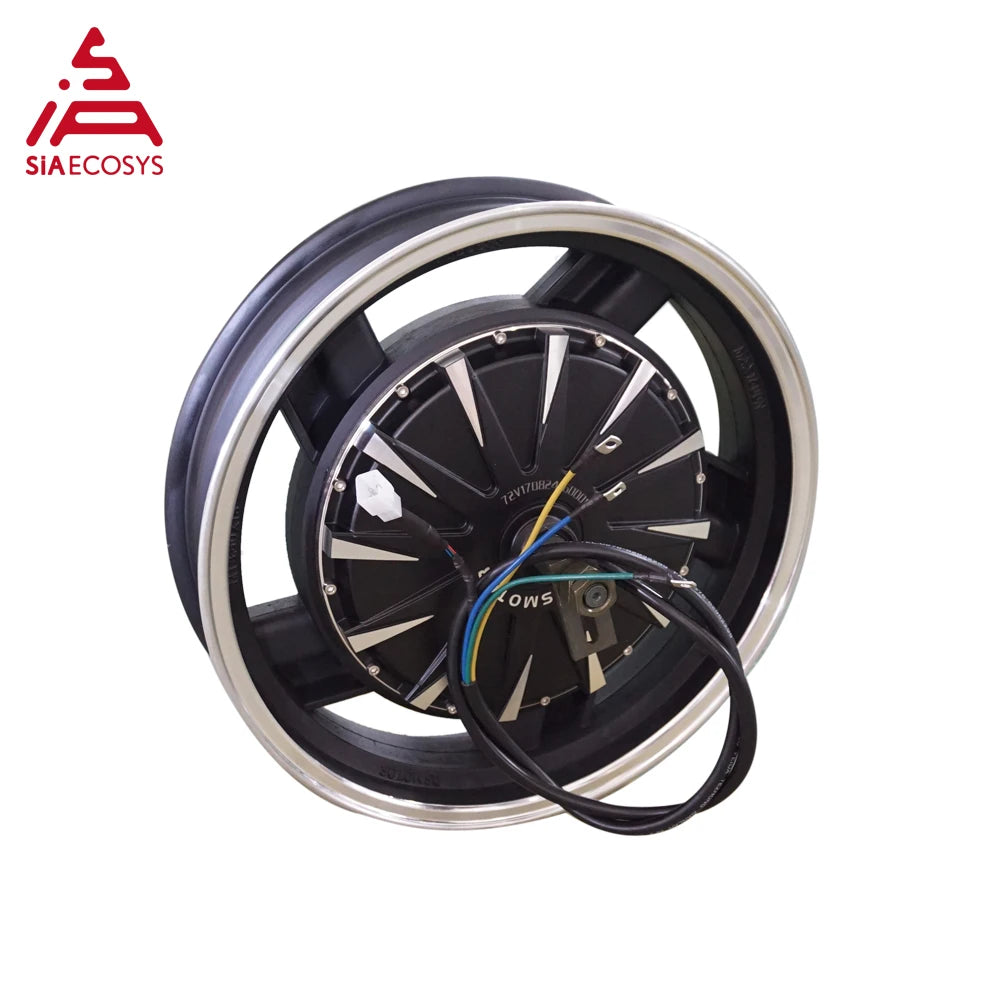

1. 1pc X 3000W 16X3.5inch V1.12 Electric Motorcycle hub Motor

2. 1pc X SVMC72200 controller

3. 1pc X bluetooth adapter for controller

4. 1pc X CT-22 Speedometer

5. 1pc X Full Twist throttle with voltage display and Ignition

Product Description:

For 16inch 260 E-Scooter wheel hub motor, it could be used for electric scooter, electric motorcycle.

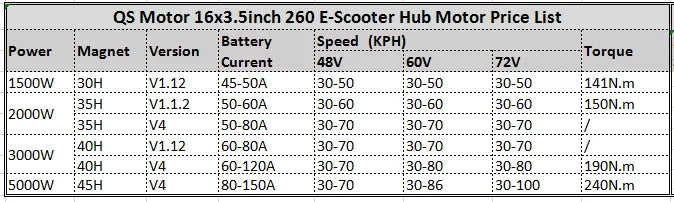

There are one type of wheel, 16X3.5inch 260 (1500w-5000w),we also can 16x3.0inch 273 hub motor (2000w-8000w)

We offer16X3.5inch as default，if you need other size, please feel free to contact sellers.

For E-scooter wheel hub motor, we also provide the10-17inch type, you can click the picture of hyperlink for the detailed information:

Key Features

1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

1. Generally SPEC

• Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor

• Brand: QS Motor, QSMOTOR

• Motor Design: Double axle with 16inch moped rim (integrated)

• Rim Size:16x3.5inch(Narrow size as default), matched tire: 120/70-16 etc

• Magnet Height: 40mm, 24 pole pairs

• Stator: Steel Core

• Rated Power: 3000W

• Speed: 30KPH-80KPH, it's customized, genearlly we will design as 72V70KPH.(KV:10.3 as default)

• Work voltage range: 48V-96V, will be 72V as default.

• Max Torque approx >177.2N.m

• KV: 7.7/10.3/11.7/13.2(optional)

• Thermic Probe: KTY83-122 (as default, optional)

• Max Efficiency approx 88%

• Brake type: Disc brake design(as default), PCD3*80mm-M8, CB 58mm

• Drop-outs: 200mm

• Dual Halls with waterproof connectos(One for spare, in case of damage)

• 10mm² Phase Wire

• Waterproof Grade: IP54

• Color: Black (As default)

•

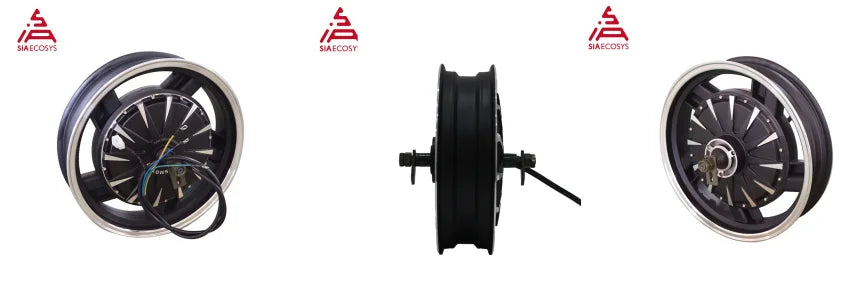

Product show:

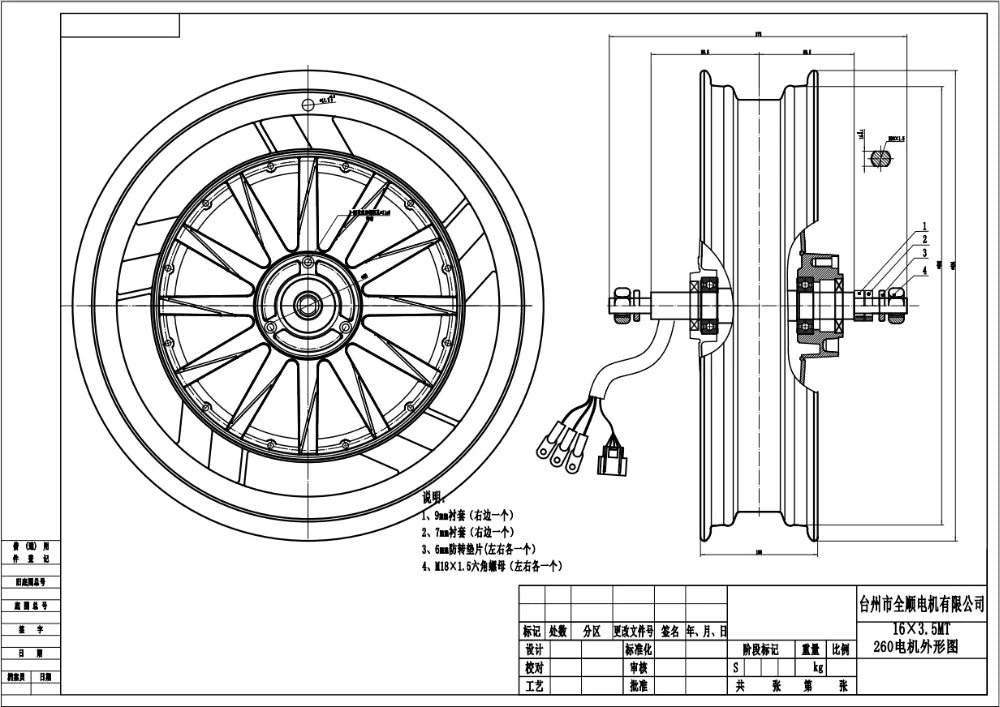

Dimension Drawing

here is drawing of 16*3.5inch 260 hub motor:

Other power recommended:

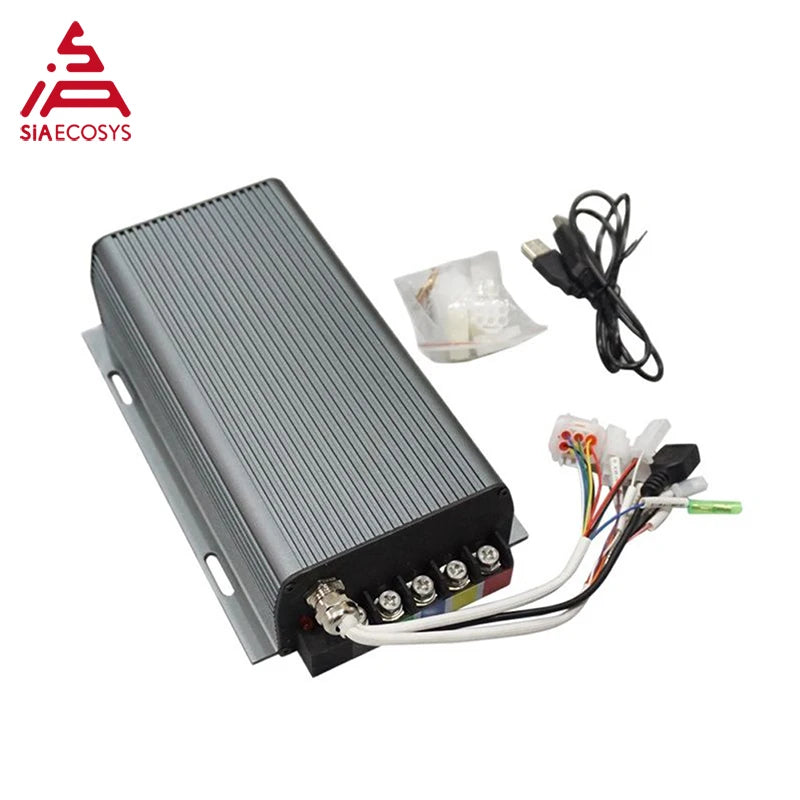

2.SVMC72200  BLDC motor controller:

1). sine wave controller, programmable, with regen function

2). DC Current Limit: 200A

3). Max. Phase Current: 450A

4). Battery Voltage: 24V-72V rated, Max. 90V

5). Thermic Probe: KTY83-122

6). Including one controller + USB convertor cable + matched plug

7). controller size: 283mm*147mm*62mm

8). Net weight: 3.0kg

9). Default function: Hall, Throttle, Electric Lock, High Brake Level, Temp sensor, 0-5v e-brake, three speed switch, Hall speedometer,

10). Special functions: Waterproof, Anti-theft optional, if need, please contact seller.

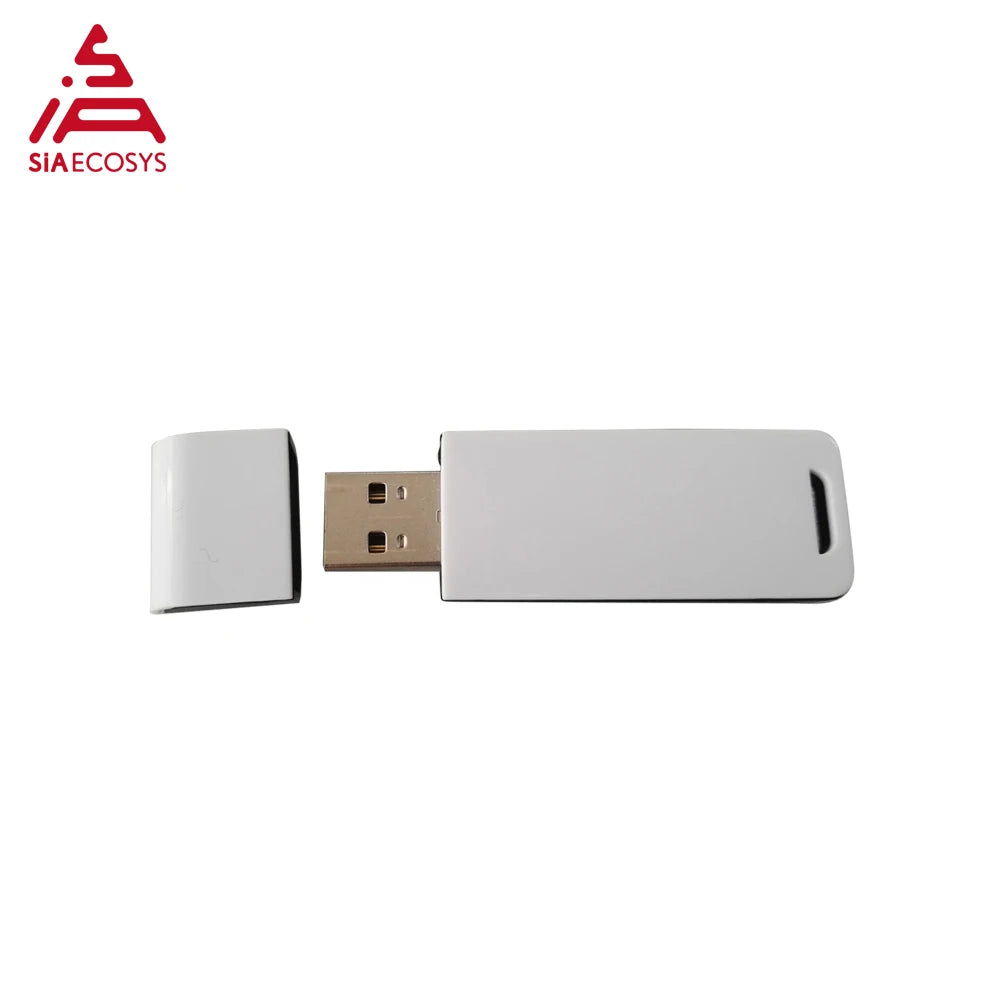

3.Bluetooth adapter for Sabvoton controller:

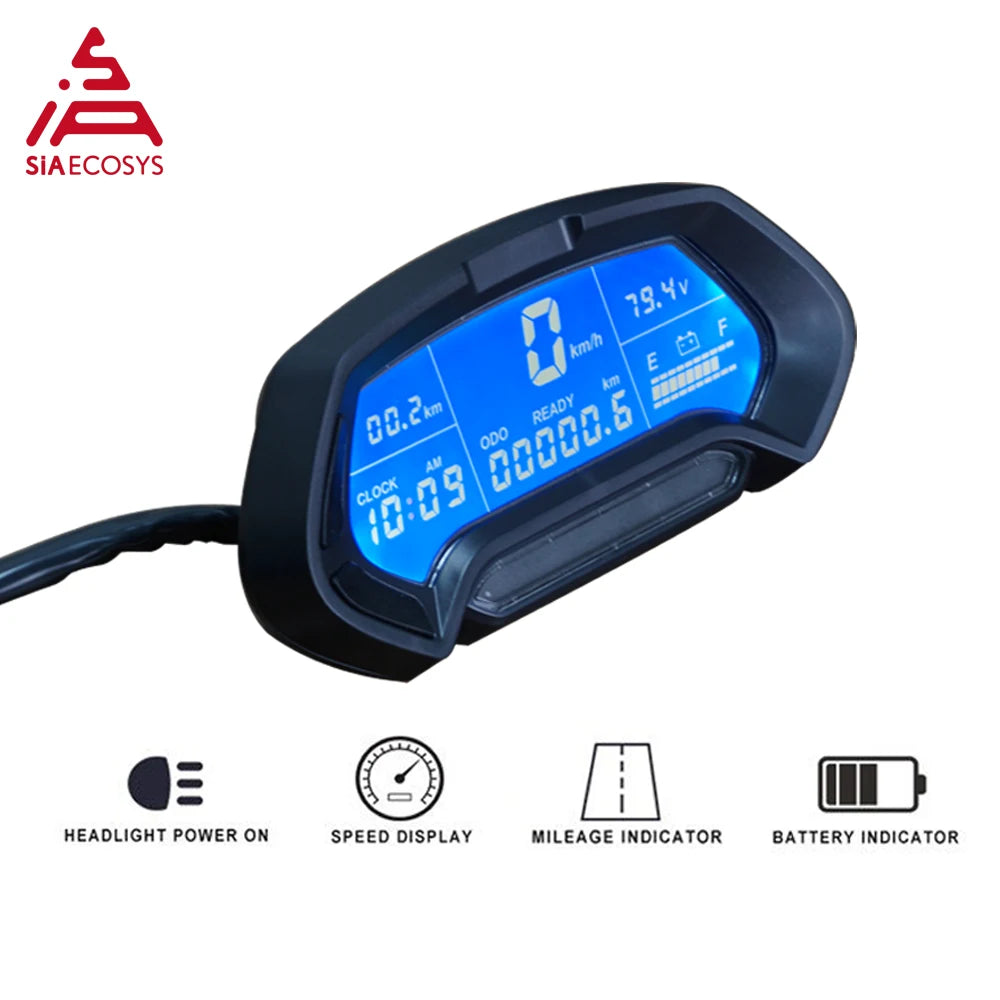

4.CT-22 Speedometer:

Shown Time, driving distance, speed, voltage, electric quantity

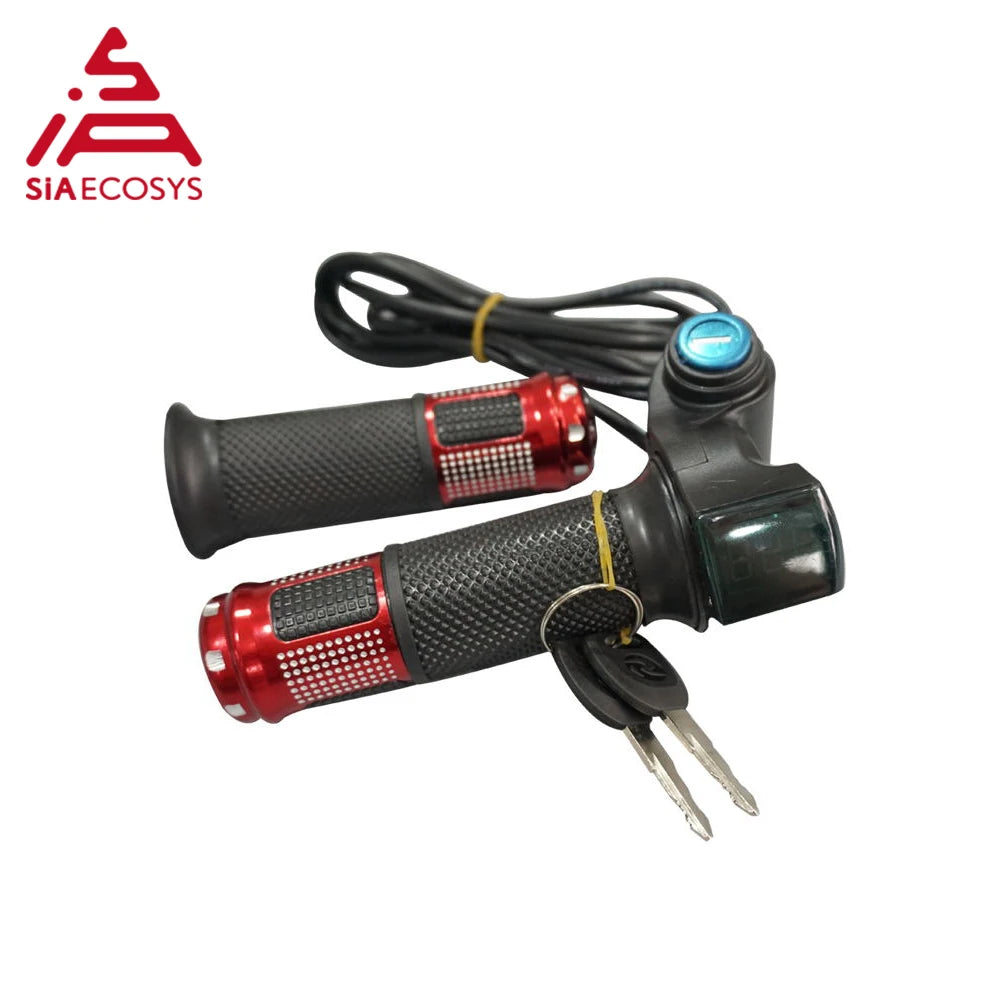

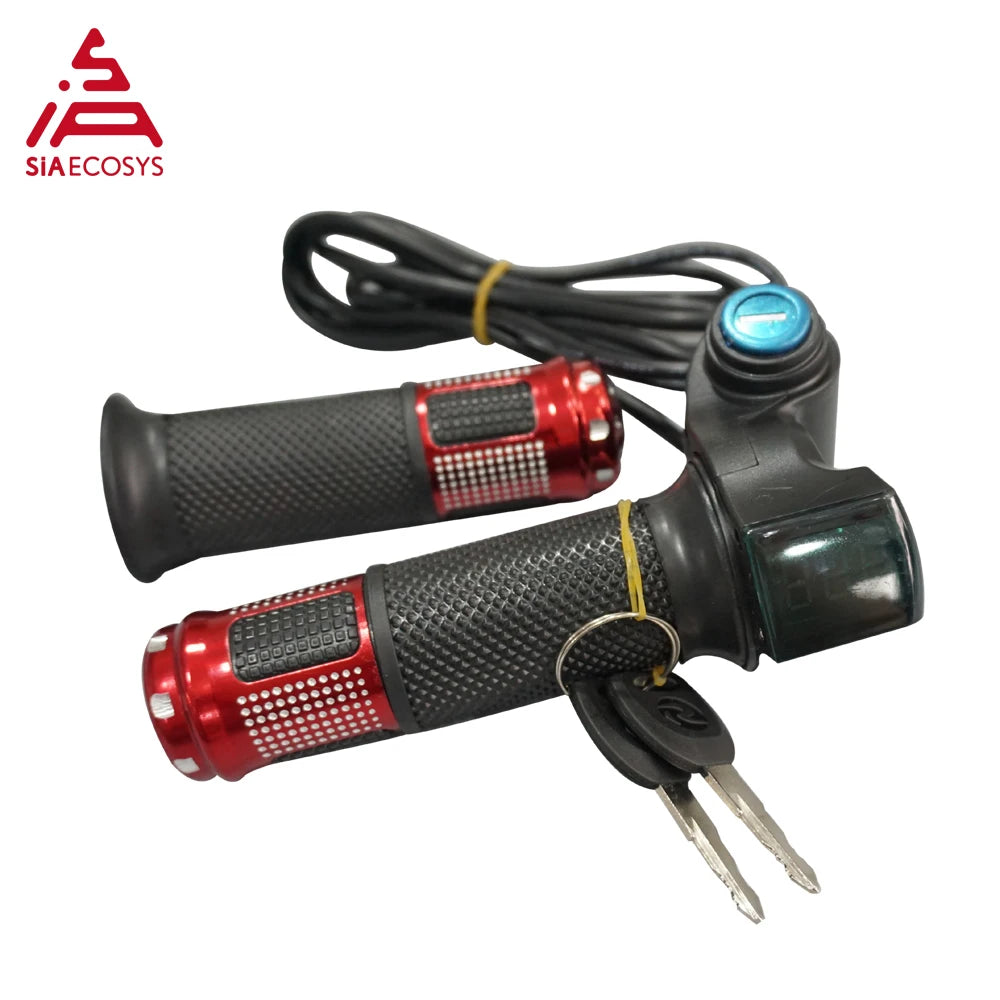

5.Full Twist Throttle With Voltage Display And Ignition

Application：
