QSMOTOR 12inch 2000W 72V 65kph HubMotor with EM72100 Controller Kits for Scooter
For 2000W motor kits, it could be used for Electric Scooter, which could be 72V 65KPH.
e.g. Electric Scooter
Weight, approx 100kg+80 *2kg
Speed: peak 65km/h
Climbing slope: 15 degree@260kg
Tire: 120/70-12

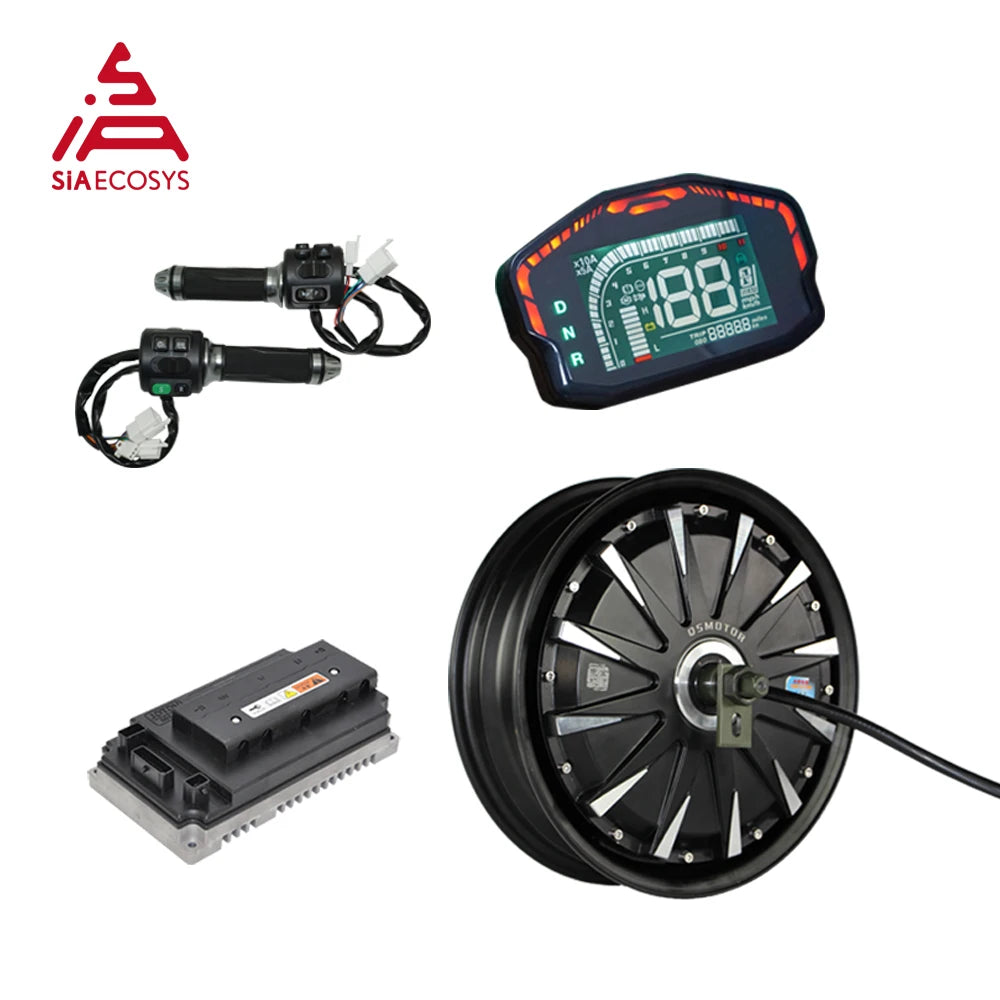

One set including below kits
1. 1pcs X QSMOTOR 12X3.5inch 2000W V1.12 electric wheel hub motor
2. 1pcs X EM100SP sine wave motor controller with standard CAN-BUS
3. 1pcs X DKD LCD speedometer
4. 1pcs X Z6 throttle with combination switch
Key Features
1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%
Product Description
1.QSMOTOR 12X3.5inch 2000W V1.12 electric wheel hub motor
Drawing
Test Report

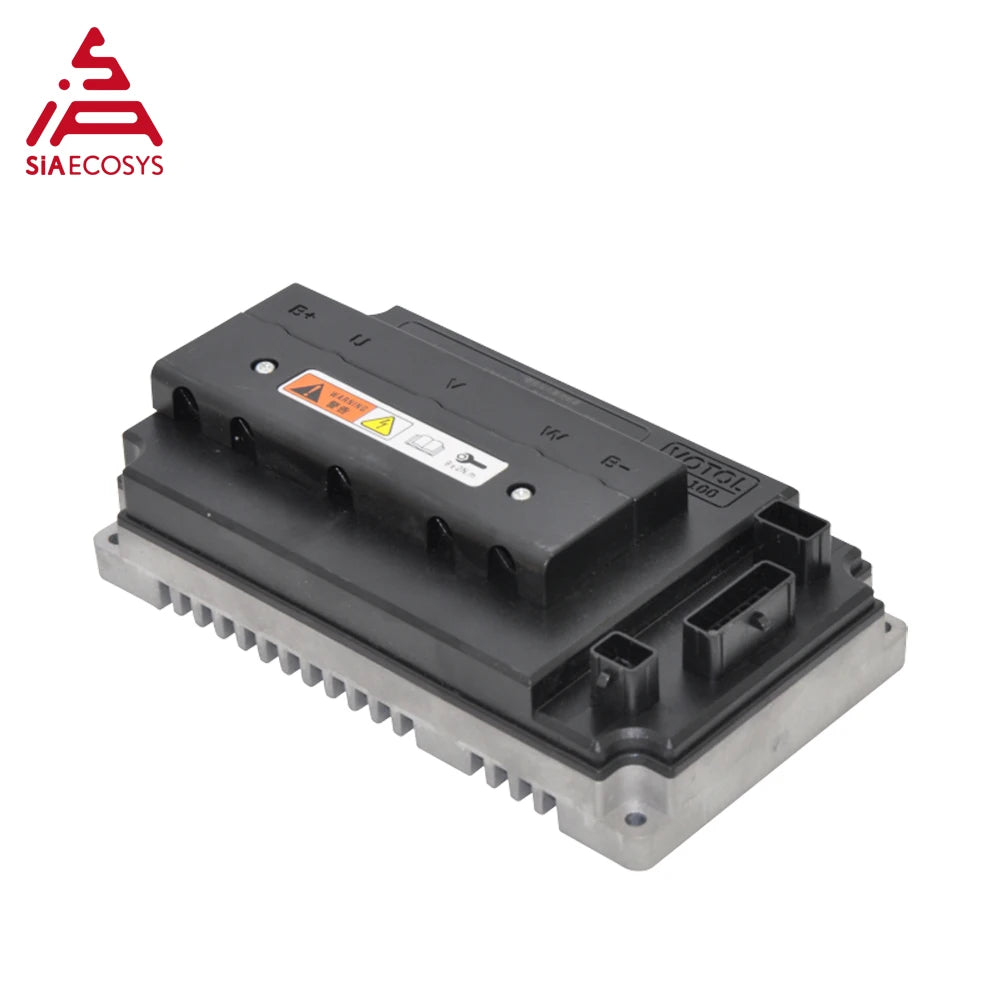

2.EM72100 72V sinusoidal wave BLDC motor controller, with CAN BUS
Drawing
3.DKD LCD speedometer, can-bus(optional, LIN as default)
It display D N R, P, S gear, and battery current X5/10.
P.s.: If the working battery doesn't have can-bus communication, then the can-bus speedometer will shows lack of electricity always.
So, we suggest to do the speedometer as Line communication version if client can't get can-bus battery.
4.Z6 throttle with combination switch
With Reverse, Parking button( throttle on/off), 3 slide switch gear, s/boost button, Light and Horn.
It match with VOTOL controller well.
5.Vehicle Wiring suitable for EM50sp-EM150sp controller
Wiring Diagram
