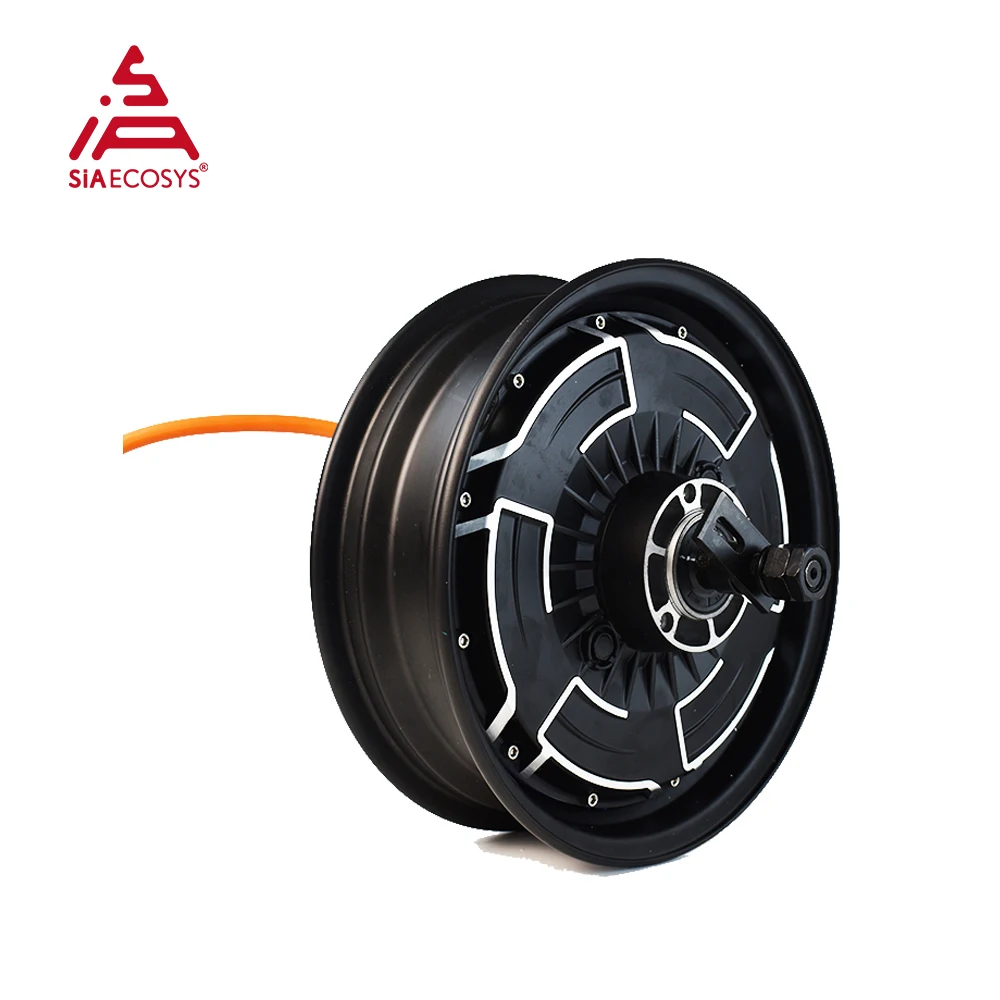

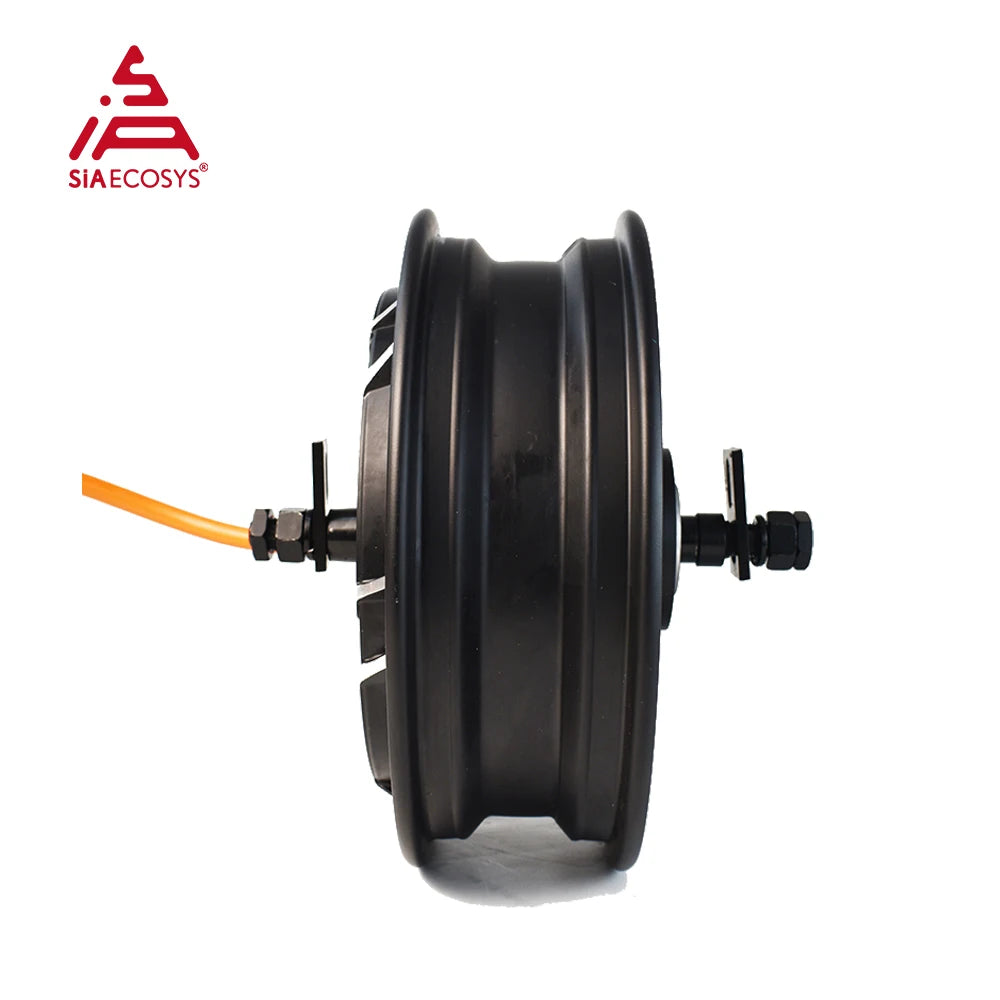

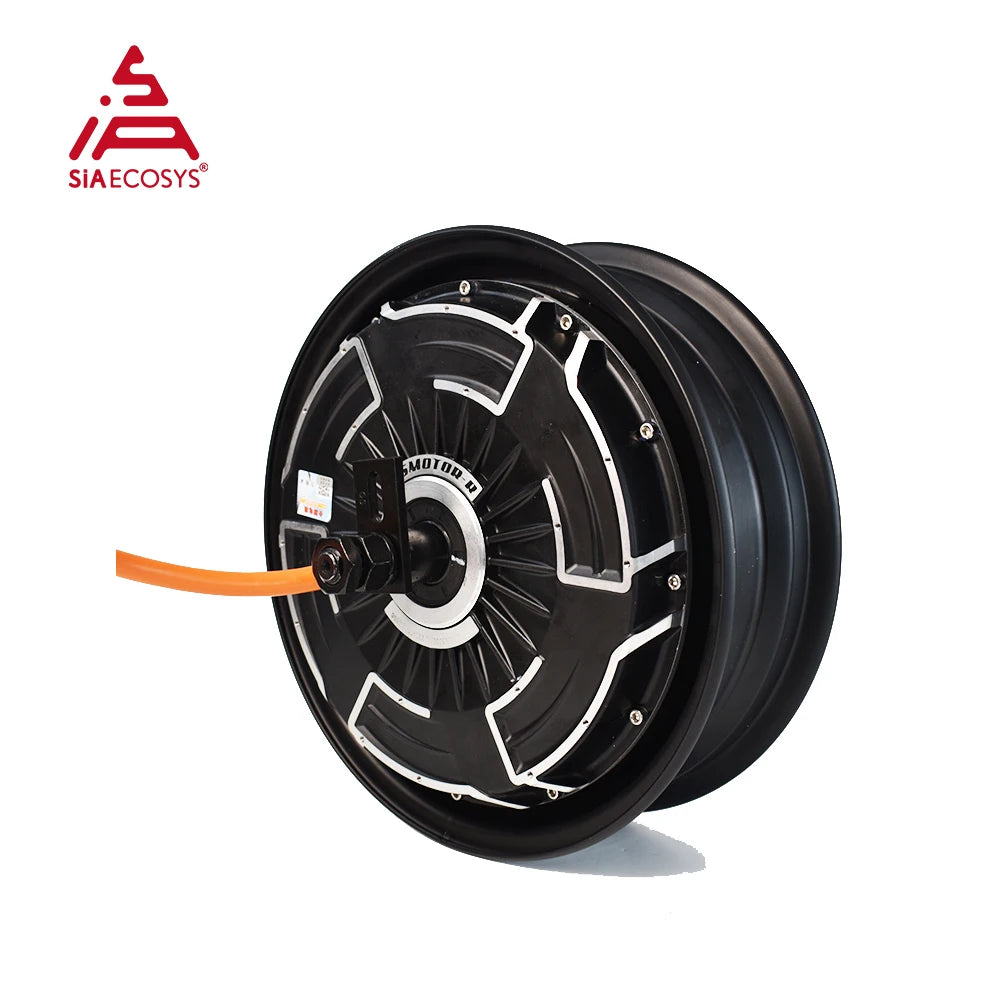

QS Motor QSMOTOR New Racing Version 12*3.5inch 2000W 260 35H V4 E-scooter Hub Motor
NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)
For 12 inch hub motor, it could be used for electric scooter, electric motorcycle, electric tricycle and so on.
One set including below kits

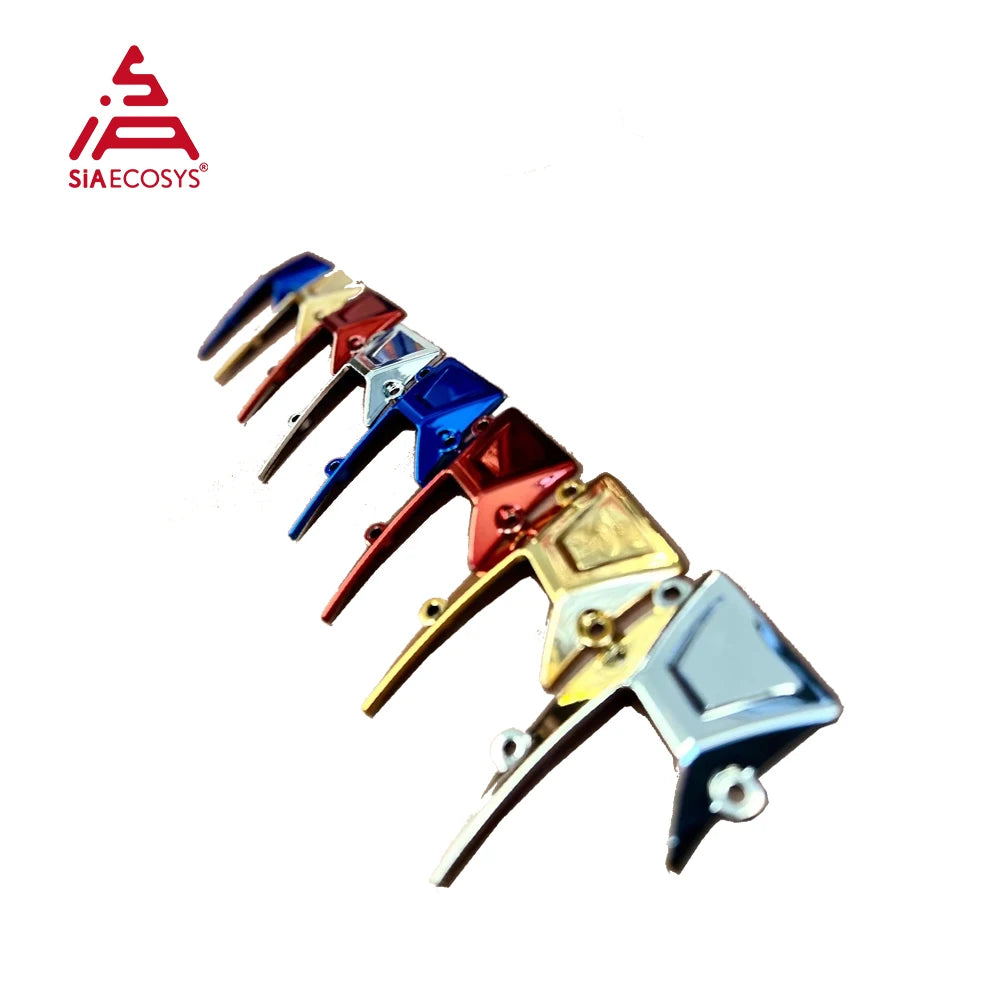

1. 1pcs X QSMOTOR 12*3.5inch 2602000W V4 E-motorcycle hub motorwith Racing Cover (Without decorating plate as default, If you need, please contact with seller first)
Key Features
1). Simplify to make a electric-motorcycle. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%
Product Description
Motor Type |
BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor |
Brand |
QS Motor, QSMOTOR |
Motor Design |
Double axle with 12inch moped rim (integrated) |
Rim Size |
12x3.5inch(Narrow Tire as default), matched tire:130/90-12 etc |
Magnet Height |
35mm, 16 pole pairs |
Stator |
Aluminum Core |
Rated Power |
2000W |
Speed(RPM@72V) |
1062RPM; 880RPM(Default); 762RPM; 664RPM; 582RPM |
Workvoltage range |
48V-96V, will be 72V as default. |
Max Torque |
approx 170.0N.m |
Thermic Probe |
KTY83-122 (as default, optional) |
Max Efficiency |
approx 88% |
Brake type |
Disc brake (as default), PCD3*80mm-M8, CB 58mm |
Drop-outs |
200mm |
Hall Sensor |
Dual Halls with waterproof connectors(One for spare, in case of damage) |
Phase wire |
8mm² Phase Wire |
| |

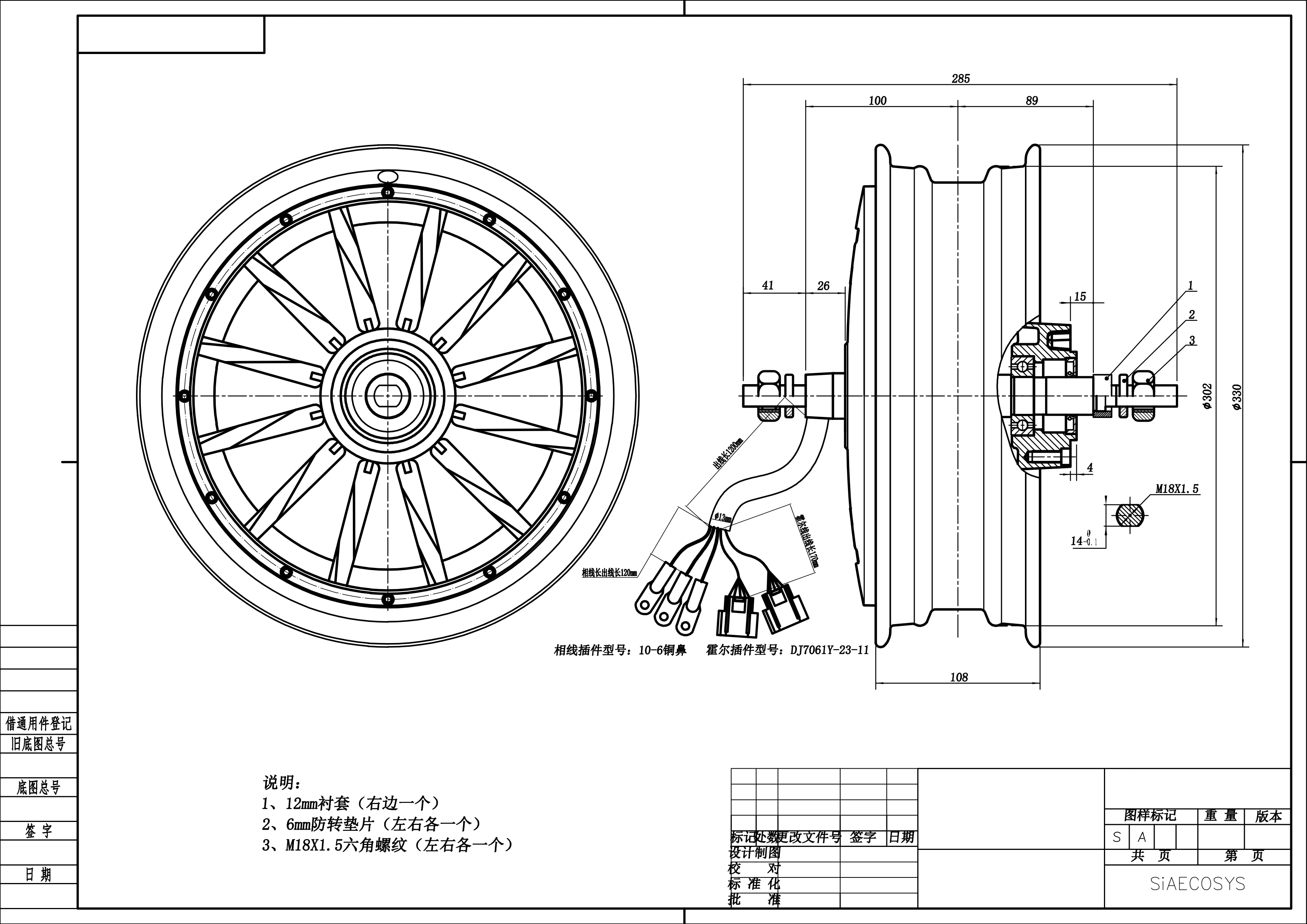

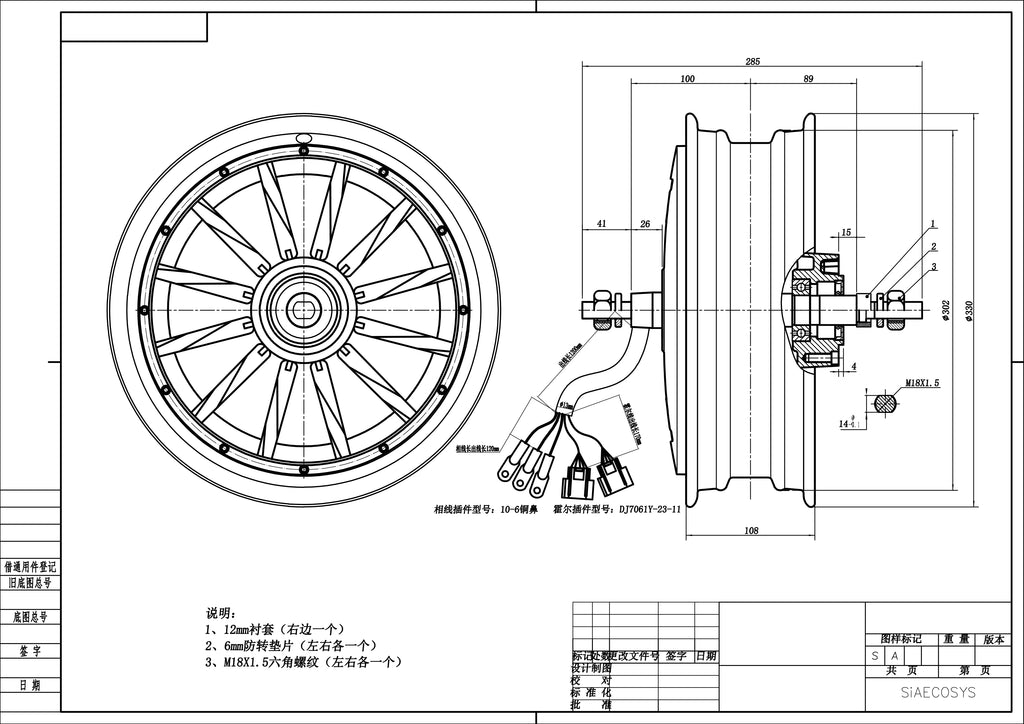

Drawing

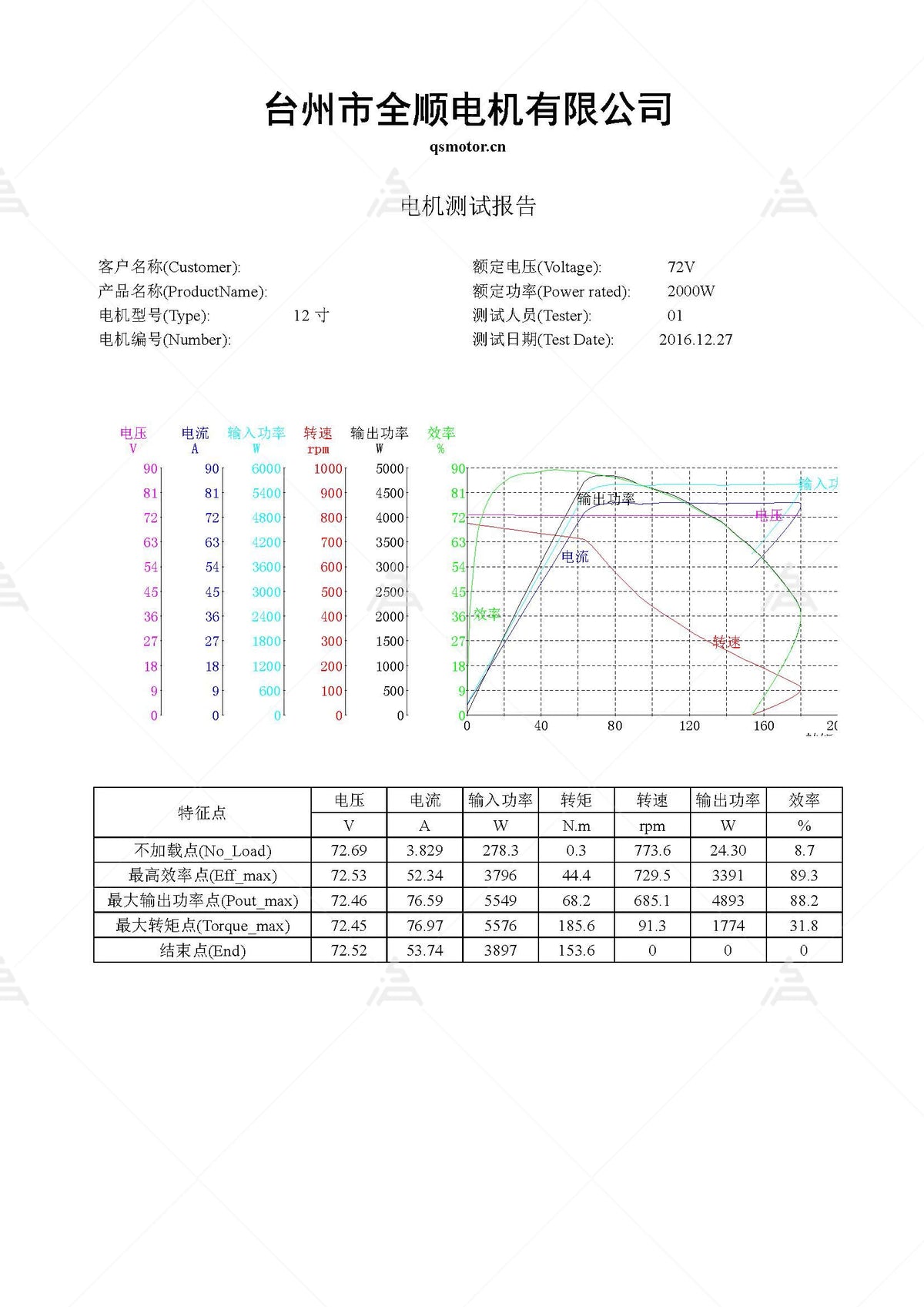

Test Report
Suitable Controller

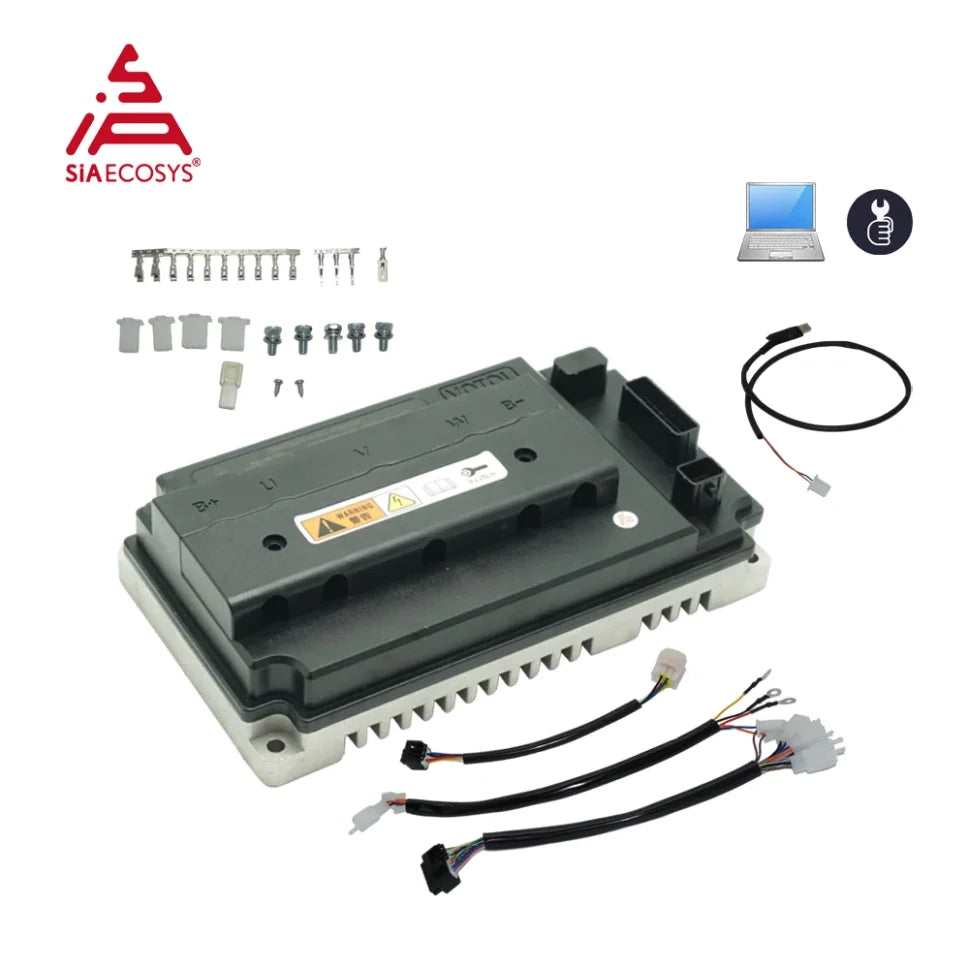

VOTOL EM100SP Controller

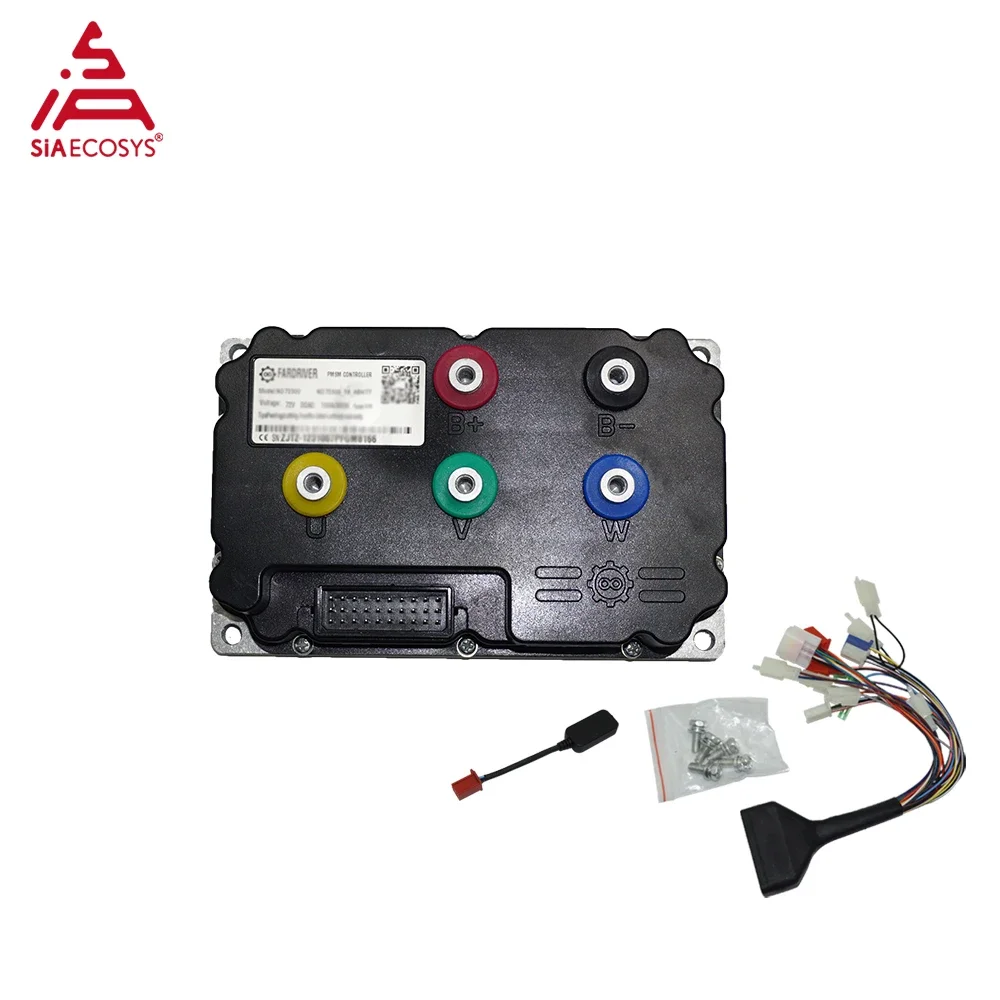

Fardriver ND72300 Controller
Application
