QS 273 8000W 96V 115kph electric car hub motor conversion kits with APT96600 controller
For 273 8000W V3 electric car hub Motor kit assembly, it could be used for high power electric car, which could be 72V 95KPH by 2wd, 100KPH by 4wd.
which could be 96V 115KPH by 2wd, 120KPH by 4wd.
e.g. Normal Car,
EV weight, approx 900kg+400kg
Tire: 195/55R15
Speed: continuous 95km/h @72V by 2wd, peak 100km/h when fully charged,
115km/h @96v by 2wd, peak 120km/h when fully charged
Climbing slope: 10.5°@1280kg by 2wd
Battery: 72V200Ah
Range: 200km

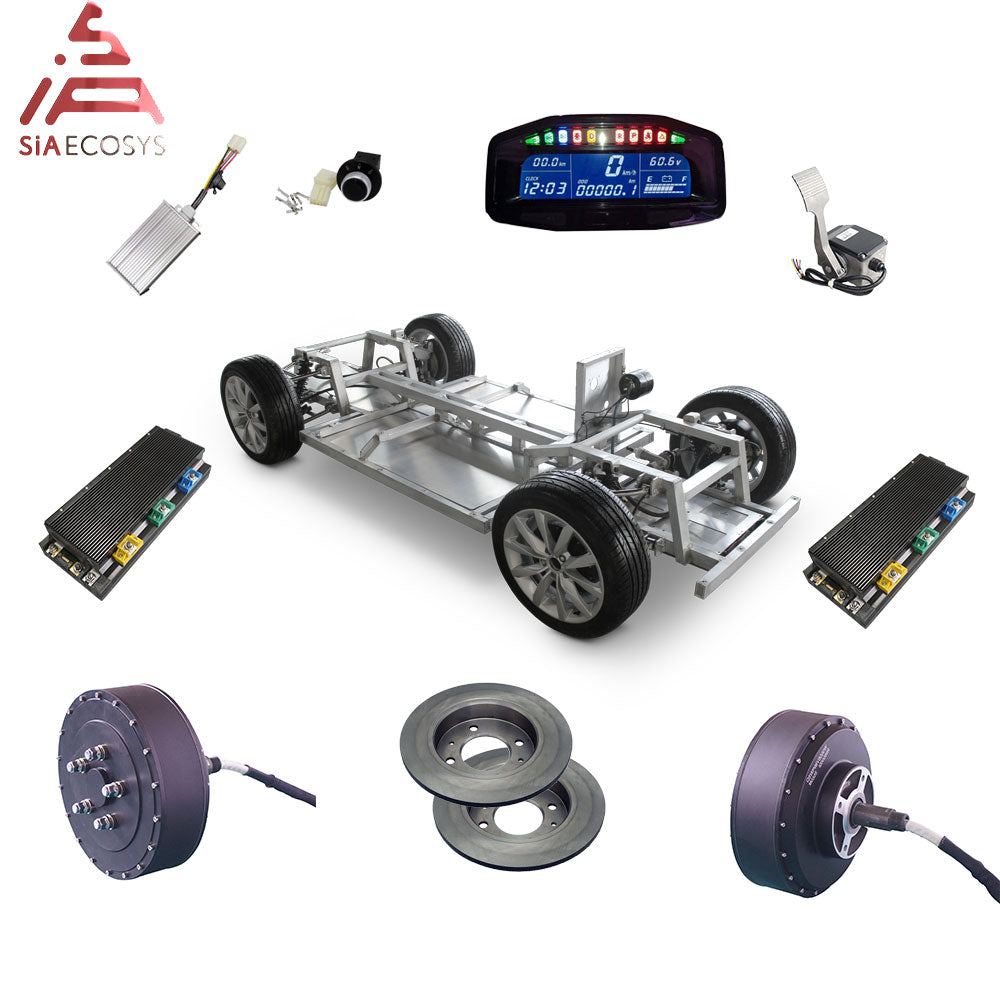

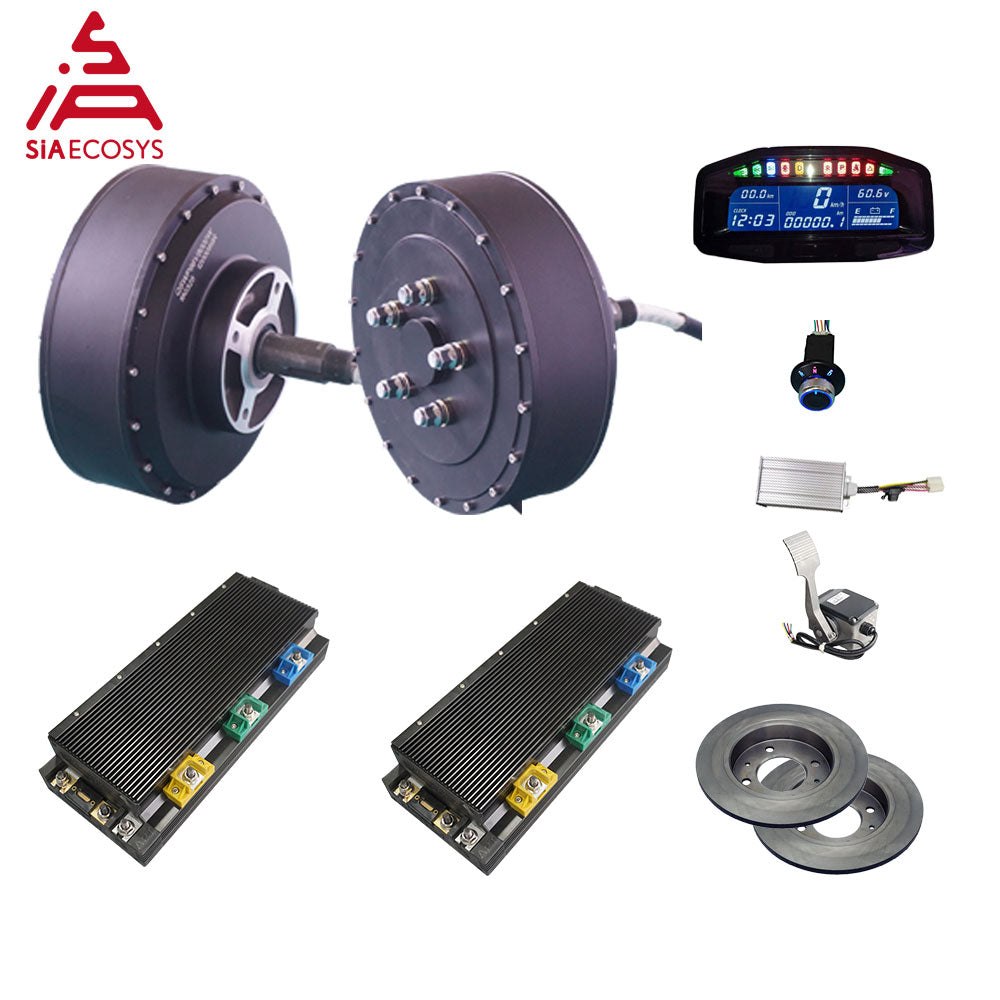

One set including below kits
1.2pc X QSMOTOR 273 8000W 273 50H V3 E-Car Hub Motor
2.2pc X APT96600 controller
3. 1pc X X8-E Speedometer
4. 1pc X 0-5V Electric Car Throttle Pedal
5.2pc X Disc
6.1pc X DNR gear switch
7.1pc X DC DC converter 72V
Key Features
1. Simplify to make a electric-car. Gearbox, transmission shaft, clutch are no need. Which save space.
2. It could be installed in wheels, and easy to be hybrid car.
3. Easily to make 4-wheel drive, which could spot turn.
4. Support regenerative braking
5. High efficiency: 85~92%
Product description

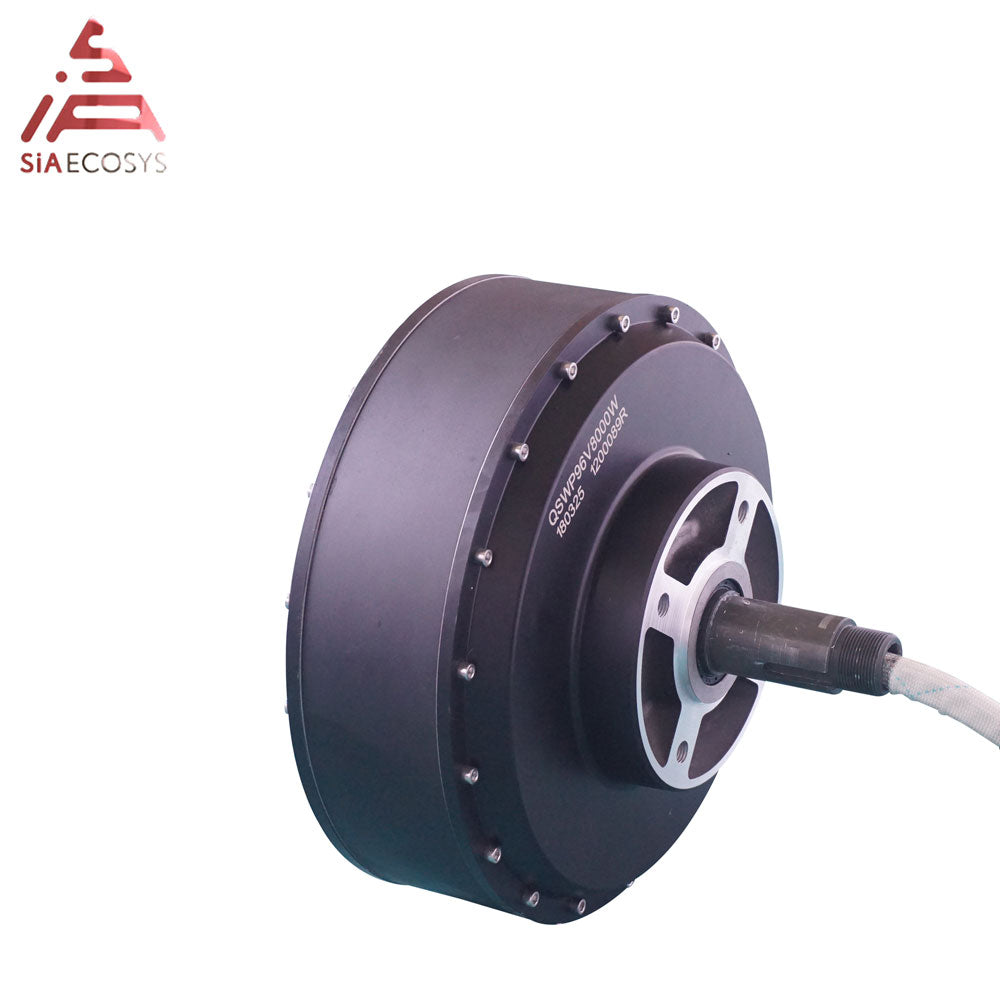

Item: QSMOTOR 8000W 273 V3 Electric Car Single Shaft In Wheel Hub Motor
SPEC
·Motor Type: BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor
·Brand: QS Motor,QSMOTOR
·Motor Design: Single axle without rim
·Matched Wheel: ≥14inch Car Wheel, PCD customizable, CB ≥60mm (PCD 5*112mm, CB60mm as default)
·Stator: Aluminum Core
·Rated Power: 8000W (19000kW peak in few seconds)
·Rated Voltage: 72V or 96V
·Speed: 930RPM no load, approx 95km/h@72V
1200RPM no load, approx 120km/h @96V
·kV: 12.5kV
·Max Torque: approx 350N.m
·Max Efficiency: approx 88%
·Continuous Battery Current: 120 A 72V, 132 A 96V
·Peak Battery Current: 200-250A 72V, 180A 96V
·Suggest Peak Phase Current: 591A
·Thermic Probe: KTY83/122 (as default, optional)
·Working Temperature: 70-120℃ , peak 150 ℃
·Brake type: Car Disc brake, PCD 4*114.3mm, M12(as default)
·Dual Hall Set with waterproof connectors
·16mm² Cross Section of Phase Wire (not include insulation layer)
·Hall Sensor Phasing angle: 120 degree
·Waterproof Grade: IP65
·Color: Black
·N.W./G.W.: approx 23.0/24.7kg (TBD)
·Package Dimension: 43cm*43cm*43cm/piece

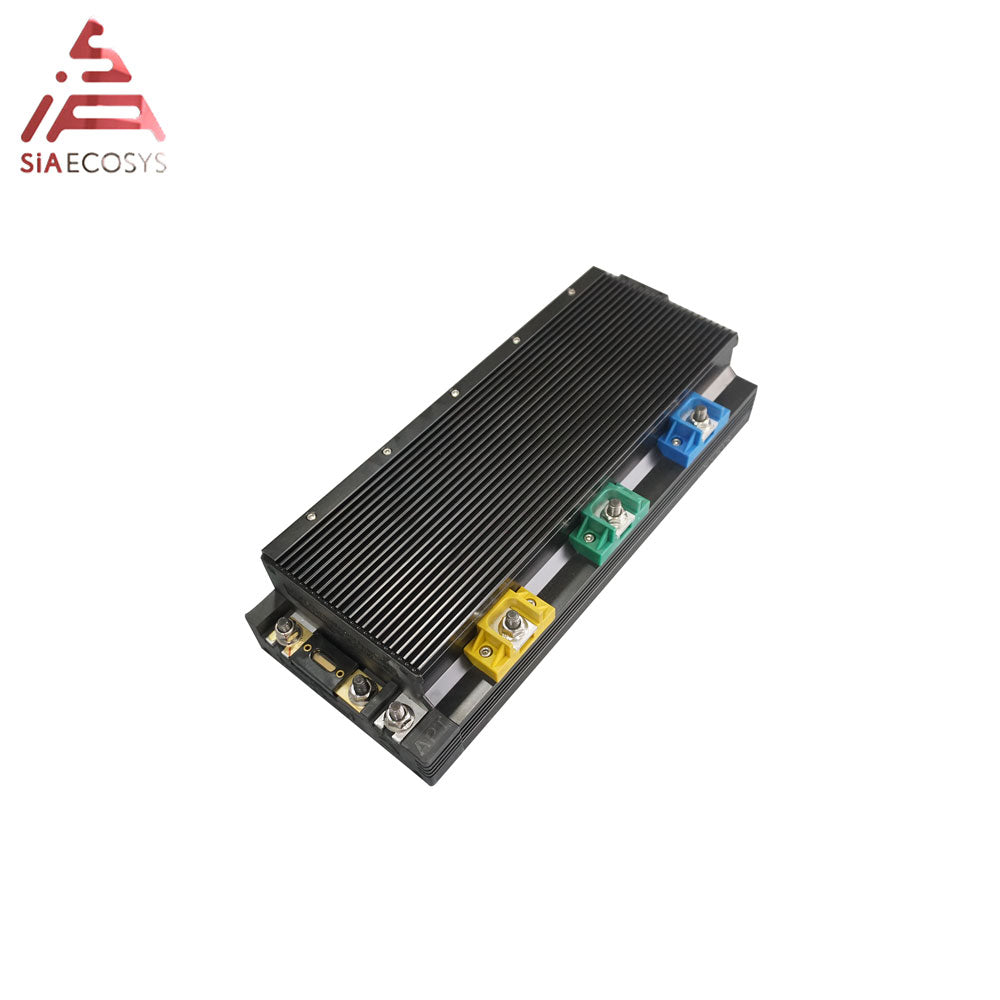

2. APT96600 600A Sine Wave Controller
It's special design for QS brushless motor controller for electric car hub mtor Conversion Kits, which can match with QS HUB MOTOR Rated Power 8000W.
Key Features
1). Very Easy connect
2). Can match with almost brushless DC motor
3). Quality Guarantee
4). Programmable
Generally SPEC
1. Programable, with Reverse function, support regenerative braking
2. Configurable battery voltage range, B+. Max operating range: 42V to 120V.
3. Peak Phase Current: 600A.
2. Product Size: 346mm*148mm*76mm Net Weight: 5.9kg
4. Testing way: Hall sensor
5. CANBus is avaialbe for sample (cost will increase according to communication protocol )
6. Package Including: 1pc controller + 1pc GX16-10 to RS232 cable + 1pc Function harness
+1pc USB to RS232 Converter Cable (programming cable).
P.S.: The controller extremely suit for electric trycycle, mini e-car, in spide of the size.
For Software & Manual, please contact with us freely.
CAN protocol
CAN Bandrate 500kbps, CAN version 2.0B (standard protocol as default)
Different CAN ID for each controller(4wd)
3. X8-E 48-96V Programmable Electric Car Speedometer
Programmable
Rated Voltage: 48V-96V
Work voltage: 0-120V
With DNR, Time, driving distance, speed, voltage, electric quantity
Communication: Hall
PS. New 7.5inch TFT speedometer with CAN BUS is under developing.

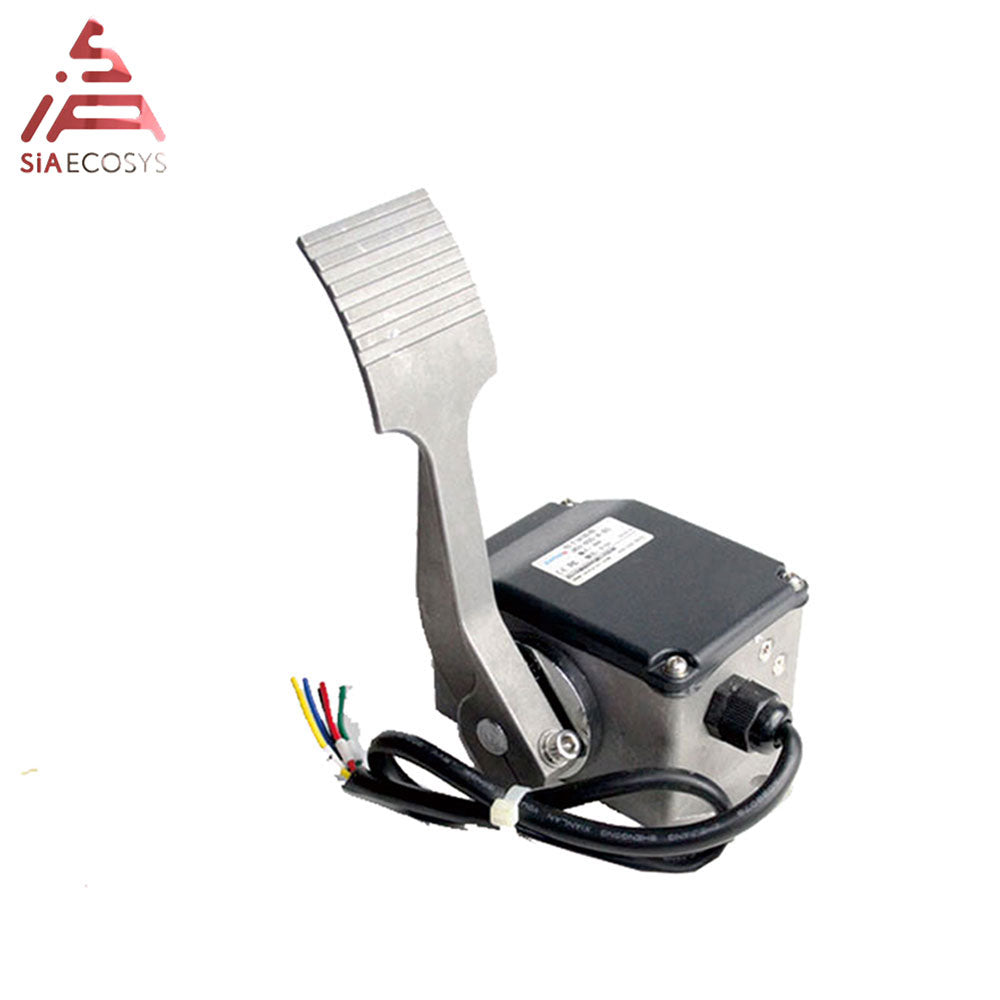

4. 0-5V Electric Car Throttle Pedal
Throttle Pedal Hall type : JKH model (match with our motor & controller)
Input voltage: 5V
Output voltage: 0.8-4.2V
4 or 5 wires with switch
PS. Consider safety, we use 0.8-4.2V instead of 0-5V now.
5. Brake Disc
We offer brake disc to fit with motor, u could use original brake calipers.
PCD4*114.3mm
CB76mm
10mm thickness
Diameter: 258mm
6.DNR gear switch
Include D N R three gears

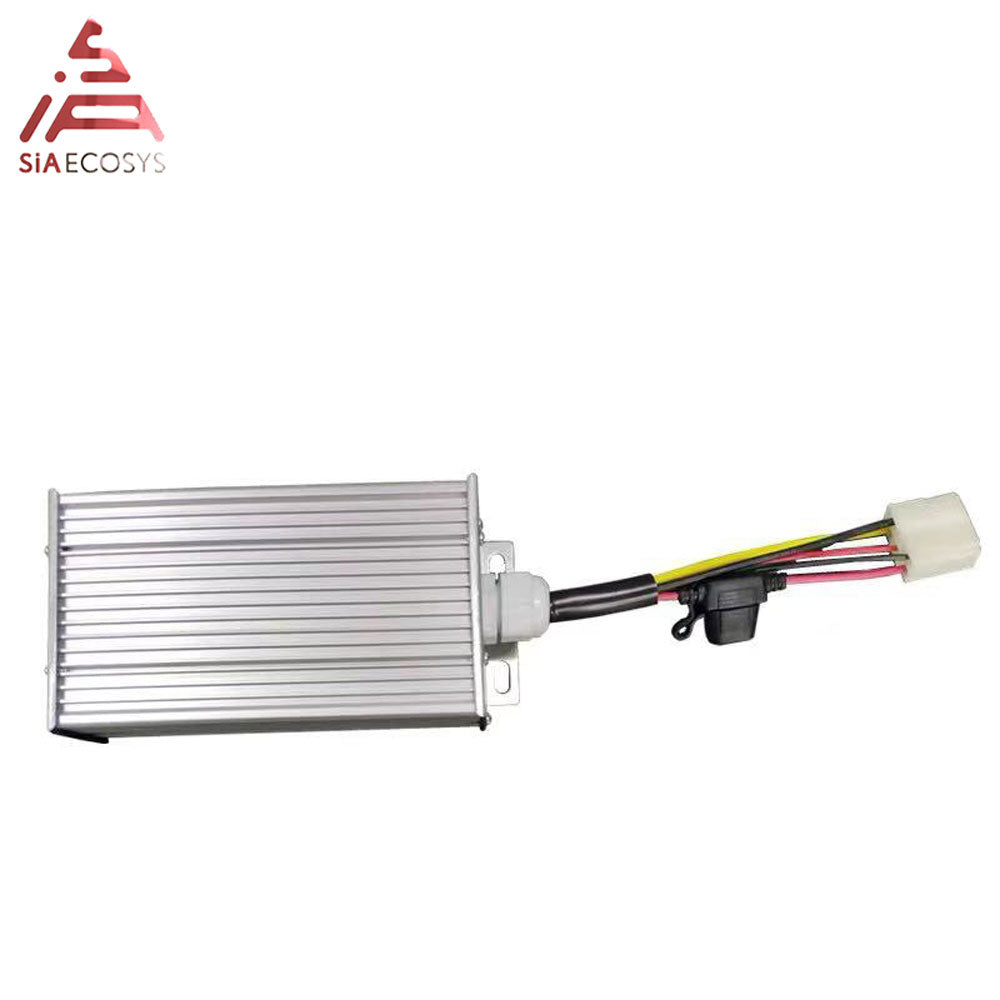

7.DC DC converter
72V to 12V, 25A
How to Recommend you suitable motors?
Firstly, To customize a suitable electric hub motor for your vehicle, could you please inform the points in below?
1. E-bike, E-scooter, E-tricycle or E-car?
2. Weight of vehicle with battery, loading weight (weight with load only)?
3. Tire model/diameter?
4. Rated voltage and wattage of motor, nominal speed/top speed, and climb angle or torque @ what speed?
5. Battery nominal voltage, peak voltage, capacity and vehicle range?
6. What's the drop-outs/rear fork width of your frame?
Within your details information, we could make assessment and calculation accordingly for your project
About US
SIAECOSYS is an union of manufactories in electric driving industry, and belongs to Taizhou SIA Trading Co., Ltd that set from QS Factory in 2013 year.
Currently, more than 80 top factories join SIAECOSYS, and they are willing to provide customized products and service for international customers who has passion in e-scooter/tricycle/car industry.
SIAECOSYS focus on organizing member factories together to customize specific e-driving system solution and products for different requirements from customers in the world.
Nowadays, SIAECOSYS has more than 5000 customers from the world and more than 40 customers send inquiry every day.
SIAECOSYS has sale department, Technology department, Quality inspection department, general accounting department, purchase department and after-sale service department.
Q1. Are you trader or manufacture?
A: We're manufacture.
Q2. How long is your production time?
A: Generally, the production period is 12-14 working days(6 working days per week).
The specific delivery time depends on the items and the quantity of your order.
Q3. How long is your warranty time?
A: For motor, the warranty time is one year and three months. For other parts, the warranty time is one year.
Q4. About Customs Clearance
For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support.
Special countries list:
Argentina, Brazil, Egypt, Turkey, Iran,Portugal,Romania, Kazakhstan, Ukraine, Yeman etc.
Some countries name not listed, the salesman will inform you in time if you placed the order online directly. Thank you for your understanding.
05. Does your products with CE certification?
Yes, our motor with Certification (CE, CCC), and our factory with certification of ISO9001, TS86949
