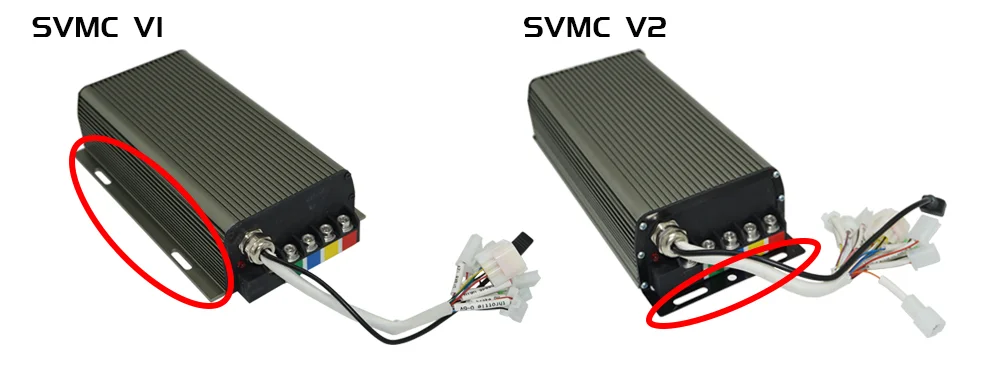

Size of V2 80A 100A 150A

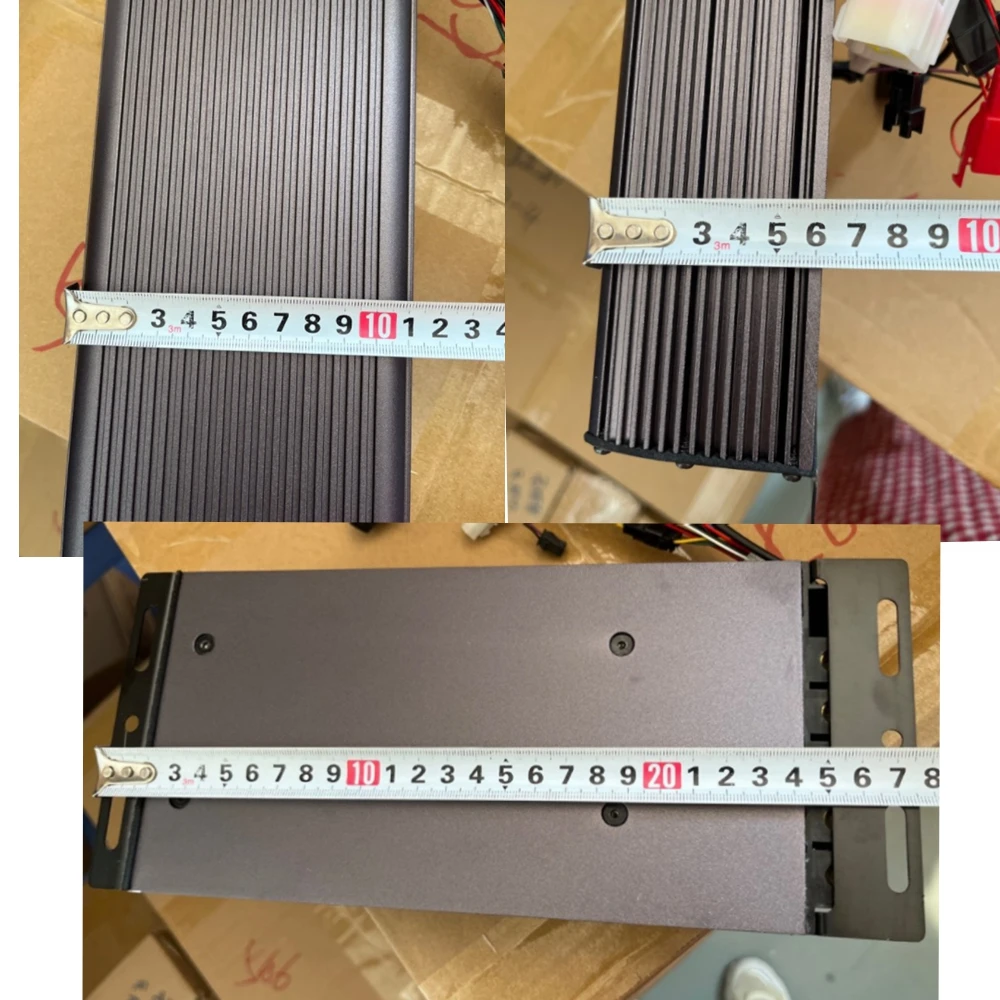

Size of V2 200A : 303x122x63mm
Sabvoton controller only design sine wave type controller so far, it's brushless DC controller, 120 degree phase angle. Generally, we matched it well with QS Motor, if you want to match with new brand motor, some parameters should be tested by yourself.
P.S. If you have any confused about the shipping cost, please feel free to contact with us.
Also could place order but don't pay first, then we could adjust the price.

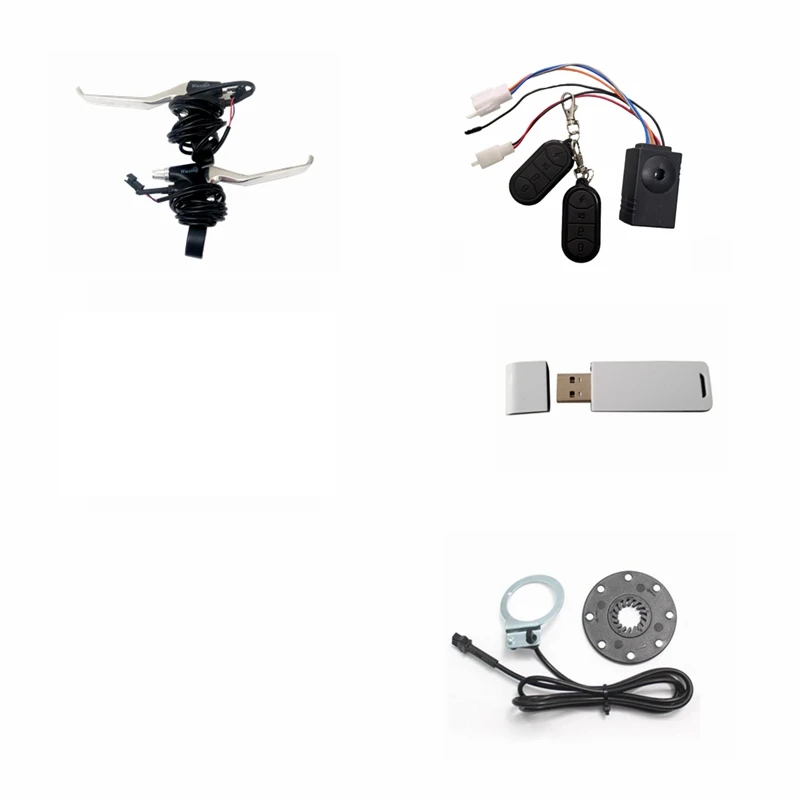

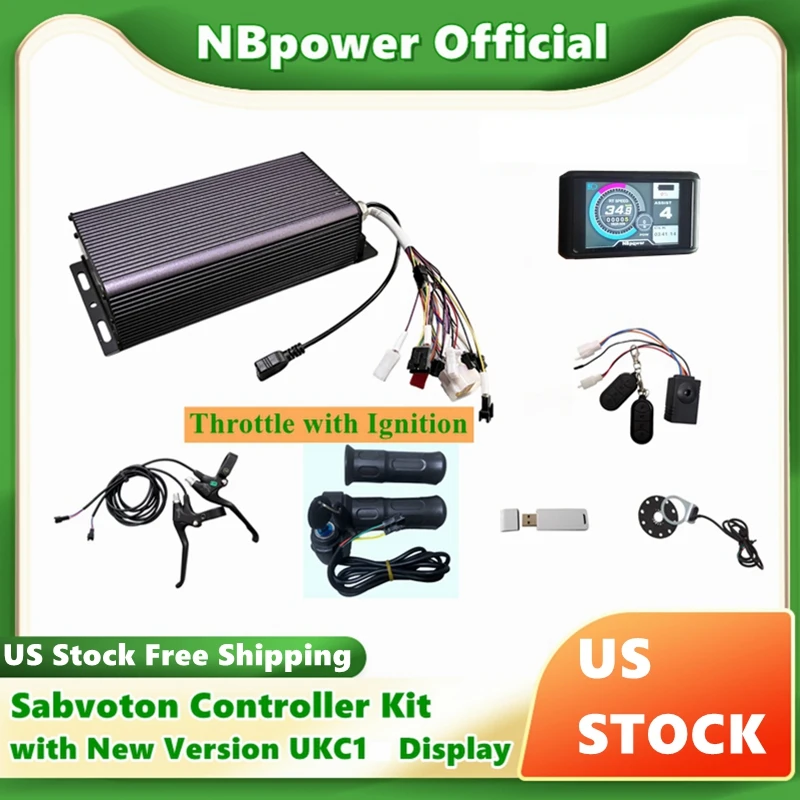

Packing list
1. a Controller
2. a Bluetooth Adapter

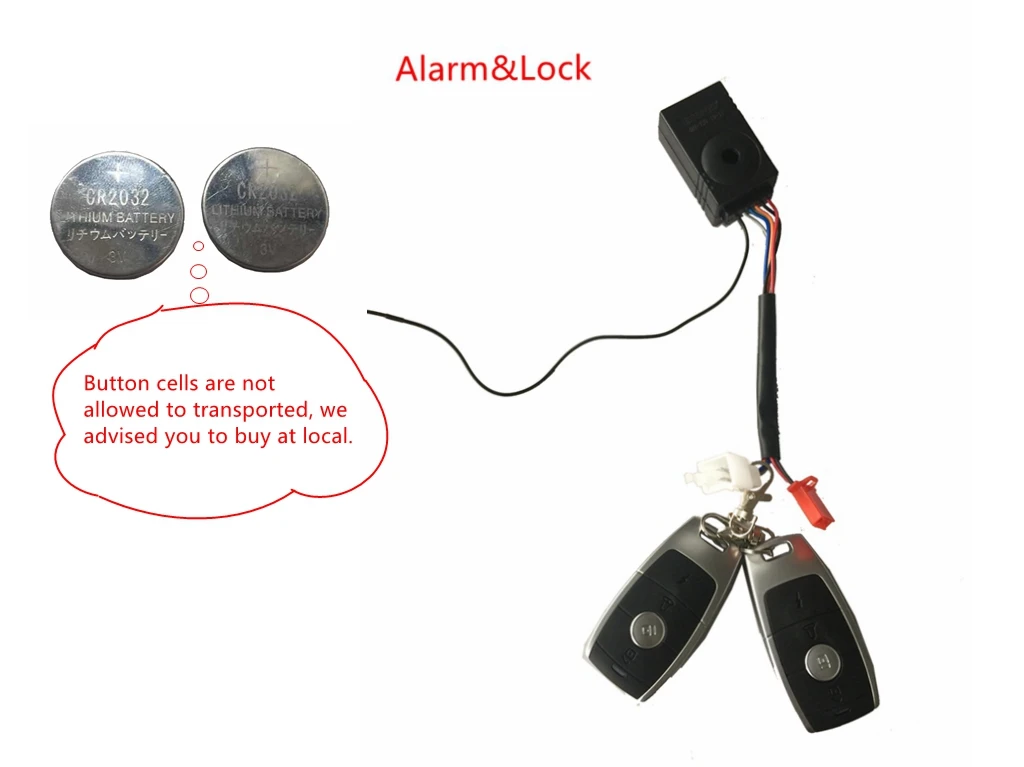

3. an Alarm&Lock (Button cells are not allowed to transport, we advised you to buy at local)
4. a UKC1 display
5. a 8magnets PAS

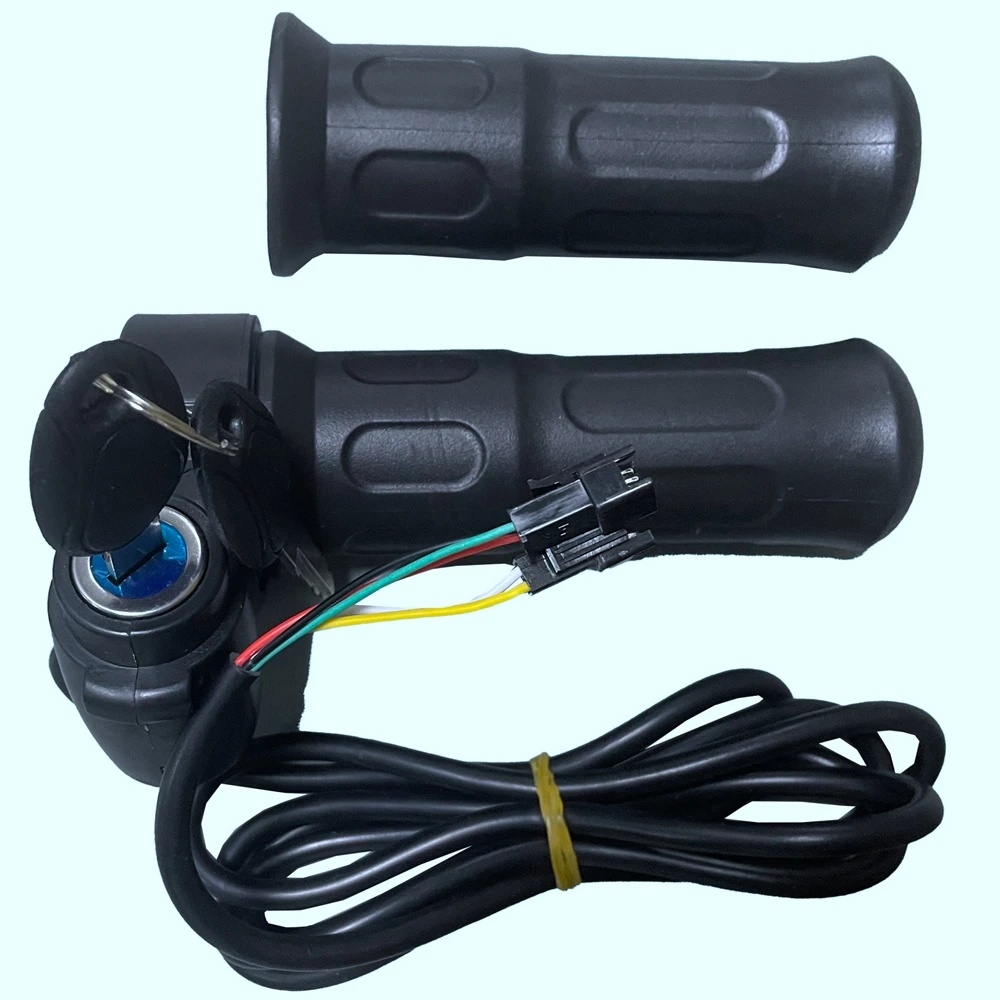

6. a full twist throttle(can change to half or thumb throttle) (US Stock cannot change)
7. a brake lever(can change to brake sensor)(US stock cannot change)
Key Features
1). Programmable
2). Sine wave without noise
Product Description
A. Specification

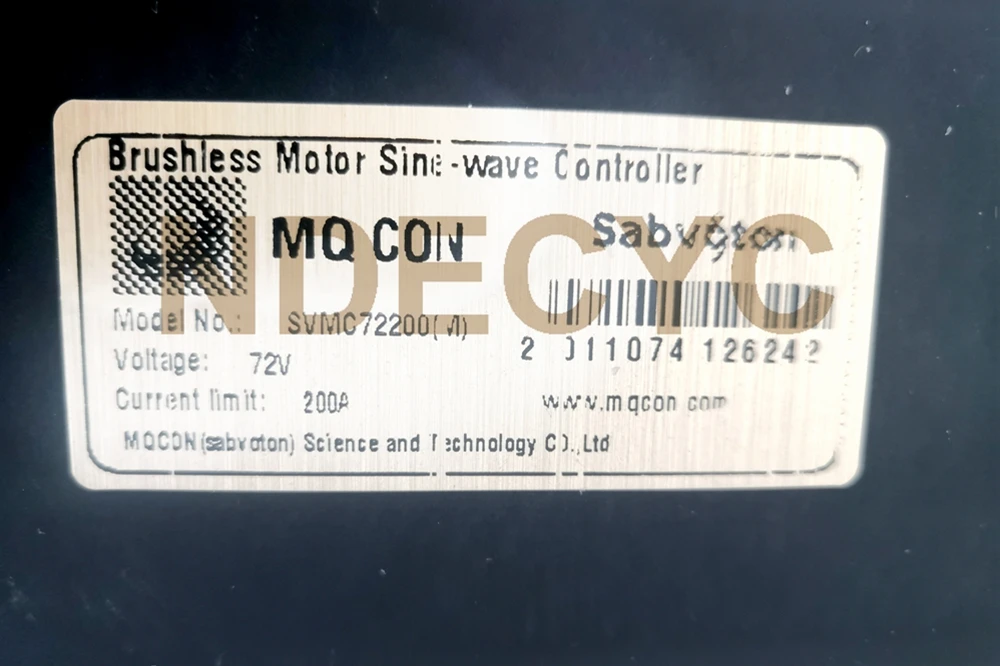

please refer to below nameplate

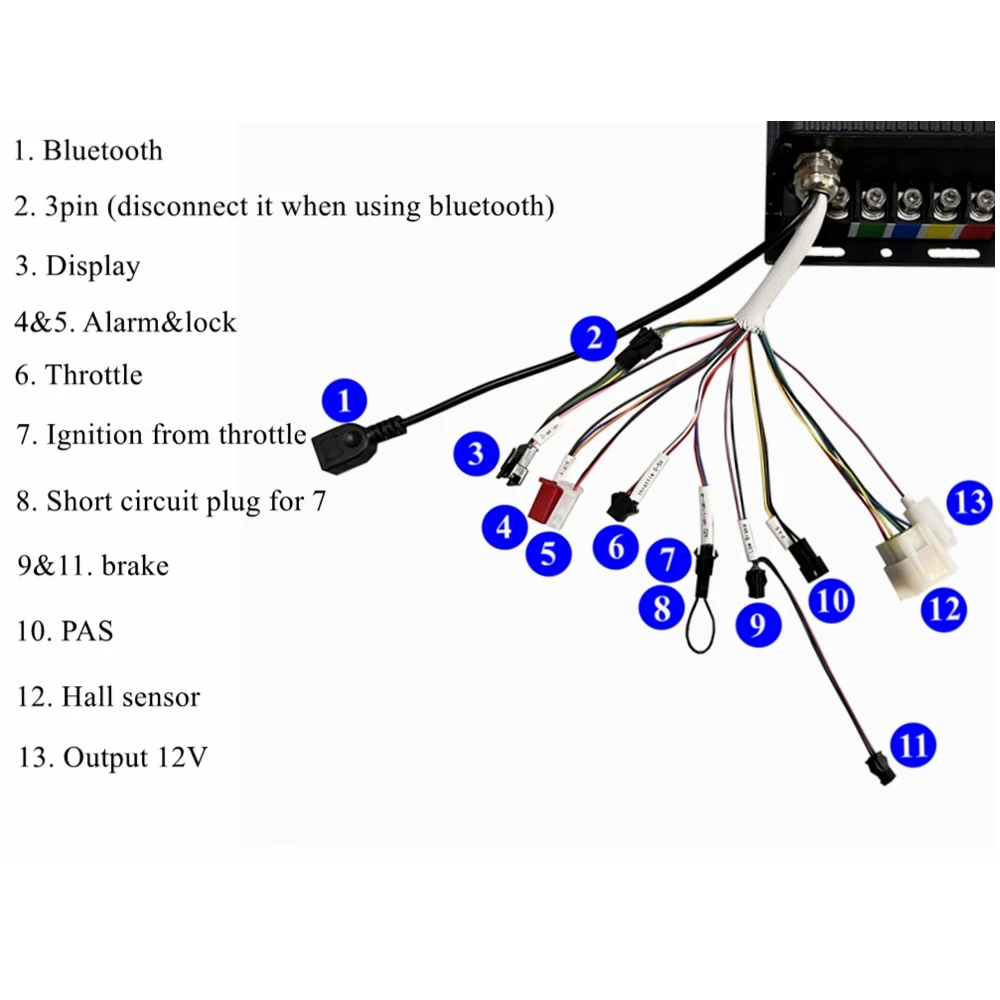

B. SVMC series wiring diagram
1. SVMC series wiring diagram

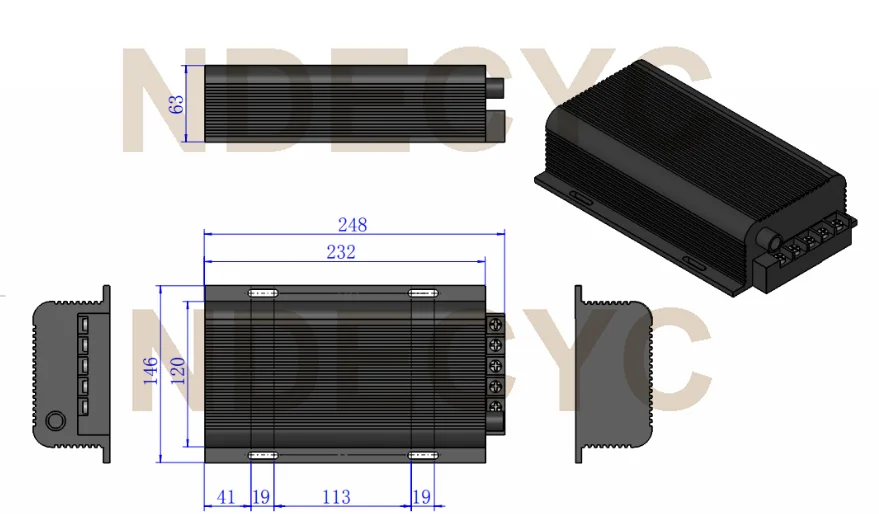

80A 100A 150A Size:

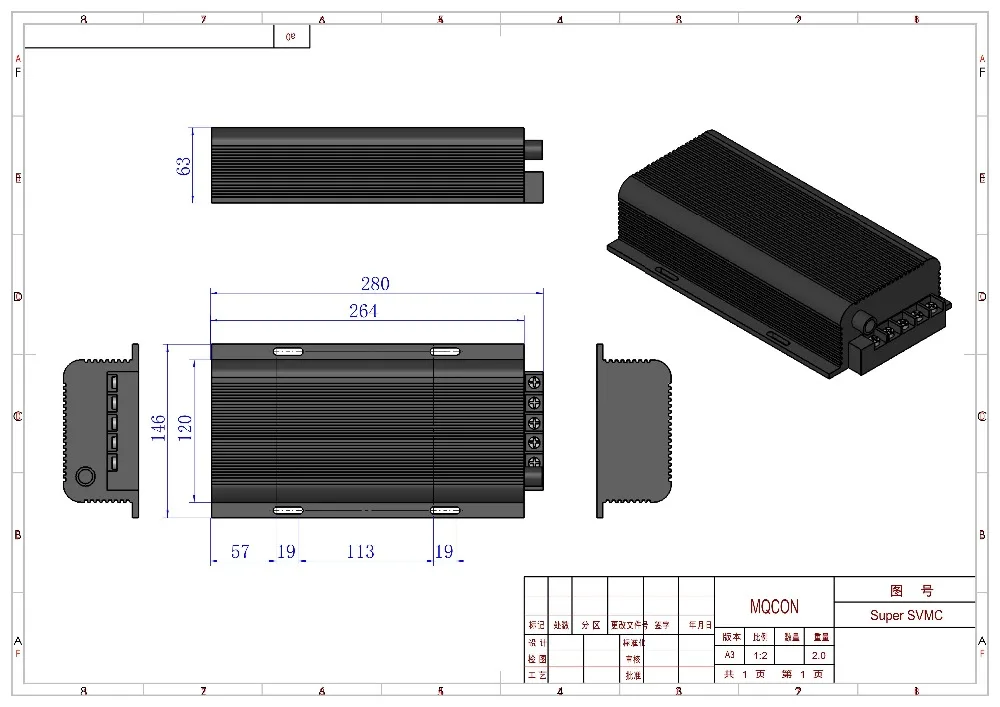

200A Size
2. MQCON controller can be connected with computer by usb cable or connected with phone by bluetooth, the computer interface is just same with the phone app interface.
Connect with computer
Before connected with computer ,please install usbdrive and volume software provided by the controller manufacturer

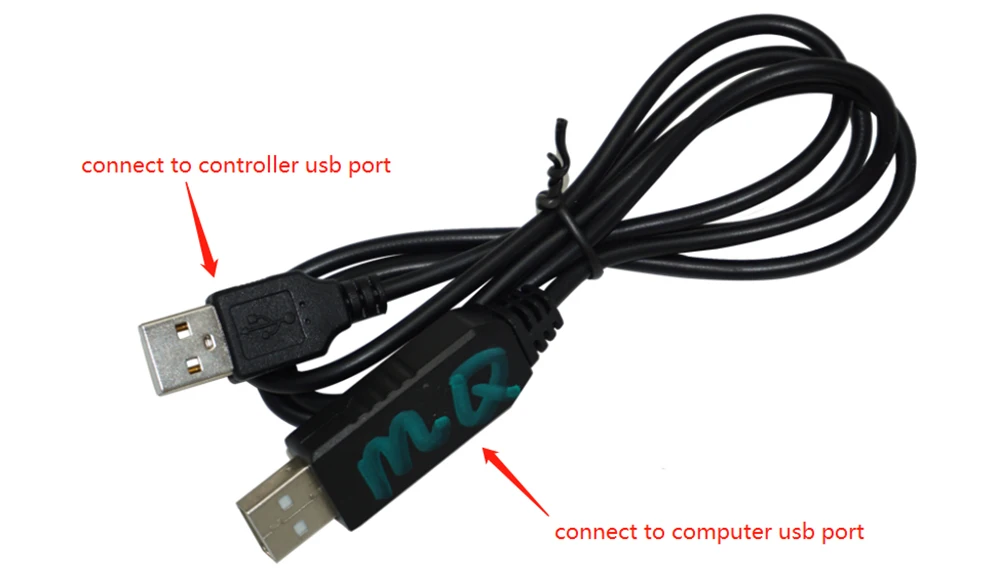

The usb cable should be connected in right way as the following picture showed:
For further information about "how to use computer to set the parameters". Please ask seller for document "MQCON controller application user manual" and "MQCON(Sabvoton) FOC Controller "Parameter Manual-EN "
SVMC Bluetooth Adapter
Also, the controller can communicate with the phone app.
In addition, for manual of "how to use phone bluethooth to set the parameters", please ask seller to get.
3. Hall angle ---the most important parameter for MQCON controller.
Different type motor should use different angle in controller.
If use improper angle , the motor may not run in best status.
When the user does not know the "hall angle" in advance , the user should get the paramenter by using automatic testing function in the software . if the user know the parameter in advance ,just enter the right angle. For svmc series controller ,if used QS V1 or V2 type motor ,the hall angle is about 65. If use QS V3 type , the angle is about 250.
C. Additional notes:
1. All RTN pins are internally connected.
2. Meter function is to copy either of hall sensors.
3. Above pin definition is for classical type controller.
Pls. Contact with sales first if you don't know how to connect the controller with motor and other parts.
Programmable Software & User manual (Before you received the controller)
Pls. Contact with sales to get the link and password to download the manuals and software before/when you got the controllers.

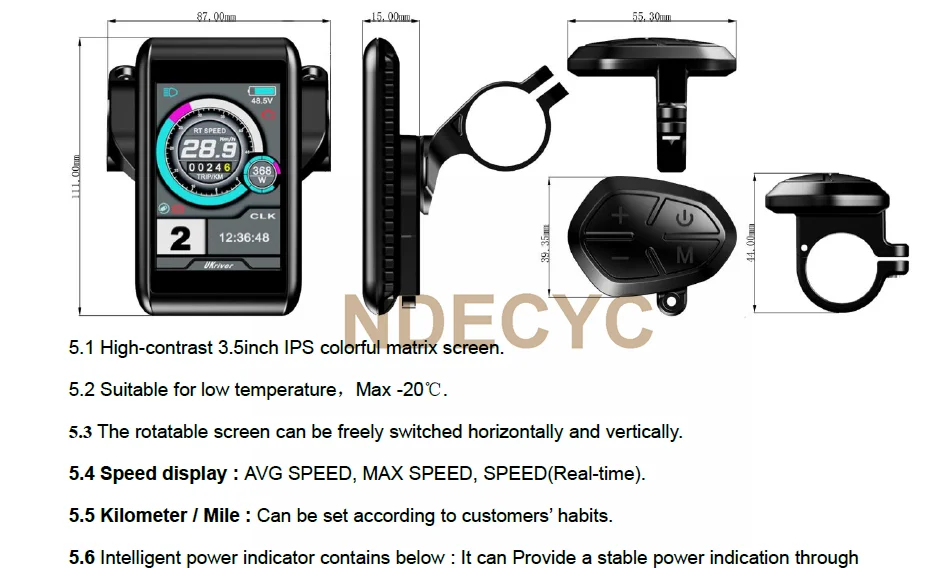

4. Display
UKC1
For the option of Seller's shipping method, It is sea or rail shipping, usually take 1.5months to arrive, please noted.
Inventory Last Updated: Sep 11, 2024
