Dual 5000W 72V Electric Car Hub Motor Conversion Kit with Regenerative braking

Dual 5000W 72V Electric Car Hub Motor Conversion Kit with Regenerative braking

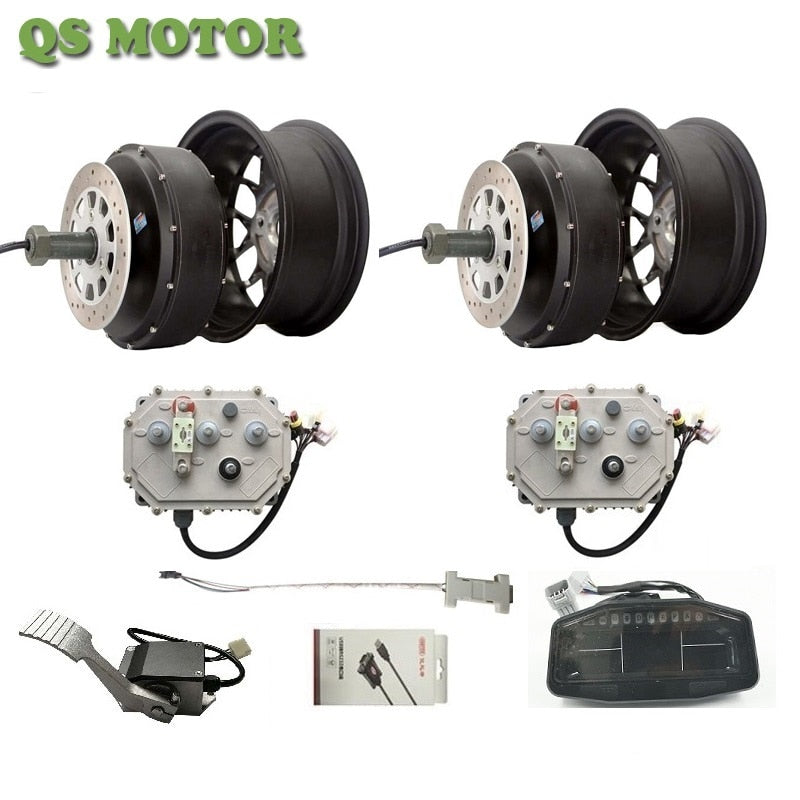

The kits as follows,

• 2units x QS260 5000W 45H V4 Single Shaft Hub Motor
• 2units x 5.0 x 12'' Alloy Rim
• 2units x Kelly Controller KLS7245H
• 1 unit x  Programmable Controller
• 1unit x Pedal Throttle
• 1unit x Speed Meter(X8-E)
• 1unit x F.N.R swtich
•

Note:

1. The kits not included the battery and disc brake set

2. The motor kits suits the vehicle total load under 1000kgs,max.speed about 40-90kph drived by 72V battery

3. Please contact the seller if you have future questions

Key Features,

1. The application of a hub motor can greatly simplify the structure of the vehicle. Traditional clutches, gearboxes and transmission shafts will no longer exist. This also means saving more space.

2. The Daul Controller has been assembled together with the Main contactor on the Alu. plate, so it will be much easier for play and connection

3. Control box combines forward, reverse, master switch and other functions

4. Regenerative Function is available

Items details:

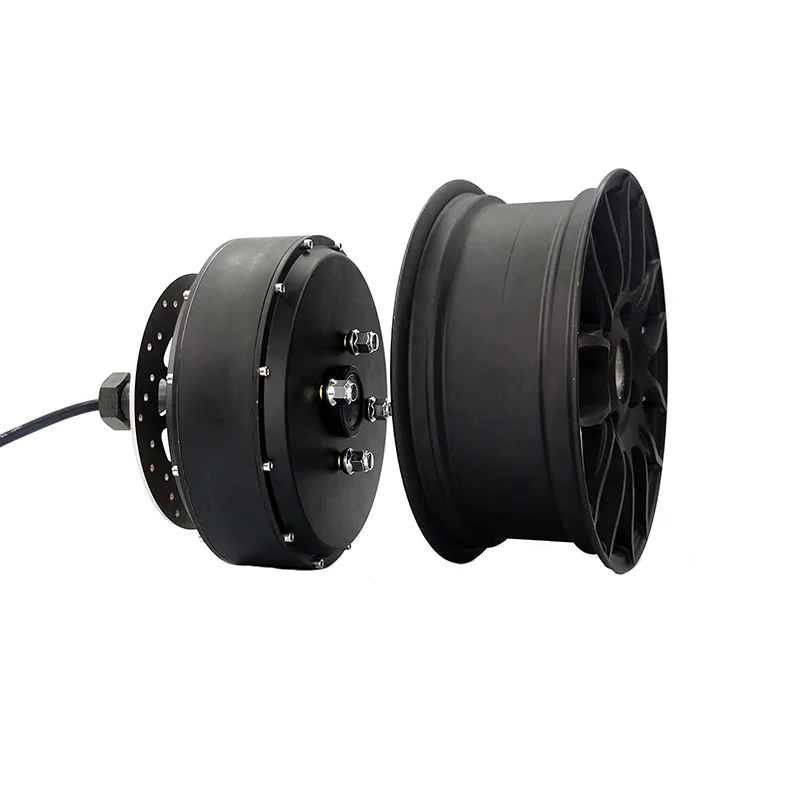

1. QS260 Single Shaft Electric Car Hub Motor(45H) 5000W V4 Type

Motor Specification:

• Motor Type: BLDC Hub Motor with Permanent Magnets
• Motor design: 260 Single shaft out
• Bolts Pattern: 4 x 100MM
• Magnet: 45H Curved Magnets with SH(340Degree) Lever
• Pole Pairs: 16 Pairs
• Rated Power: 5000W
• Peak Power: 10000W
• Rated Voltage: 72V( 60V-96V Can be optional)
• Max No-load RPM: 1320RPM
• Max Torque: 230N.M
• Max Efficiency: 90%
• Brake type: Disc brake
• Stator Frame material: Aluimium
• Cross Section of Phase wire: 16mm2
• Hall sensor phasing angle: 120 degree
• Temperature Sensor: Attached
• Working Temperature: 70 degree, Peak 120 degree
• Waterproof Grade: IP54
• W./ G..W. : 18kgs / 20kgs
• Package Size: 44*43*41C

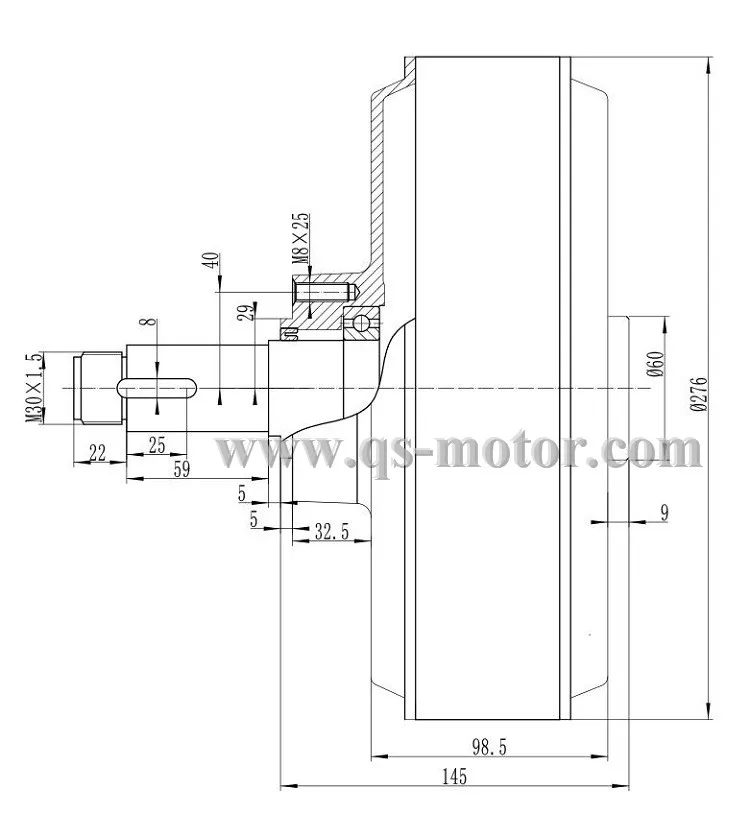

Motor drawing:

2. Kelly SINUSOIDAL WAVE BLDC MOTOR CONTROLL KLS7245H,24V-72V,350A,SEALED IP66, WITH CAN-BUS function

Key Features:

Matching Motor type: BLDC Motor with Hall sensor

Matching Motor power: 4000W-5000W

Supporting CAN

Voltage range: 36V-72V

Support Programmable with various functions

Support Multi-Regenerative Functions:

1. Regen when Braking

2. Regen when taking off the Accelerator

KLS controller is supposed to reduce the noise of BLDC motor,especially for hub motor.The BLDC motor must be based on 3 hall sensors.Customers can program the KLS controller on PC software or Android App.You may need a Z-TEK USB to RS232 cable for programming the controller if you want to program the controller on Android Tablet.

You have to do Identification angle operation before running the motor for the KLS Controllers.  And it can be done by PC Program or Andriod App(Though Blue-tooth adaptor).

The details progress will be showed in the Manual of the KLS Controller.

3. 0-5V Electric Car Throttle Pedal

• Throttle Pedal Hall type : JKH model (match with our motor & controller)
• Input voltage: 5V 12V 15V 24V 36V 48V 60V 72V 84V 96V 120V
• Output voltage: 0-5V5-0V1-4.2V4.2-1V0-10V10-0V
• Deafult: 5v input voltage (depends on controller design, for our matched controllers, you can choose 5v input voltage), 0-5v output voltage.

 4. 48-100V Programmable Electric Car Speedometer

Rated Voltage:48V-144V ProgrammableShow Time, driving distance, speed, voltage, electric quantityTest Speed Type: Hall Sensor

Case:
