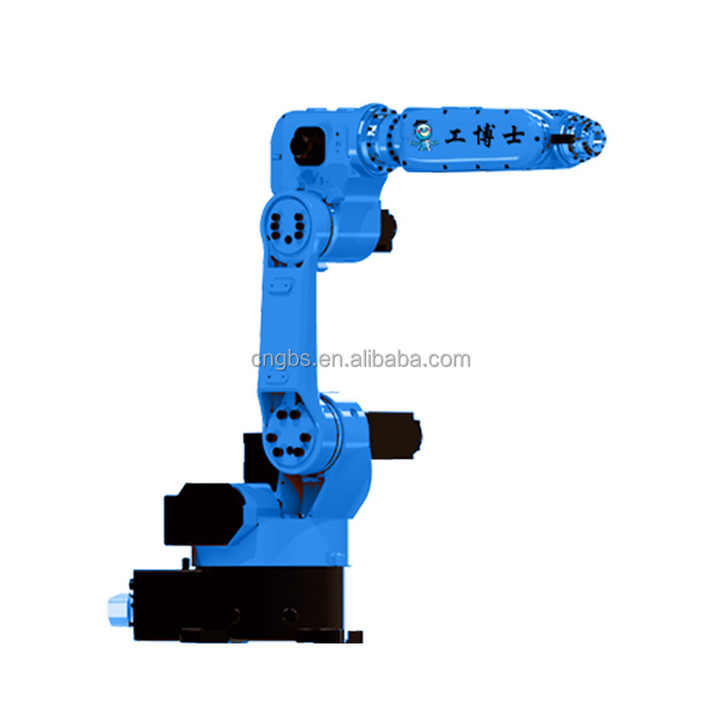

China Supplier Self-developed GBS8-K950 Industrial Assembly Robot With Robot Fixture and Robot Guide Rail for Handling Stacking
|
Product Name
|
GBS8-K950 Handling Robot
|
|||
|
Technical data
|
||||
|
Robot Arm Length
|
950mm
|
|||
|
Robot Payload
|
8kg
|
|||
|
Repeativity
|
0.04mm
|
|||
|
Axis
|
6
|
|||
|
Installation Method
|
floor,ceiling,wall
|
|||
|
Weight
|
56kg
|
|||
|
Motion Range
|
|
|||
|
J1 axis rotation
|
340°5.93rad
|
|||
|
J2 axis rotation
|
250°4.36rad
|
|||
|
J3 axis rotation
|
445°7.76rad
|
|||
|
J4 axis rotation
|
380°6.63rad
|
|||
|
J5 axis rotation
|
380°6.63rad
|
|||
|
J6 axis rotation
|
720°12.57rad
|
|||
|
Speed with rated payload
|
||||
|
J4axis
|
22.0N.M
|
|||
|
J5axis
|
22.0N.M
|
|||
|
J6axis
|
9.8N.M
|
|||
|
J4axis
|
0.65KG.m²
|
|||
|
J5axis
|
0.65KG.m²
|
|||
|
J6axis
|
0.17KG.m²
|
|||
|
Operating conditions
|
||||
|
Core Components
|
motor/PLC
|
|||
|
Tempersture
|
0°C to 45°C(273K to 318K)
|
|||
|
Place of Origin
|
China
|
|||
Related Products

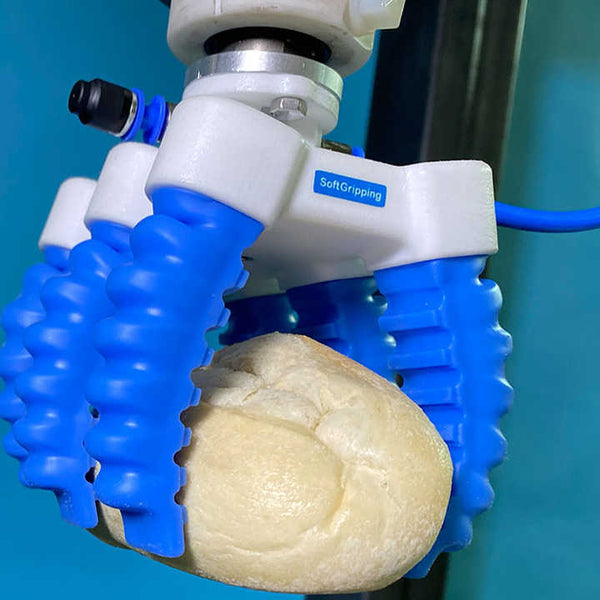

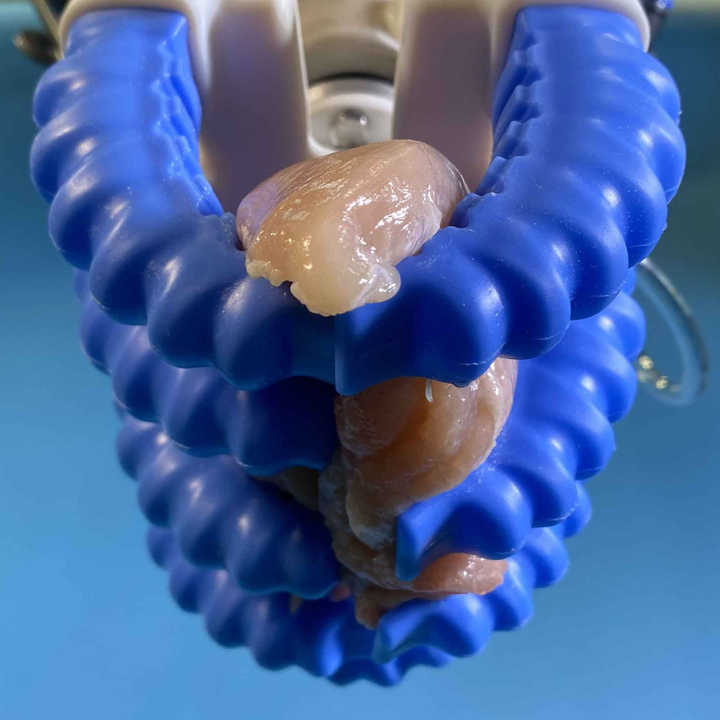

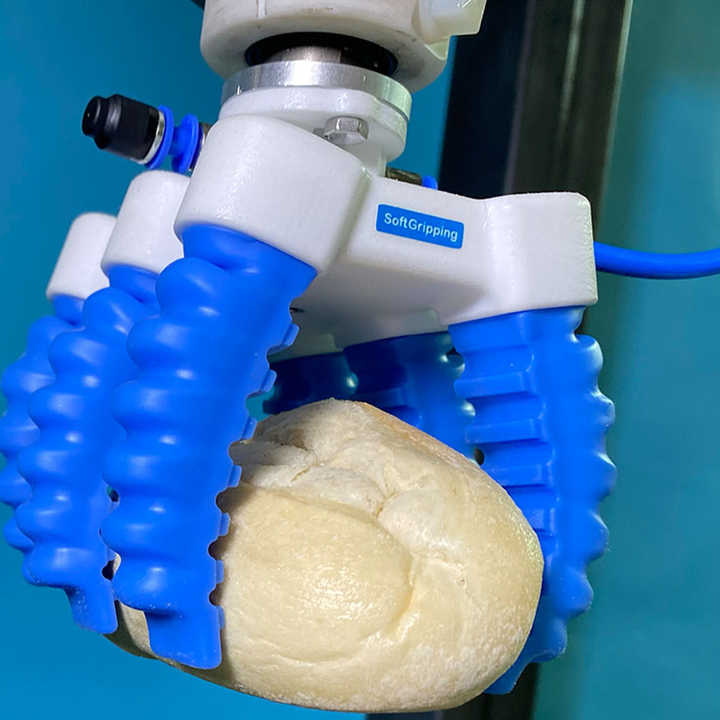

Robot Gripper
Guide Rail
Protective Cover

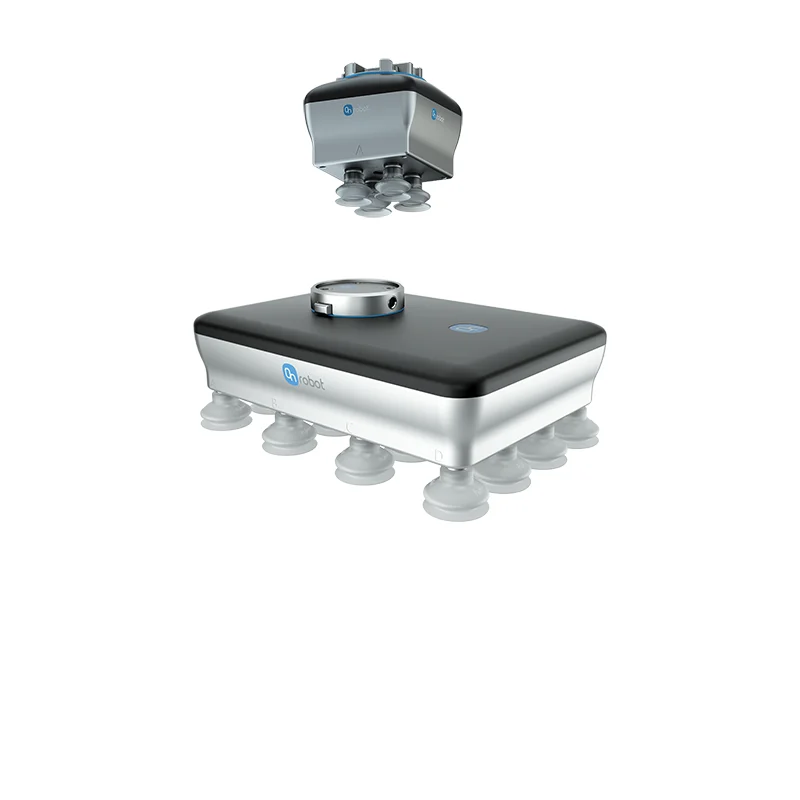

OnRobot Sucker
Recommend Products
Success Cases

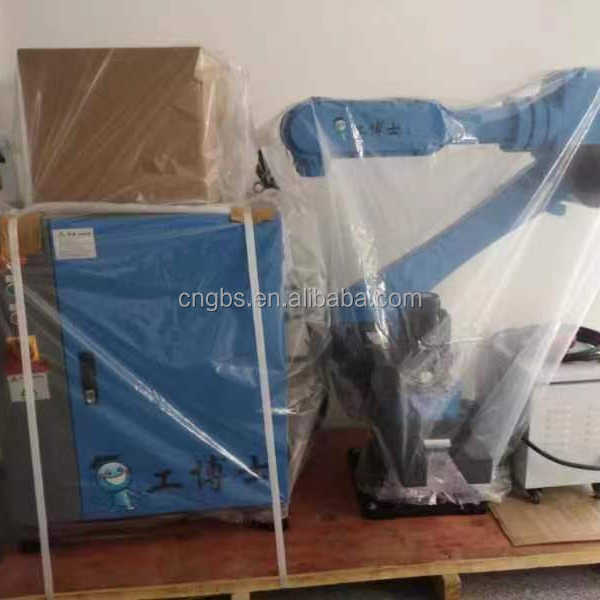

Packing&Transportation
