High-speed, High-precision 6-axis Desktop Hollow Arm Industrial Robot With a Range of 1450 mm
Product descriptions from the supplier
|
Type
|
AIR6-1450
|
|
|
Axes
|
6
|
|
|
Load
|
6Kg
|
|
|
Manipulator
|
Weight
|
170Kg
|
|
Reach
|
1455mm
|
|
|
Positioning Accuracy
|
Position Repeatability
|
±0.06mm
|
|
Ingress Protection
|
IP54（Wrist : IP67）
|
|
|
Mounting
|
Floor
|
|
|

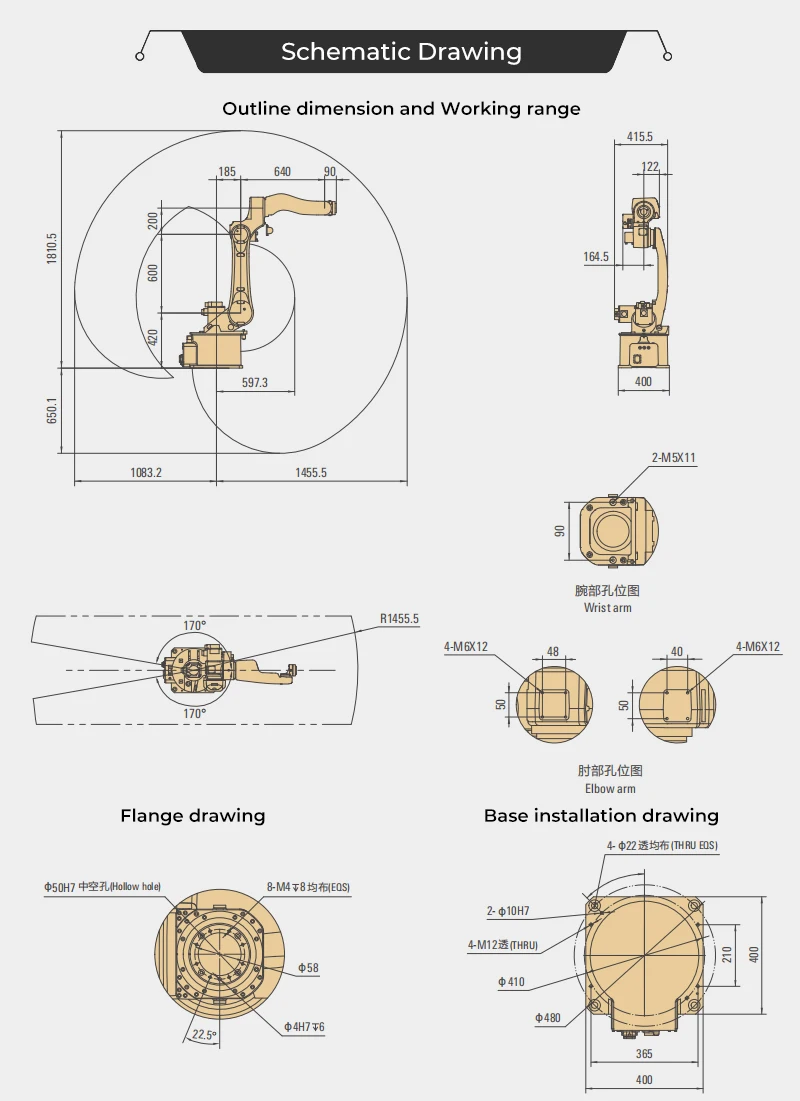

Working Range
|
Axis 1 rotation
|
-170°/+170°
|
|
Axis 2 arm
|
-85°/+150°
|
|
|
Axis 3 arm
|
-95°/+160°
|
|
|
Axis 4 wrist
|
-155°/+155°
|
|
|
Axis 5 bend
|
-120°/+120°
|
|
|
Axis 6 turn
|
-360°/+360°
|
|
|
Rotation Rate
|
Axis 1 rotation
|
200°/s
|
|
Axis 2 arm
|
200°/s
|
|
|
Axis 3 arm
|
230°/s
|
|
|
Axis 4 wrist
|
430°/s
|
|
|
Axis 5 bend
|
430°/s
|
|
|
Axis 6 turn
|
630°/s
|
|
|
Controllers
|
inCube20
|
|
|
Mounting Conditions
|
Ambient temperature: 0~45℃
|
|
|
Humidity: not more than 95% at constant temperature without condensation.
|
||
|
Allowable altitude: not more than 1000m above sea level.
|
||
|
No corrosive, flammable or explosive gases.
|
||
Certifications
Packaging and Delivery
Contact US
FAQ
Q1. Who we are?
Hangzhou Golden persimmon Intelligent Technology Co., Ltd. is a collaborative robot company that prioritizes independent research and development of all core components in the domestic market. Our headquarters and R&D center are located in Hangzhou, Zhejiang, with three large production bases in Hangzhou, Suzhou, and Zibo.
Q2. What is warranty?
12 months.
Q3. Why choose us?
We have excellent quality products, very competitive product prices and the most professional team.
Q4. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q5. what services can we provide?
Accepted Delivery Terms: FOB, EXW；
Accepted Payment Currency: USD;
Accepted Payment Type: T/T,Western Union;
Language Spoken:English,Chinese.
