30kg Load RC Tank Chassis Metal Track 12VDC Motor Shock Absorption for STM32 Controller with FS Handle Programmable Robotic Car
【 Read carefully before buying 】
Only WT200S chassis: without battery
WT-200s Upgraded RC Tank Chassis Metal Track Tank Load 30KG Shock Absorber (Without Controller)
Advantages:
- Excellent workmanship and durable. All kinds of bearings are used in the whole car, which has strong versatility
- Flexible adjustment. According to loads and purposes, you can easily adjust the suspension hardware
- Super shock absorber. Excellent suspension system stabilizes the body, conquering complex terrain like flat ground
Specifications:
- Product name: WT-200S upgraded version of tracked tank

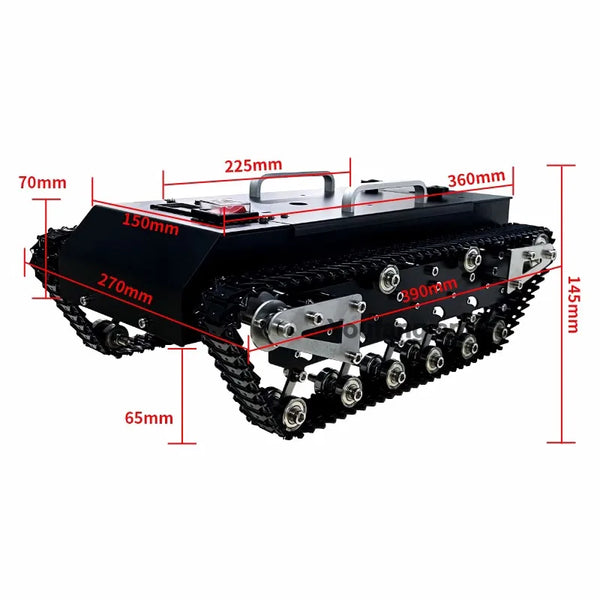

- Design size: 39*28*13cm (length x width x height)
- Internal size: 20*12.5*6.5cm (length x width x height)
- Power parameters: 40W/12*2
- Track width: 40mm
- Maximum obstacle crossing: 70mm
- Maximum climbing: 45°
- Maximum span: 150mm
- Track material: zinc alloy, removable and replaceable
- The fastest speed: 0~1.5m/s adjustable
- Net weight of chassis: 6.6kg
- Design load: 30kg
- Suspension design: 6 groups of independent suspension on each side
- Main body material and surface treatment: steel and paint process
Package Included:
- 1 x Track Tank chassis
Note:
- Due to manual measurement, please allow error at about 1cm. Thank you for your understanding!
- It is assembled.without battery.

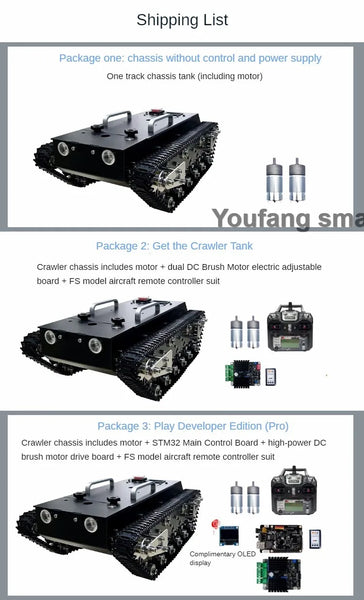

Full set / More set :
WT-200s Upgraded RC Tank Chassis Metal Track Tank Load 30KG Shock Absorber (Ready To Use Version)
Advantages:
- Excellent workmanship and durable. All kinds of bearings are used in the whole car, which has strong versatility
- Flexible adjustment. According to loads and purposes, you can easily adjust the suspension hardware
- Super shock absorber. Excellent suspension system stabilizes the body, conquering complex terrain like flat ground
Specifications:
- Product name: WT-200S upgraded version of tracked tank
- Design size: 39*28*13cm (length x width x height)
- Internal size: 20*12.5*6.5cm (length x width x height)
- Power parameters: 40W/12*2
- Track width: 40mm
- Maximum obstacle crossing: 70mm
- Maximum climbing: 45°
- Maximum span: 150mm
- Track material: zinc alloy, removable and replaceable
- The fastest speed: 0~1.5m/s adjustable
- Net weight of chassis: 6.6kg
- Design load: 30kg
- Suspension design: 6 groups of independent suspension on each side
- Main body material and surface treatment: steel and paint process

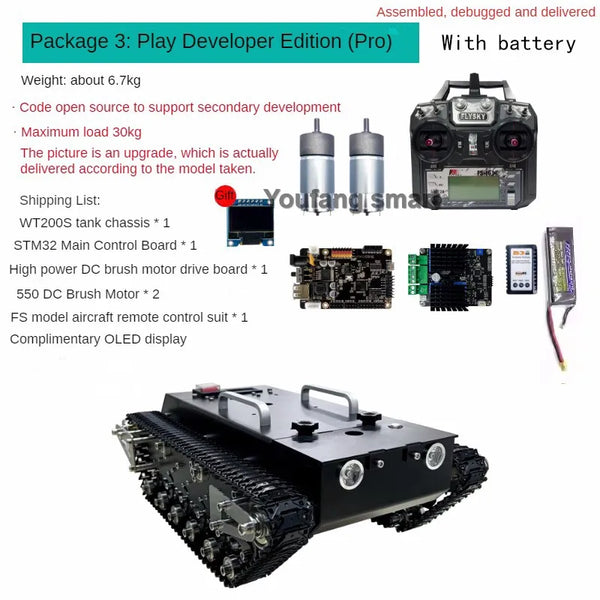

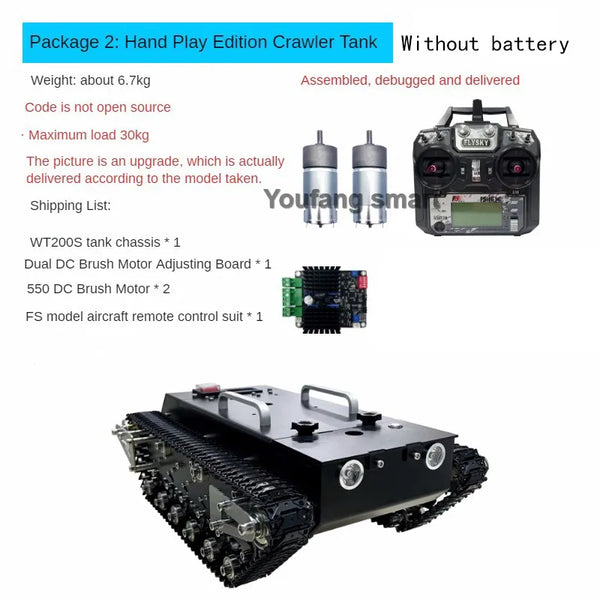

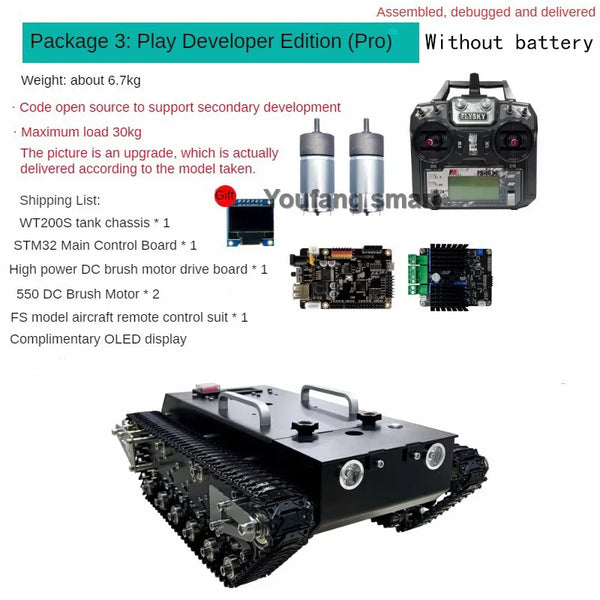

(Full set / More set no battery )Package Included:
- 1 x Track Tank
- 1 x For MC Controller
- 1 x Driver Board
- 1 x Receiver
(Full set / More setwith battery )Package Included:
- 1 x Track Tank
- 1 x For MC Controller
- 1 x Driver Board
- 1 x Receiver
- 1 x Lithium battery
- 1 x Battery charger
Note:
- Due to manual measurement, please allow error at about 1cm. Thank you for your understanding!
- It is assembled.
- Lithium battery is optional in Full set / More set.
We can provide technical documents to our customers, please leave your email address.
