QSMotor 273 4000W 2wd Carro Eletrico BLDC Brushless Electric Car Conversion Kit Hub Motor With Fardriver ND72680
The Electric Car Kit includes most of things needed (except battery/charger) to convert your standard car into a top-of-the-line performance electric car, which delivers unequaled performance and reliability.
Key feature:
1. Simplify to make a electric-car. Gearbox, transmission shaft, clutch are no need. Which save space.
2. It could be installed in wheels, and easy to be hybrid car.
3. Easily to make 4-wheel drive, which could spot turn.
4. Support regenerative braking
5. High efficiency: 85~92%
Notes:
1. Battery and charger are not included in package.
2. The battery voltage depends on your application. (72Vas default.)
3. When place order, please remark which winding needed, otherwise make winding as default, if any question about application, please consult seller.
One set including below kits
2x 273 4000W 273 V3 E-Car Hub Motor
2x ND72680 Controller
2x USB Cable
1x X8-E Speedometer
1x Throttle Pedal
1x 04Type 1 tow 2 Hydraulic Disc brake system (with disc brake plate)
Production Description:
1. QS Motor 4000 273 40H V3 E-Car Hub Motor
Motor Design: Singleh axle without rim
Matched Wheel: ≥14inch Car Wheel, PCD customizable, CB ≥60mm (PCD 5*112mm, CB60mm as default)
Magnet Height: 40mm, 16 pole pairs
Stator: Aluminmum Core
Rated Power: 4000W (8kW peak in few seconds)
Rated Voltage: 48V-144V, optional
Speed: 100KPH as default (24-100KPH, optional)
Max Torque: approx 266N.m
Max Efficiency: 86-91%
Continuous Battery Current: 52A (96V)
Peak Battery Current: 104A (96V)
Thermic Probe: KTY83/122 (as default, optional)
Brake type: Disc brake, PCD3*80mm-M8, CB 58mm(as default)
Dual Hall Set with waterproof connectors
16mm⊃2; Cross Section of Phase Wire (not include insulation layer)
Hall Sensor Phasing angle: 120 degree
Waterproof Grade: IP54
Color: Black
N.W./G.W.: 23.5kg/25kg Package Dimension: 43cm*43cm*34cm/piece
PS. Normal Disc brakes is PCD3*80mm, PCD 58mm. It might get loose during driving, so we open new mold to be PCD4*114.3mm, M12.
Note: The five star motor cover is not available due to the reason of material shortage, we will replace it to all black covershows as below.
Drawing
Test Report
2. Fardriver ND72680sine wave motor controller
Key Features
1). All the raw materials are imported, using high-performance Moss tube
2). With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board
3). Small in size
4). High efficiency, low temperature rise, small running current
5). With self-learning function, excellent commonality
6). With flux weakening function.(The product does not contain magnetism)
Product Description
ND72680 is sine wave controller with waterproofing grade IP67, suit for 4-6kw motors.
For ND72680, the peak voltage is 88V.
It’s hall version (as default) which suit with hall motors.
It could also support encoders, please check with sales.
Drawing
Harness Definition
Adapter Cable
Software interface（PC）
3. X8-E Speedometer
Rated Voltage:48V-144VProgrammableShow Time, driving distance, speed, voltage, electric quantityTest Speed Type: Hall Sensor

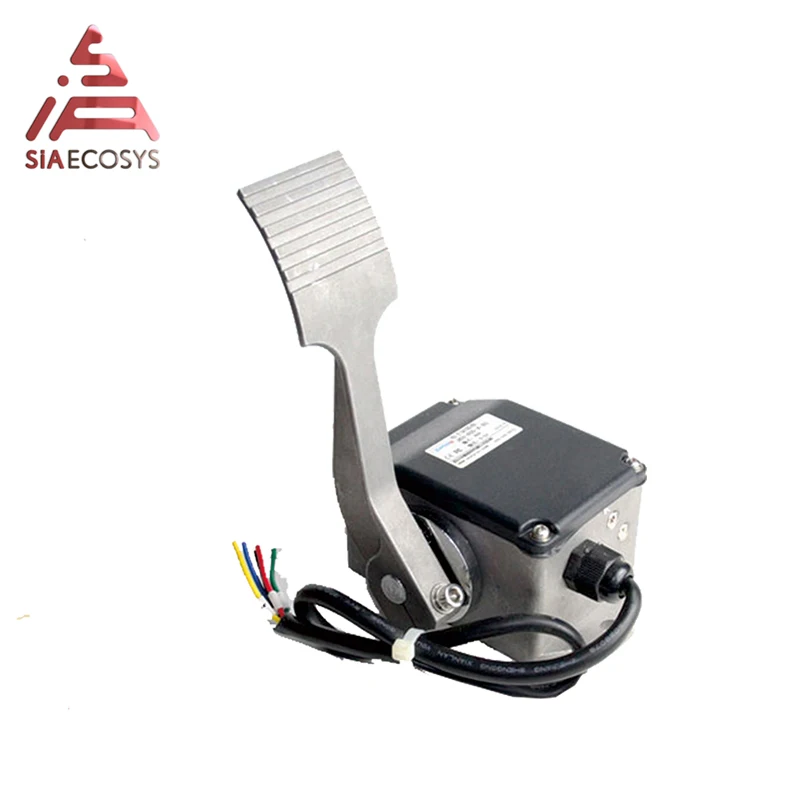

4. 0-5V Electric Car Throttle Pedal
Throttle Pedal Hall type : JKH model (match with our motor & controller)
Input voltage: 5V 12V 15V 24V 36V 48V 60V 72V 84V 96V 120V
Output voltage: 0-5V5-0V1-4.2V4.2-1V0-10V10-0V
Deafult: 5v input voltage (depends on controller design, for our matched controllers, you can choose 5v input voltage), 0-5v output voltage.
5. 04type 1 tow 2 Hydraulic Disc brake system (with disc brake plate)
Please noted:
Optional appearance, drawing, performance curve/test report are available.
If you need more technical information, please feel free to contact us.
We will give you reply in 12hours.
