QSMOTOR New QS268 9000W 12*3.0inch V5 72V 130kph Hot Sale BLDC Hub Motor with ND72890 Controller for Electric Motorcycle

NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)

For 268 E-Motorcycle hub motor, it could be used for electric motorcycle, high power electric motorcycle.

e.g. Electric high power motorcycle

E-bike weight, approx 220kg+80kg

Tire: 110/70-12

Speed: 72V 130km/h

Battery: 72V50h lithium battery

Range: 110-130kph

One set including below kits

Combo1.

1. 1pc X QS268 9000W 12*3.0inch V5 BLDC Hub Motor

2. 1pc X ND7290 Controller（H version）

3. 1pc X USB Cable

Combo2.

1. 1pc X QS268 9000W 12*3.0inch V5 BLDC Hub Motor

2. 1pc X ND72890 Controller（H version）

3. 1pc X Bluetooth Adapter

Combo3.

1. 1pc X QS268 9000W 12*3.0inch V5 BLDC Hub Motor

2. 1pc X ND72890 Controller （H version）

3. 1pc X USB Cable

4. 1pc X DKD LCD Speedometer

5. 1pc X Z6 throttle with combination switch

6. 1pc X Vehicle wiring harness for Fardriver with LIN communication (with 1pcs relay, 1pcs flasher, 1pcs DC converter, 1pcs Electric Lock Ignition)

Combo4.

1. 1pc X QS268 9000W 12*3.0inch V5 BLDC Hub Motor

2. 1pc X ND72890 Controller （H version）

3. 1pc X Bluetooth adapter

4. 1pc X DKD LCD Speedometer

5. 1pc X Z6 throttle with combination switch

6. 1pc X Vehicle wiring harness for Fardriver with LIN communication (with 1pcs relay, 1pcs flasher, 1pcs DC converter, 1pcs Electric Lock Ignition)

Key Features

1). Simplify to make a electric-motorcycle. transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~95%

Product Description

Drawing

Test Report(Test with ND72850)

Product Description

ND72890 is sine wave controller. Which is more cost effective with waterproofing grade IP67, suit for 6-8kw motors, the peak voltage for it is 88V.

It’s hall version (as default) which suit with hall motors.

It could also support encoders, please check with sales.

Generally Spec:

Drawing

Adapter Cable

USB Cable

Extend Cord

Software interface（PC）

Bluetooth Adapter

Software interface（APP）

Programmable Software & User manual (Before you received the controller)

Pls. Contact with sales to get the link and password to download the manuals and software before/when you got the controllers.

DKD LCD speedometer, can-bus(optional, LIN as default)

It display D N R, P, S gear, and battery current X5/10.

P.s.: If the working battery doesn't have can-bus communication, then the can-bus speedometer will shows lack of electricity always.

So, we suggest to do the speedometer as Line communication version if client can't get can-bus battery.

Drawing

Cable schematics

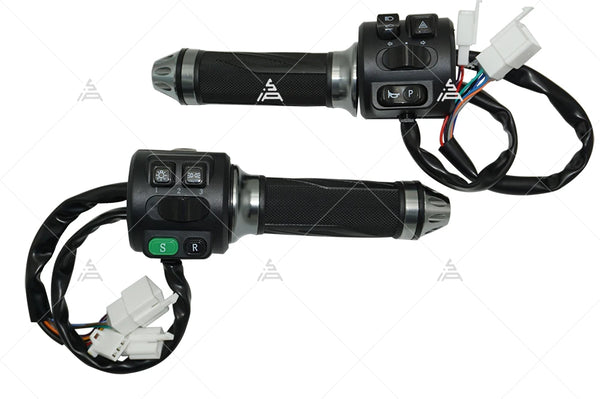

Z6 throttle with combination switch

With Reverse, Parking button( throttle on/off), 3 slide switch gear, s/boost button, Light and Horn.

Vehicle Wiring

Application:
