QSMotor 3000W 205 50H V3TI Motor 72v Electric Motor BLDC Motor Rim Lacing Optional

$568.00




HOT SALE! QS 205 3000W V3Tl 48 60 72V 70 80kph Electric High Power Wheel Hub Motor


Note:
Only V3TI 650RPM(5T), V3TI 820RPM(4T) have in stock, which we can ship within 4 days.
Others have not in stock, which needs about 10-12 working days to produce.

For QS motor 3000w 205 50H V3TI electric motor, it’s new design and especially upgrades for bike-cycle.

It could be 72V 70KPH, available in a variety of sizes, such as 24inch, 26inch Wheel, 17inch, 18inch, 19inch moped wheel.


NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).


2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)



QSMotor 3000W 205 50H V3TI Motor 72v Electric Motor BLDC Motor Rim Lacing Optional





Key Features


1). Simplify to make a bike. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%


For 205 spoke motor, we provide 1 piece Hex Flange Nuts M16*1.5*13, 1 piece Hex Nuts M16*1.5*7, 1 piece 4mm thick Washer as default.
Option 1: Hex Flange Nuts M16*1.5*13 + Hex Nut M16*1.5*7
Option 2: Hex Flange Nuts M16*1.5*13 + 4mm thick Washer
We suggest option 1, if the motor shaft length is not enough, choose option 2 and make sure the washer is installed and tight, otherwise there is a risk of shaft broken.

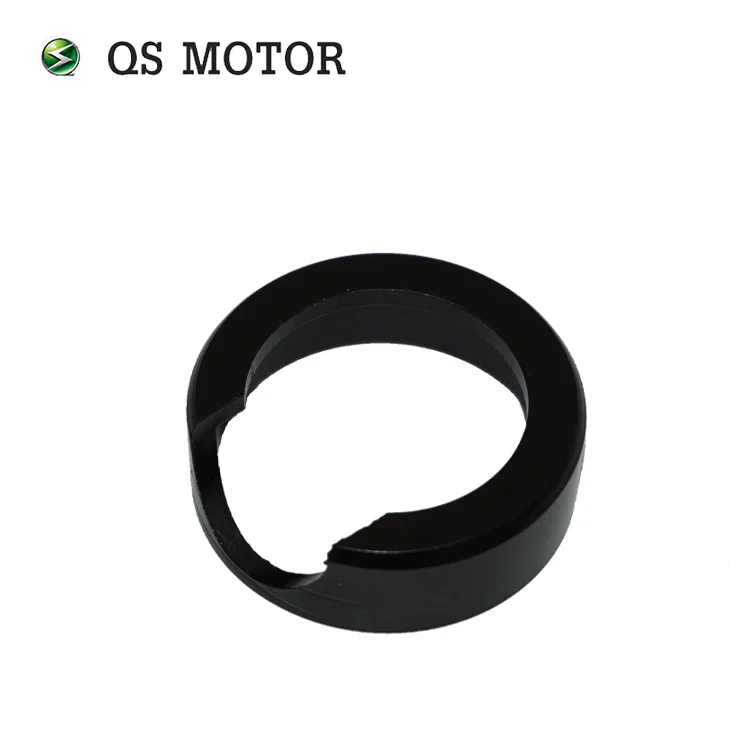

Add brake spacer as default, which is thinner to avoid scratch phase wire by brake disc.




Product Description


1. Specification:


·Motor Type: BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor

·Brand: QS Motor,QSMOTOR

·Motor Design: double axle without rim

·Matched Wheel: 24inch, 26inch Wheel, 17inch, 18inch, 19inch moped wheel.

·Stator: Aluminum Core

·Rated Power: 3000W (6000kW peak in few seconds)

·Rated Voltage: 72V

·Speed: 650RPM/820RPM/1175RPM or customized

·Max Torque: approx 181N.m

·Max Efficiency: approx 91%

·Continuous Battery Current: 44A (72V)

·Peak Battery Current: 100-150A (48V)

·Thermal Probe: KTY83/122 (as default, optional)

·Working Temperature: 70-120℃ , peak 150 ℃

·Brake type: fit with bike disc brake, PCD 6*44mm(brake disc available as addtional option)

·Drop-outs/Rear Fork Width for installation: 150mm

·14mm English thread length for single/3 speed freewheel

·10mm axle flats

·Dual Hall Set with waterproof connectors

·2*5mm² Cross Section of new integrated Phase Wire (not include insulation layer), exit from thread side

·Hall Sensor Phasing angle: 120 degree

·Waterproof Grade: IP65

·Color: Black

·N.W./G.W.: approx 12.5/14.0kg

·Package Dimension: 33.5cm*33.5cm*31.5cm/piece


PS. V3Ti short for V3 thread integrated, which mean phase wire exit from thread side of motor axle, we plan to replace V3 motor gradually.



Dimension Drawing


Refer to V3 drawing firstly.



Test Report



Please noted:


Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.

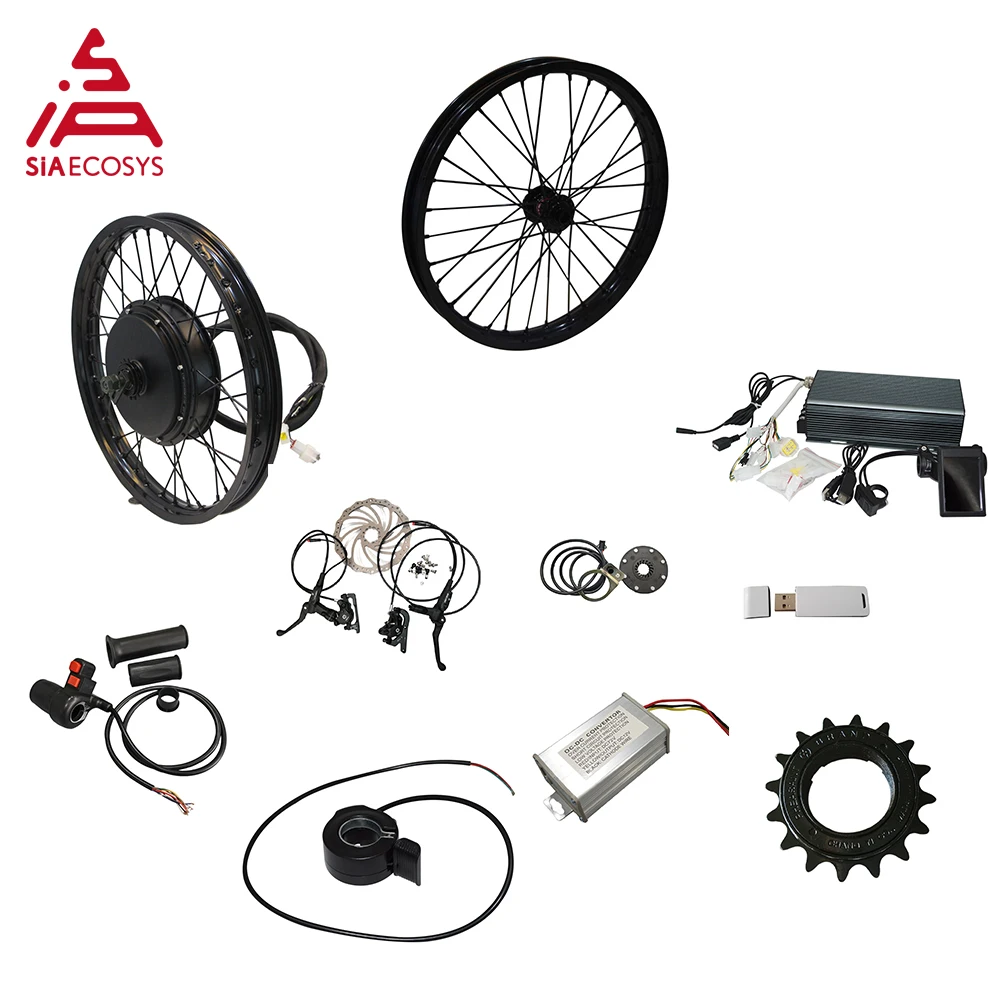

Conversion kits


We're able to supply Controller, display, dc-dc converter, disc brake system, twist throttle...etc.



Application for QS 205 3kW V3Ti hub motor



The QSMotor 3000W 205 50H V3TI Motor 72v Electric Motor BLDC Motor Rim Lacing Optional is the product you didn't think you need, but once you have it, something you won't want to live without.
