QS Motor 12000W 17X6.0inch 12KW 70H V4 Electric Motorcycle Hub Motor
NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)
For 17inch E-scooter Wheel hub motor, it could be used for electric scooter, electric motorcycle.
273 motor means the diameter of iron ring of rotor is 273mm.
There are 17*3.5inch(as default), 17*4.5inch(Only available for 12kW & 14kW power), 17*6.0inch(Latest)
Key Features
1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%
Product description
Genearlly Spec:
-
Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor
-
Brand: QS Motor, QSMOTOR
-
Motor Design: Double axle with 17inch moped rim (integrated)
-
Rim Size:17x6.0inch(Narrow Tire as default), matched tire: 180/70-17 etc
-
Magnet Height: 70mm, 16 pole pairs
-
Stator: Aluminum Core
-
Rated Power: 12000W
-
Speed: 30KPH-157KPH, it's customized, genearlly we will design as 72V110KPH and 96V157kph.
-
Work voltage range: 48V-144V, will be 72V as default
-
Thermic Probe: KTY83-122 (as default, optional)
-
Max Efficiency approx 88%
-
Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm
-
Drop-outs: 230mm
-
Dual Halls with waterproof connectos(One for spare, in case of damage)
-
25mm² Phase Wire
-
Waterproof Grade: IP54
-
Color: Black (As default)

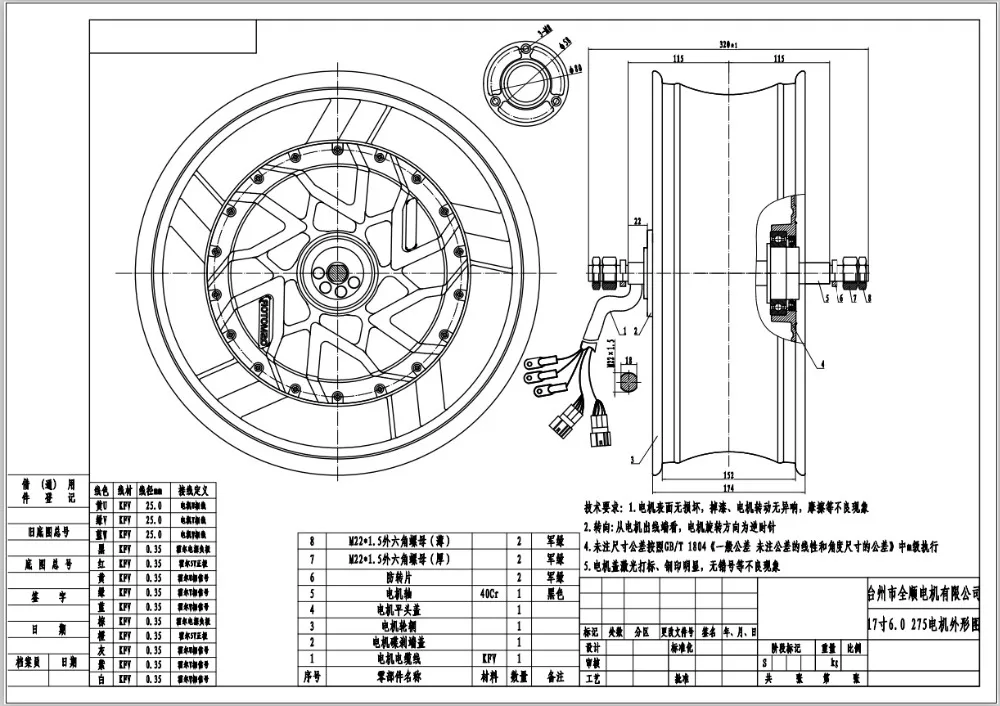

Dimension Drawing:
-

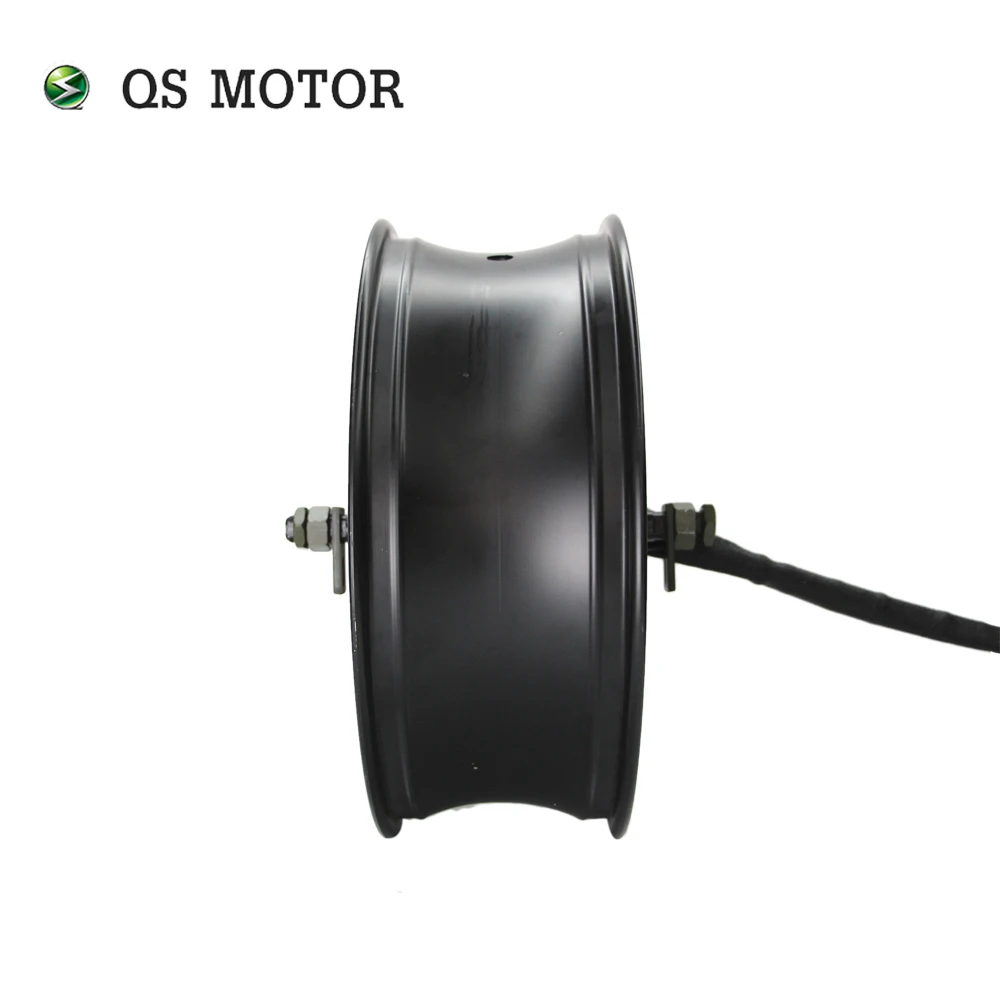

17*6.0inch in-wheel hub motor(Integrated)
Please noted:
Optional appearance, drawing, performance curve/test report are available.
If you need more technical information, please feel free to contact us.
We will give you reply in 12hours.

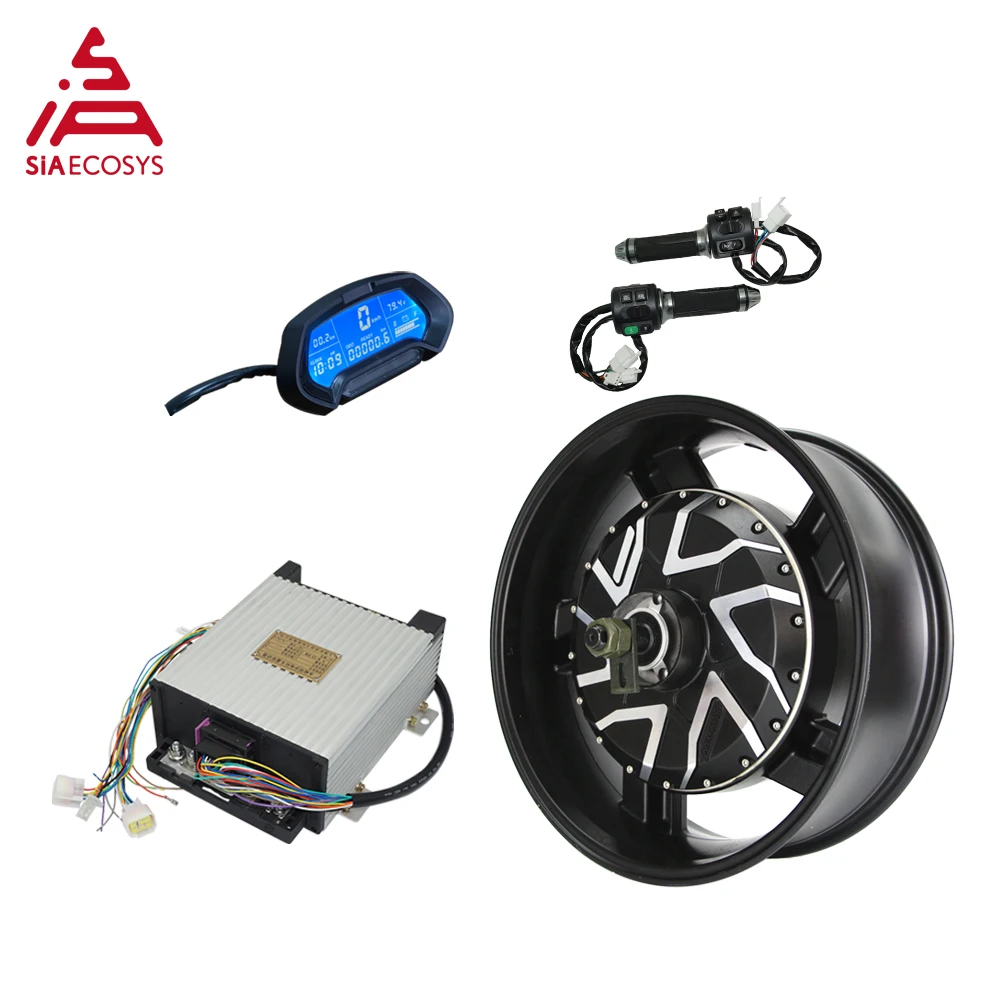

Conversion kits for 17*6.0inch in-wheel hub motor
We're able to supply Controller, display, dc-dc converter, disc brake system, twist throttle...etc.
Application for 17inch in-wheel hub motor
