QS 12kw-15kw Peak power motor QS 273 hub motor super power electric bike motor

$898.00


 QS 12kw-15kw Peak power motor QS 273 hub motor super power electric bike motor



7

4



Details for QS V3 273 electric bike hub motor

Peak Power: 12kw-15kw

Voltage : 48V-120v

Windings : 3.5T or 5T .

Max torque : > 250N.M

Efficiency : > 90%

Hall sensor : yes, have two sets, one is for spare

Temperature : Yes

Drop out : 150mm

Axle size : 12mm x 16mm

Brake : disc brake PCD6*44mm

Freewheel : single freewheel

Net weight : 19.9kgs

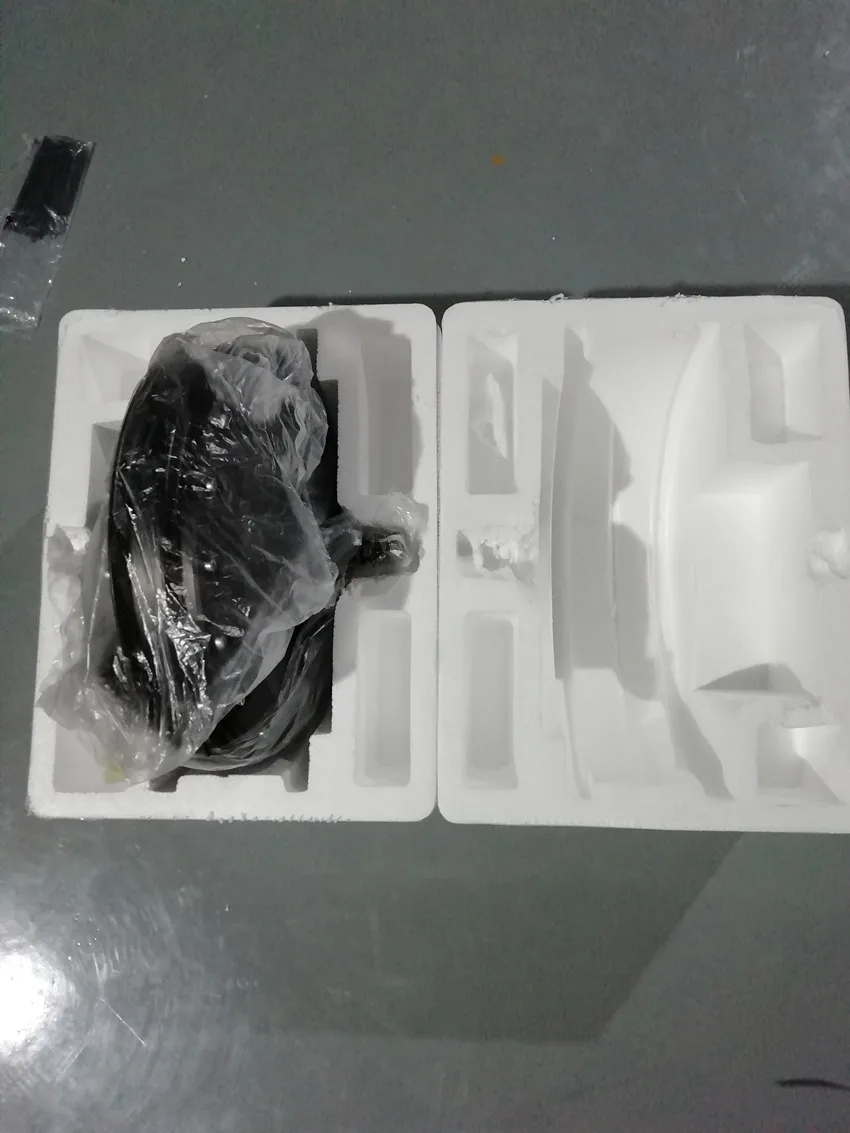

Packing

8000W4





QS V3 273 electric bike hub motor with 19inch motorcycle rim


\67

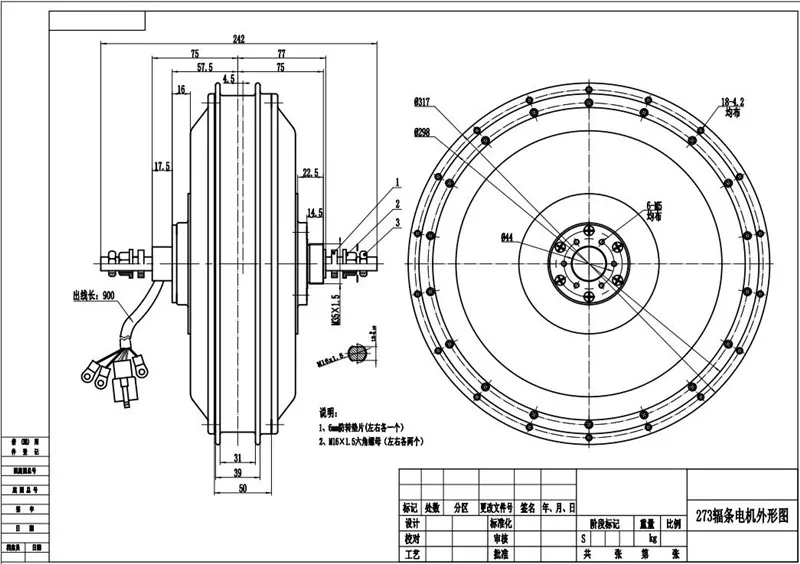

Drawing photo for QS V3 273 Hub Motor :



150mM 273 DRAW

The QS 12kw-15kw Peak power motor QS 273 hub motor super power electric bike motor is evocative, to say the least, but that's why you're drawn to it in the first place.
