Quanshun Motor 6000W 273 E-car Hub Motor Conversion Kits

 6000W E-car Hub Motor Conversion Kits

Key feature:

1. Simplify to make a electric-car. Gearbox, transmission shaft, clutch are no need. Which save space.

2. It could be installed in wheels, and easy to be hybrid car.

3. 2wd, it could be 72V 100KPH, 2*293N.m peak torque.

4wd, it could be 72V 100KPH, 4*293N.m peak torque.

4. Easily to make 4-wheel drive, which could spot turn.

5. Support regenerative braking

6. High efficiency: 85~92%

Notes:

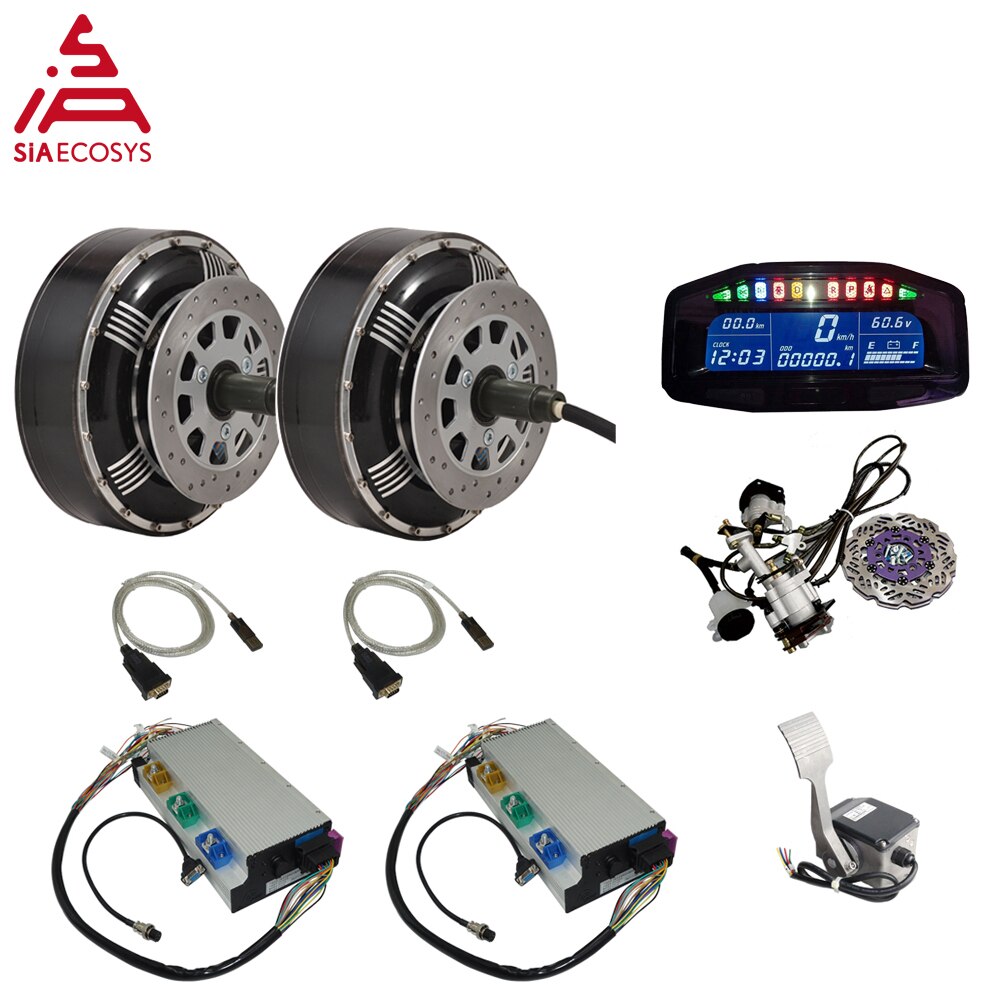

Package Includes:

2x 273 6000W 273 40H V3 E-Car Hub Motor

2x APT96600 Controller

1x Throttle Pedal

1x X8-E Speedometer

1x 04type 1 tow 2 Hydraulic Disc brake system (with disc brake plate)

Production Description:

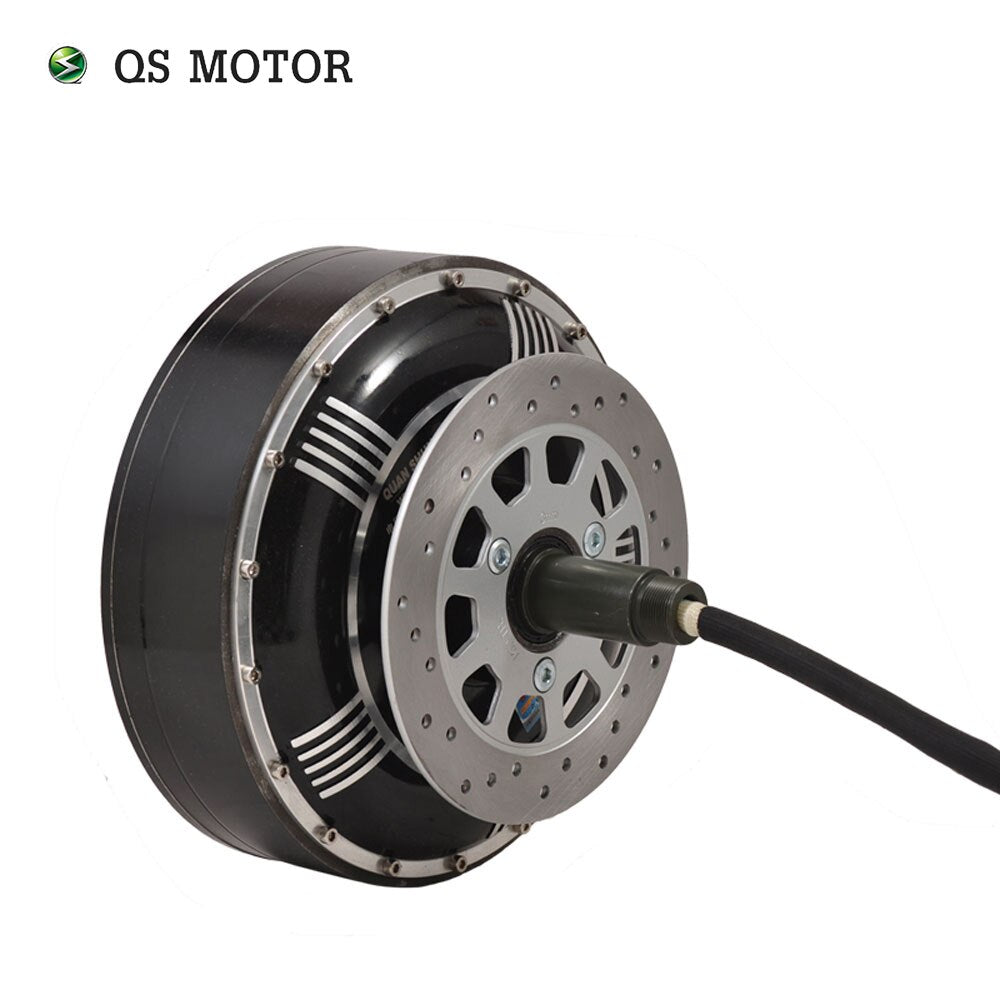

1. QS Motor 6000 273 40H V3 E-Car Hub Motor

• Motor Type: BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor

• Brand: QS Motor,QSMOTOR

• Motor Design: Singleh axle without rim

• Matched Wheel: ≥14inch Car Wheel, PCD customizable, CB ≥60mm (PCD 5*112mm, CB60mm as default)

• Magnet Height: 45mm, 16 pole pairs

• Stator: Aluminmum Core

• Rated Power: 6000W (12kW peak in few seconds)

• Rated Voltage:72V as default (48V-144V, optional)

• Speed: 100KPH as default (24-120KPH, optional)

• kV: 7.42/10.42/13.33/13.38/ etc.

• Max Torque: approx 290N.m

• Max Efficiency: 86-91%

• Continuous Battery Current: 104A (72V)

• Peak Battery Current: 210A (72v)

• Suggest Peak Phase Current: 261-554A

• Thermic Probe: KTY83/122 (as default, optional)

• Working Temperature: 70-120℃ , peak 150 ℃

• Brake type: Disc brake, PCD3*80mm-M8, CB 58mm(as default)

• Dual Hall Set with waterproof connectors

• 16mm² Cross Section of Phase Wire (not include insulation layer)

• Hall Sensor Phasing angle: 120 degree

• Waterproof Grade: IP54

• Color: Black

• N.W./G.W.: 23.5kg/25kg

• Package Dimension: 43cm*43cm*34cm/piec

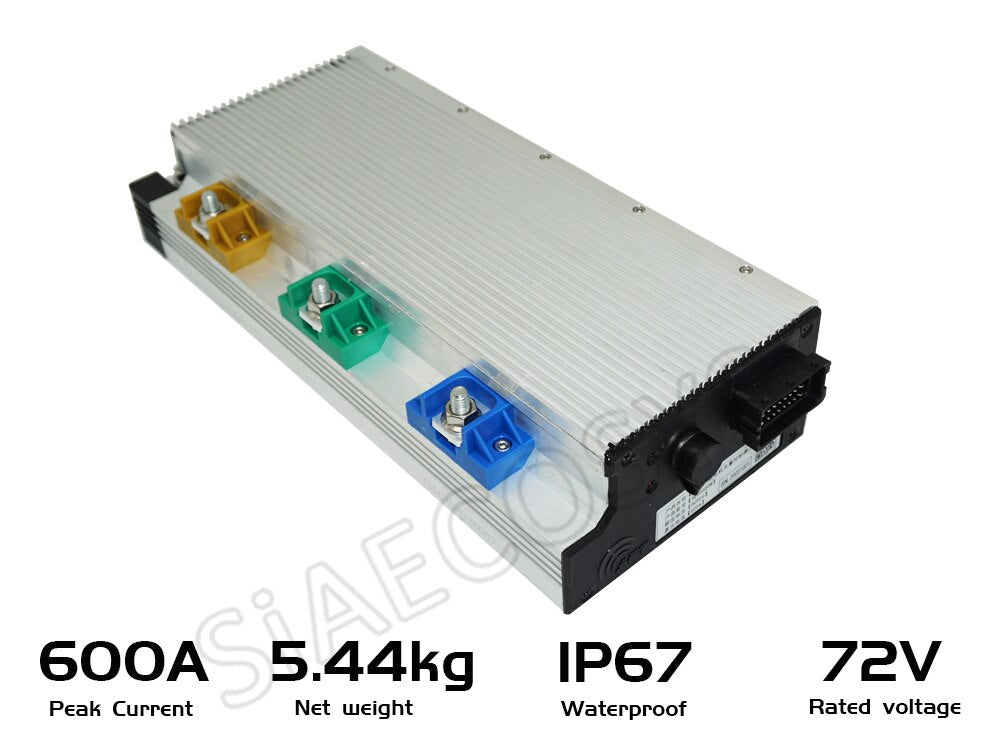

2.APT96600 Controller

Sinusoidal BLDC Motor Controller

Drawing

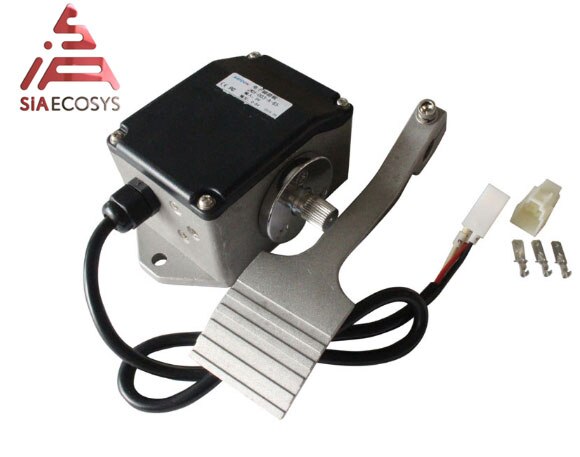

3. 0-5V Electric Car Throttle Pedal

• Throttle Pedal Hall type : JKH model (match with our motor & controller)

• Input voltage: 5V 12V 15V 24V 36V 48V 60V 72V 84V 96V 120V

• Output voltage: 0-5V5-0V1-4.2V4.2-1V0-10V10-0V

• Deafult: 5v input voltage (depends on controller design, for our matched controllers, you can choose 5v input voltage), 0-5v output voltage.

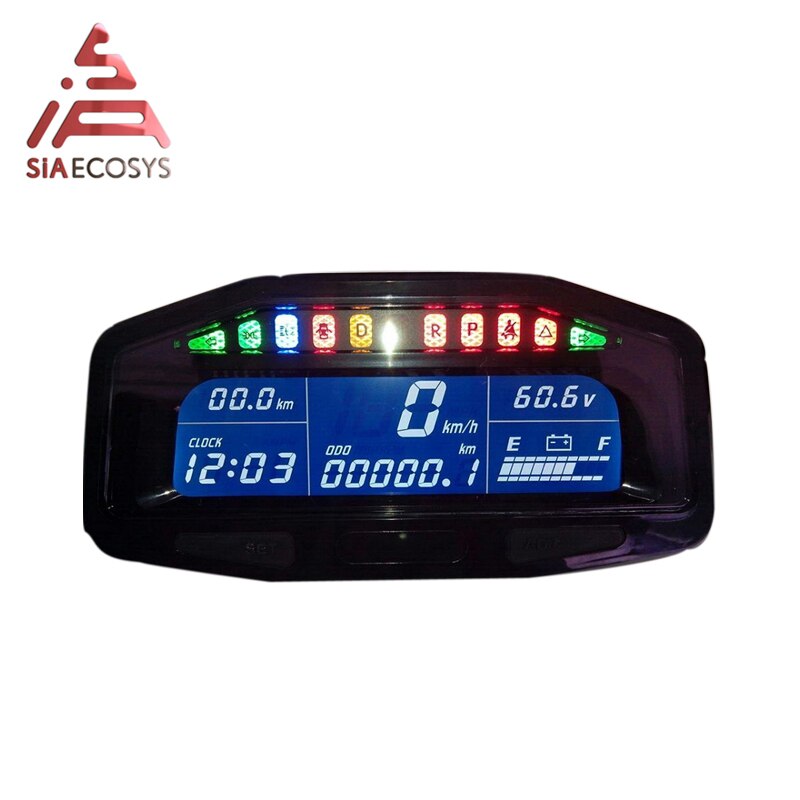

4. 48-100V Programmable Electric Car Speedometer

• Rated Voltage:48V-144VProgrammableShow Time, driving distance, speed, voltage, electric quantityTest Speed Type: Hall Sensor

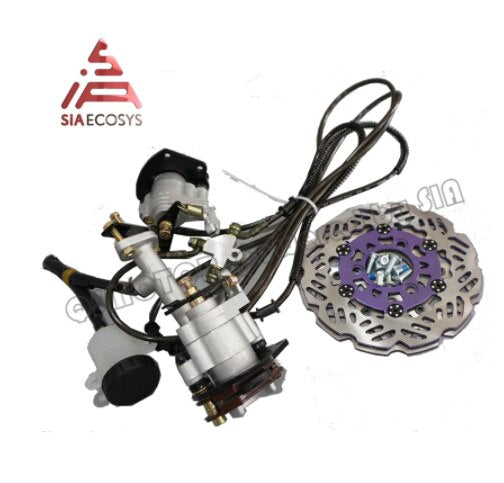

5. 1 tow 2 Hydraulic Disc brake system (with disc brake plate)

• 04 dayang left & right 38mmpistoncaliper with mechanical parking brake (pull type)
• hydraulic service brake by foot
• pitch of mounting 80 & 103mm
• hoses 220cm + 2 x 80cm
• T-shape hose connector
• mechanical parking brake cable 95cm + 2 x 115cm (optional)
• 220mm disc brake plate and screws (PCD 3*80mm, CB58mm, thicknees 4mm)

• Suitable for QS Motor 273 Single Shaft Hub Motors
