SiAECOSYS 12000W V4 96V 146kph hub Motor with SIAPT96800 controller power train kits for High Power electric car
NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)

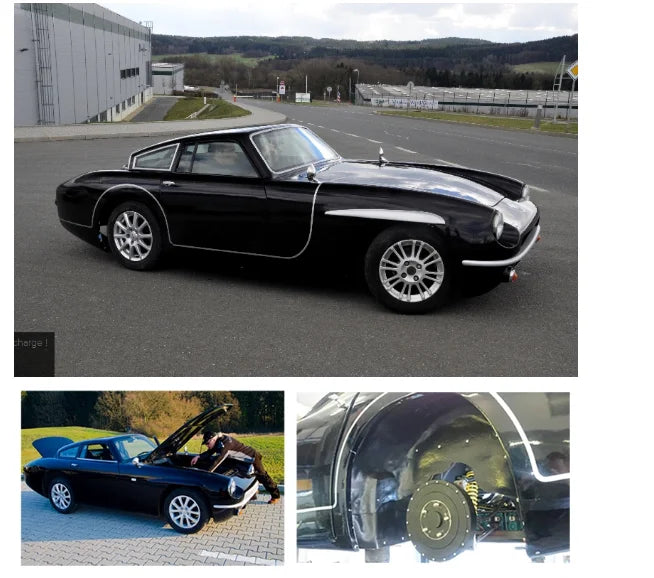

The Electric Car Kit includes most of things needed (except battery/charger) to convert your standard car into a top-of-the-line performance electric car, which delivers unequaled performance and reliability.
You'll be out cruising along at approx. 50-82mph / 80-130km/h speed.
Key feature:
1. Simplify to make a electric-car. Gearbox, transmission shaft, clutch are no need. Which save space.
2. It could be installed in wheels, and easy to be hybrid car.
3. 2pcs 12kw motor bearing 1000-1300kg, can reach at 130kph max. speed.
4. Easily to make 4-wheel drive, which could spot turn.
5. Support regenerative braking
6. High efficiency: 85~92%
Notes:
1. Battery and charger are not included in package.
2. The battery voltage depends on your application. (72-144V)

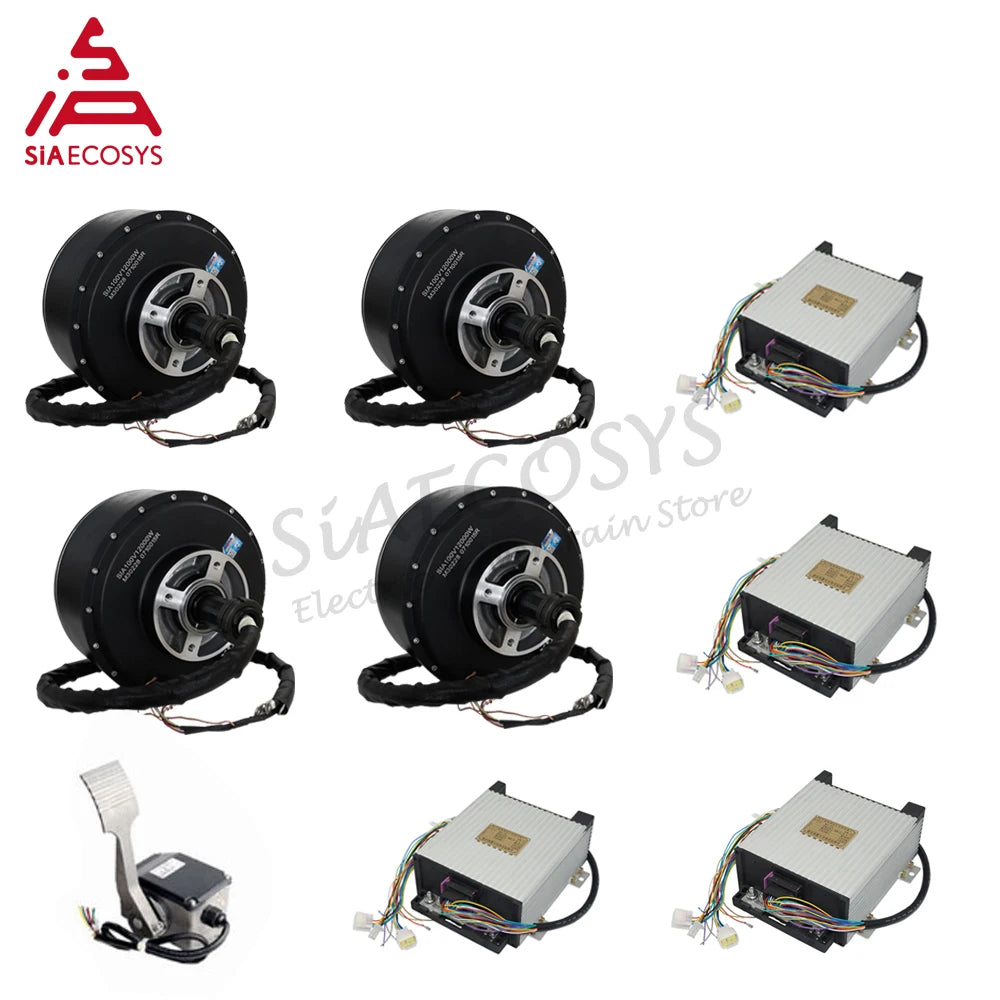

One set including below kits:
1.4pcs X QSMOTOR 12000W 273 V4 Electric Motorcycle Hub Motor
2.4pcs X SIAPT96800 96V Sinusoidal Wave BLDC Motor Controller
3.1pcs X 0-5V Electric Car Throttle Pedal
Product Description:

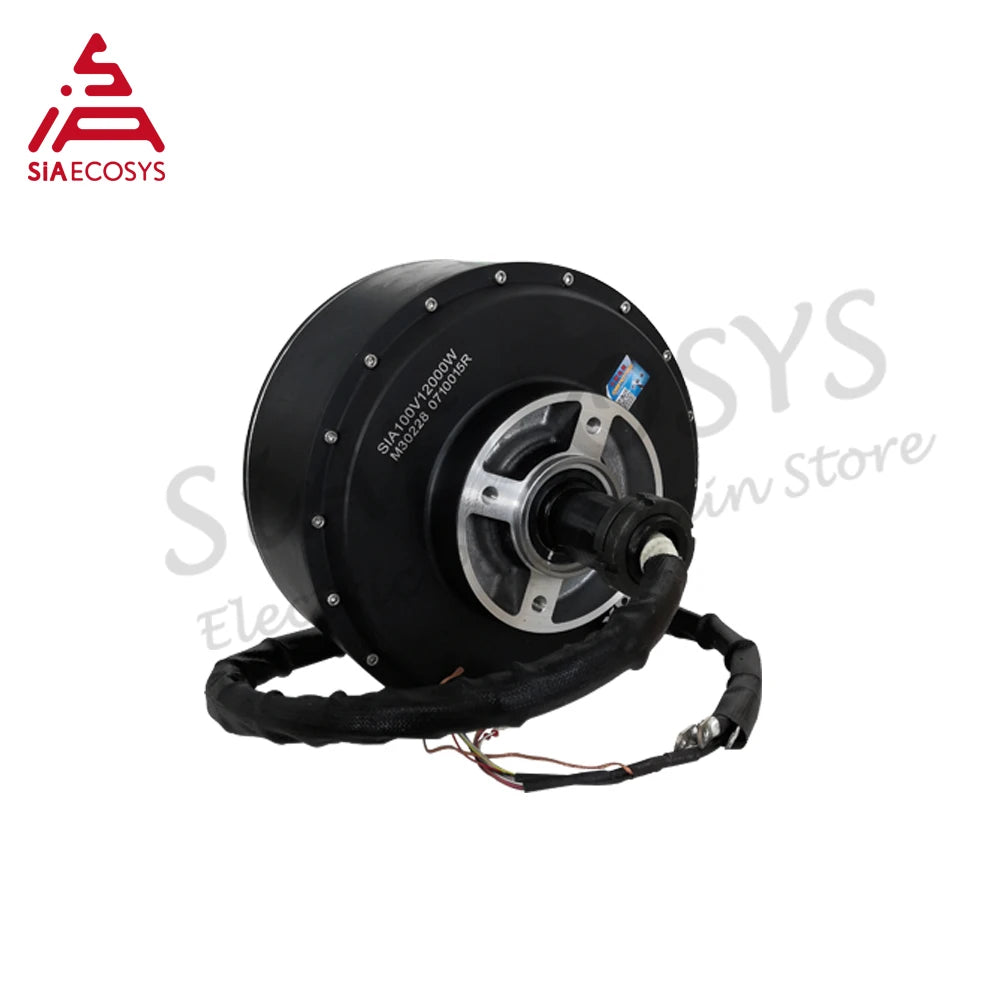

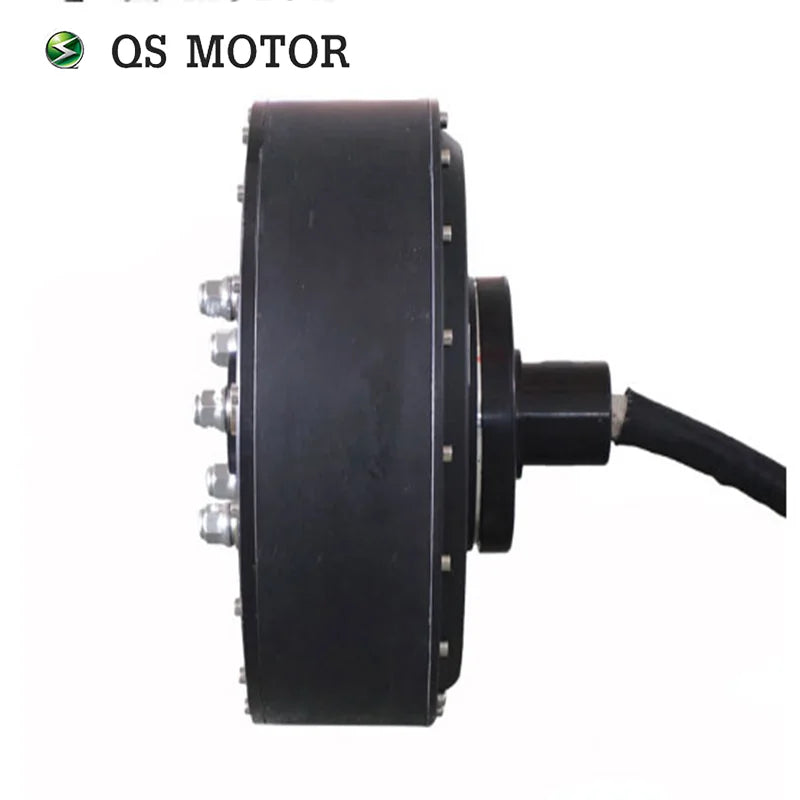

1.QSMOTOR 12000W 273 V4 Electric Motorcycle Hub Motor
Specification
1. QS Motor 12000W 273 70H V4 E-Car Hub Motor
Motor Design: Singleh axle without rim
Matched Wheel: ≥14inch Car Wheel, PCD customizable, CB ≥60mm (PCD 5*112mm, CB60mm as default)
Magnet Height: 70mm, 16 pole pairs
Stator: Aluminmum Core
Rated Power: 12000W (24kW peak in few seconds)
Rated Voltage: 96V as default (48V-144V, optional)
Speed: 120KPH as default (70-130KPH, optional)
kV: 10.0/10.28(as default)/10.42/11.67/12.5/14.58/ etc
Max Torque: more than 350N.m
Max Efficiency: 86-91%
Peak Battery Current: 250A (96V)
Suggest Peak Phase Current: 530-700A
Thermic Probe: KTY83/122 (as default, optional)
Brake type: Disc brake, PCD4x114.3mm-M12, CB 67mm(as default)
Dual Hall Set with waterproof connectors
2x12mm2; Cross Section of Phase Wire (not include insulation layer)
Hall Sensor Phasing angle: 120 degree
Waterproof Grade: IP54
Color: Black
N.W./G.W.: 43.0kg/41kg
Package Dimension: 48cm*50cm*54cm/piece(wodden package).

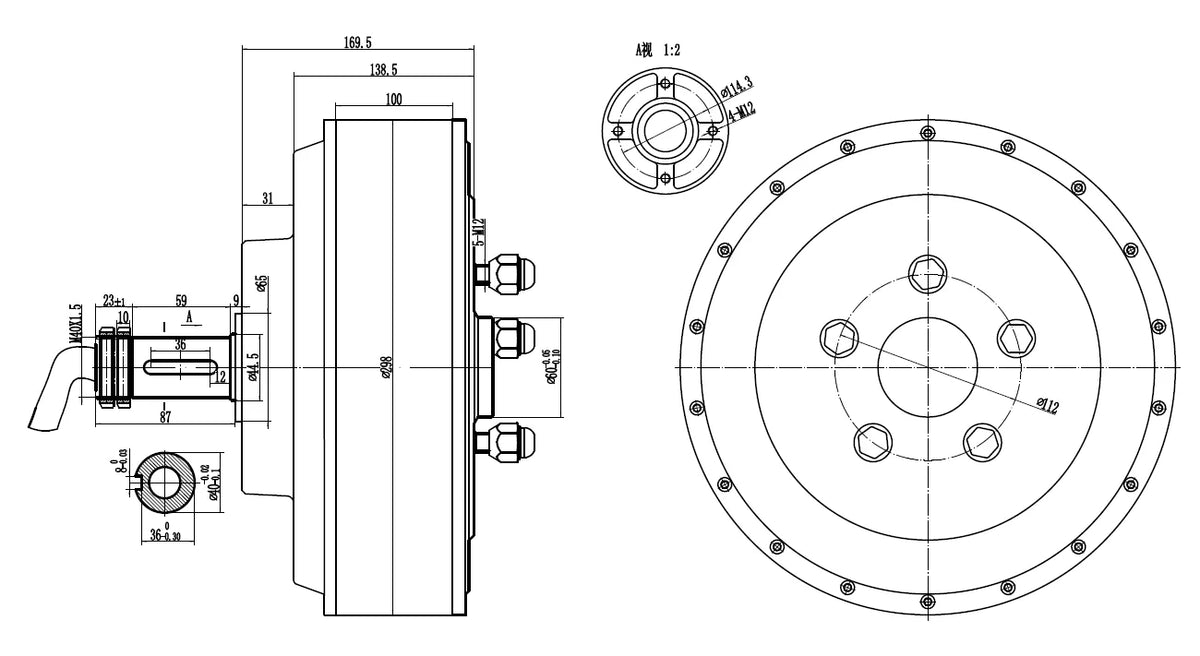

Drawing

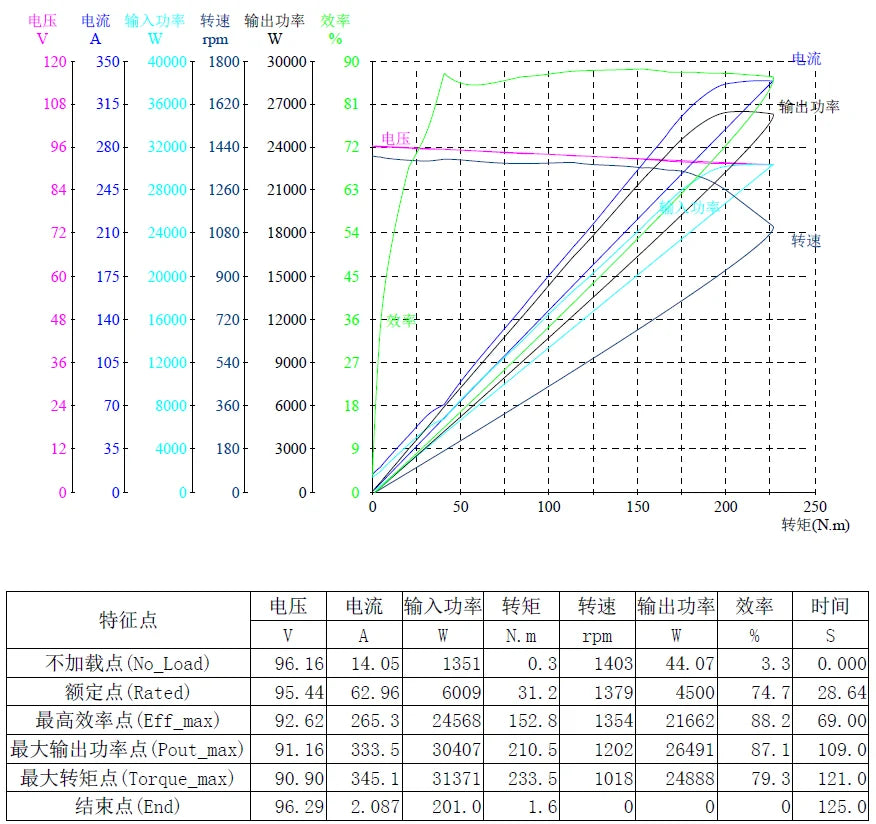

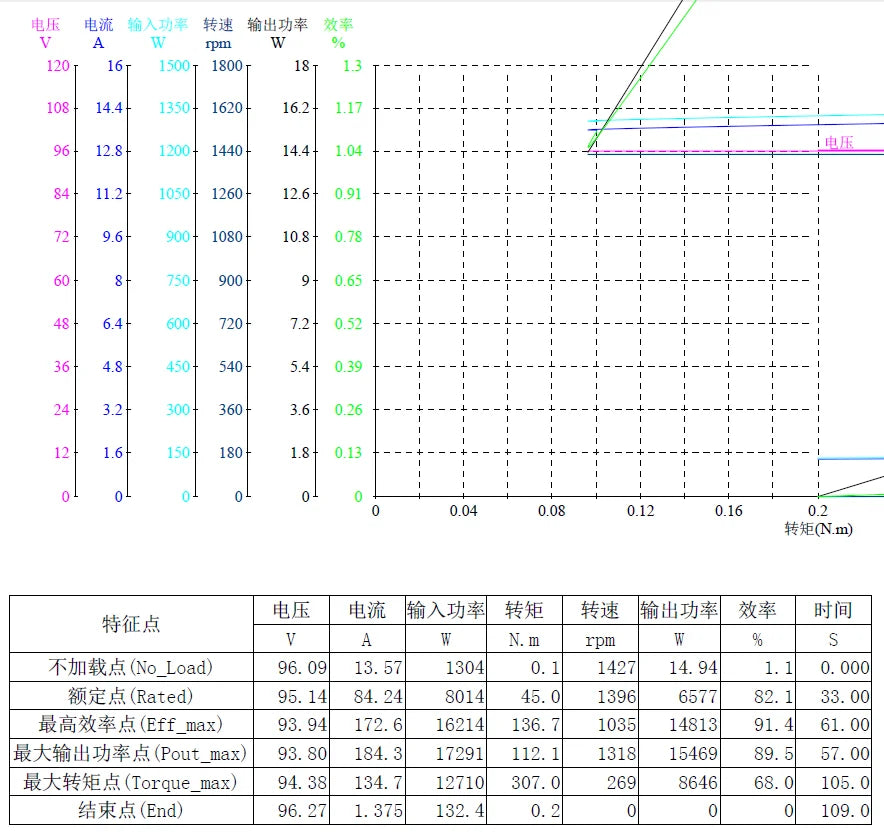

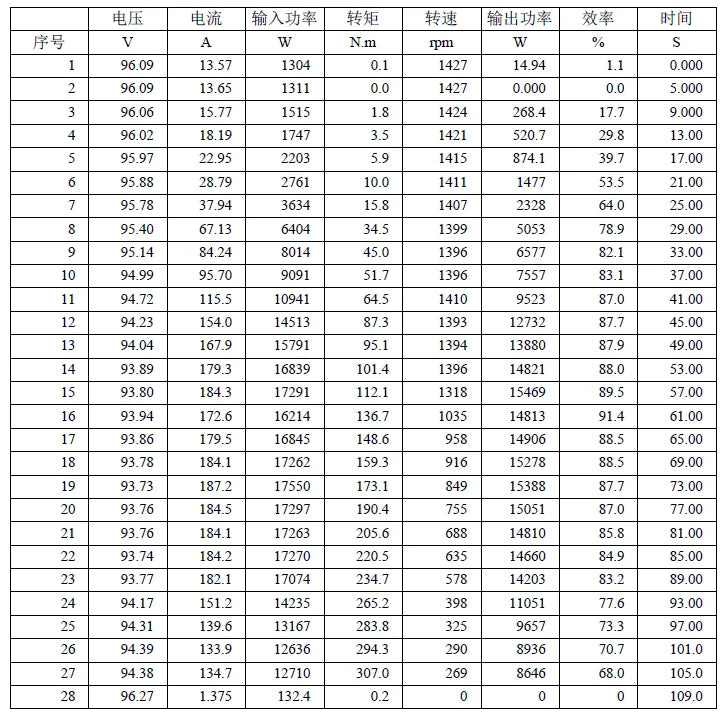

Test Report
Max torque

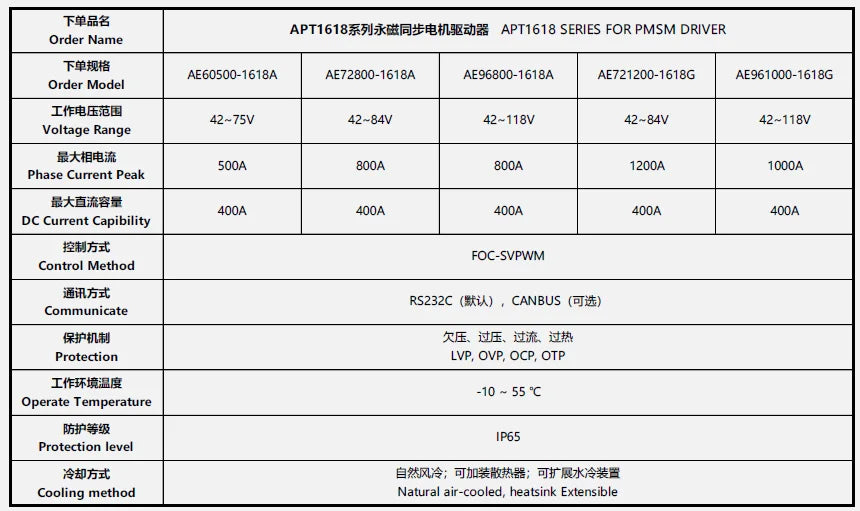

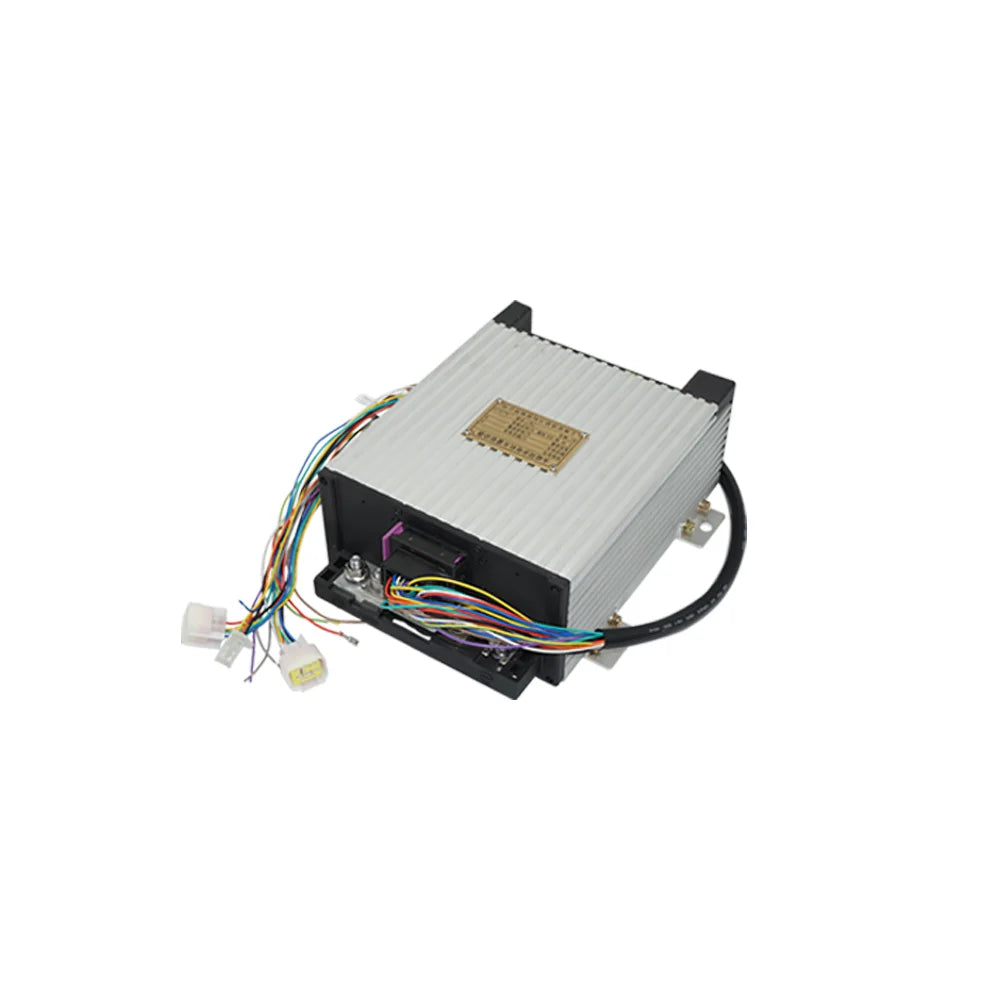

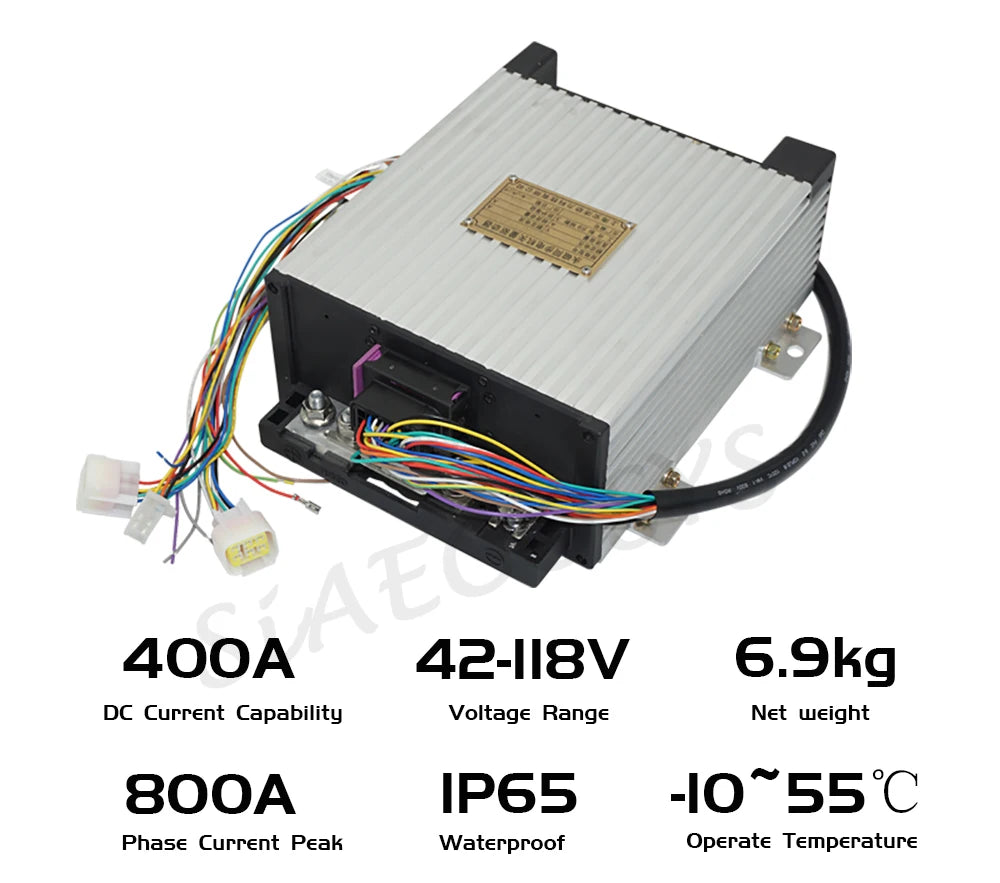

2.SIAPT96800 96V Sinusoidal Wave BLDC Motor Controller
Drawing
Wiring Diagram

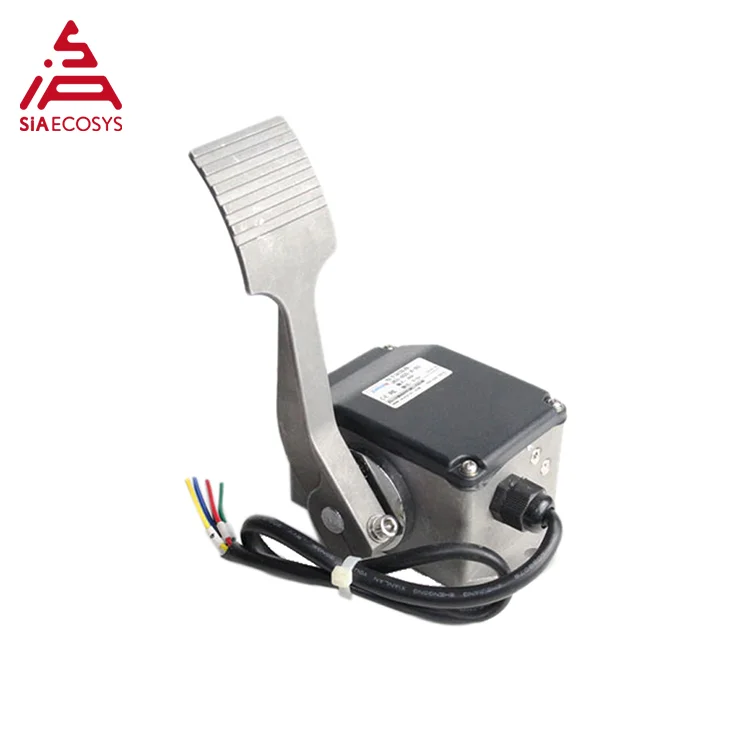

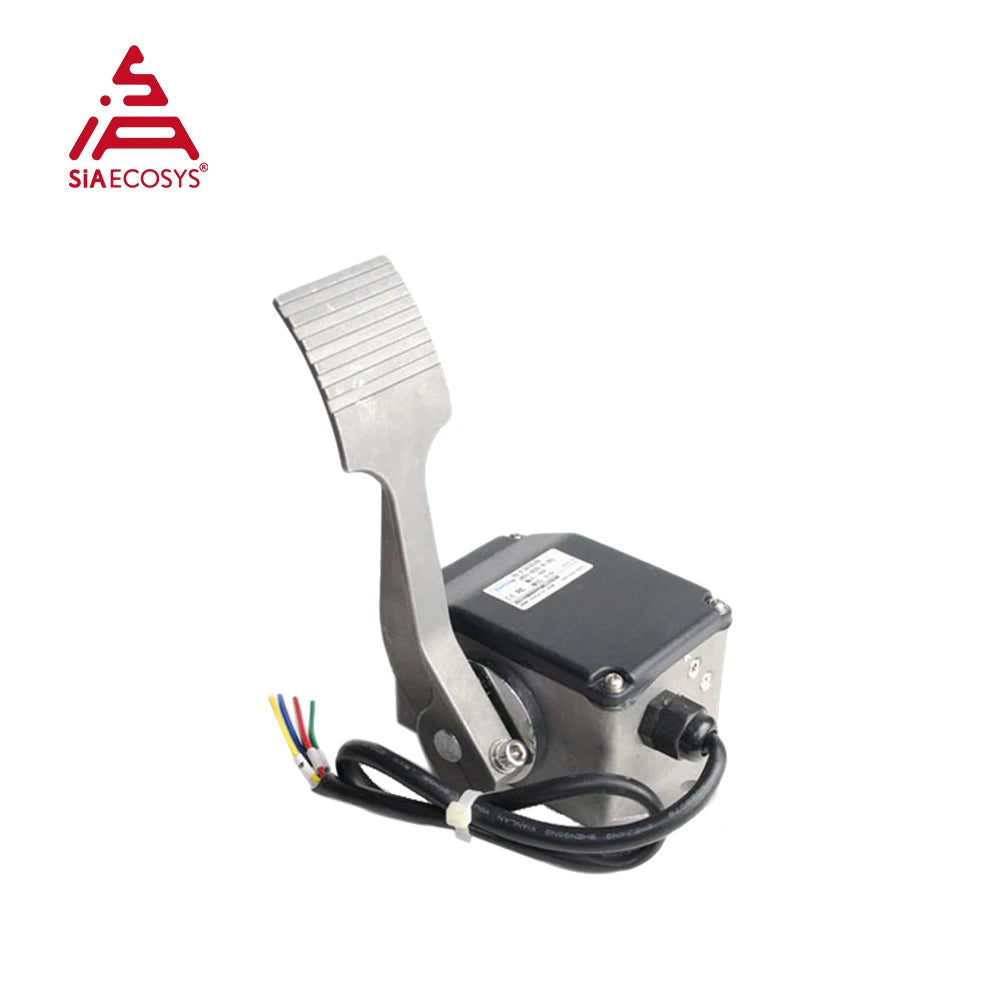

3.0-5V Electric Car Throttle Pedal
Please noted:
Optional appearance, drawing, performance curve/test report are available.
If you need more technical information, please feel free to contact us.
We will give you reply in 12hours.
Q1. Are you trader or manufacture?
A: We're manufacture.
Q2. How long is your production time?
A: Generally, the production period is 12-14 working days(6 working days per week).
The specific delivery time depends on the items and the quantity of your order.
Q3. How long is your warranty time?
A: For motor, the warranty time is one year and three months. For other parts, the warranty time is one year.
Q4. About Customs Clearance
For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support.
Special countries list:
Argentina, Brazil, Egypt, Turkey, Iran,Portugal,Romania, Kazakhstan, Ukraine, Yeman etc.
Some countries name not listed, the salesman will inform you in time if you placed the order online directly. Thank you for your understanding.
Q. Motor Order:
1. please contact seller confirm the parameter, otherwise will make as default.
2. please extended 15 days more at least for order prepare when motor no in stock. (most of motor is customized based on application, without in stock).
3. when place order please leave email address, for seller provide manuel.
4. please read manuel careful before woring motor and controller, and if meet problem please contact seller in time, and don't disassembly cargo without seller permit, otherwise there will be no warranty.
Q. Controller Order:
1. when place order please leave email address, for seller provide manuel.
2. please read manuel careful before woring controller, and if meet problem please contact seller in time, and don't disassembly controller without seller permit, otherwise there will be no warranty.
