SiAECOSYS QS 4wd 12000W V4 96V 146kph Hub Motor With SIAPT96800 Controller Power Train Kits For High Power Electric Car

Sale price $8,715.68 Regular price $9,309.88

SiAECOSYS 12000W V4 96V 146kph hub Motor with SIAPT96800 controller power train kits for High Power electric car


The 12000W electric car kit includes most of things needed (except battery/charger) to convert your standard car into a top-of-the-line performance electric car, which delivers unequaled performance and reliability.


You'll be out cruising along at approx. 50-82mph / 80-130km/h speed.


Key feature:


1. Simplify to make a electric-car. Gearbox, transmission shaft, clutch are no need. Which save space.

2. It could be installed in wheels, and easy to be hybrid car.

3. 2pcs 12kw motor bearing 1000-1300kg, can reach at 130kph max. speed.

4. Easily to make 4-wheel drive, which could spot turn.

5. Support regenerative braking

6. High efficiency: 85~92%



Notes:


1. Battery and charger are not included in package.

2. The battery voltage depends on your application. (72-144V)

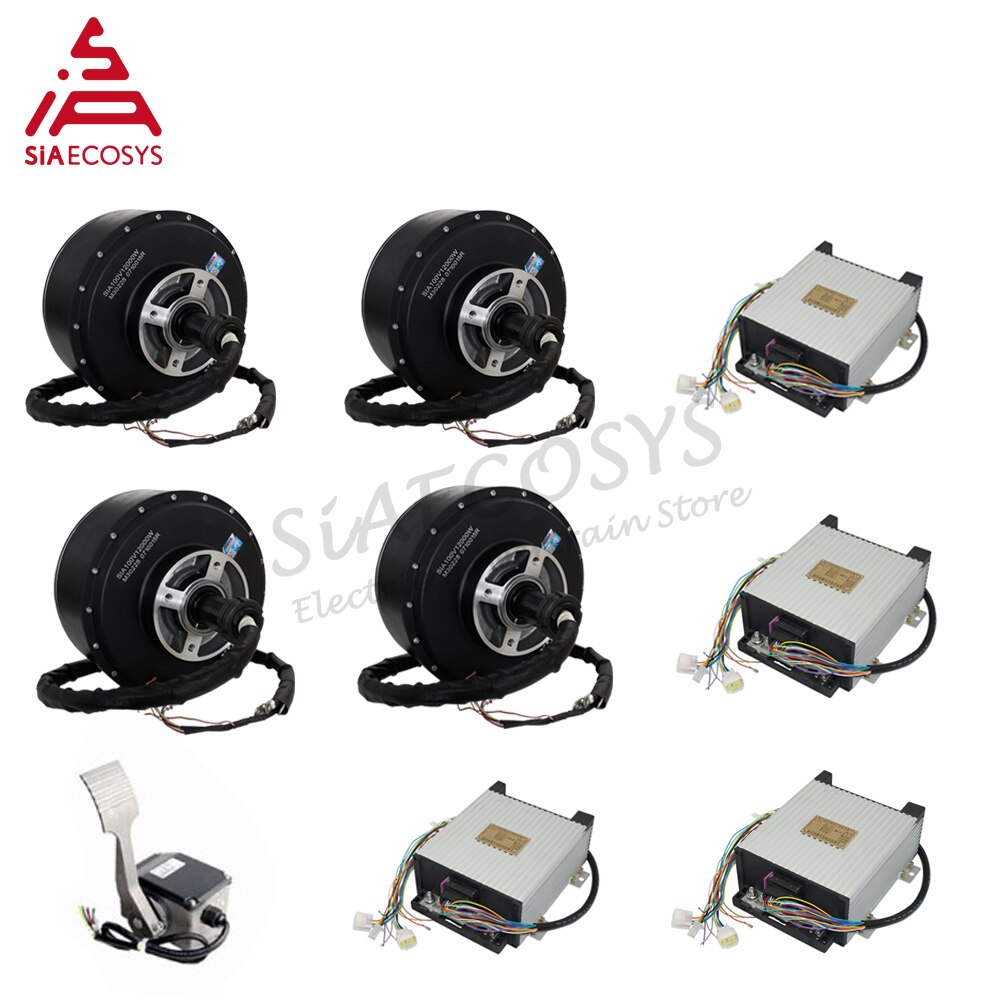

One set including below kits:


1.4pcs X QSMOTOR 12000W 273 V4 Electric Motorcycle Hub Motor

2.4pcs X SIAPT96800 96V Sinusoidal Wave BLDC Motor Controller
3.1pcs X 0-5V Electric Car Throttle Pedal

Product Description:

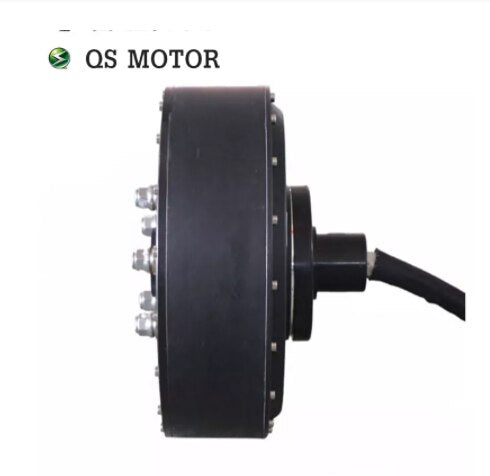

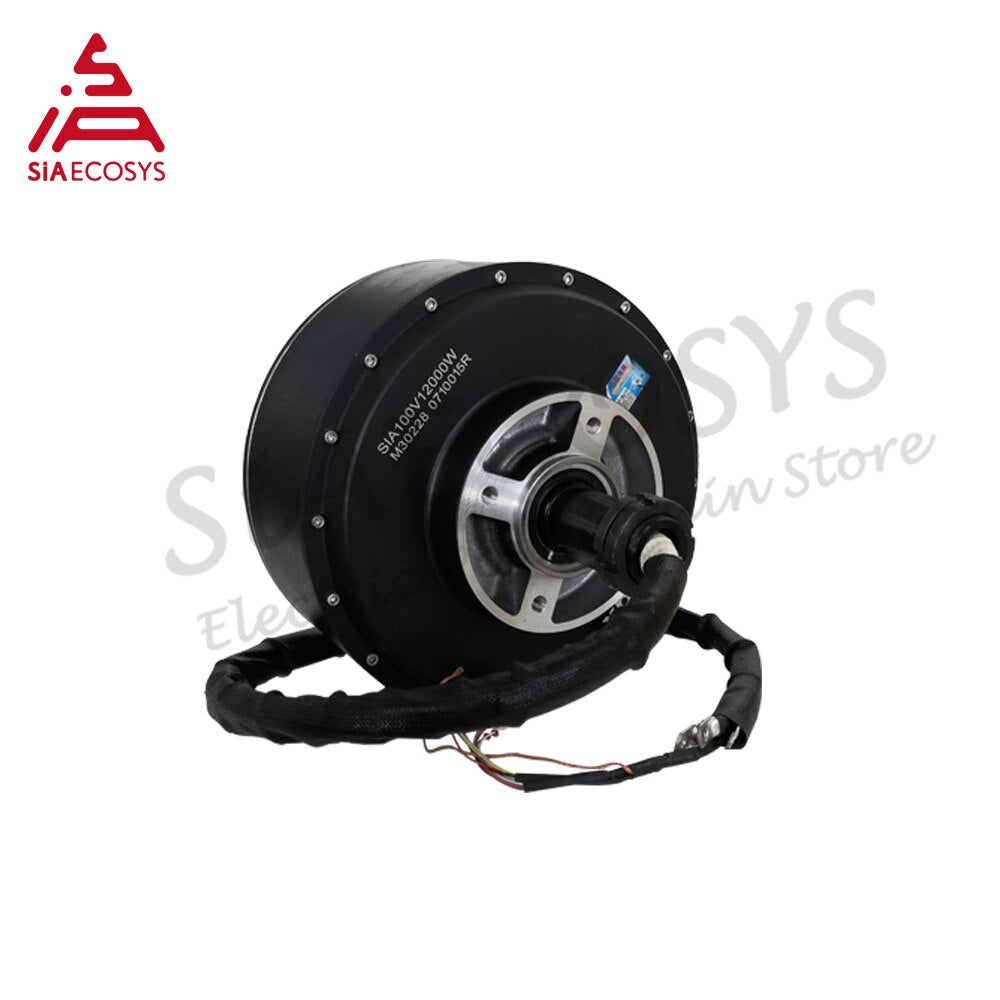

1.QSMOTOR 12000W 273 V4 Electric Motorcycle Hub Motor



Specification


1. QS Motor 12000W 273 70H V4 E-Car Hub Motor


Motor Design: Singleh axle without rim


Matched Wheel: ≥14inch Car Wheel, PCD customizable, CB ≥60mm (PCD 5*112mm, CB60mm as default)


Magnet Height: 70mm, 16 pole pairs


Stator: Aluminmum Core


Rated Power: 12000W (24kW peak in few seconds)


Rated Voltage: 96V as default (48V-144V, optional)


Speed: 120KPH as default (70-130KPH, optional)


kV: 10.0/10.28(as default)/10.42/11.67/12.5/14.58/ etc


Max Torque: more than 350N.m


Max Efficiency: 86-91%


Peak Battery Current: 250A (96V)


Suggest Peak Phase Current: 530-700A


Thermic Probe: KTY83/122 (as default, optional)


Brake type: Disc brake, PCD4x114.3mm-M12, CB 67mm(as default)


Dual Hall Set with waterproof connectors


2x12mm2; Cross Section of Phase Wire (not include insulation layer)


Hall Sensor Phasing angle: 120 degree


Waterproof Grade: IP54


Color: Black


N.W./G.W.: 43.0kg/41kg


Package Dimension: 48cm*50cm*54cm/piece(wodden package).

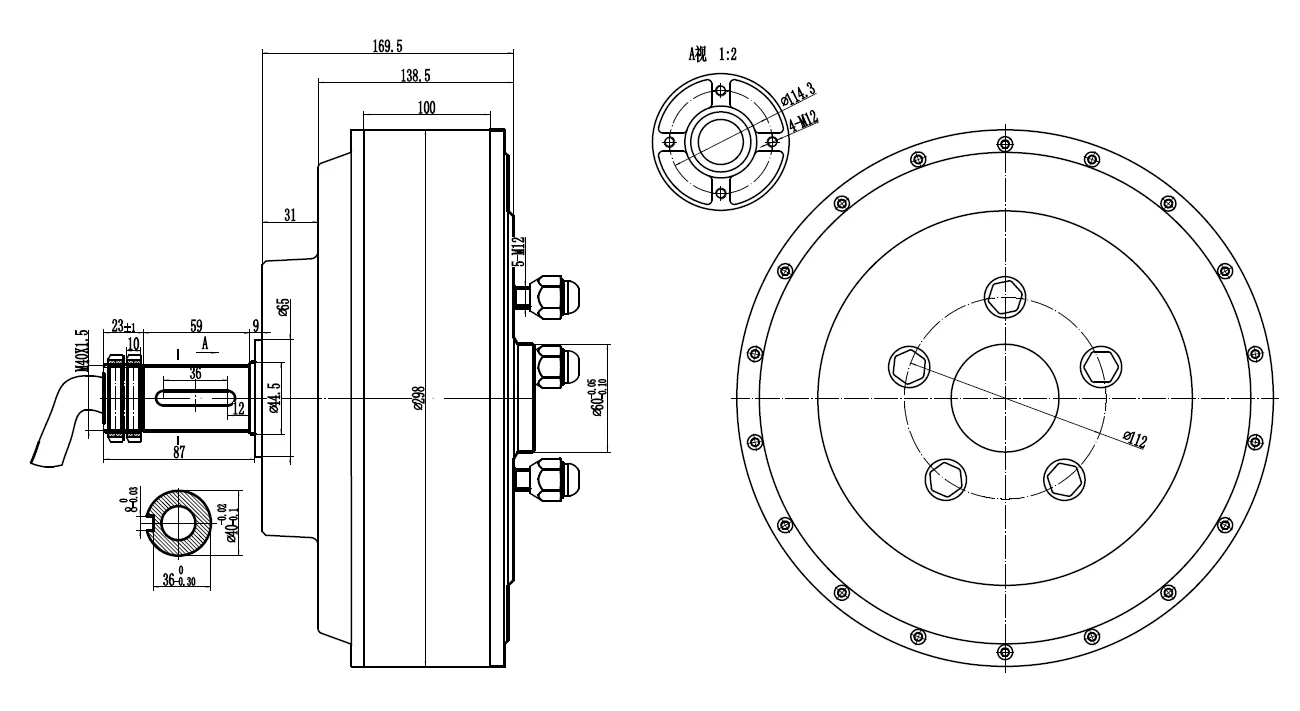

Drawing

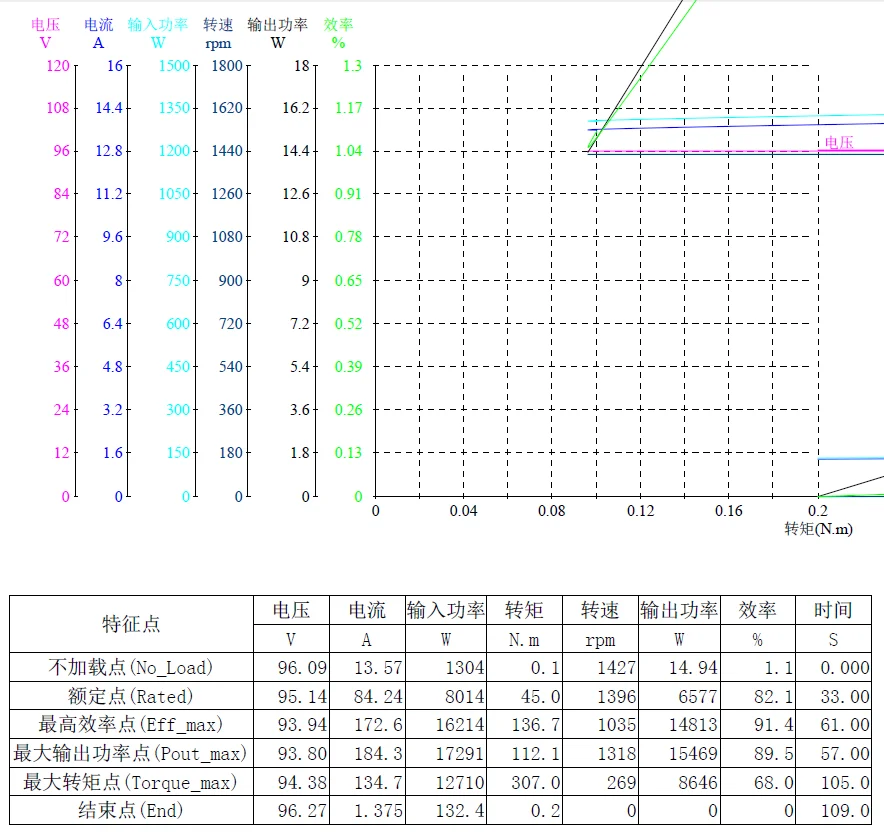

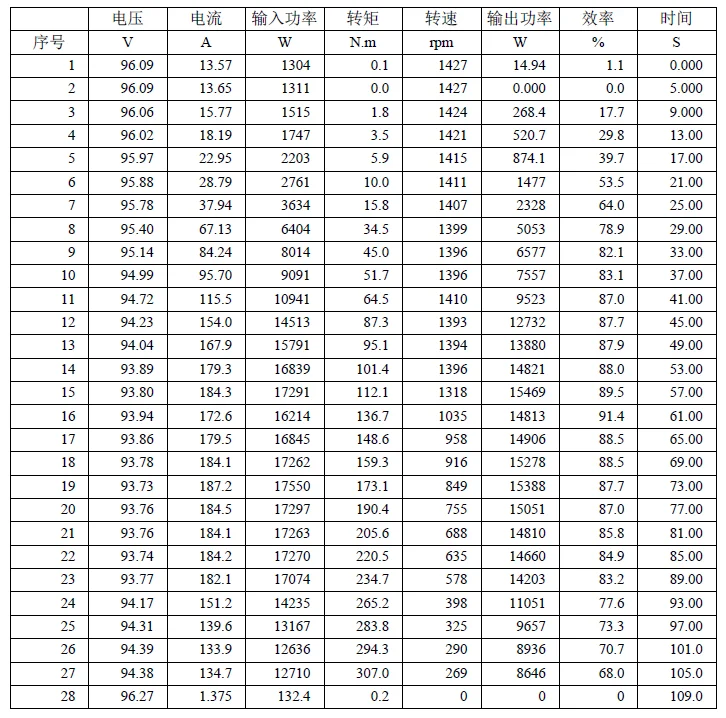

Test Report

Max torque

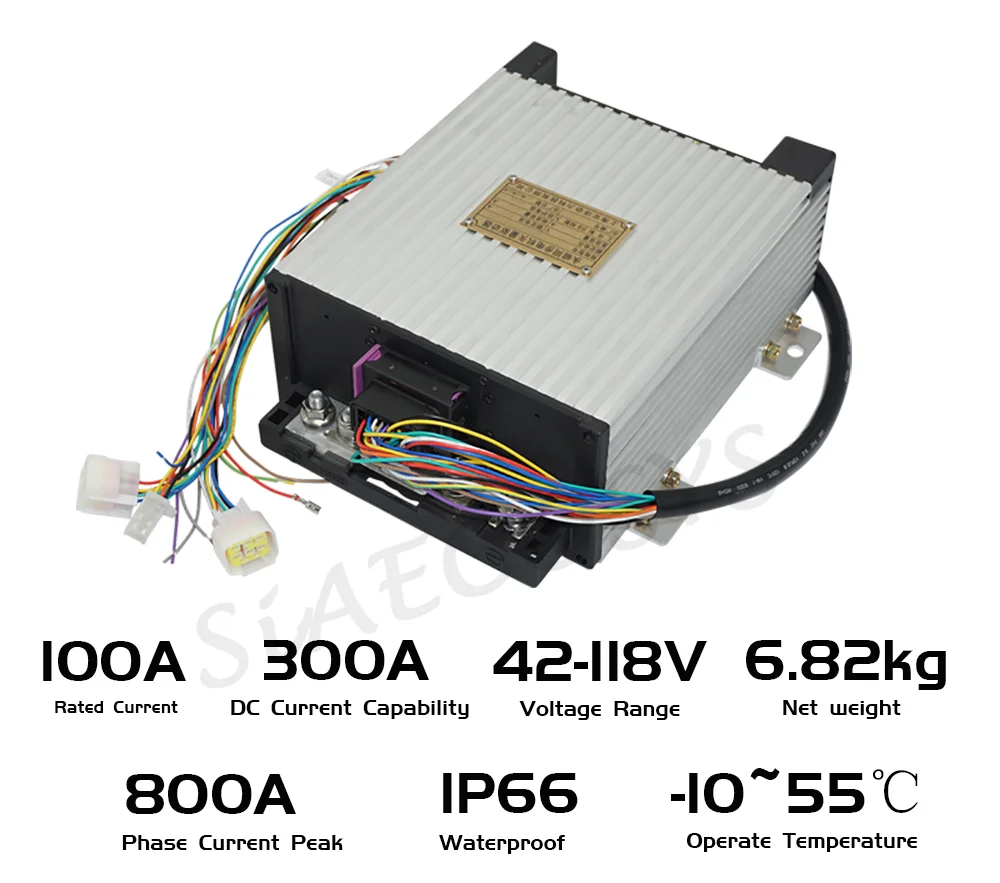

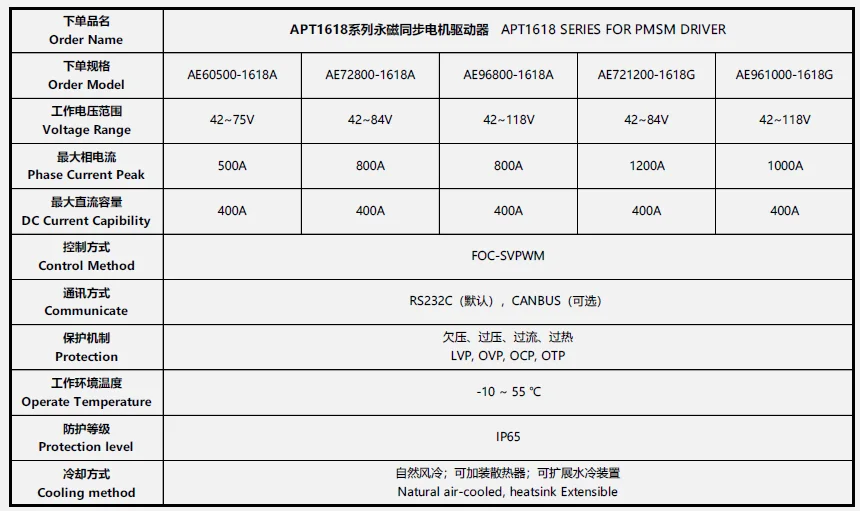

2.SIAPT96800 96V Sinusoidal Wave BLDC Motor Controller

Drawing

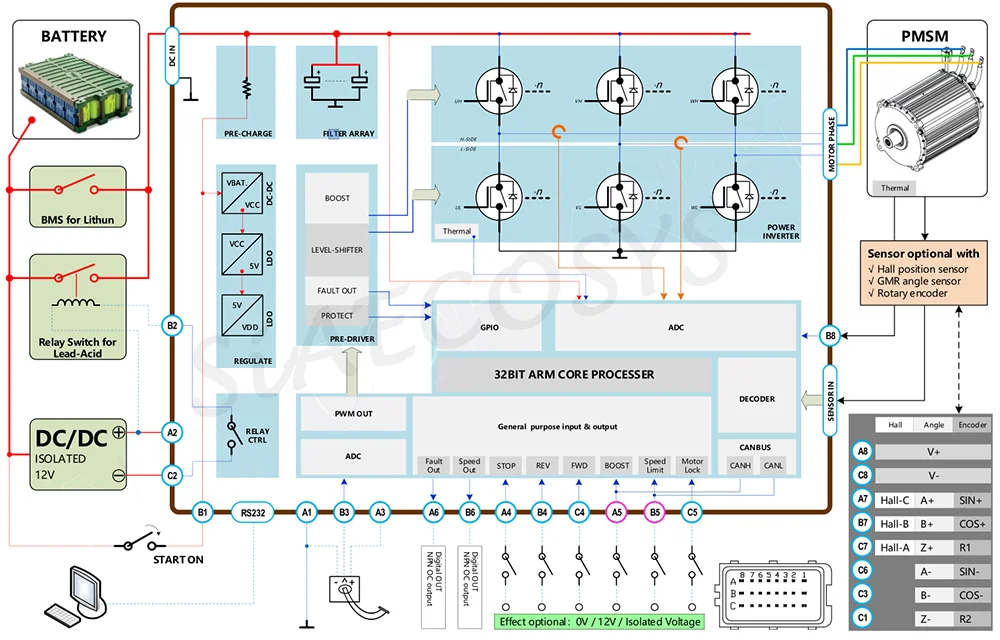

Wiring Diagram

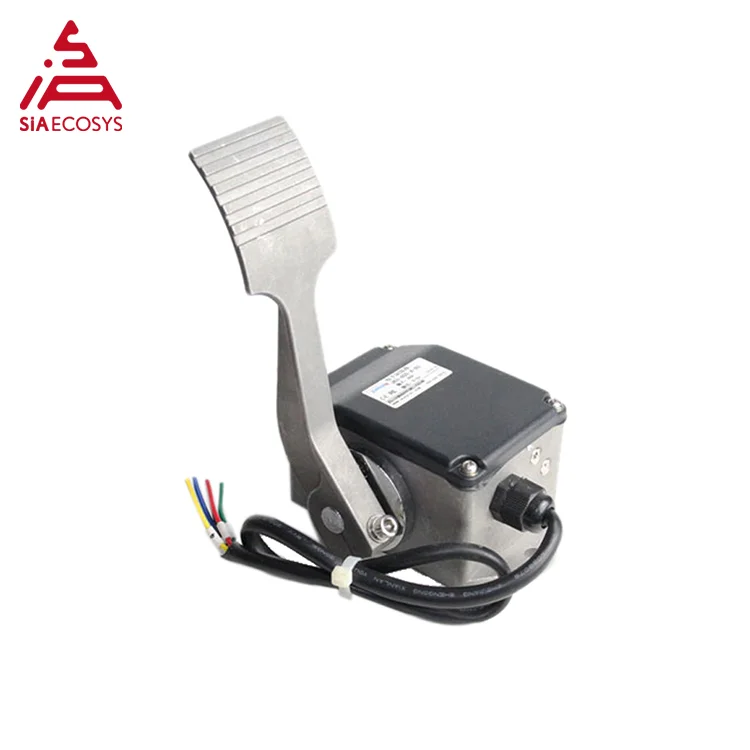

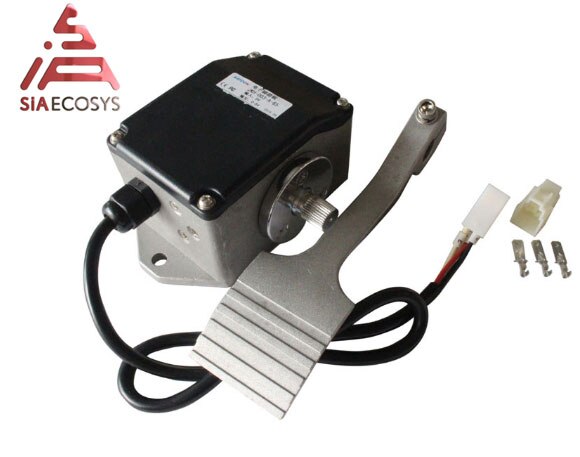

3.0-5V Electric Car Throttle Pedal
Please noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.
We will give you reply in 12hours.
