SIAECOSYS QS 2000W 60V60kph 2wd dual Hub Motor with EM100SPController Kits for Small Electric Car

NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)

For 205 2000W V2 motor kits, it could be used for electric car, which could be 60V60KPH.

e.g. Electric small car

E-car weight, approx 200kg+2*75kg

Speed: peak 60km/h

Climbing slope: 12 degree@350kg

Battery: 72V120Ah

Tire Diameter: 0.521m

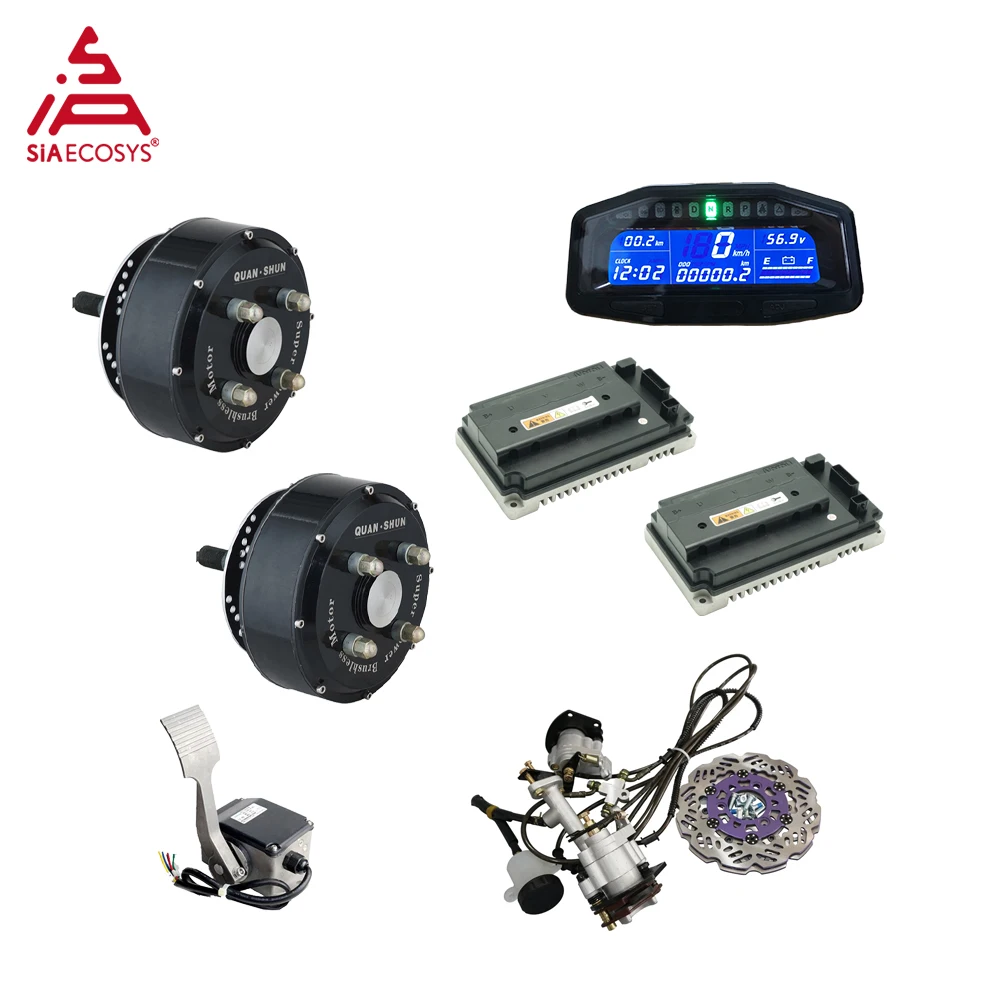

One kit including below kits

1. 2pcs X QSMOTOR 2000W 205 50H V2 electric wheel hub motor

2. 2pcs X VOTOL EM100SP controller

3. 1pcs X XE-8 speedometer

4. 1pcs X 0-5V Electric Car Throttle Pedal

5. 1pcs X 1 tow 2 03Version Hydraulic Disc brake system

Key Features

1). Simplify to make a electric-car. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in wheels, and easy to be hybrid car.

4). Easily to make 4-wheel drive, which could spot turn.

5). Support regenerative braking

6). High efficiency: 85~92%

Product Description

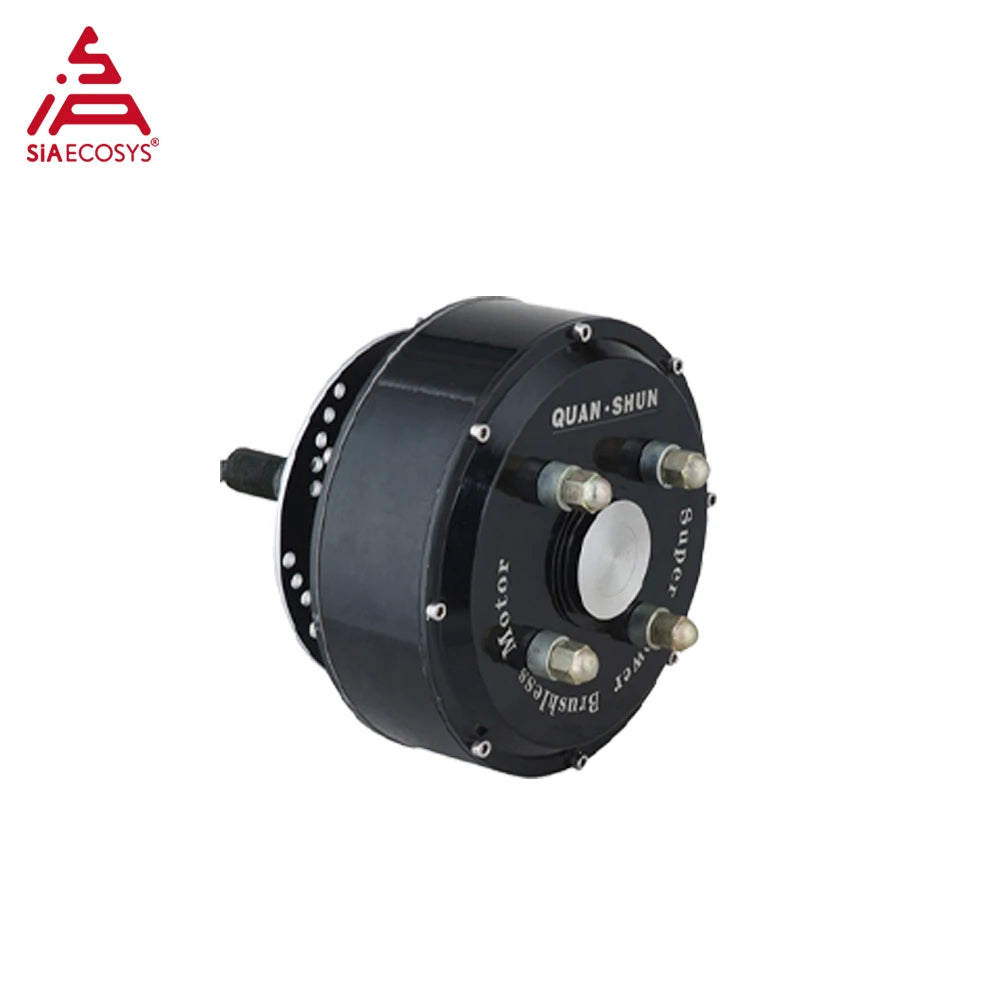

1. QSMOTOR 205 2000W 50H V2 Electric Car Hub Motor

Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor

Brand: QS Motor, QSMOTOR

Motor Design: Single axle without moped rim (Integrated)

Matching Rim Size: 12inch or above wheel rim, CB ≥60mm,PCD customize(4*100mm as default)

Magnet Height: 50mm, 23 pole pairs

Stator: Steel Core

Rated Power: 2000W

Speed: 24KPH-80KPH, it's customized, genearlly we will design as60KPH@60V

Work Voltage range: 48V-96V, will be 60V as default.

Max Torque approx 161.90N.m

KV: 9.3/11.1/15.1/16.7(optional)

Thermic Probe: KTY83-122 (as default, optional)

Max Efficiency: approx 88%

Working Temperature: 70-120℃ , peak 150 ℃

Brake type: Moped disc brake (as default), PCD 3*80mm, CB: 58mm

Dual Halls with waterproof connectors(One for using, one for spare)

12mm axle flats

8mm² Cross Section of Phase Wire(not including insulation layer)

Waterproof Grade: IP54

Color: Black (As default)

N.W/ G.W: 17.0kg/18.5kg

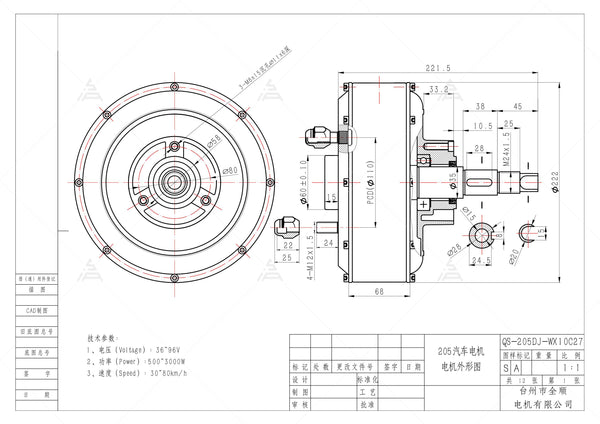

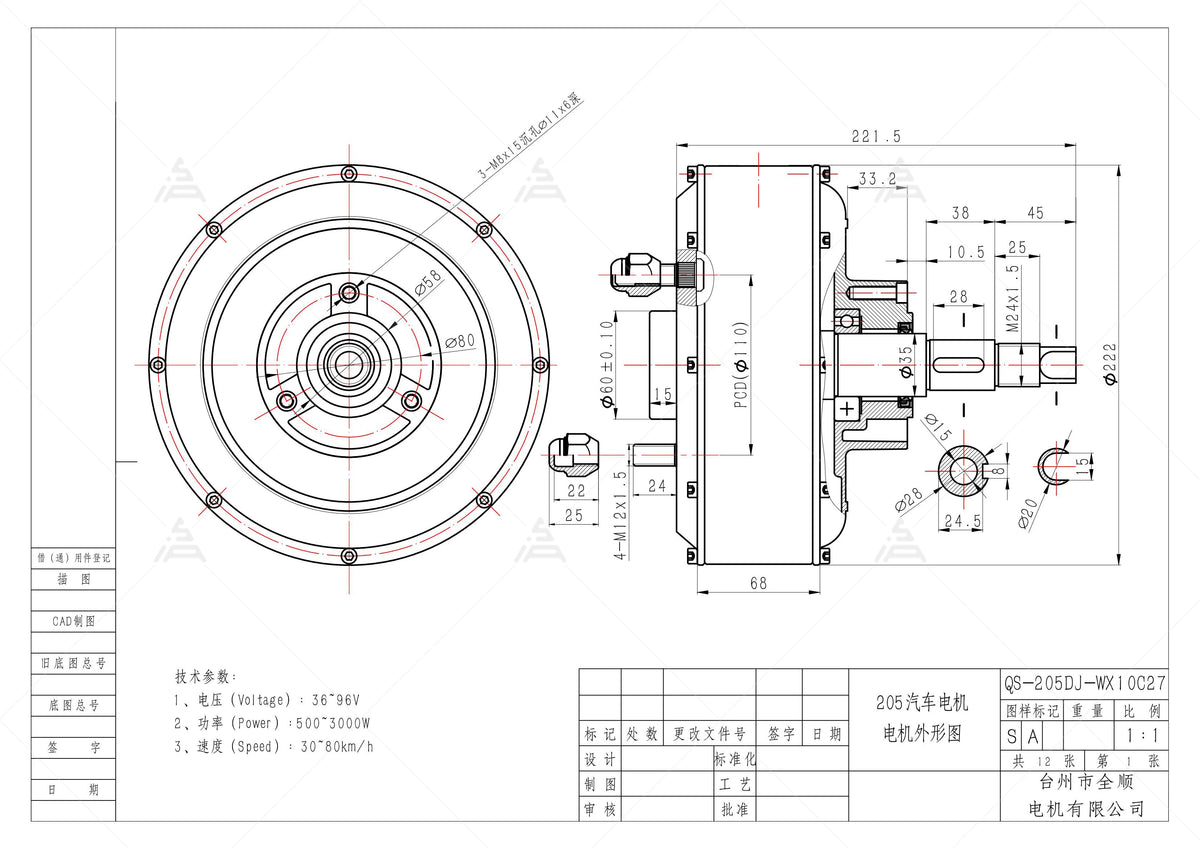

Dimension Drawing

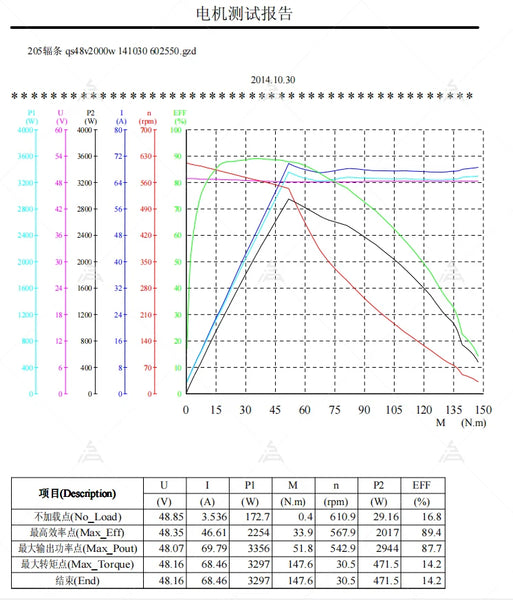

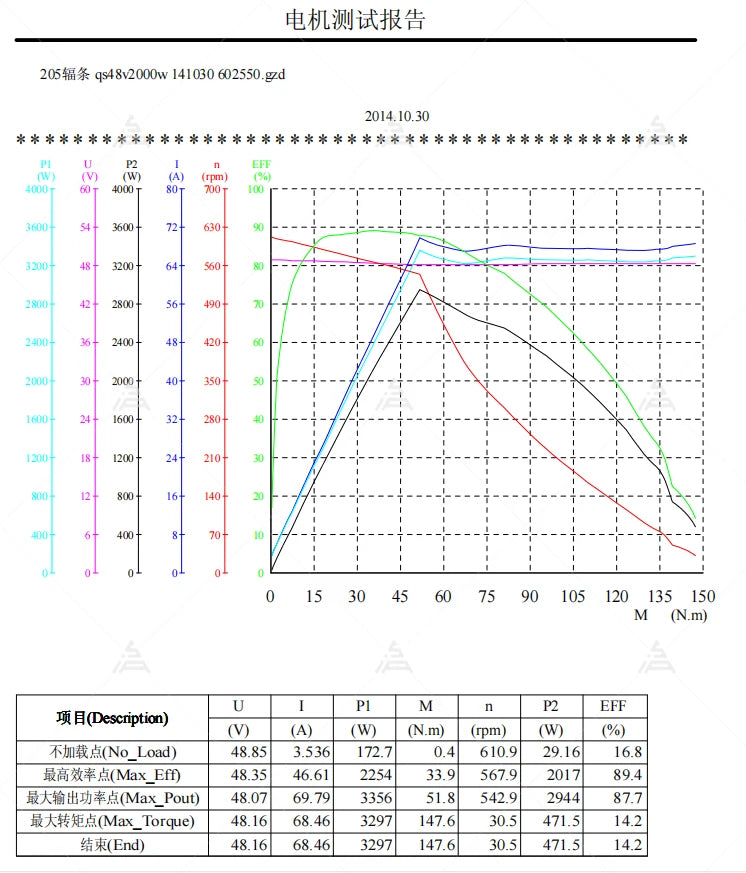

Test Report:

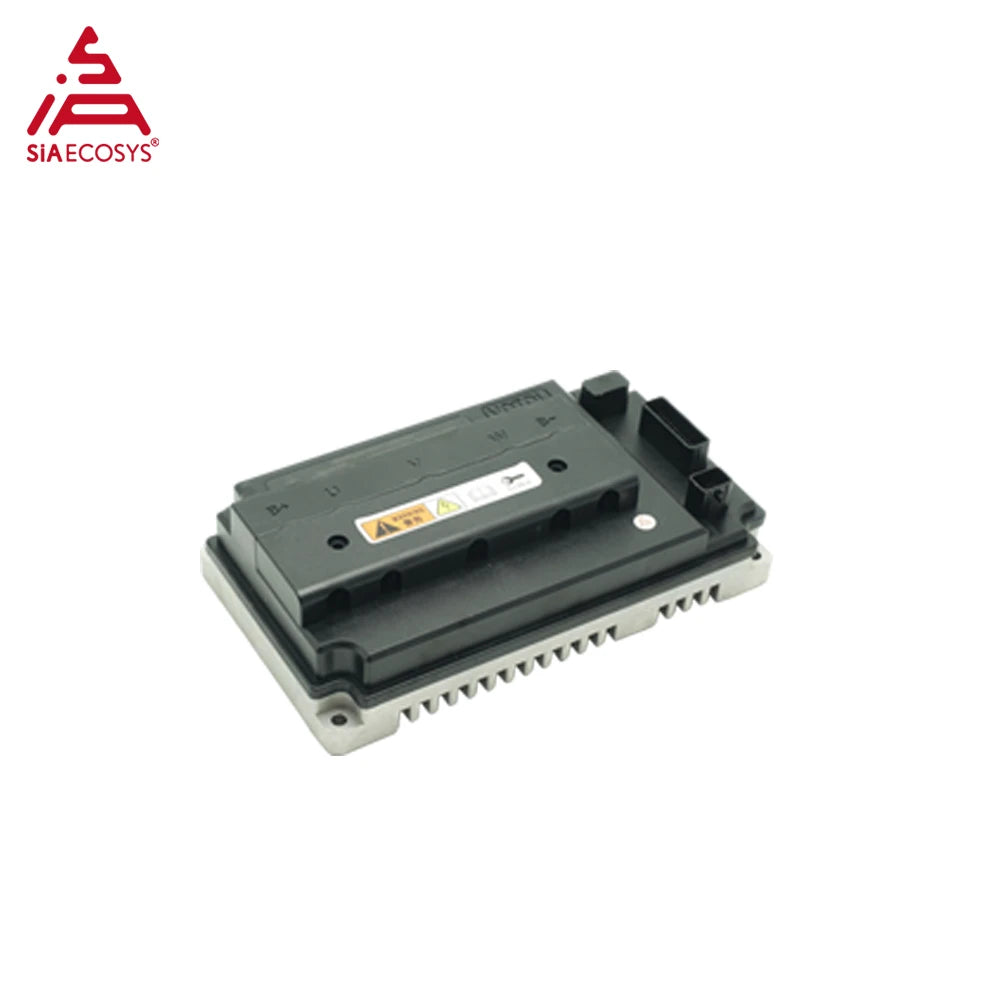

2. VOTOL EM100SP controller

1. Sine wave controller, programmable, with regen function

2. Motor Current Limit, 20 seconds: 220A

3. Motor Current Limit, continuous: 80A

4. Thermic Probe: KTY83-122

5. Including one controller + USB convertor cable + matched plug

6. Controller size: 194mm*126mm*86.8mm

7. Net weight: 1.82kg

8. Waterproof: IP67

9. Default not including bluetooth, waterproof(those function are optional); Can support can-bus

10. Work voltage: 18V~80V; Rated voltage: 24V~60V

Drawing

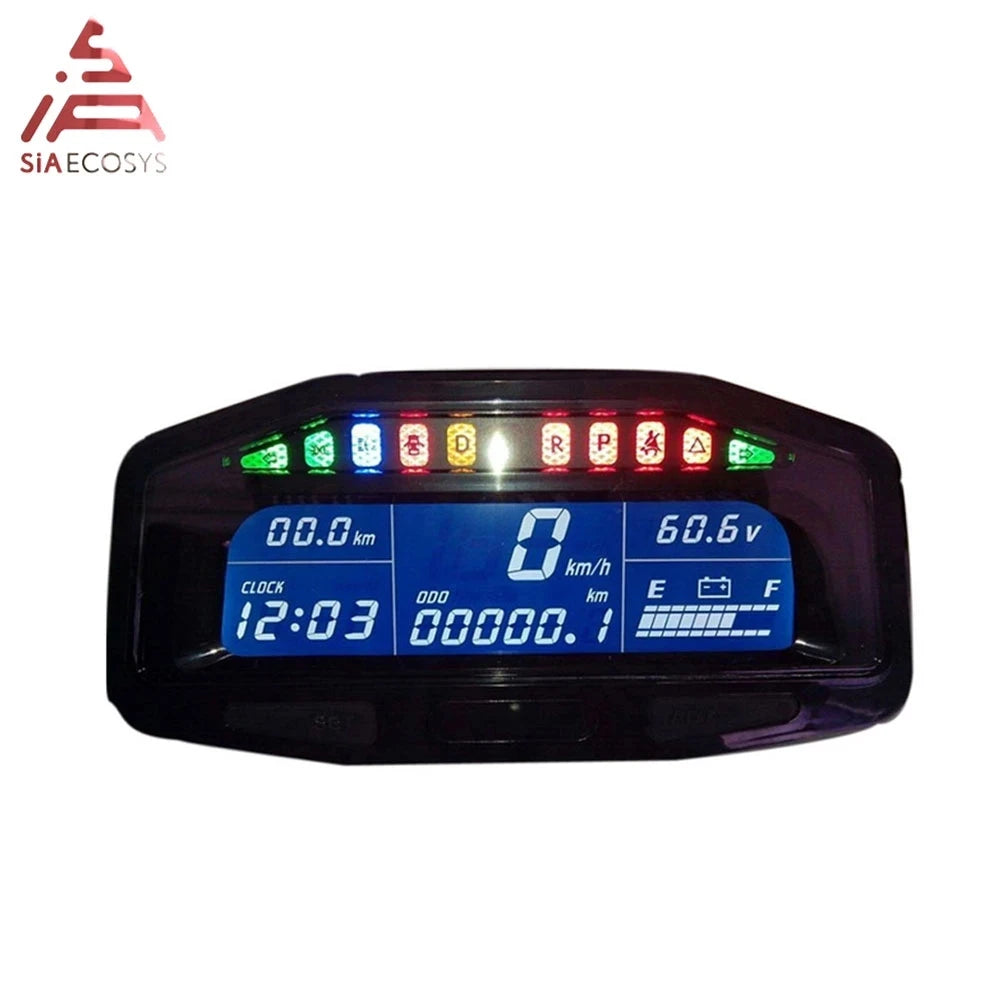

3. XE-8 speedometer

Place of Origin: China(Mainland)

Model Number: X8-E

Application: Electric Car, EV

Rated Voltage:48V-96V

Work voltage: 0-120V

Programmable items: voltage, trip, time, background light

Show Time, driving distance, speed, voltage, electric quantity

Test Speed Type: Hall Sensor

Net weight: 0.57kg

Size: 205mm*103mm*67mm

Packing size: 220mm*160mm*100mm

PS：We don't provide female and male waterproof connectors, pins for as below picture as default.

It will cost extra USD3.0/set for unit speedometer.

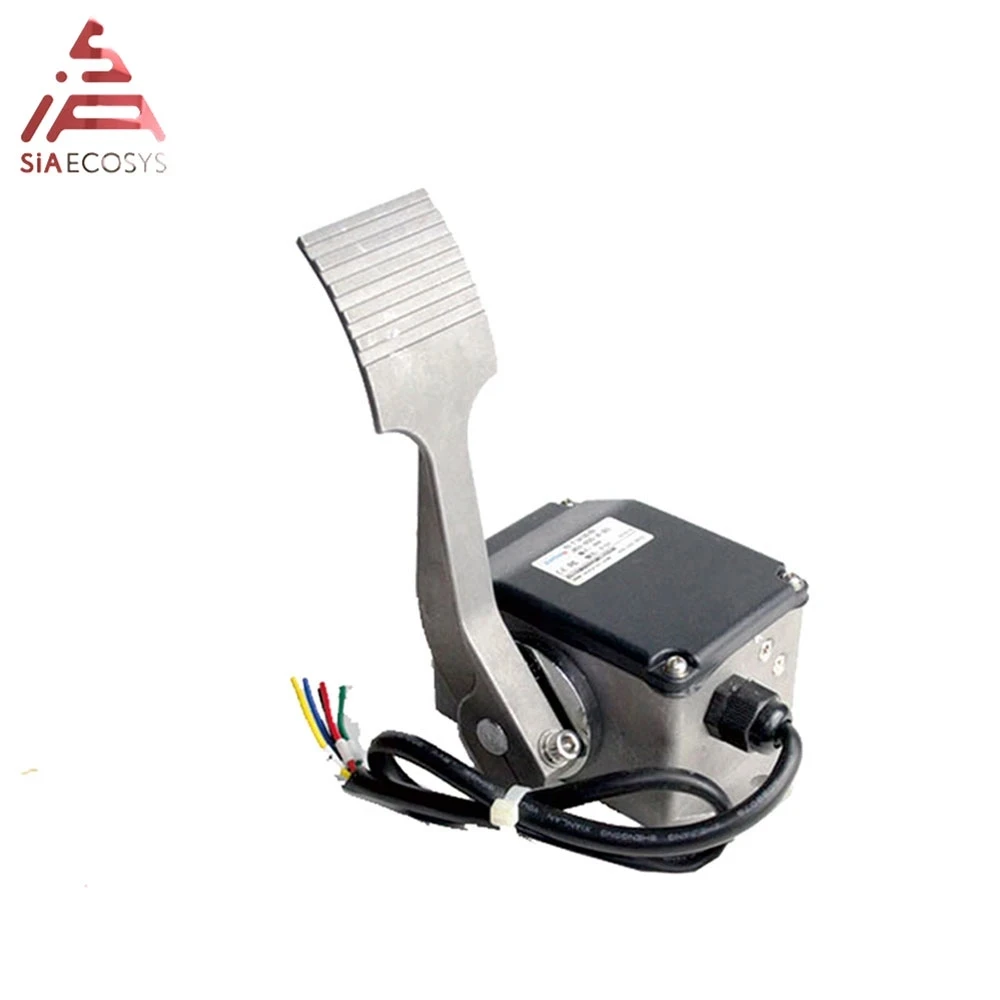

4. 0.8-4.2V Electric Car Throttle Pedal

Hall type: JKH mode

Input voltage: 5V 12V 15V 24V 36V 48V 60V 72V 84V 96V 120V

Output voltage: 0.8V-4.2V

Default: Three wires out(cannot connect with switch), 4.2v input voltage. 0.8-4.2v output voltage.

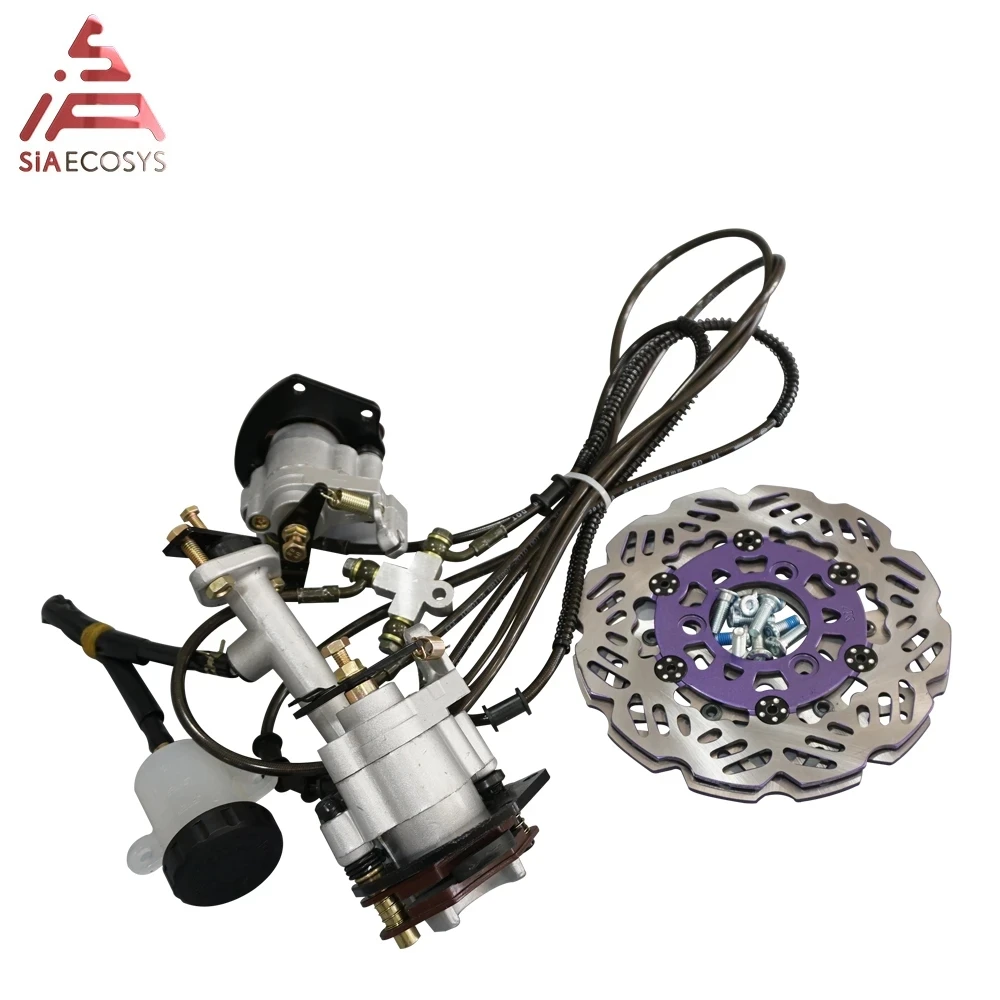

5. 1 tow 2 Hydraulic Disc brake system

One main master cylinder with two calipers

03 Caliper with mechanical parking brake (in grey), 34mm plunger, pitch of mounting 80 or 45mm(as default)

Foot brake master cylinder

Hoses 220cm X1 + 80cm X2

Mechanical parking brake cable 42cm + 2 x 140cm

220mm disc brake plate and screws (PCD 3*80mm, CB58mm, thickness 4mm)

Without brake oil

Suitable for QS Motor 205 Single Shaft Hub Motors

N.W. approx 3.4 kg (Without brake disc)

Please noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.

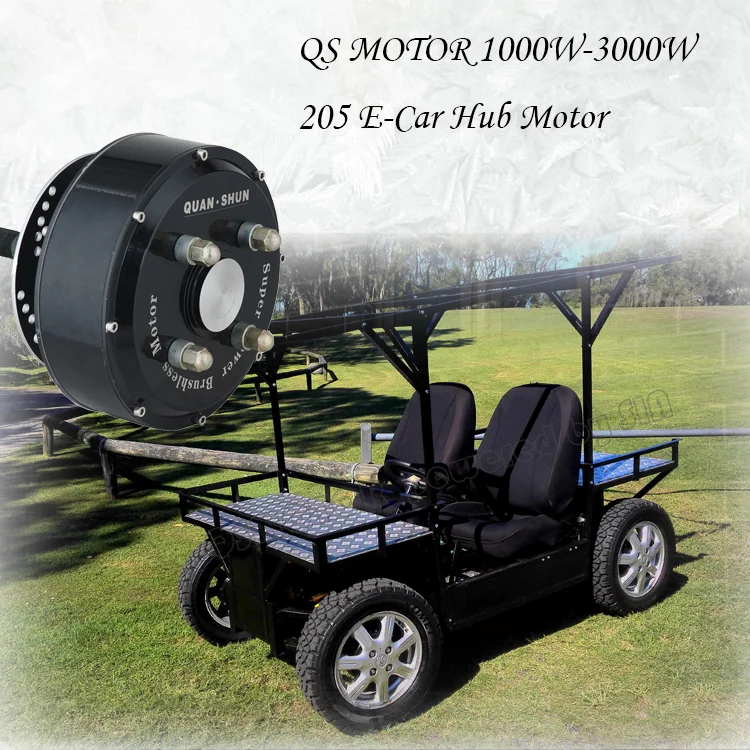

Application of 205 e-car single shaft hub motor
