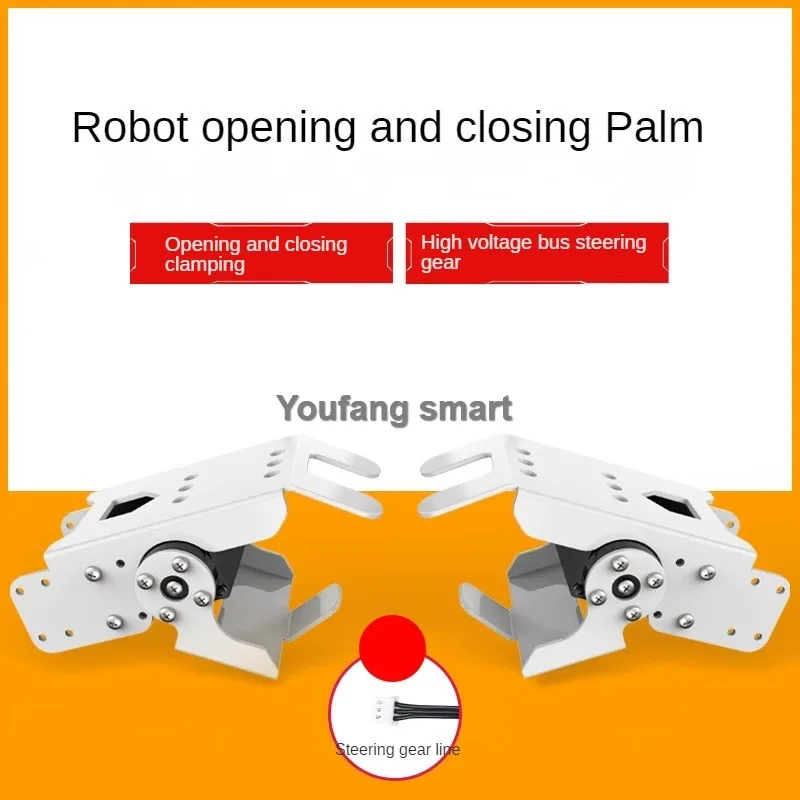

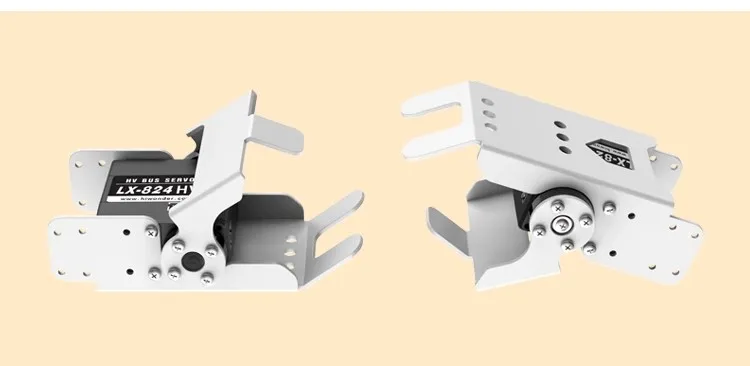

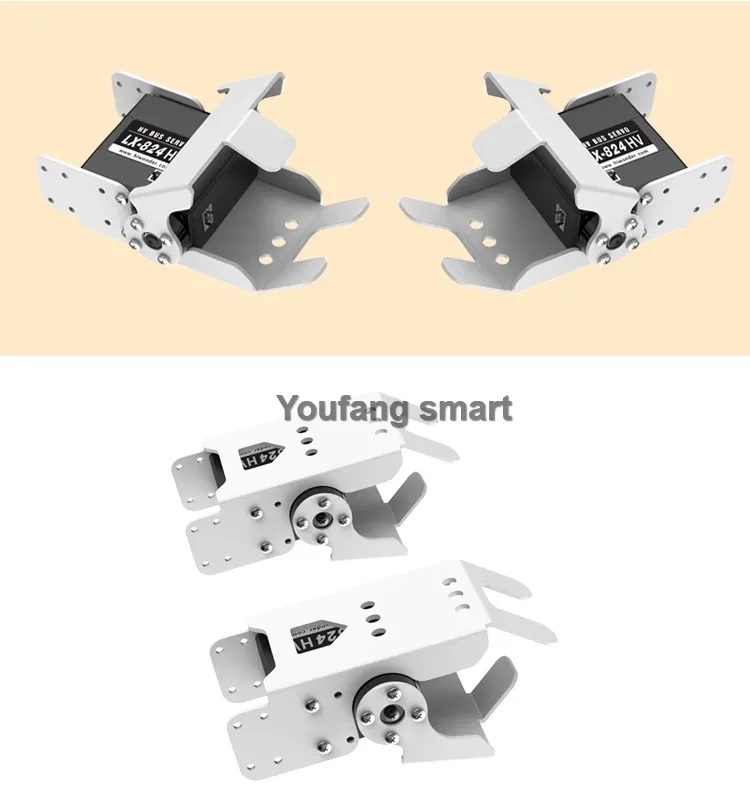

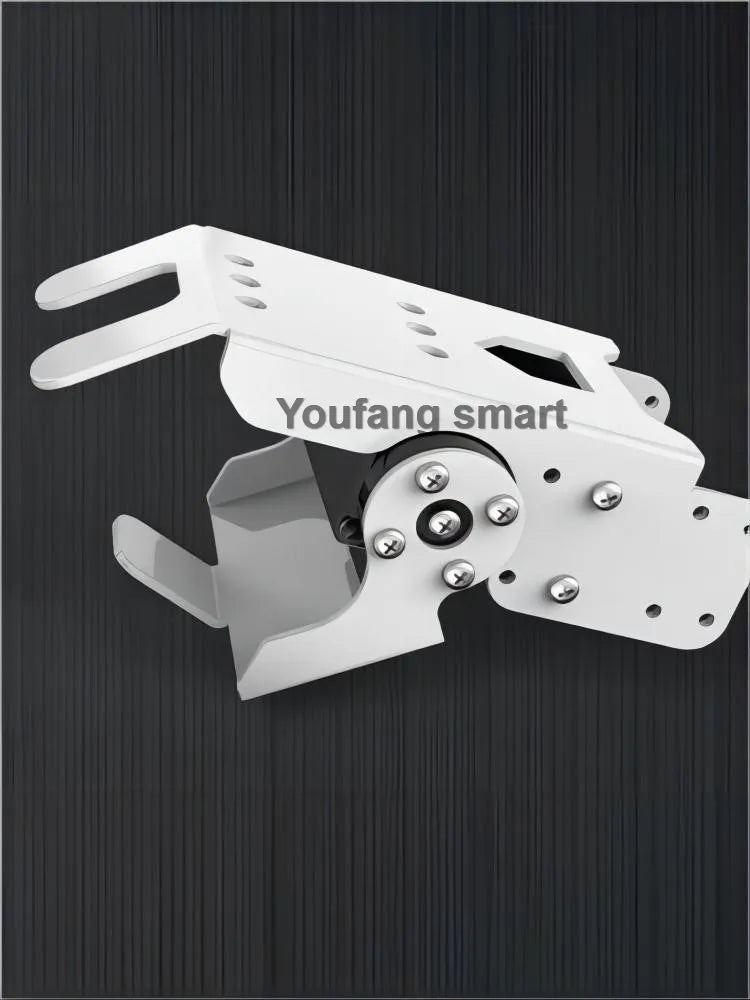

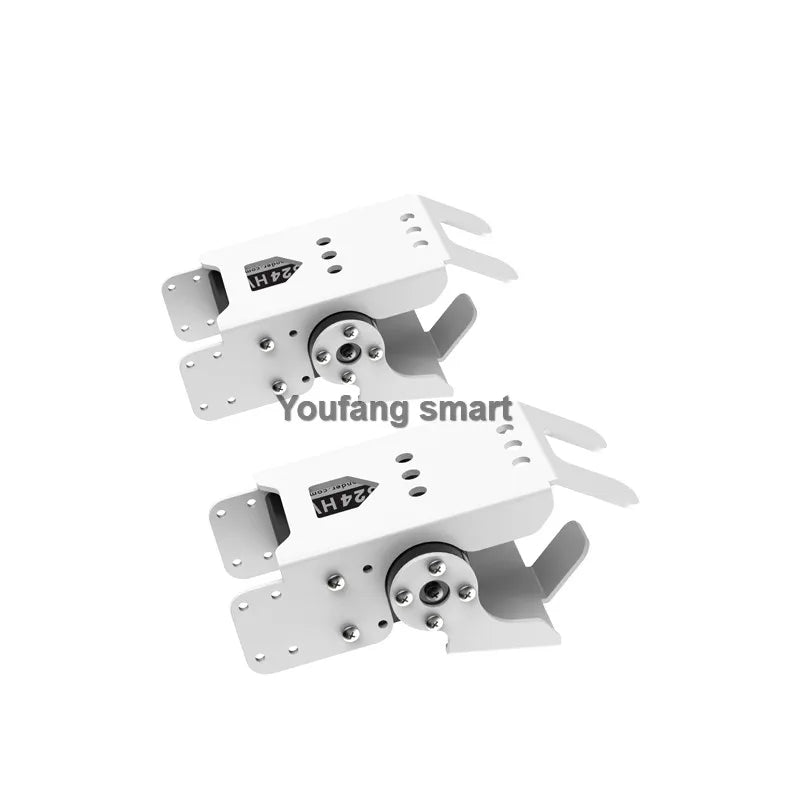

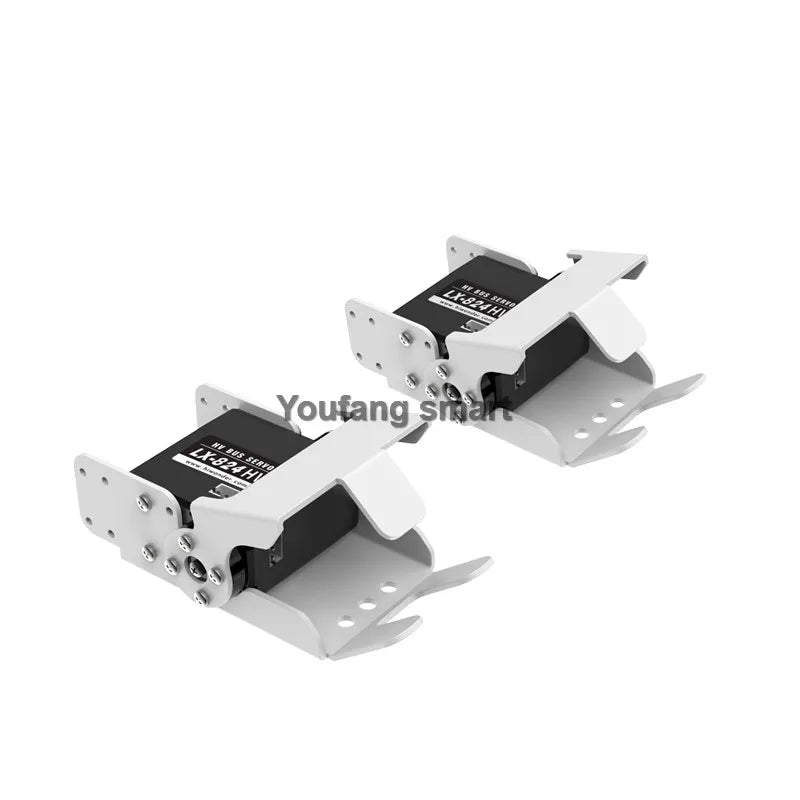

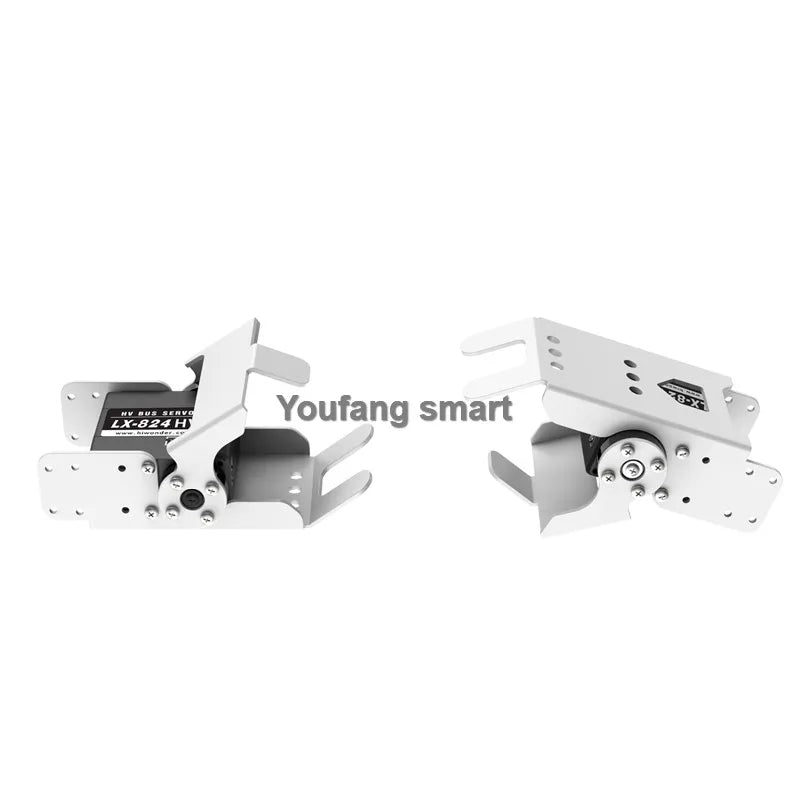

Robot Palm humanoid Robot Hand With Bus Servo Robot Arm Pick Close Grasping and Clamping for 17 Dof Robot Programmable Hand Kit
Title: Robot hand/Humanoid robot hand/adaptive bus steering gear/opening and closing grab clip/robot arm
Product parameter:
Material: aluminum-alloy bracket
Dimensions :95x54x56mm
Steering gear :LX-824HV high voltage bus steering gear
Single weight :91g
Product name :LX-824HV high voltage bus steering gear
Product weight: 57g
Product size :40mmx20.14mmx51.1mm
Operating voltage: 9-12.6V
Rotation speed: 0.20sec/60°11.1V
Lock torque :17kg.cm 11.1V
Rotation range: 0°~240°
No-load current: 100mA
Lock current: 1.7~2A
Steering gear accuracy: 0.3°
Control Angle range :0~1000, corresponding to 0~240°
Control mode: UART serial port command
Communication baud rate: 115200
Storage: Power failure saves user Settings
Rudder ID: 0~253 User configurable, default is 1
Read back function: Supports Angle read back
Protection: locked-rotor protection/over-temperature protection
Parameter feedback: temperature, voltage, position
Working mode: steering gear mode and gear motor mode
Gear type: metal teeth
Supporting line length :7cm

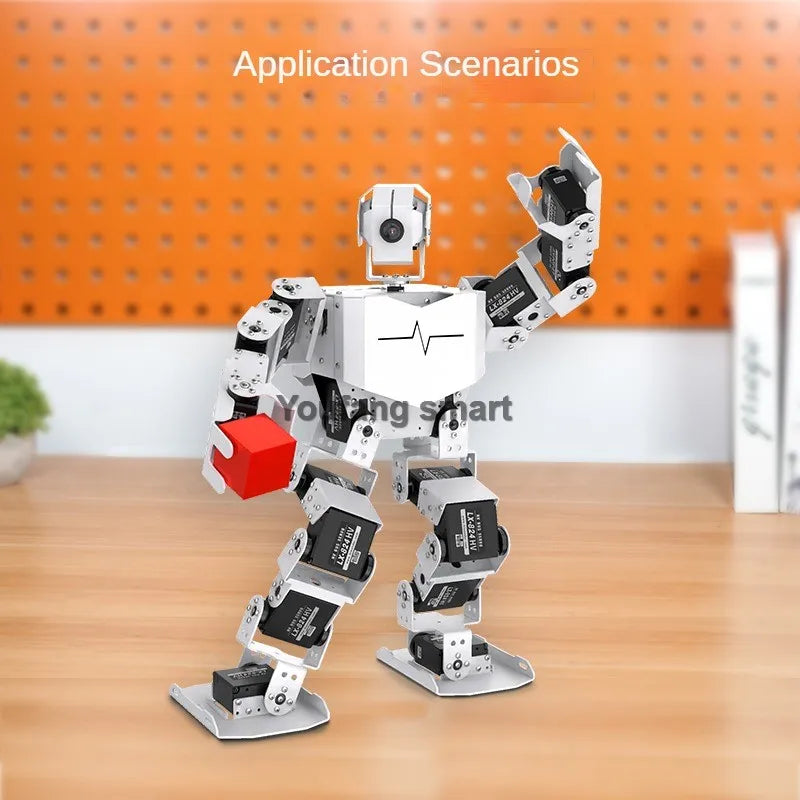

Connector model: PH2.0-3P Suitable for: all kinds of bionic robot joints

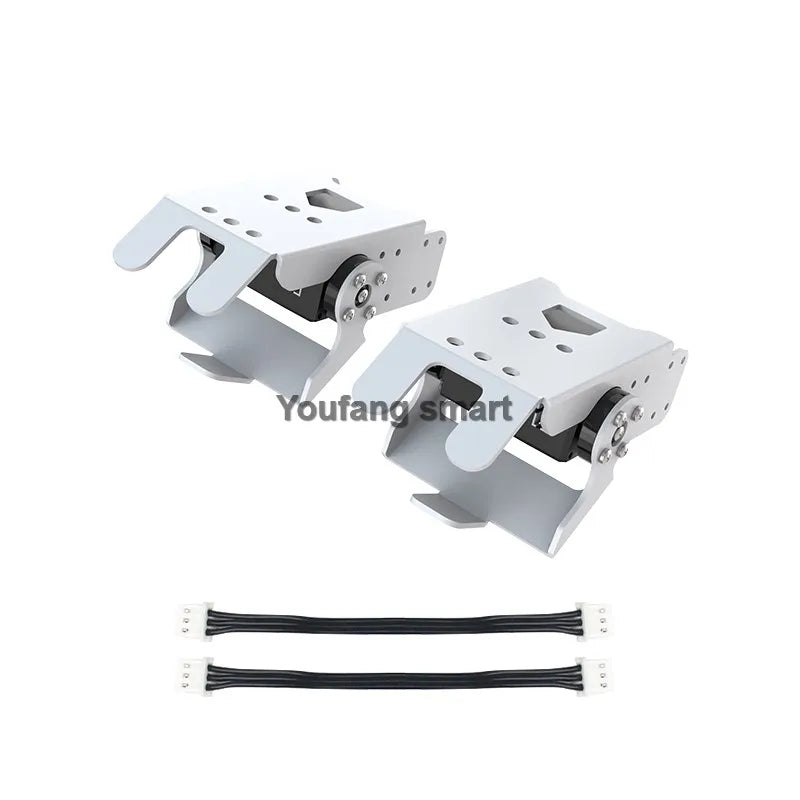

Shipping list
1 pair of Robotic hand
Steering line (7cm)
Note:
1.This is assembled, you do not need to assemble it, we provide tutorials for free，Please leave your email address
