QSMOTOR/SIAECOSYS 205 3000W 72V90kph 2wd Dual Hub Motor with ND72360 Controller  for Small Electric Car Conversion Kits

Regular price $2,544.68

QSMOTOR/SIAECOSYS 205 3000W 72V90kph 2wd Dual Hub Motor with ND72360 Controller  for Small Electric Car Conversion Kits

For dual 205 3000W V3 motor kits, it could be used for electric car, which could be 72V90KPH.

e.g. Electric SMALL car

E-car Weight, approx 300kg+2*75kg

Speed: Peak 90km/h

Climbing slope: 12 degree@450kg

Battery: 72V150Ah

Tire Diameter: 0.52m

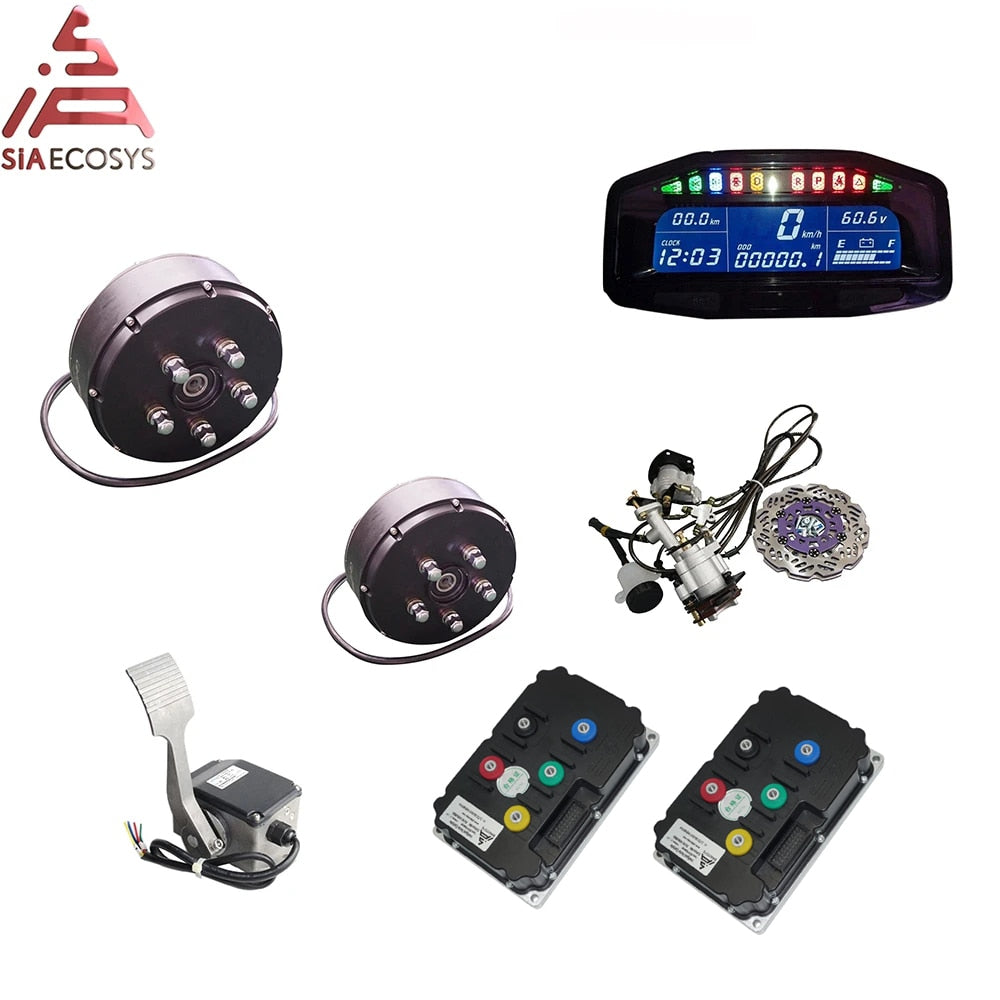

One Small Electric car Conversion Kits   including below kits


Combo1

1. 2pcs X QSMOTOR 3000W 205 V3 electric wheel hub motor

2. 2pcs X ND72360 sine wave motor controller

3. 1pcs X USB cable

4. 1pcs X XE-8 speedometer

5. 1pcs X 0-5V Electric Car Throttle Pedal

6. 1pcs X 1 tow 2 03 Version Hydraulic Disc brake system


Combo2

1. 2pcs X QSMOTOR 3000W 205 V3 electric wheel hub motor

2. 2pcs X ND72360 sine wave motor controller

3. 1pcs XBluetooth Adapter

4. 1pcs X XE-8 speedometer

5. 1pcs X 0-5V Electric Car Throttle Pedal

6. 1pcs X 1 tow 2 03 Version Hydraulic Disc brake system


Key Features

1). Simplify to make a electric-car. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in wheels, and easy to be hybrid car.

4). Easily to make 4-wheel drive, which could spot turn.

5). Support regenerative braking

6). High efficiency: 85~92%



Product Description

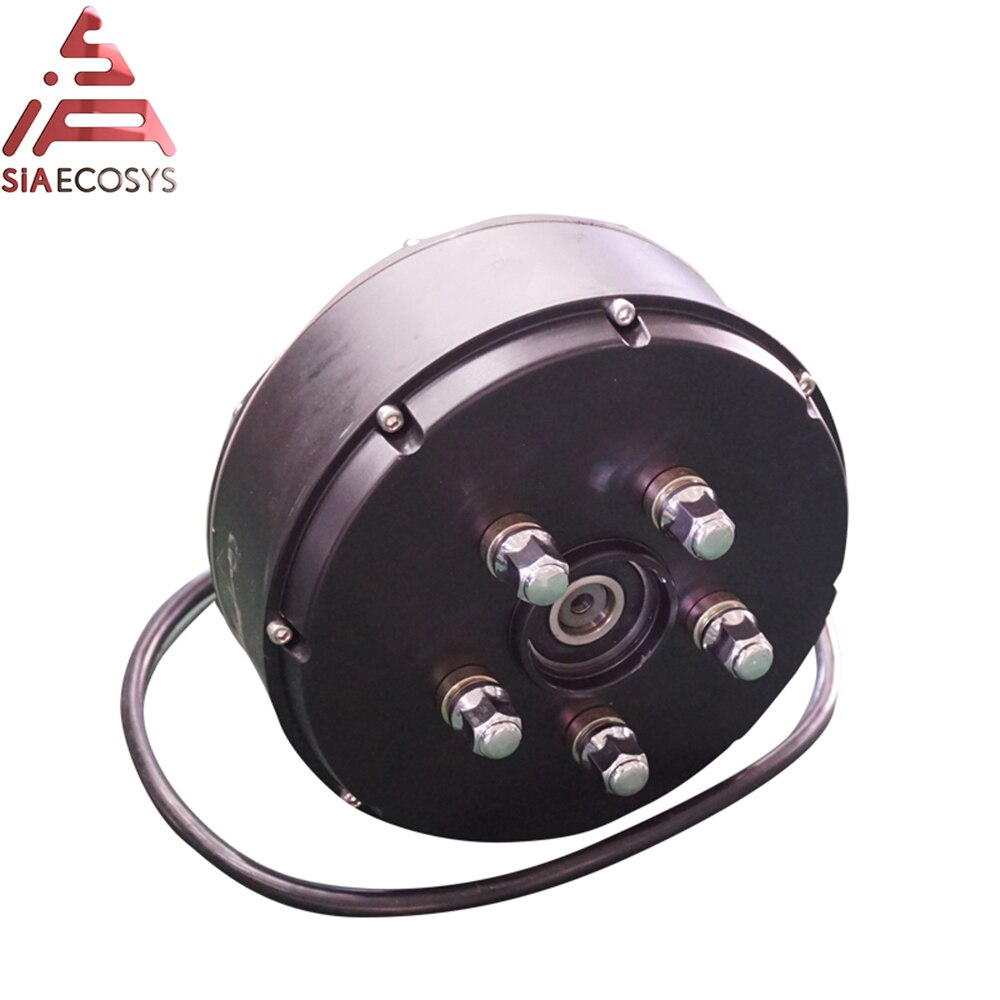

1. QSMOTOR 205 3000W V3 Electric Car Hub Motor

Product description

Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor

Brand: QS Motor, QSMOTOR

Motor Design: Single axle without moped rim (Integrated)

Matching Rim Size: 12inch & above wheel rim, CB ≥ 60mm, PCD Customizable(4*100mm as default)

Magnet Height: 50mm, 16 pole pairs

Stator: Aluminum Core

Rated Power: 3000W

Speed: 90KPH

Work Voltage range: 48V-96V, will be 72V as default.

Max Torque approx 181.5N.m

KV: 16.25

Thermic Probe: KTY83-122 (as default, optional)

Max Efficiency approx 88%

Working Temperature: 70-120℃ , peak 150 ℃

Brake type: Disc brake (as default), PCD: 3*80mm, CB:58MM

Dual Halls with waterproof connectors(One for using, one for spare

12mm axle flats

10mm² Cross Section of Phase Wire(not including insulation layer)

Waterproof Grade: IP54

Color: Black (As default)

N.W/ G.W: 17.0kg/18.5kg


Dimension Drawing

QS 205 e-car hub motor (Aluminum cover)



Test Report:

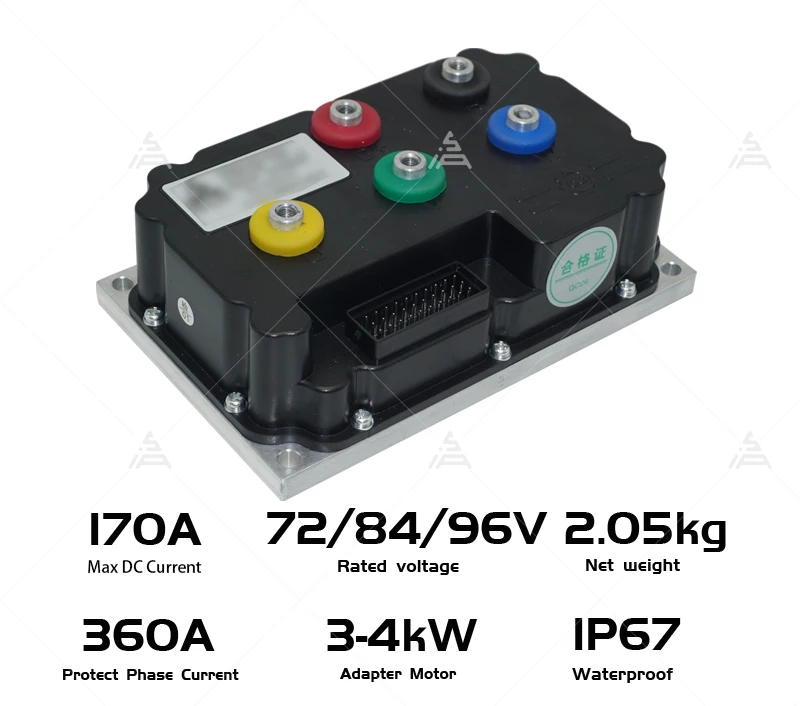

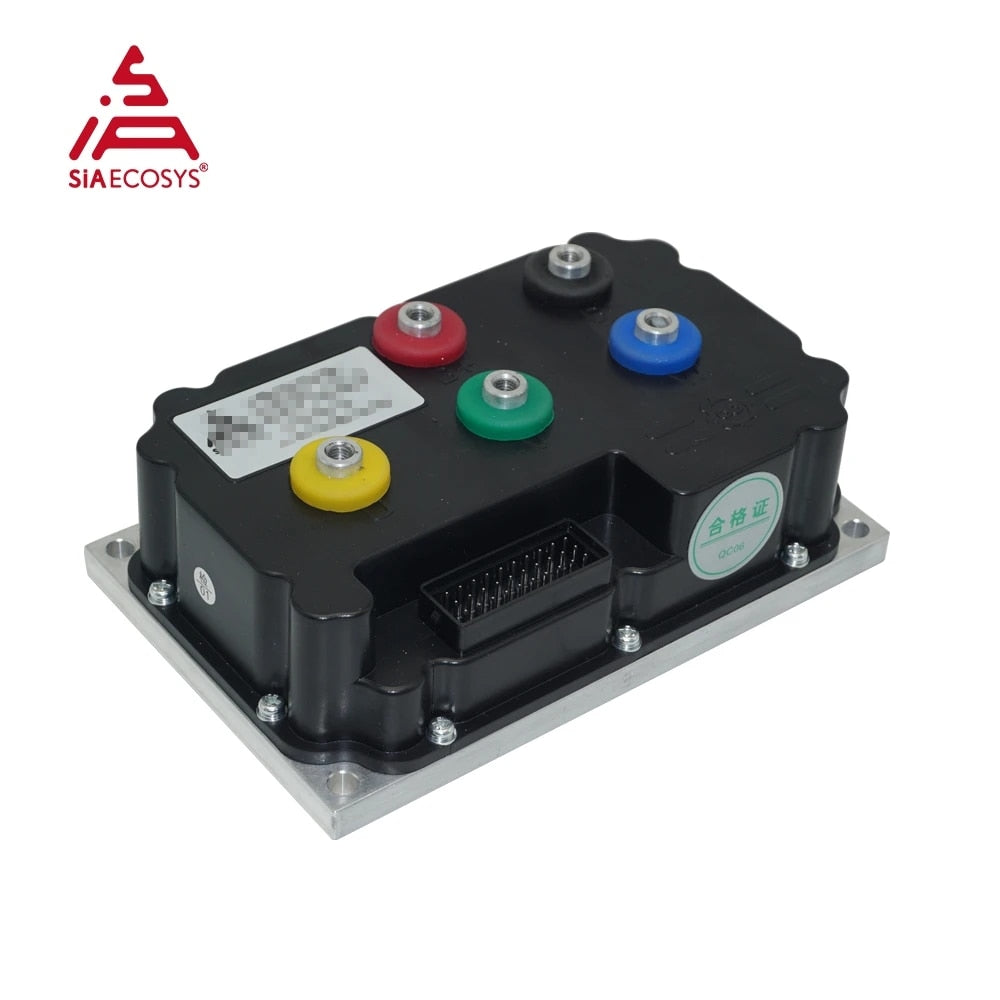

2.  ND72360 controller


ND72360 is sine wave controller with waterproofing grade IP67, suit for 6-8kw motors.The peak voltage is 88V

It’s hall version (as default) which suit with hall motors,which can't match speedometer in one-line state,like DKD speedometer.

Drawing


Adapter Cable:


USB Cable

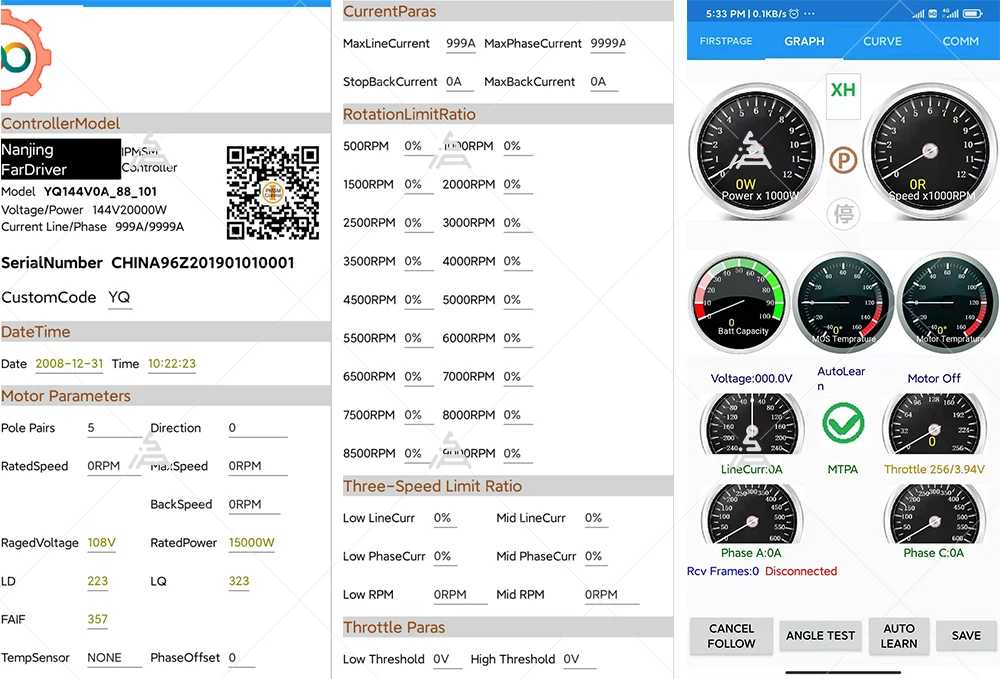

Software interface(PC)

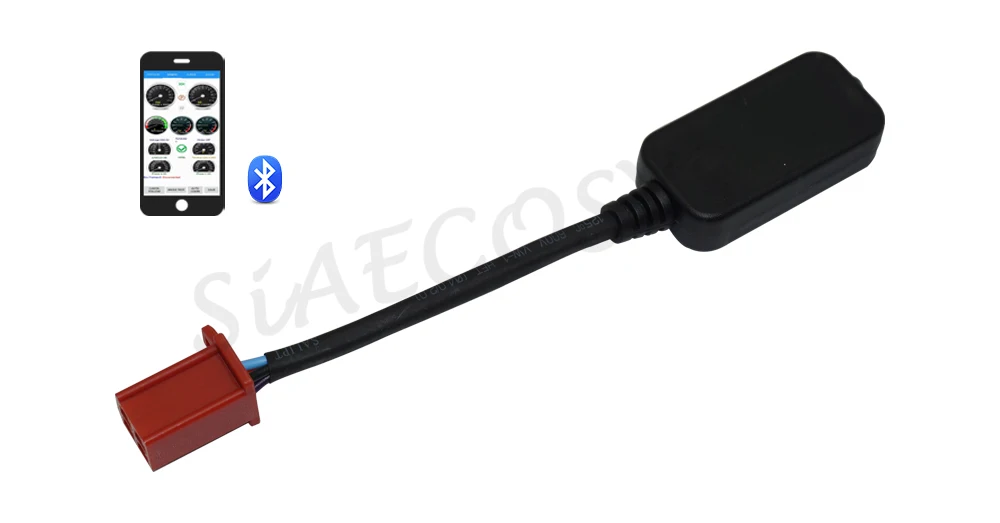

Bluetooth adapter:


Software interface(APP):



3. XE-8 speedometer

Place of Origin: China(Mainland)

Model Number: X8-E

Application: Electric Car, EV

Rated Voltage:48V-96V

Work voltage: 0-120V

Programmable items: voltage, trip, time, background light

Show Time, driving distance, speed, voltage, electric quantity

Test Speed Type: Hall Sensor

Net weight: 0.57kg

Size: 205mm*103mm*67mm

Packing size: 220mm*160mm*100mm

PS:We don't provide female and male waterproof connectors, pins for as below picture as default.

It will cost extra USD3.0/set for unit speedometer.

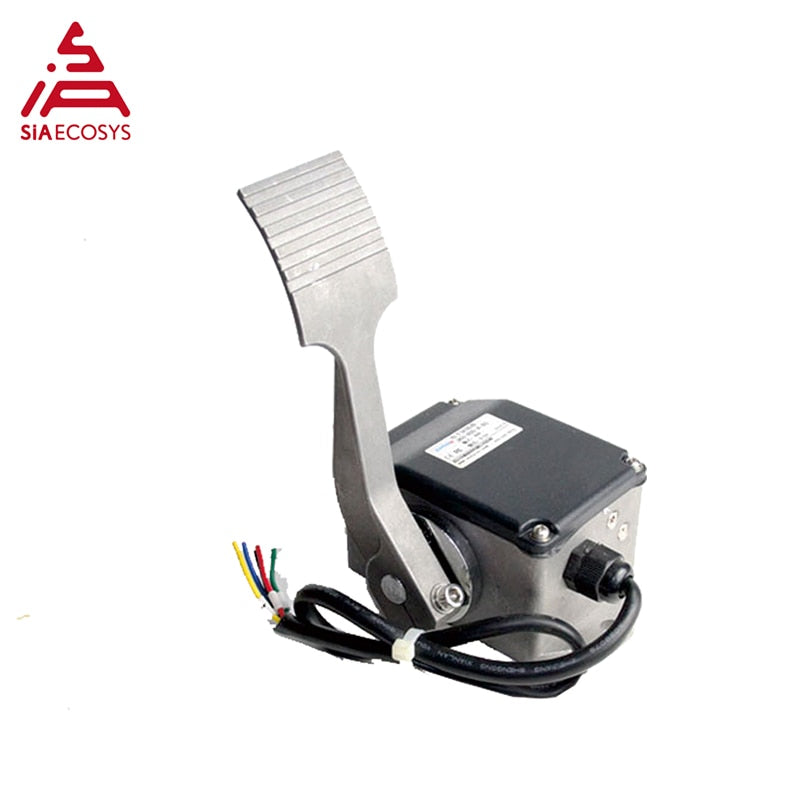

4. 0.8-4.2V Electric Car Throttle Pedal

Hall type: JKH mode

Input voltage: 5V 12V 15V 24V 36V 48V 60V 72V 84V 96V 120V

Output voltage: 0.8V-4.2V

Default: Three wires out(cannot connect with switch), 4.2v input voltage. 0.8-4.2v output voltage.

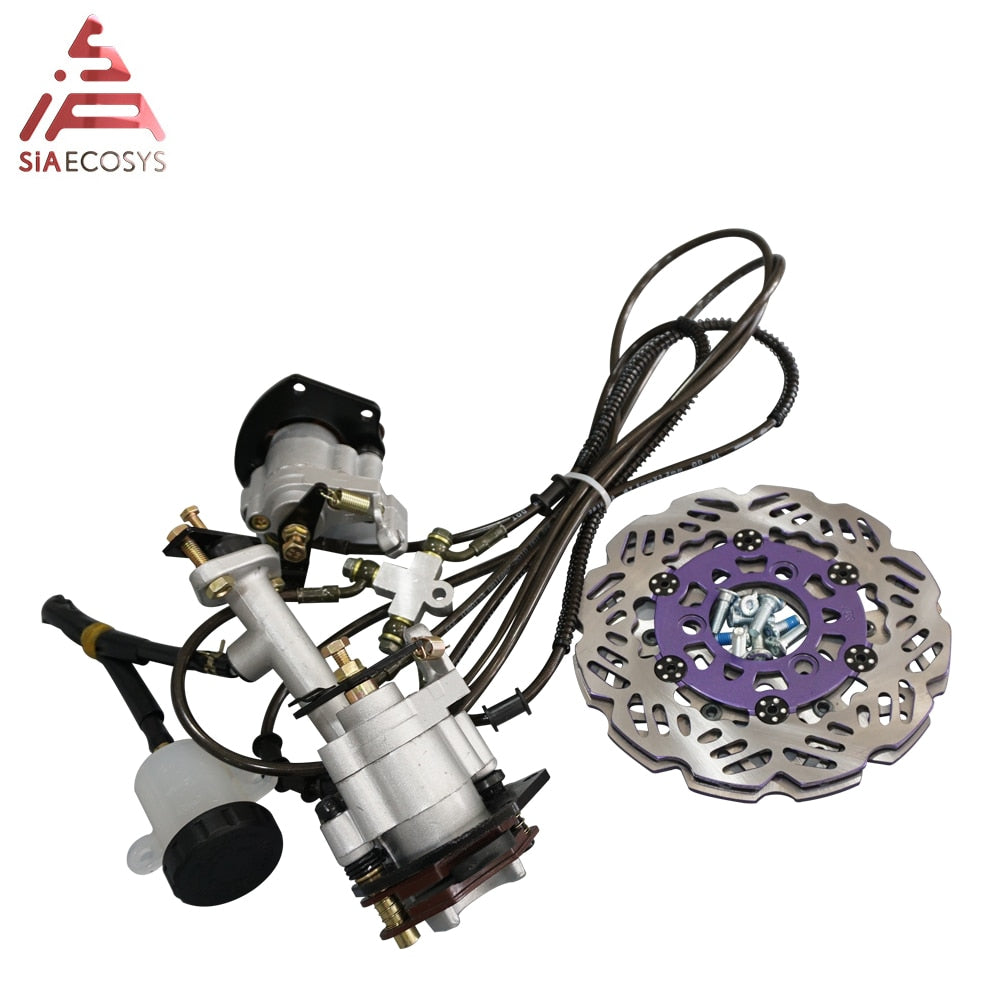

5. 1 tow 2 Hydraulic Disc brake system

One main master cylinder with two calipers

03 Caliper with mechanical parking brake (in grey), 34mm plunger, pitch of mounting 80 or 45mm(as default)

Foot brake master cylinder

Hoses 220cm X1 + 80cm X2

Mechanical parking brake cable 42cm + 2 x 140cm

220mm disc brake plate and screws (PCD 3*80mm, CB58mm, thickness 4mm)

Without brake oil

Suitable for QS Motor 205 Single Shaft Hub Motors

N.W. approx 3.4 kg (Without brake disc)

Please noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.



Application of QS 205 e-car single shaft hub motor kits
