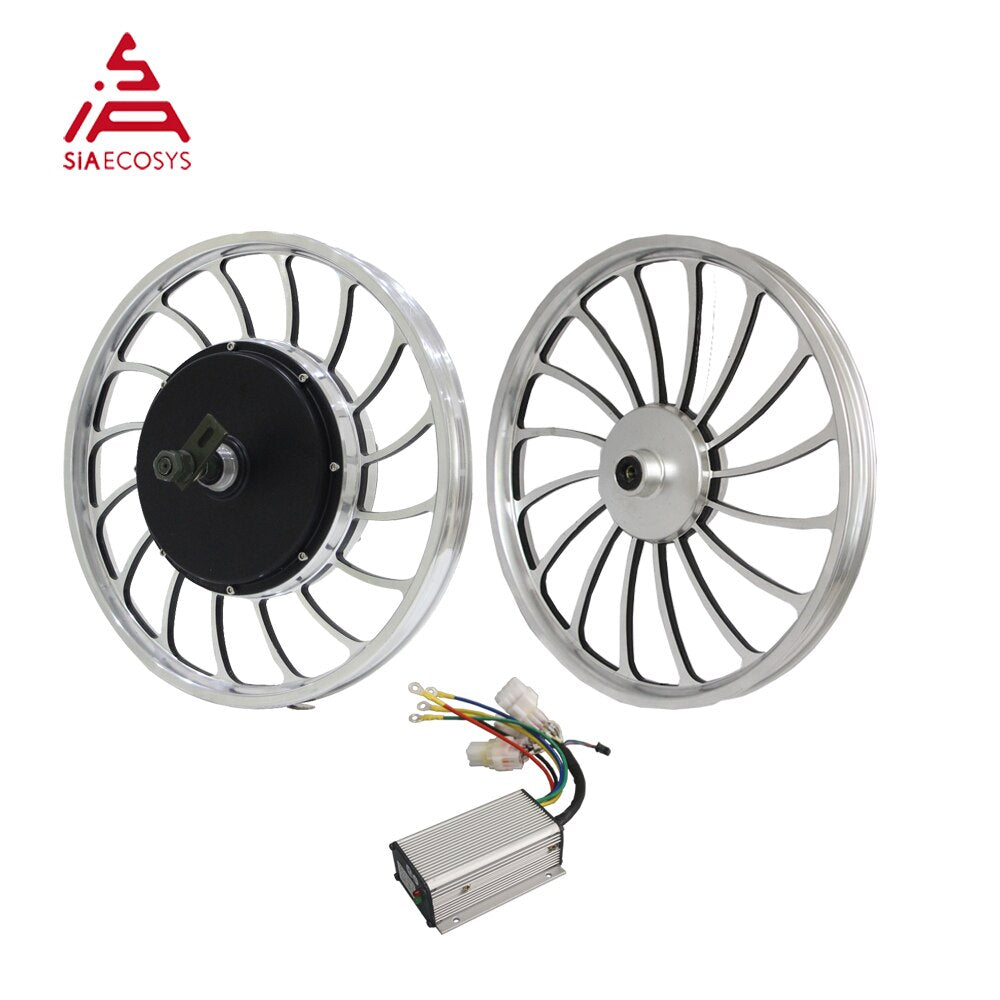

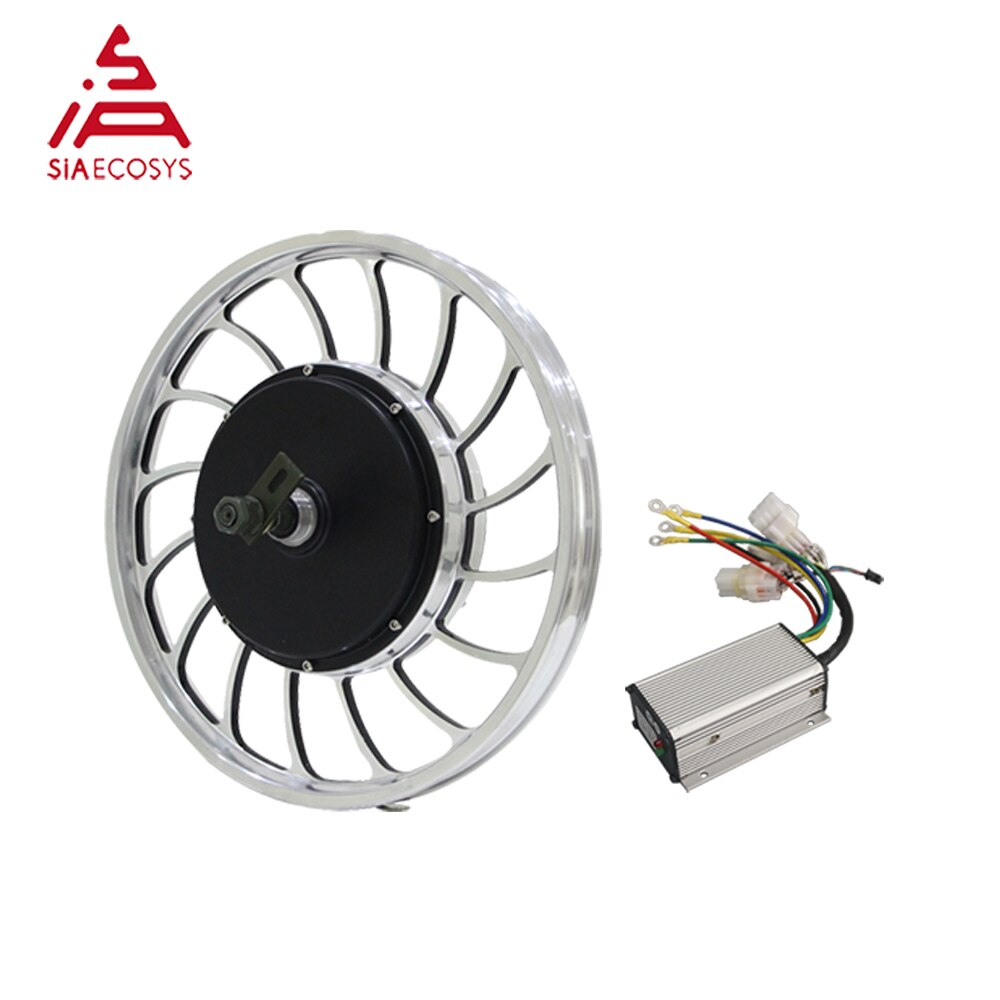

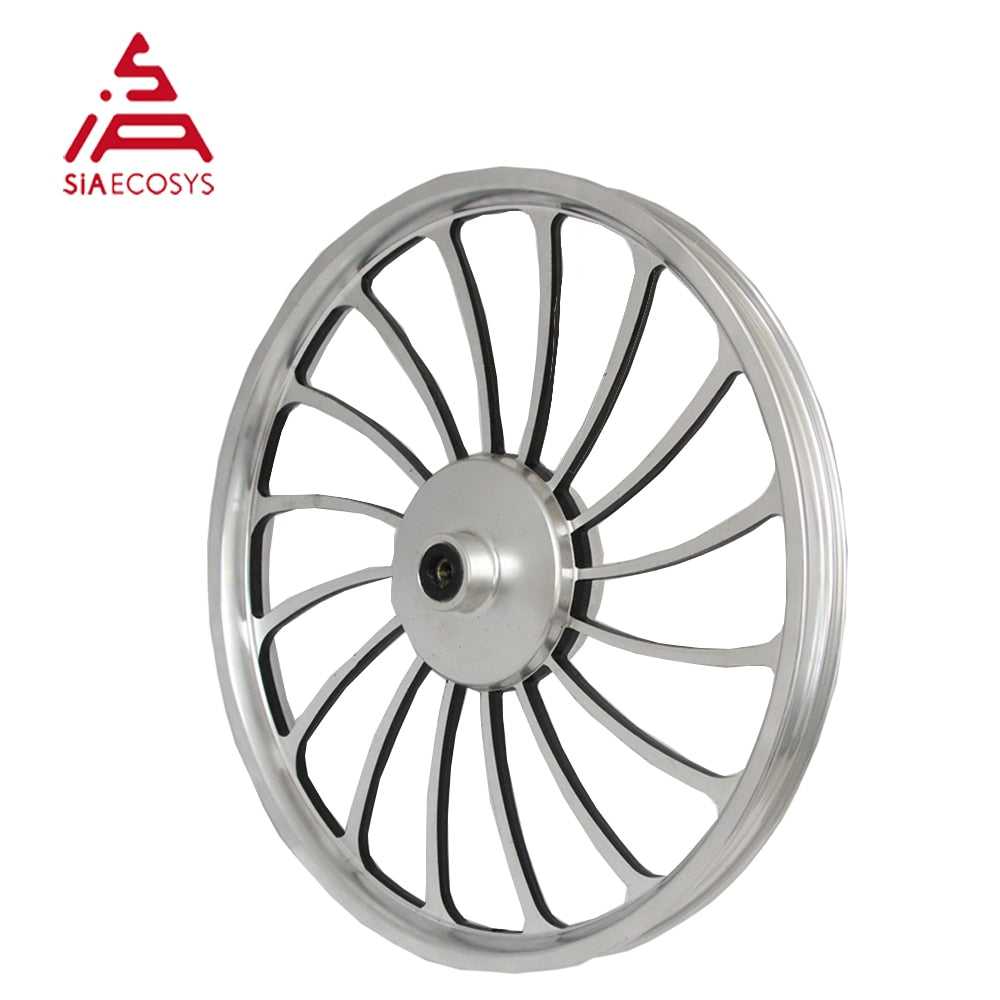

QSMOTOR 20X2.125inch 1000W 205 V2 Electric Bike Cast Wheel Hub Motor With KLS4812S For Electric Bicycles Solar Tricycle

Regular price $705.68

QSMOTOR 20X2.125inch 1000W 205 V2 Electric Bike Cast Wheel Hub Motor With KLS4812S For Electric Bicycles Solar Tricycle

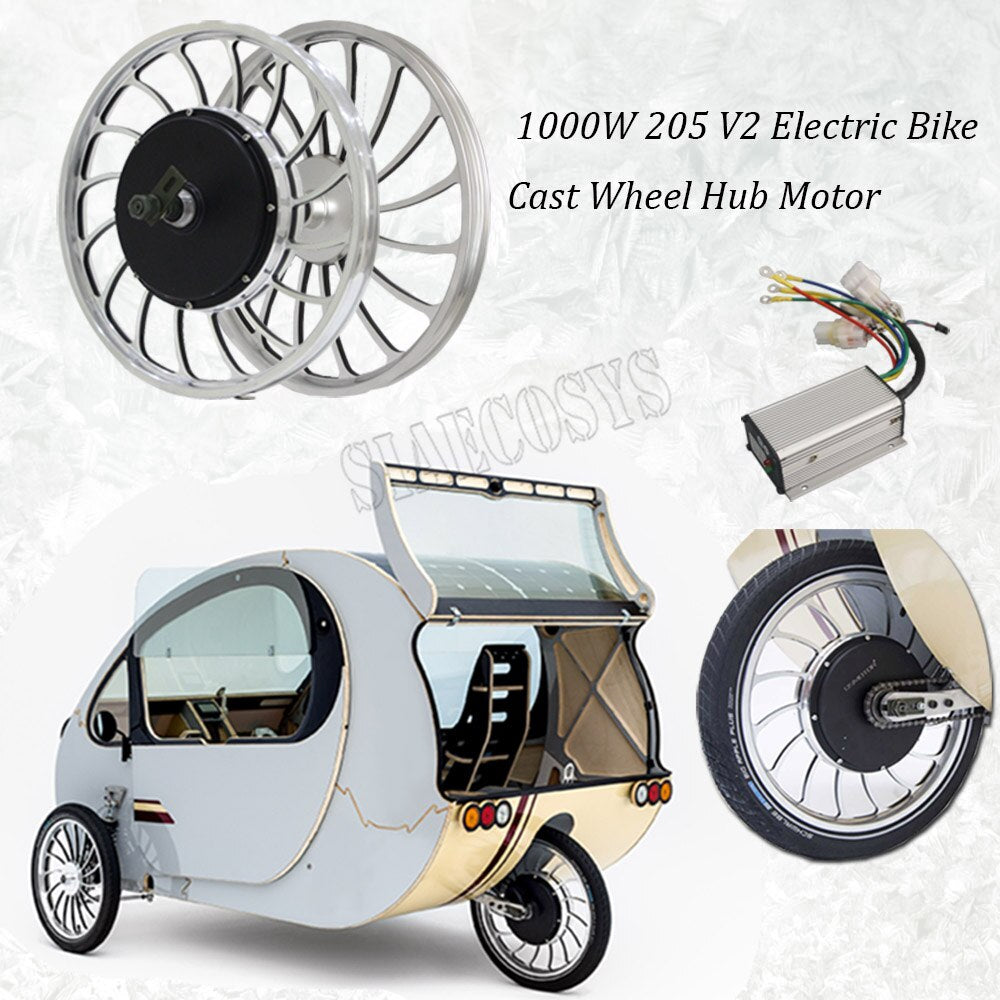

For Electric solar tricycle Hub Motor 20X2.125 E-bike wheel, it could be used for e-bike, drift trike and solar tricycle. These are 205 hub motor, so the configuration & performance is the same as 10inch 205 Hub Motor.

e.g. Electric solar tricycle

E-tricycle weight, approx 100kg+80kg

Tire diameter: 20*2.125

Speed: 48V 45km/h

Climbing slope: 14% @180kg

Battery: 48V28h lithium battery





Key Features



For Motor



1).Simplify to make a electric-bicycle. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%



For Controller



1). Very Easy connect

2). Can match with almost brushless DC motor

3). Soft start can be adjusted

4). Programmable by bluetooth

5). Warranty for mass order: If any quality issue for controller cannot drive the motor when received, we will send new one with your next order for replacement.





Product Description



Specification

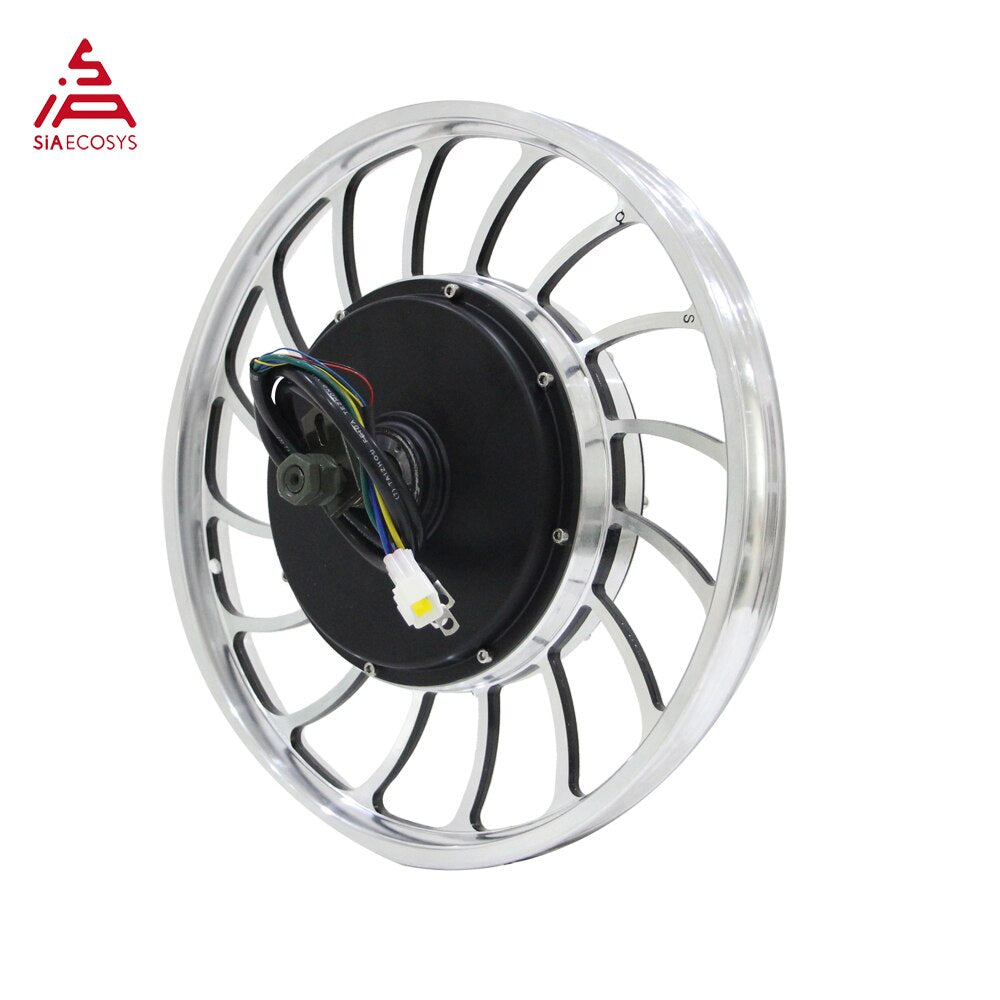

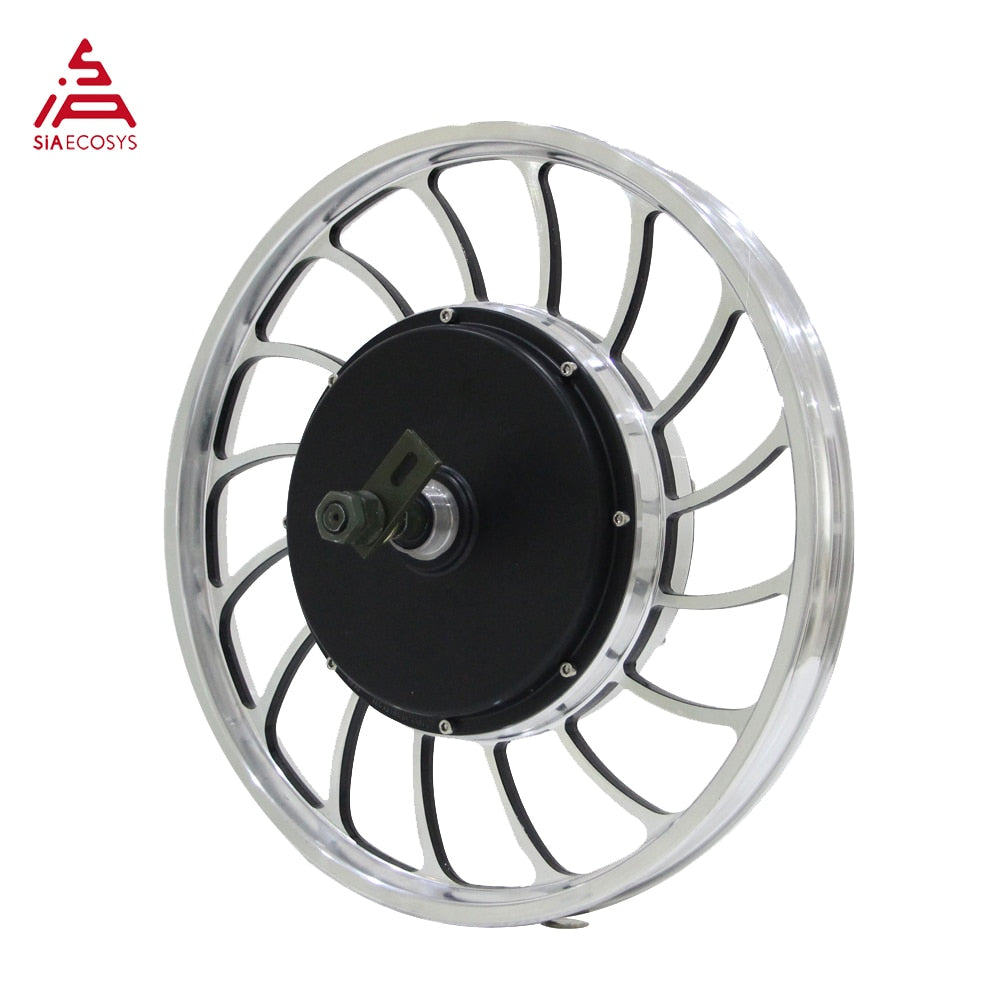

·Motor Type: BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor

·Brand: QS Motor,QSMOTOR

·Motor Design: double axle with rim

·Matched Tire: 20X2.125inch

·Stator: Steel Core

·Rated Power: 1000W (2000kW peak in few seconds)

·Rated Voltage: 48V

·Speed: 530RPM no load

·Max Torque: approx 85N.m

·Max Efficiency: approx 85%

·Continuous Battery Current: 26A (48V)

·Peak Battery Current: 50A (48V)

·Suggest Peak Phase Current: /A

·Thermal Probe: KTY83/122 (as default, optional)

·Working Temperature: 70-110℃ , peak 120 ℃

·Brake type: Disc brake, PCD6*44mm-M5

·Freewheel:single speed

·Drop-outs: 155mm

·Two Hall Set with waterproof connectors

·4mm² Cross Section of Phase Wire (not include insulation layer), 70cm length, customized connector.

·Hall Sensor Phasing angle: 120 degree

·Waterproof Grade: IP65

·Color: Black

·N.W./G.W.: approx 10.6/12.66kg (TBD)

·Package Dimension: 50.5cm*50.5cm*32.5cm/piece

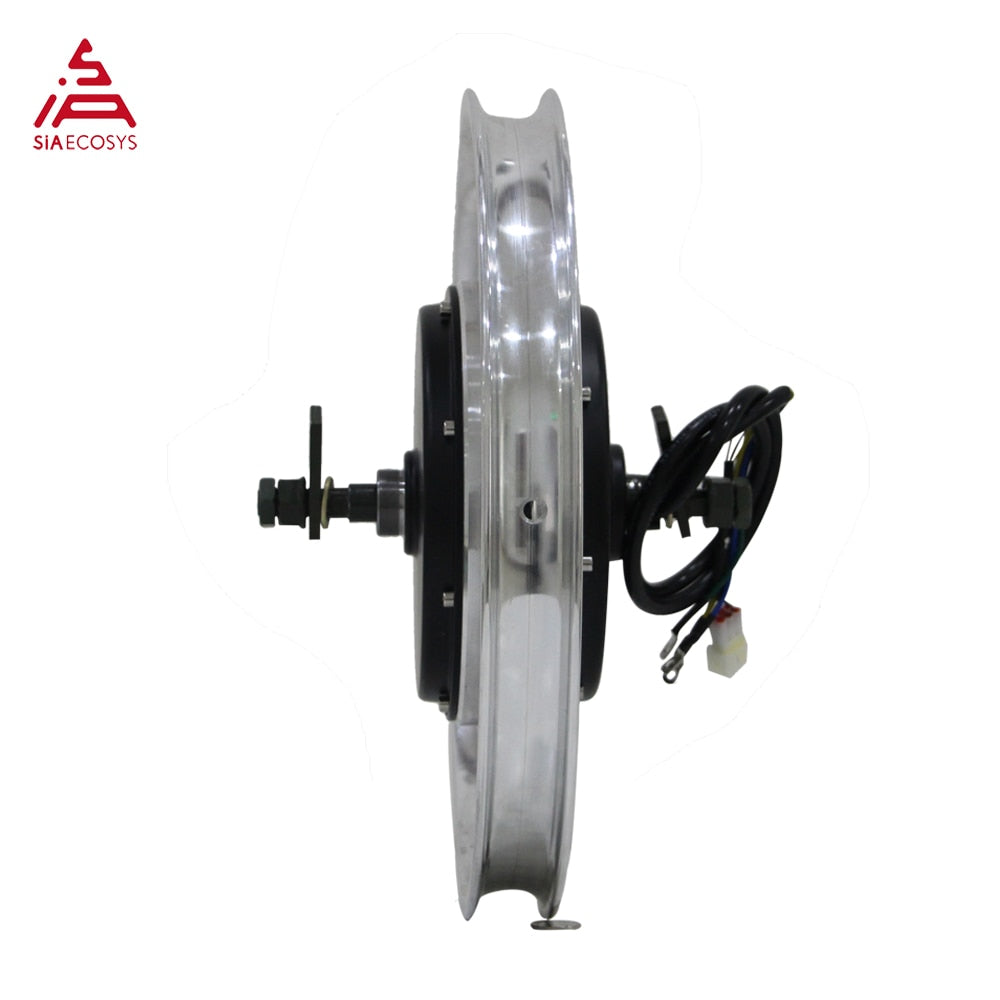

正侧反



Customized phase wire connector



相线插件SIA



Dimension Drawing



图纸



Performance curve



测试报告参考

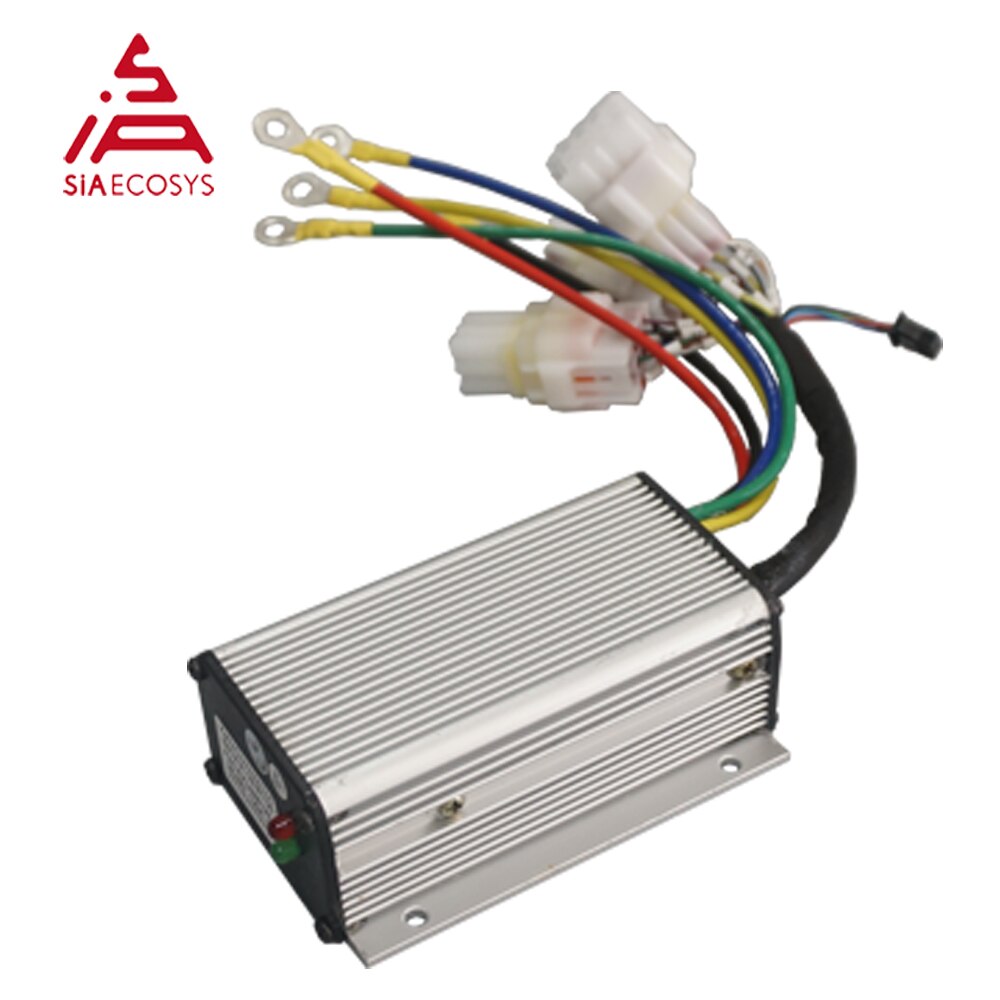

Controller specification



1. Sine wave controller, programmable, with regen function

2. Motor Current Limit, 20 seconds: 120A

3. Motor Current Limit, continuous: 50A

4. Thermic Probe: KTY83-122

5. Including one controller + USB convertor cable + matched plug

6. Controller size: 108mm*78mm*41mm

7. Net weight: 0.55kg

8. Waterproof IP54

9. Default not including bluetooth, waterproof(those function are optional); CAN BUS not support

10. ​Work voltage: 18~60V; Rated voltage: 24V~48V



控制器正侧反



Drawing for controller



控制器图纸

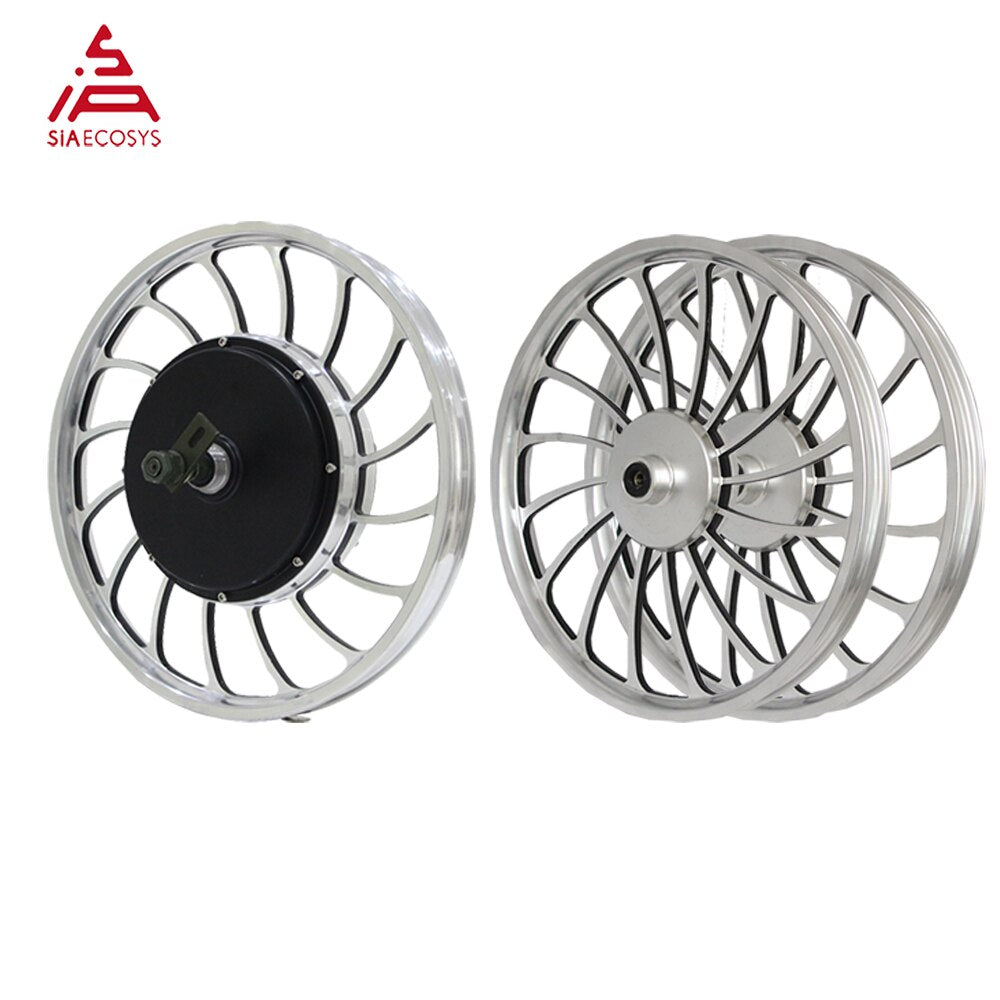

Drawing for Front Wheel



前轮图纸





Motor application



应用
