QSMOTOR 3000W 72V 80kph Hub Motor with EM150SP controller kits for electric motorcycle
For 16inch 3000W motor kits, it could be used for Electric Scooter, which could be 72V 80KPH.
e.g. Electric Motorcycle
Weight, approx 150kg+80kg
Speed: peak 80km/h
Climbing slope: 15 degree@180kg
Tire: 130/70-16
One set including below kits
1. 1pcs X QSMOTOR 16x3.5inch 260 3000W electric in-wheel hub motor
2. 1pcs X EM72150SP sine wave motor controller with standard CAN-BUS
3. 1pcs X DKD LCD speedometer with CAN (disable CAN as default)
4. 1pcs X Z6 throttle with combination switch
Key Features
1). Simplify to make a electric-motorcycle. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%
Product Description
1. QSMOTOR 16X3.5inch 3000W V1.12 Electric Scooter Hub Motor
Genearlly Spec:
Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor
Brand: QS Motor, QSMOTOR
Motor Design: Double axle with 16inch moped rim (integrated)
Rim Size:16x3.5inch(Narrow Tire as default), matched tire: 120/70-16 etc
Magnet Height: 40mm, 24 pole pairs
Stator: Steel Core
Rated Power: 3000W
Speed: 30KPH-80KPH, it's customized, genearlly we will design as 72V65KPH.
Work Voltage Range: 48V-96V, it will be 72V as default.
Max Torque approx >177.2N.m
KV: 7.7/10.3/11.7/13.2(optional)
Thermic Probe: KTY83-122 (as default, optional)
Max Efficiency approx 88%
Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm
Drop-outs: 200mm
Dual Halls with waterproof connectos(One for spare, in case of damage)
10mm² Phase Wire
Waterproof Grade: IP54
Color: Black (As default)
Dimension Drawing:
QS 16*3.5inch 260 in-wheel hub motor(Integrated)
QS 16*3.0inch 260 V4 in-wheel hub motor(Integrated)
Please noted:
Optional appearance, drawing, performance curve/test report are available.
If you need more technical information, please feel free to contact us.
We will give you reply in 12hours.
2. QSEM150SP 72V sinusoidal wave BLDC motor controller, with CAN BUS
Dimension drawing

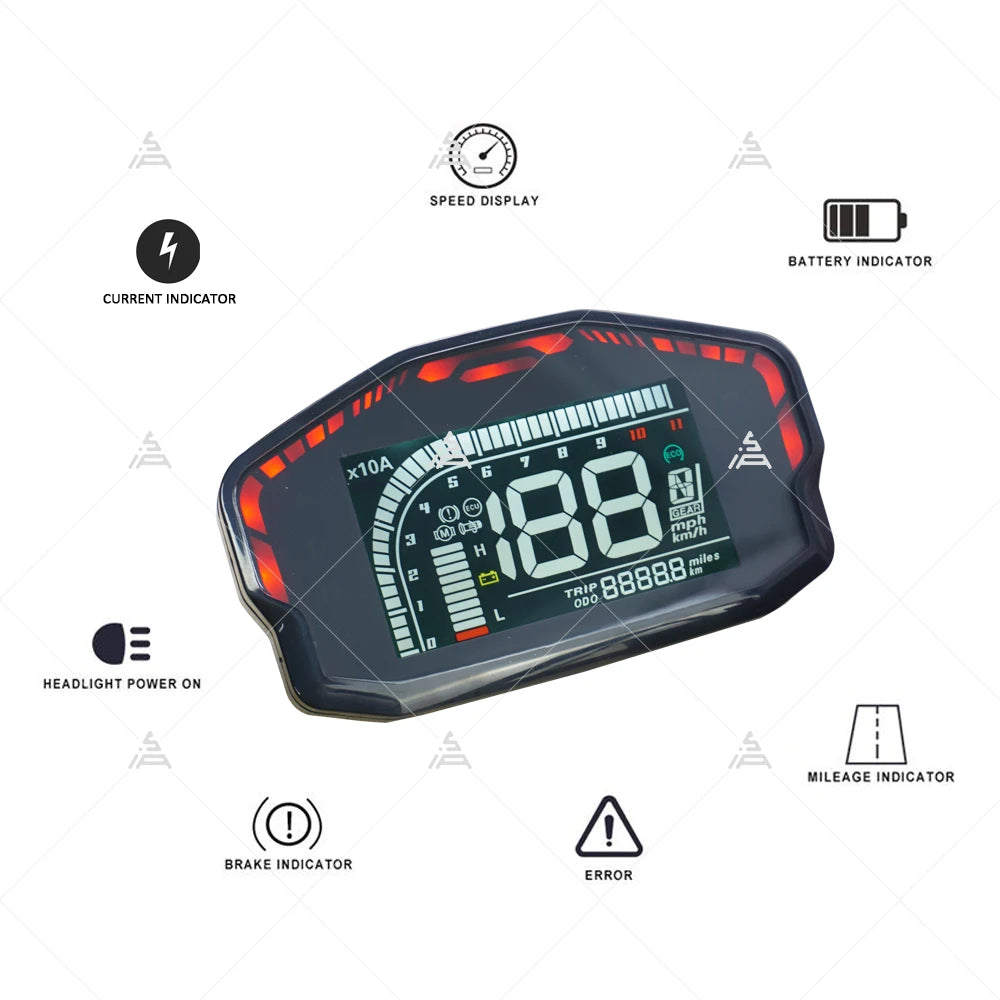

3. DKD LCD speedometer, can-bus(optional, LIN as default)
It display D N R, P, S gear, and battery current X5/10.
P.s.: If the working battery doesn't have can-bus communication, then the can-bus speedometer will shows lack of electricity always.
So, we suggest to do the speedometer as Line communication version if client can't get can-bus battery.
4. Z6 throttle with combination switch
With Reverse, Parking button( throttle on/off), 3 slide switch gear, s/boost button, Light and Horn.
It match with VOTOL controller well.
Please noted:
Optional appearance, drawing, performance curve/test report are available.
If you need more technical information, please feel free to contact us.
We will give you reply in 12hours.
