QSMOTOR 2000W Mid drive motor with EM100SP controller and kits for electric motorbike Dirtbike 70KPH 72V
For 2000W mid drive motor kit assembly, it could be used for electric scooter, electric motorcycle.
e.g. M3 electric motorbike
E-motorbike weight, approx 115kg+2*80kg
Speed: continuous 70km/h
Gear ratio: 1:4.77
Battery: 72V40h NCM lithium battery
Tire: 130/70-12
P.S. If you have any confused about the shipping cost, please feel free to contact with us.
Also could place order but don't pay first, then we could adjust the price.
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)

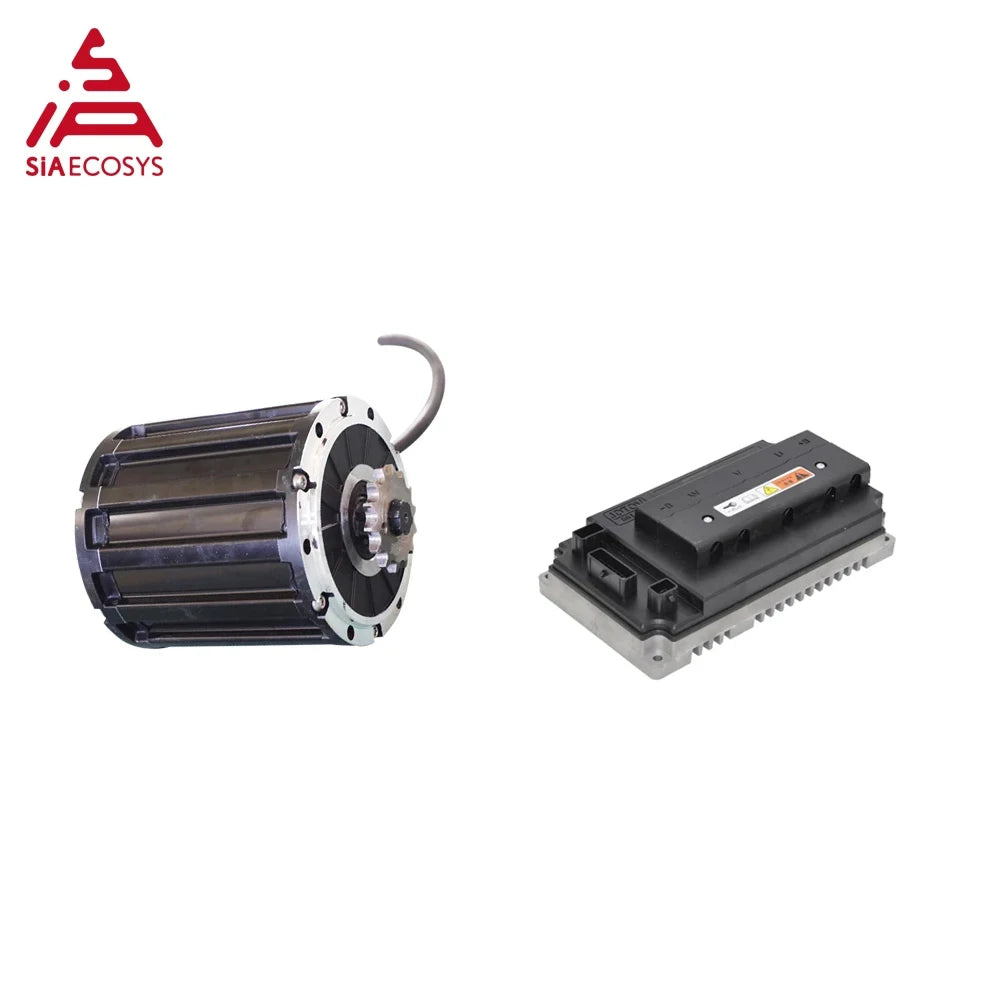

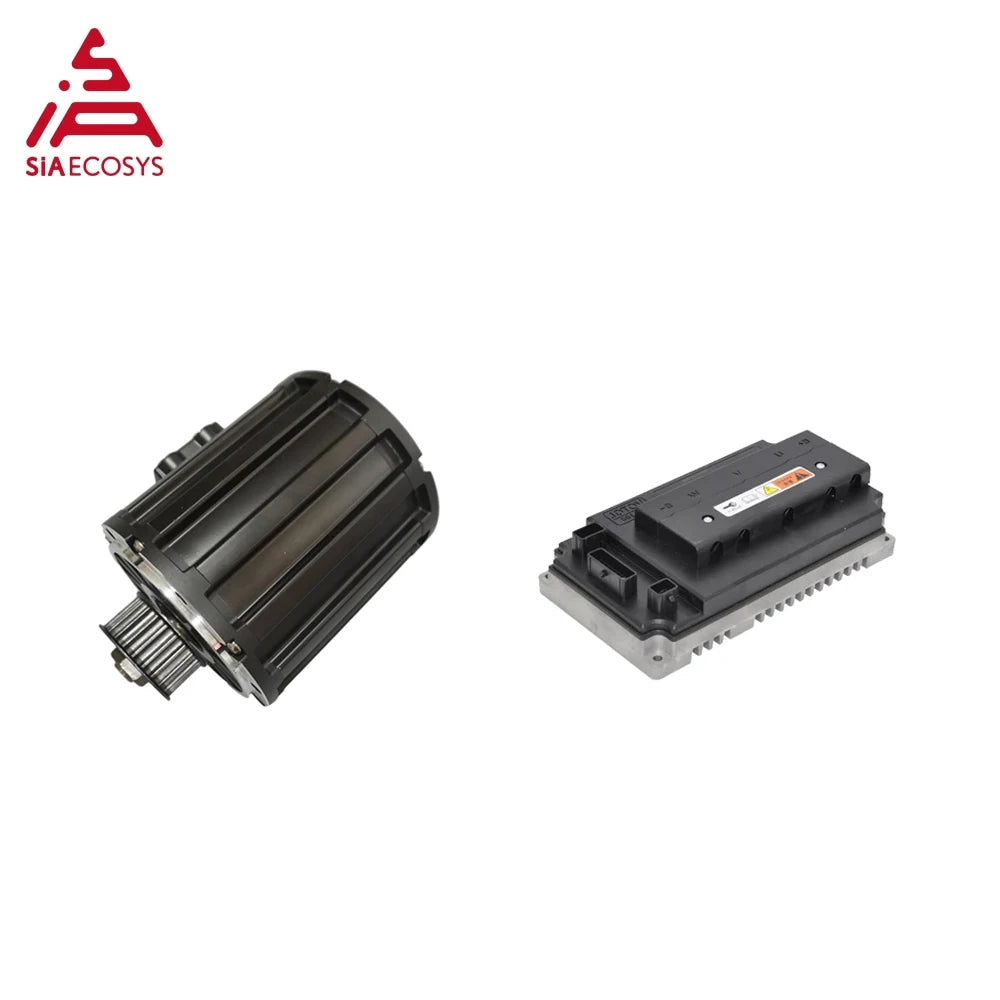

One set including below kits
Combo 1
1. 1pcs X QSMOTOR 2000W PMSM IPM mid drive motor with belt
2. 1pcs X Votol EM100SP sine wave motor controller with standard CAN-BUS
Combo.2

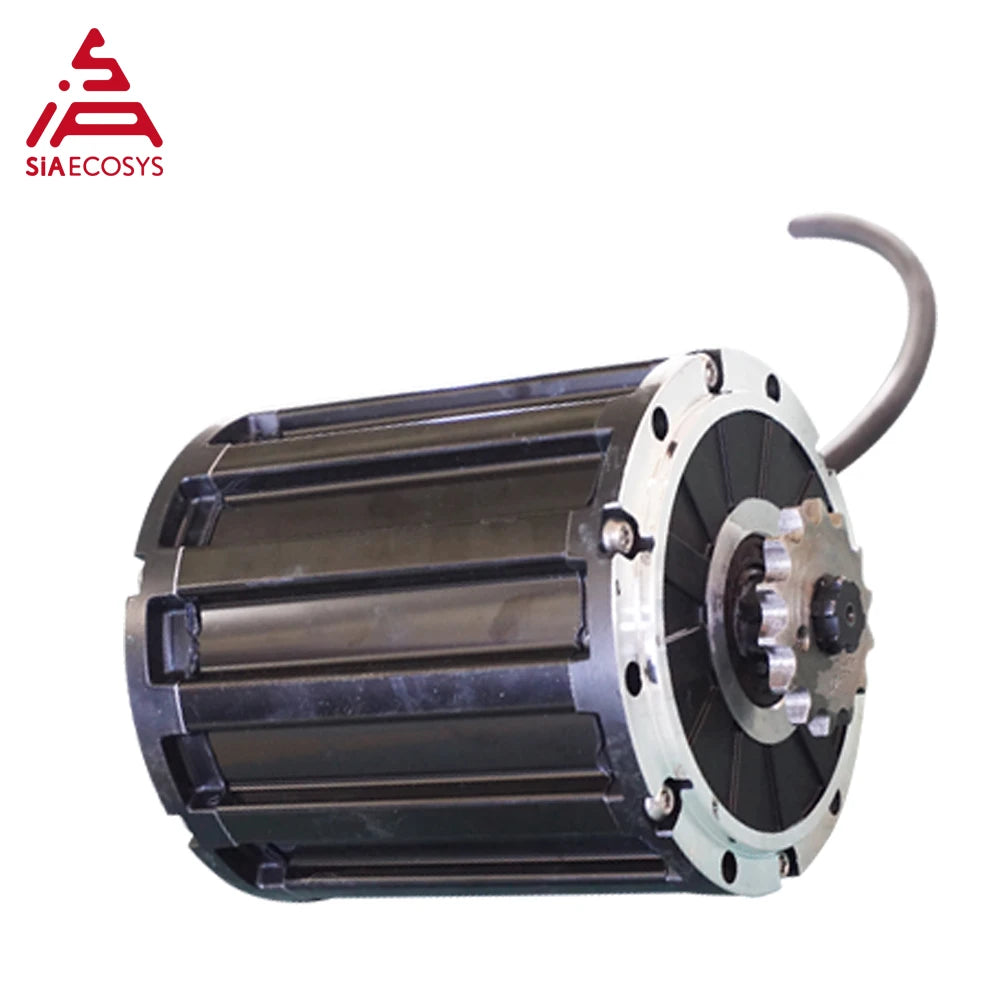

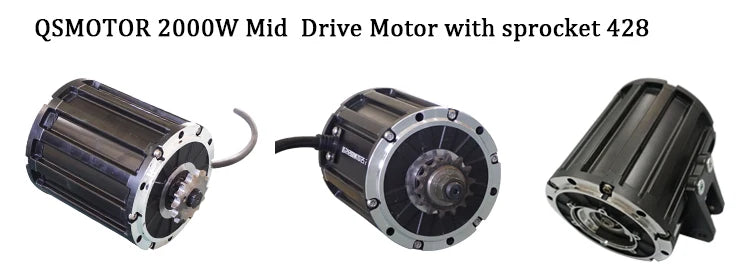

1. 1pcs X QSMOTOR 2000W PMSM IPM mid drive motor with sprocket 428
2. 1pcs X Votol EM100SP sine wave motor controller with standard CAN-BUS
Key Features
1) Light weight and small dimension compare to hub motor
2) High performance benefit from flux weakening
3) High efficiency during climbing, and better acceleration
4) Support regenerative braking
Product Description

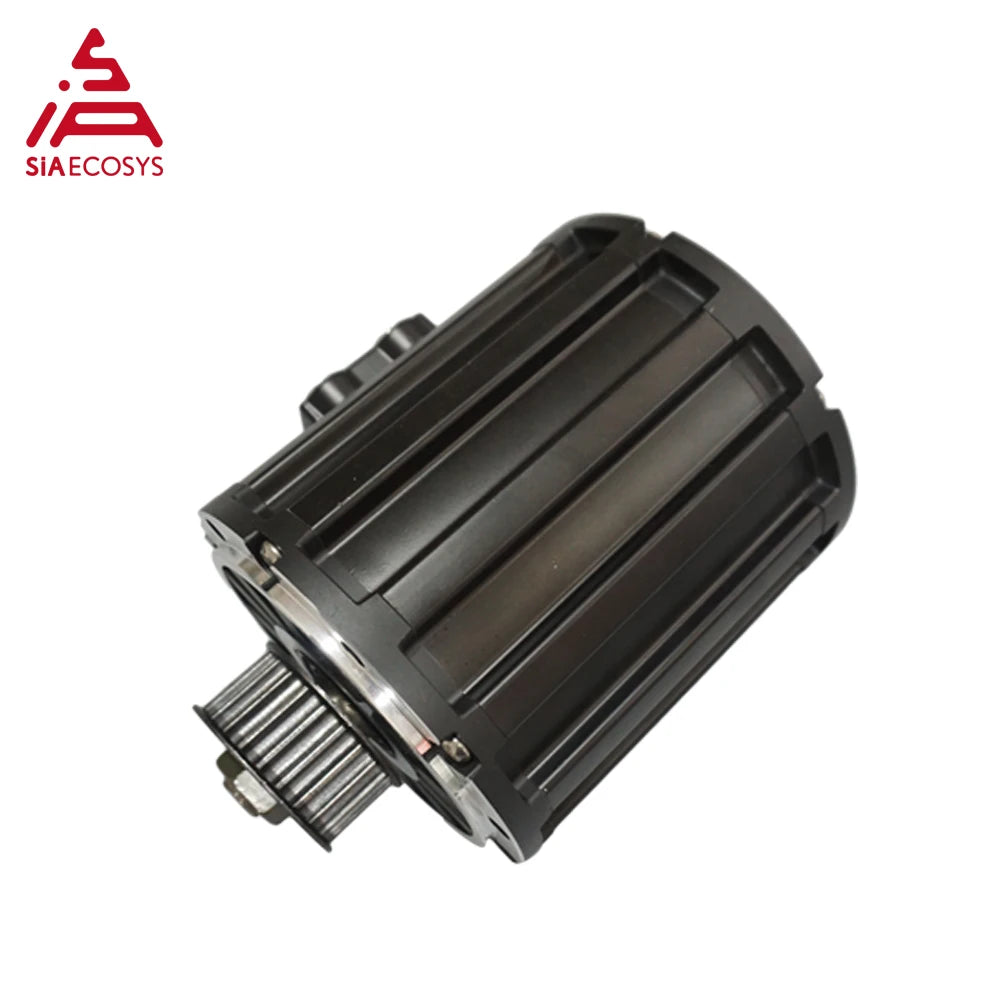

1. QSMOTOR 2000W 120 70H Mid Drive Motor
Specification
·Motor Type: BLDC Permanent Magnet Inner Rotor Motor With Hall Sensor
·Brand: QS Motor, QSMOTOR
·Motor Design: Single axle
·Matched Wheel: 12inch (as default).
·Magnet Height: 70mm, 40pcs, 5 pole pairs
·Diameter of stator: 120mm
·Rated Power: 2000W
·Rated Voltage: 72V as default
·Speed: 70KPH
·No-load rpm: 2800rpm without flux weakening, 4400RPM with flux weakening.
·Max Torque: approx 45.4N.m without Reduction ratio
·Max Efficiency: 88%
·Continuous Battery Current: pending (72V)
·Peak Battery Current: 60A (72V)
·Suggest Peak Phase Current: 250A
·Thermal Probe: KTY83/122 as default
·Working Temperature: Pending
·Single Hall Plate with waterproof connectors
·8mm² Cross Section of Phase Wire (not include insulation layer)
·Hall Sensor Phasing angle: 120 degree
·Waterproof Grade: IP67
·Color: Black
·N.W./G.W.: 10.8kgs/11.5kgs
·Package Dimension: 34cm*34cm*33cm
·Axle matched with belt as default

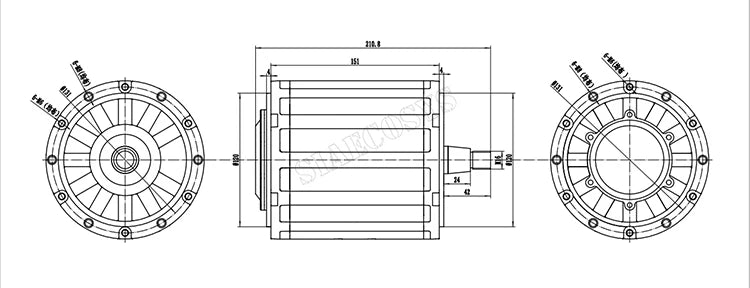

Drawing：

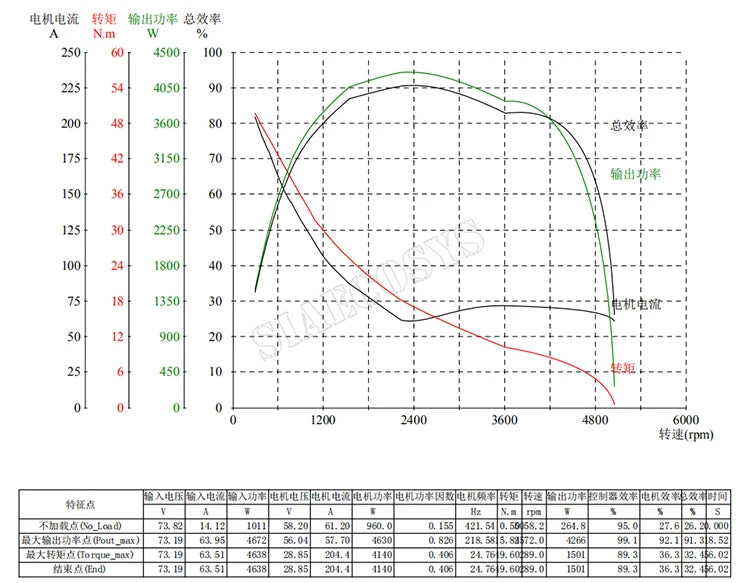

Test Report：

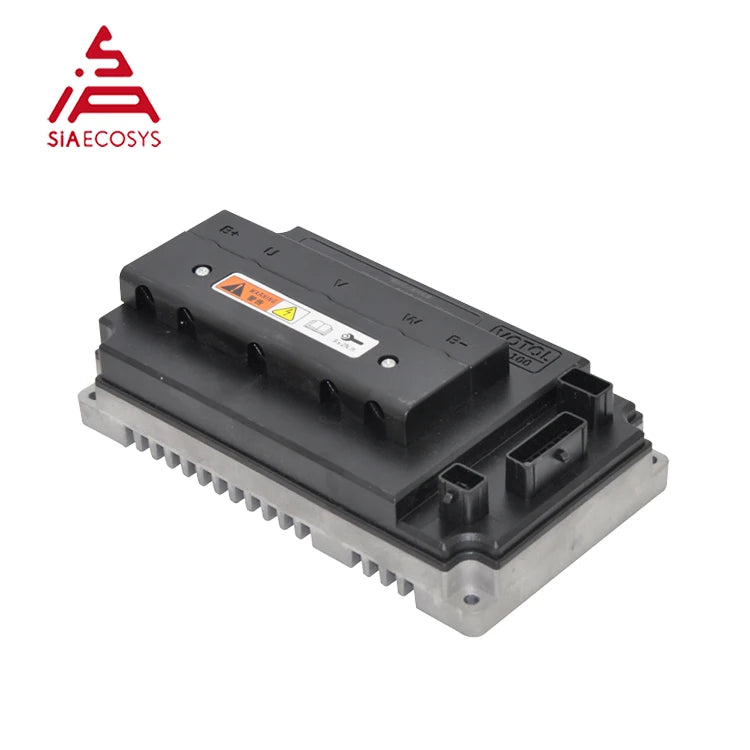

2. EM100SP72V sinusoidal wave BLDC motor controller, with CAN BUS
Specification
·Sine wave controller, programmable, with regen function
·Rated Current:100A
·BOOST Current:130A
·Peak Current:330A
·Max.Power:7200W
·Flux Weakening Ratio:100~250%
·Max.Efficiency:88~93%
·Net weight: 1650g
·Waterproof IP67

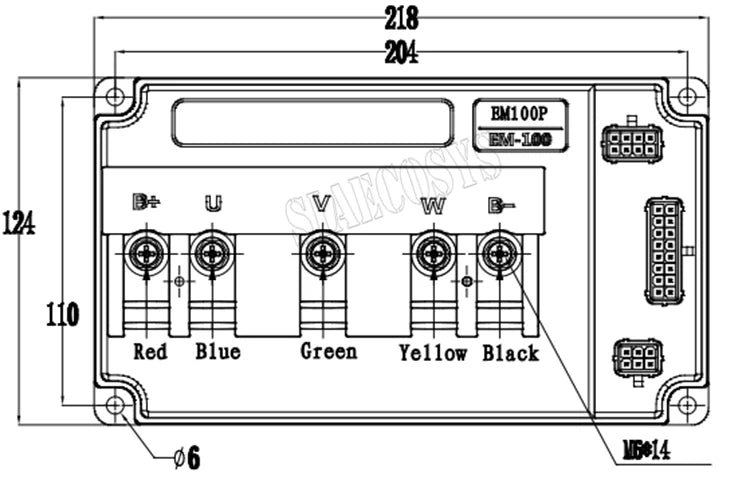

Drawing for EM100sp Controller:

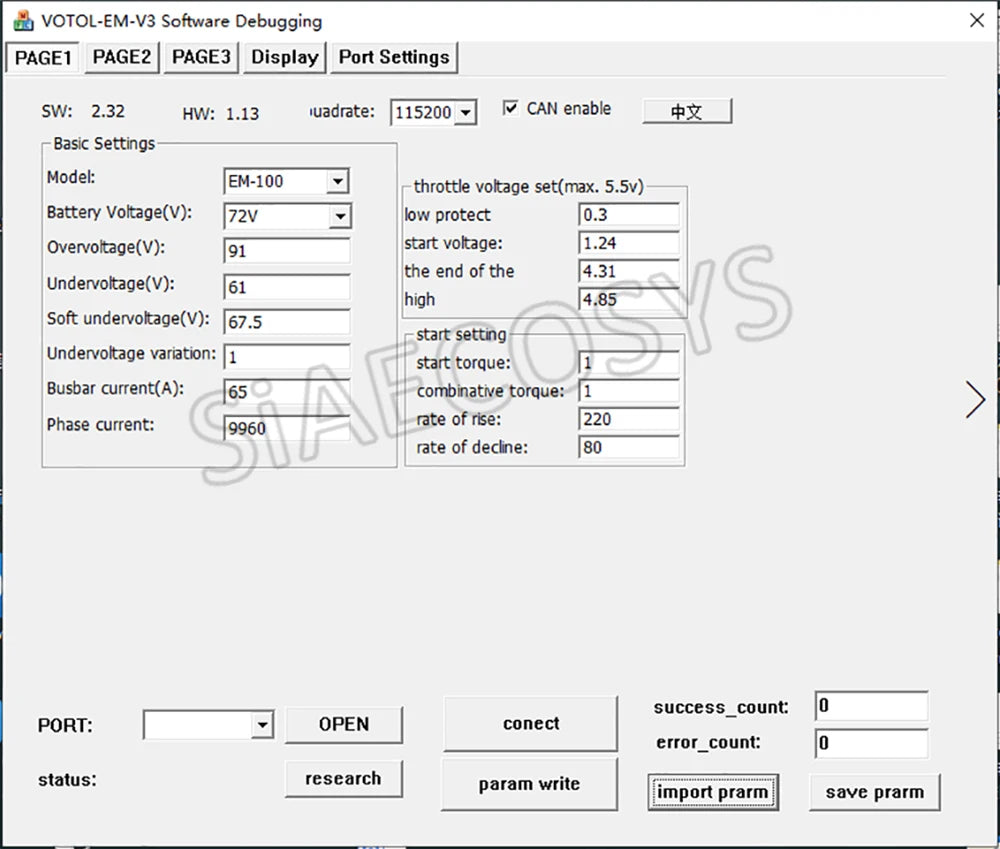

EM Controller Software Interface

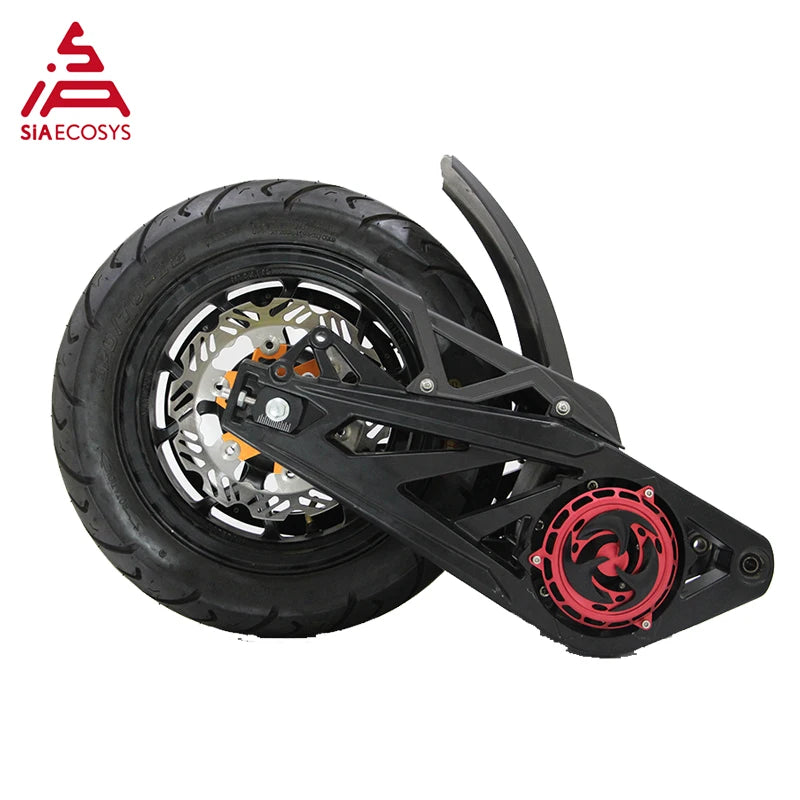

QS 2000W Mid Drive Motor Aseembly kits for your reference ,if you are interested ,please click the picture for more information
We're able to supply Controller, display, dc-dc converter, disc brake system, twist throttle, matched tire...etc. Please contact seller for quotation:
Please noted:
Optional appearance, drawing, performance curve/test report are available.
If you need more technical information, please feel free to contact us.
We will give you reply in 12hours.
Application for 2kW mid drive motor
