Kelly Controller QSKLS7212S 72V 300A for Electric Hub Motor Sinusoidal With TFT Display Speedometer From SIAECOSYS
Electric Hub Motor Controller special design for QS brushless motor controller for Conversion Kits, which can match with QS HUB MOTOR Rated Power 3000W.
Key Features
1). Very Easy connect
2). Can match with almost brushless DC motor
3). Soft start can be adjusted

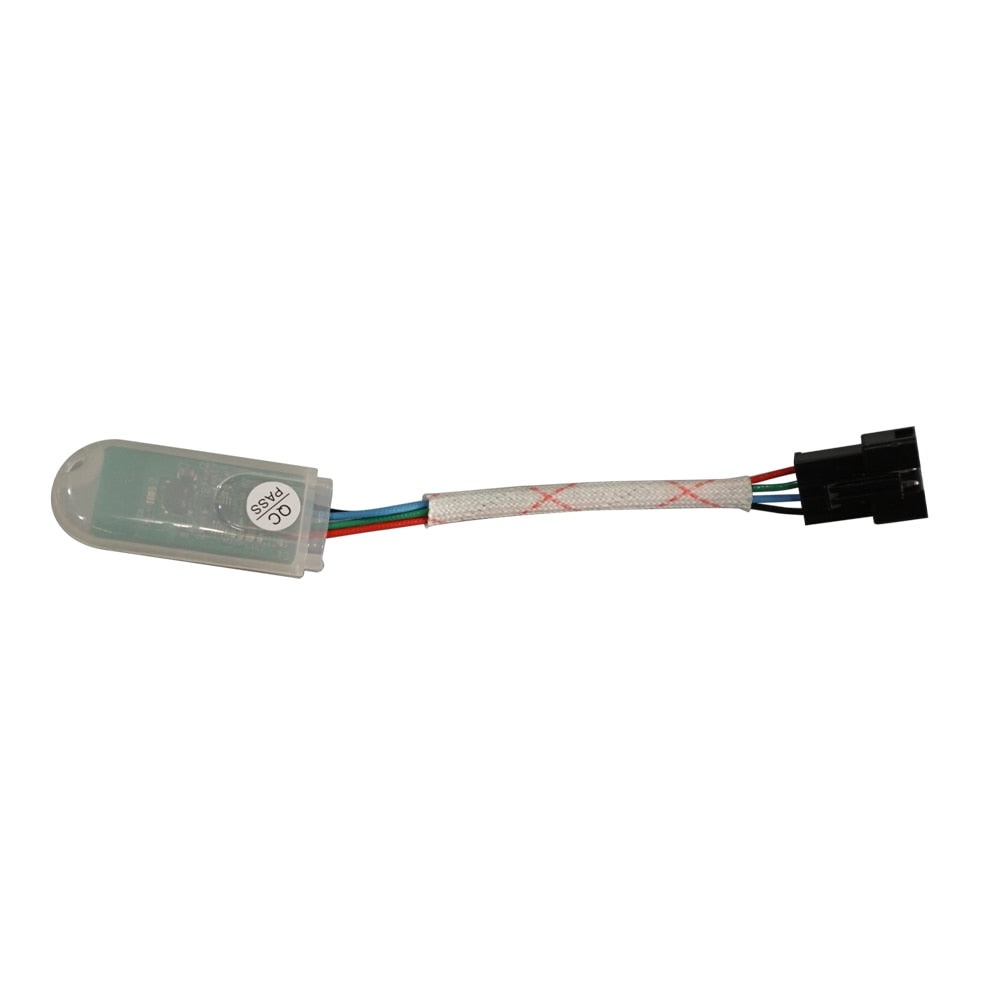

4). Programmable by bluetooth
5). Warranty for mass order: If any quality issue for controller cannot drive the motor when received, we will send new one with your next order for replacement.
One set including below products

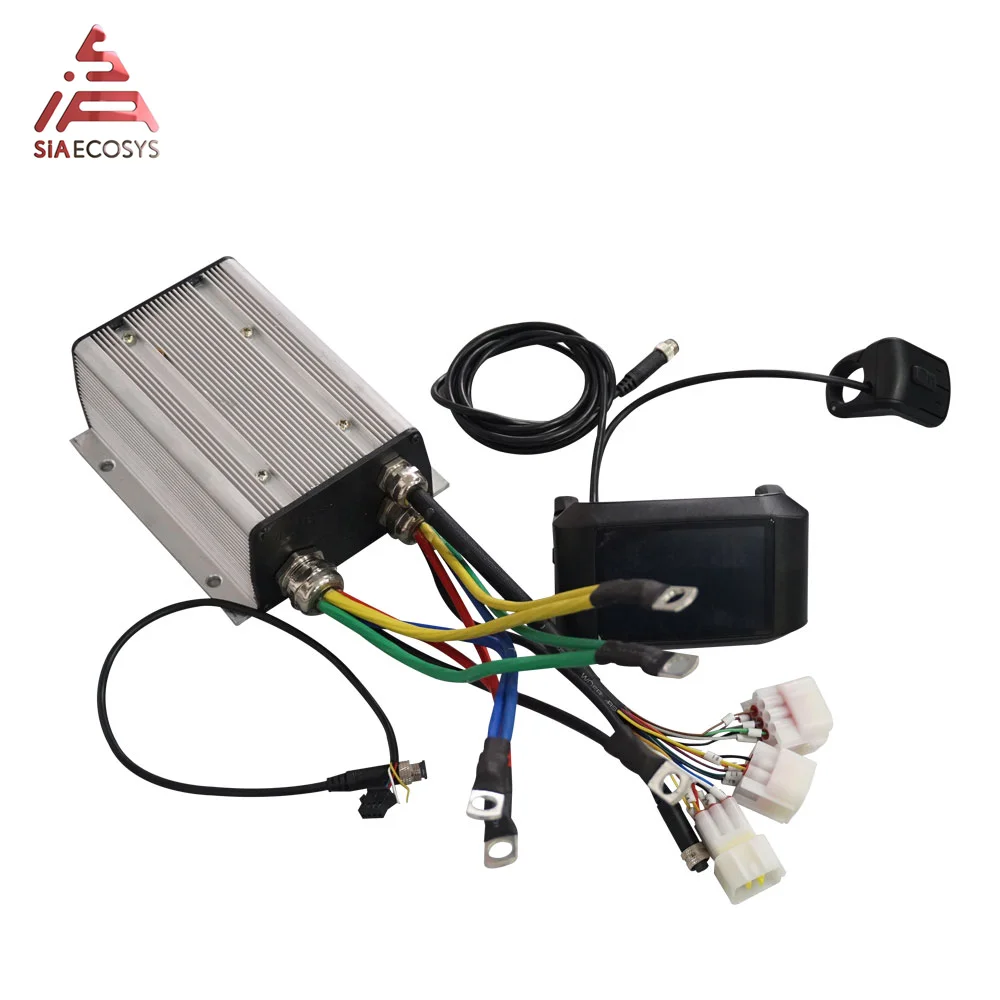

1. 1X One custimized wire KLS7212S motor controller (in order to match TFT speedometer)
2. 1 X TFT color speedometer display
PS.The controller could be powered on alternatively by TFT speedometer or electric key.
Wheel size: 16 18 20 22 24 25 26 27 27.5 28inch.
Speedometer logo customizable (MOQ 5pcs).
Product Description
1). Genearlly Specification for controller
1. sine wave controller, programmable, with regen function
2. Motor Current Limit, 20 seconds: 300A
3. Motor Current Limit, continuous: 120A
4. Thermic Probe: KTY83-122
5. Including one controller + USB convertor cable + matched plug
6. controller size: 140mm*123mm*58.5mm
7. net weight: 1.2kg
8. waterproof IP54
9. default not including bluetooth, waterproof(those function are optional); CAN BUS not support
Drawing:
This is KLS7230S drawing for your consideration
2. Kelly Controller Software Interface
Here are the clear and easy adjustment software interface.
Pin Definition
DJ7091Y-2.3-11 Pin Definition
(14) REV_SW: Reverse switch input. Orange
(6) RTN: Signal return or power supply return. Black
(12) FWD: Forward switch White
(11) 12V:12V Source Red
(9) Relay: Main contactor driver. Blue
(7) PWR: Controller power supply (input). Pink
(25) 12V brake switch. Yellowish
DJ7091Y-2.3-21 Pin Definition
(15) Micro_SW: Throttle switch input. Gray
(3) Throttle: Throttle analog input, 0-5V. Green
(1) Temp: Motor temperature sensor input. Raddle.
(20) RTN: Signal return. Black
(8) Meter: Copy signal of hall sensors. Dark Gray
(4) 5V: 5V supply output, <40mA. Purple
(2) Brake_AN：Brake variable regen or Boost function. Brown
DJ7061Y-2.3-21 Pin Definition
(21) RTN:Signal return. Black
(5) 5V: 5V supply output,<40mA.Purple
(18) Hall A: Hall phase A. Yellow
(17) Hall B: Hall phase B. Dark Green
(16) Hall C: Hall phase C. Dark Blue
Notes:
1. All RTN pins are internally connected.
2. Meter function is to copy either of hall sensors.
3. Switch to 12V is active. Open switch is inactive.
Pls. contact with sales first if you don't know how to connect the controller with motor and other parts.
