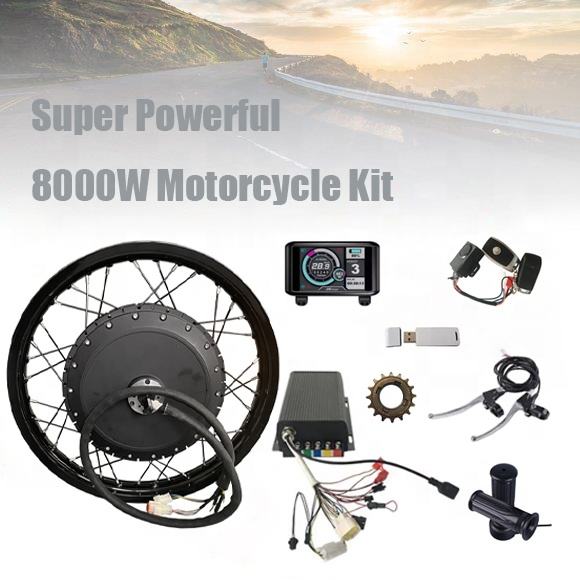

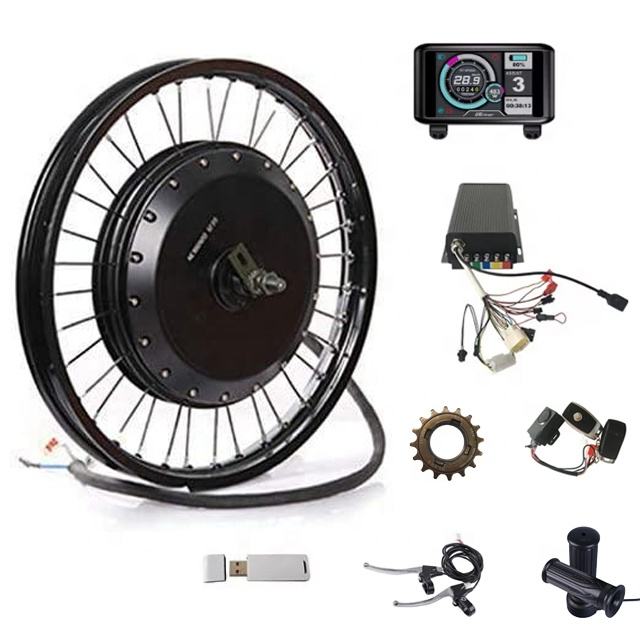

High-Performance 8000W Motorcycle Conversion Kit - Gearless Brushless Rear Hub Motor with Optional Display for 18-19 Inch Motorcycle Wheels
Upgrade your motorcycle to a high-powered and efficient machine with the 8000W Motorcycle Conversion Kit. This kit features an 8000W gearless brushless rear hub motor and a 150A sine wave controller, providing you with reliable and efficient performance.
The 8000W Motorcycle Conversion Kit is designed with a QS 273 40H 72V motor, 3.5T/5T programmable Sabvoton controller, and is available in 52V, 60V, 72V, and 96V voltage options. The kit can reach speeds of up to 120 km/h, providing you with a fast and thrilling riding experience.
This motorcycle conversion kit features a twist throttle for both side power off and two electric brake levers, providing you with added control and ease of use. The kit also includes an optional display, allowing you to monitor your motorcycle's performance, including speed, battery life, and motor output. The display options include the TFT750C display or TFT M6 display.
The 8000W Motorcycle Conversion Kit is designed with a wheel size of 18'' or 19'' motorcycle wheel, providing compatibility with a range of motorcycle models. The kit is designed with durable materials that can withstand wear and tear, ensuring that your motorcycle will last for years to come.
Upgrade your motorcycle to a high-powered and efficient machine with the 8000W Motorcycle Conversion Kit. Enjoy a fast, efficient, and thrilling riding experience with this high-performance conversion kit.

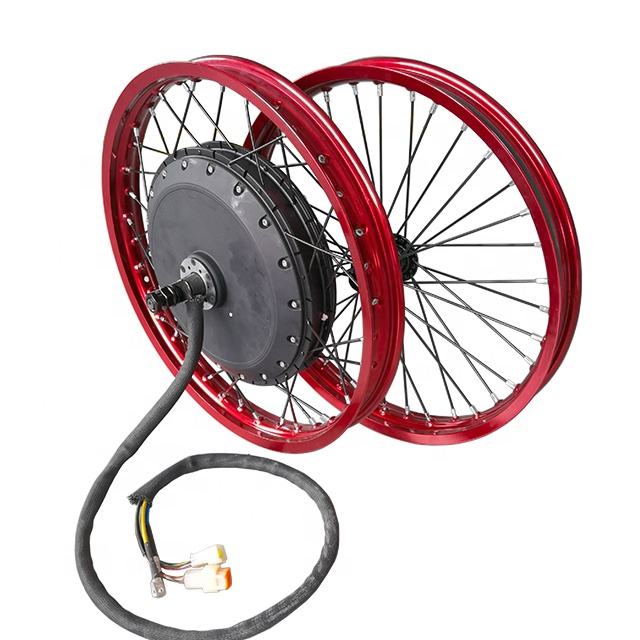

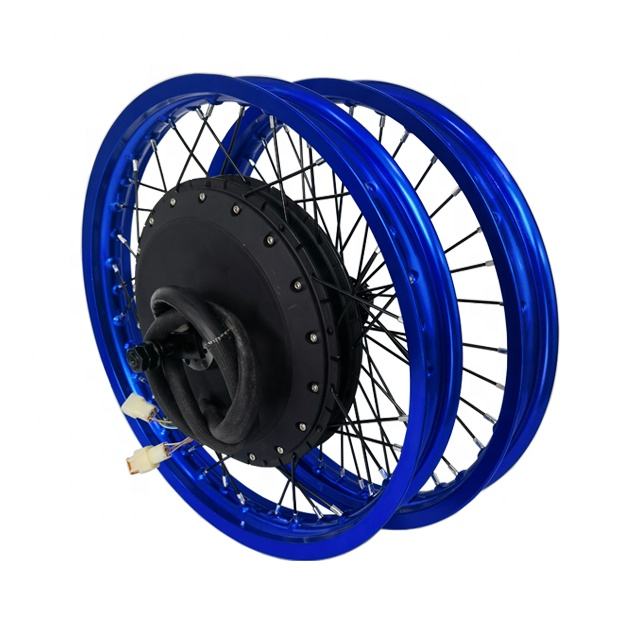

8000W 273 40H V3 E-spoke hub motor
Motor Type: BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor
Brand: QS Motor,QSMOTOR
Motor Design: Double axle without rim (not integrated), 36 spoke holes, OD 4.2mm
Matching Rim size: 24inch, 26inch E-Bike Wheel, 17inch, 18inch, 19inch moped wheel.
Magnet Height: 40mm, 16 pole pairs
Stator: Aluminmum Core
Rated Power: 8000W
Rated Voltage: 72V as default
Max Speed: 120KPH
kV: 11.46/12.46/13.54/15.69/17.71etc.
Max Torque: approx 250N.m
Max Efficiency: 86-91%
Suggest Peak Phase Current: 196-245A (depend on the kV)
Thermic Probe: KTY83/122 (as default, optional)
Working Temperature: 70-120℃ , peak 150 ℃
Brake type: Bike Disc brake, PCD6*44mm(as default)
Drop-outs/Rear Fork Width for installation: 150mm/200mm
14mm english thread length for single/3 speed freewheel
10mm axle flats
Dual Hall Set with waterproof connectors
10mm⊃2; Cross Section of Phase Wire (not include insulation layer)
Hall Sensor Phasing angle: 120 degree
Waterproof Grade: IP54
Color: Black
N.W./G.W.: 18.2kg/20.0kg
Package Dimension: 43cm*43cm*41cm/piece
