Main technique parameter:
800W 24V Controller Main Technique Parameter:
Controller type:Brush type
Rated voltage:24V
Rated power:800W
Throttle potential:5V
Under-voltage Protection :19V-20.5V
Current limiting Protection:39A-41A
Adaptation Motor:24V 800W
Ambient Temperature:-20℃--45 ℃
Brake potential:Low level brakes
Size: 10.5*6.9*3.2cm(L*W*H)
800W 36V Controller Main Technique Parameter:
Controller type:Brush type
Rated voltage:36V
Rated power:800W
Throttle potential:5V
Under-voltage Protection:30V-32V
Current limiting Protection:39A-41A
Adaptation Motor:36V 800W
Ambient Temperature:-20℃--45 ℃
Brake potential:Low level brakes
Size: 10.5*6.9*3.2cm(L*W*H)
800W 48V Controller Main Technique Parameter:
Controller type:Brush type
Rated voltage:48V
Rated power:800W
Throttle potential:5V
Under-voltage Protection:40V-42V
Current limiting Protection:34A-36A
Adaptation Motor:48V 800W
Ambient Temperature:-20℃--45 ℃
Brake potential:Low level brakes
Size: 10.5*6.9*3.2cm(L*W*H)

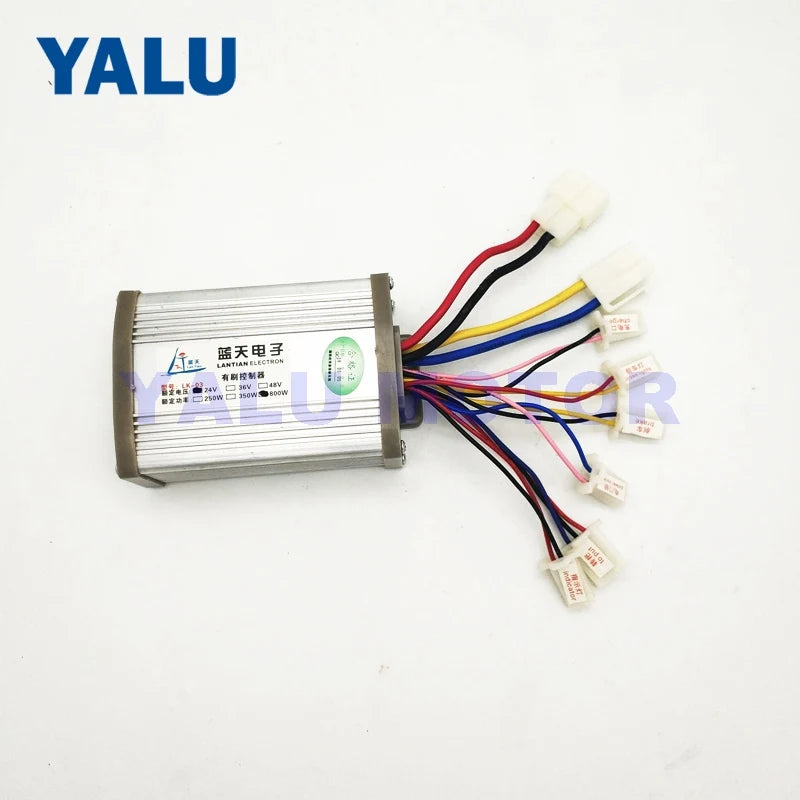

Item Photos:
The Controller’s Wiring:
1. Red black wire(red positive black negative); 2. motor wire 3.speed throttle. 4. Indicator ;
5. Charger 6.power lock 7. Brake 8. Brakes light.
Special Note:
1. the power supply line positive and negative cannt connection wrong, otherwies will burn out.
2. This controller only can wiring brush DC Motor,cant use to wiring the BLDC Motor.
The Controller Wiring Instructions:
As the above controller example, to work on the motor at least to connect the four joints, Firstly,the controller two crude bule wire and yellow wire connect with motor.The blue wire connect with red wire of motor, the white wire connect with the black color of motor.
Then the controller two crude red wire and black wire connect with battery. The red wire connect with battery positive electrode, the black wire connect with negative electrode.
Thirdely,connect with throttle (the throttle have three wires,it must need red connect with red wire,black connect with black wire).
Then connect with the power lock, open the power lock,rotate throttle then the motor can start work.
