2000W Electric ATV Car Conversion Kit - Dual HubMotor with Controller for Small Electric Vehicles 2000W Small Electric Car Conversion Kit
Introducing the QSMOTOR 2000W 60V60kph 2wd dual HubMotor with KLS6222H controller kit, a top-of-the-line conversion kit for small electric cars. This kit features a powerful QSMOTOR 205 2000W V2 electric car hub motor that is designed to simplify the process of making an electric car. With no need for a gearbox, transmission shaft, or clutch, this kit saves space and is easy to install in wheels, making it an ideal choice for hybrid cars.
The QSMOTOR 205 2000W V2 electric car hub motor has a peak speed of 60km/h and can climb slopes of up to 12 degrees at 350kg. With a high efficiency rating of 85-92%, this motor is energy-efficient and supports regenerative braking. The motor is designed to work with a 72V 120Ah battery, and it has a magnet height of 50mm and 23 pole pairs.
The KLS6022H 60V sinusoidal wave BLDC motor controller is programmable and has a regen function. It has a motor current limit of 220A for 20 seconds and 80A continuously. The controller is waterproof, with a waterproof rating of IP67, and supports can-bus. It comes with a USB converter cable and a matched plug, and its size is 194mm*126mm*86.8mm.
The XE-8 speedometer is an essential component of this conversion kit. It is programmable and can display the time, driving distance, speed, voltage, and electric quantity. The speedometer is compatible with electric cars and EVs and has a rated voltage of 48V-96V. It is lightweight, with a net weight of 0.57kg, and its size is 205mm*103mm*67mm.
The kit also includes an electric car throttle pedal with a hall-type JKH mode. It has a wide input voltage range of 5V-120V and an output voltage of 0.8V-4.2V. The default option for the throttle pedal is three wires out and cannot connect to a switch.
Finally, the kit includes a 1 tow 2 hydraulic disc brake system, which features one main master cylinder with two calipers and a foot brake master cylinder. The system includes hoses, a mechanical parking brake cable, and a 220mm disc brake plate and screws. It is designed to work with QS Motor 205 single shaft hub motors and has a net weight of approximately 3.4kg (without brake disc).
In conclusion, the QSMOTOR 2000W Electric ATV Car Conversion Kit is an excellent choice for anyone looking to convert a small car into an electric vehicle. With its high-quality components and efficient design, this kit provides a reliable and powerful solution for electric car conversion.
For 205 2000W V2 motor kits, it could be used for electric car, which could be 60V60KPH.
e.g. Electric SMALL car
E-car weight, approx 200kg+2*75kg
Speed: peak 60km/h
Climbing slope: 12 degree@350kg
Battery: 72V120Ah
Tire Diameter: 0.521m

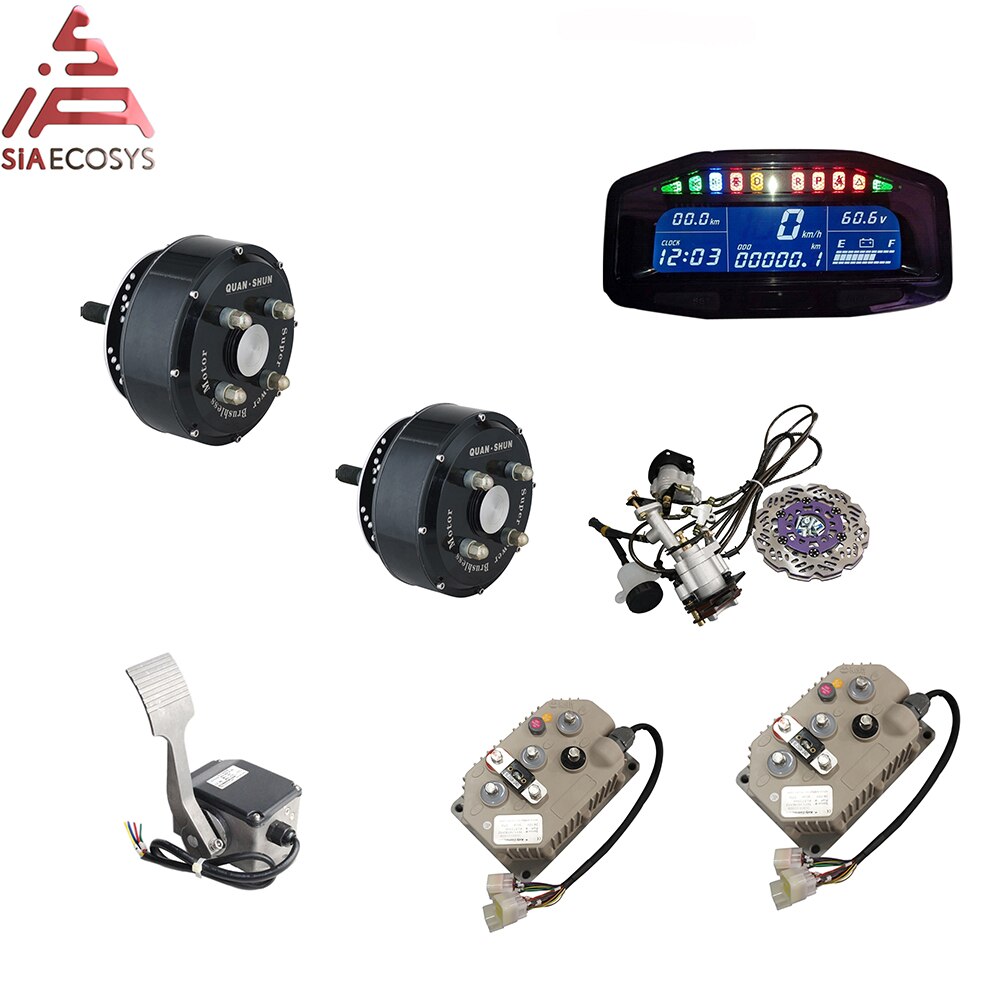

One kit including below kits
1. 2pcs X QSMOTOR 2000W 205 V2 electric wheel hub motor
2. 2pcs X KLS6022H sine wave motor controlle(treatment clearance with 59% off, in stock)
3. 1pcs X XE-8 speedometer
4. 1pcs X 0-5V Electric Car Throttle Pedal
5. 1pcs X 1 tow 2 03Version Hydraulic Disc brake system
Key Features
1). Simplify to make a electric-car. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in wheels, and easy to be hybrid car.
4). Easily to make 4-wheel drive, which could spot turn.
5). Support regenerative braking
6). High efficiency: 85~92%
Product Description

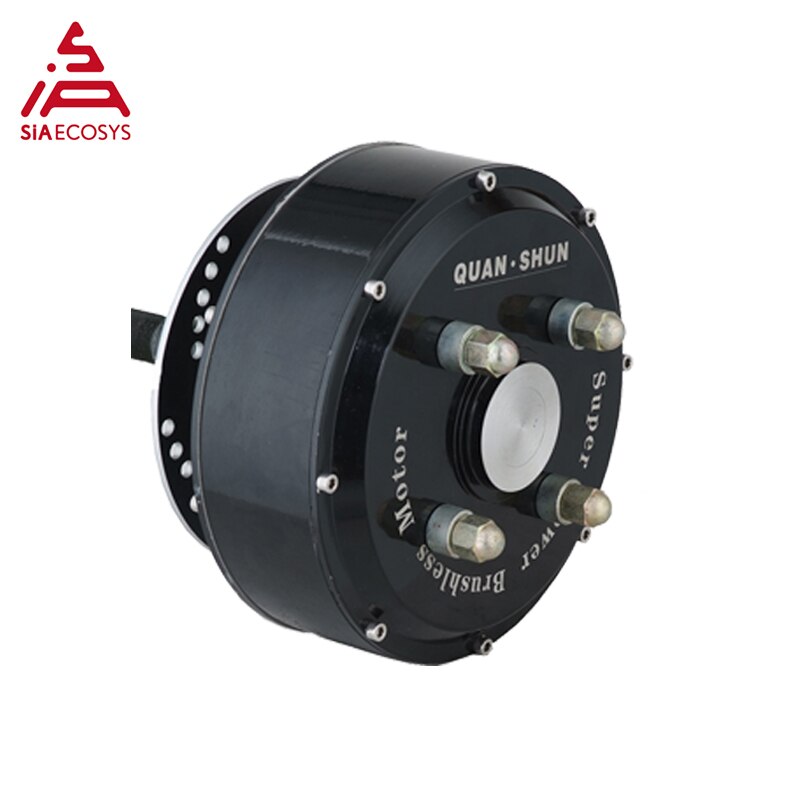

1. QSMOTOR 205 2000W V2 Electric Car Hub Motor
Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor
Brand: QS Motor, QSMOTOR
Motor Design: Single axle without moped rim (Integrated)
Matching Rim Size: 12inch or above wheel rim, CB ≥60mm,PCD customize(4*100mm as default)
Magnet Height: 50mm, 23 pole pairs
Stator: Steel Core
Rated Power: 2000W
Speed: 60KPH
Work Voltage range: 48V-96V, will be 72V as default.
Max Torque approx 161.90N.m
KV: 12.68
Thermic Probe: KTY83-122 (as default, optional)
Max Efficiency approx 88%
Working Temperature: 70-120℃ , peak 150 ℃
Brake type: Moped disc brake (as default), PCD 3*80mm, CB: 58mm
Dual Halls with waterproof connectors(One for using, one for spare)
12mm axle flats
8mm² Cross Section of Phase Wire(not including insulation layer)
Waterproof Grade: IP54
Color: Black (As default)
N.W/ G.W: 17.0kg/18.5kg
Dimension Drawing

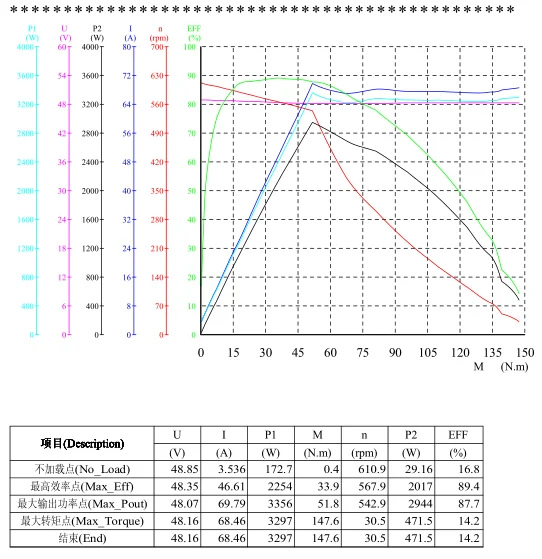

Test Report:

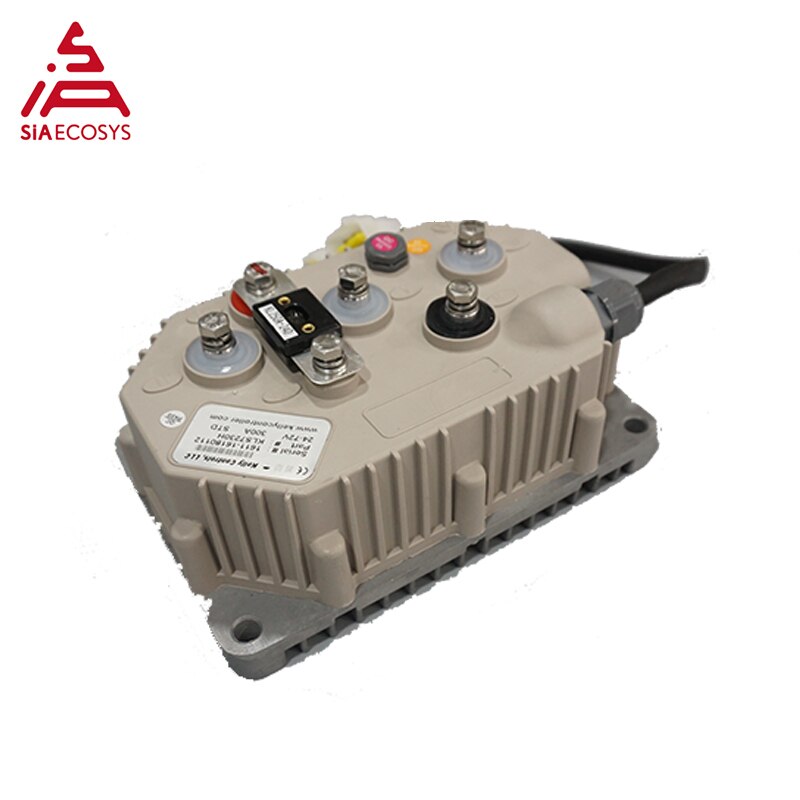

2. KLS6022H 60V sinusoidal wave BLDC motor controller
1. Sine wave controller, programmable, with regen function
2. Motor Current Limit, 20 seconds: 220A
3. Motor Current Limit, continuous: 80A
4. Thermic Probe: KTY83-122
5. Including one controller + USB convertor cable + matched plug
6. Controller size: 194mm*126mm*86.8mm
7. Net weight: 1.82kg
8. Waterproof IP67
9. Default not including bluetooth, waterproof(those function are optional); Can support can-bus
10. Work voltage: 18V~80V; Rated voltage: 24V~60V
Drawing
Here is drawing of our normal QSKLS6022H controller.

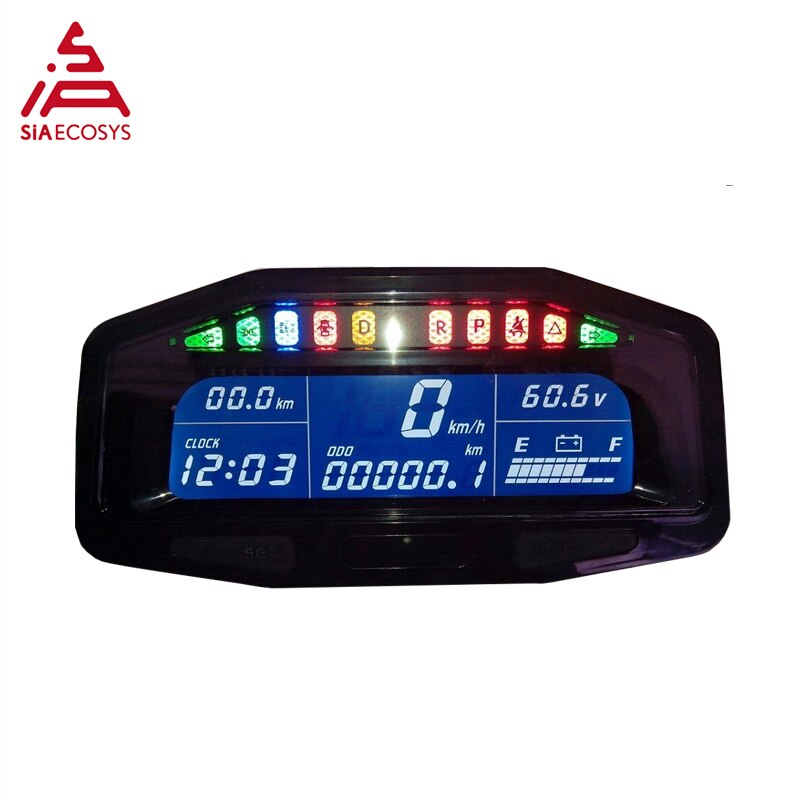

3. XE-8 speedometer
Place of Origin: China(Mainland)
Model Number: X8-E
Application: Electric Car, EV
Rated Voltage:48V-96V
Work voltage: 0-120V
Programmable items: voltage, trip, time, background light
Show Time, driving distance, speed, voltage, electric quantity
Test Speed Type: Hall Sensor
Net weight: 0.57kg
Size: 205mm*103mm*67mm
Packing size: 220mm*160mm*100mm
PS:We don't provide female and male waterproof connectors, pins for as below picture as default.
It will cost extra USD3.0/set for unit speedometer.

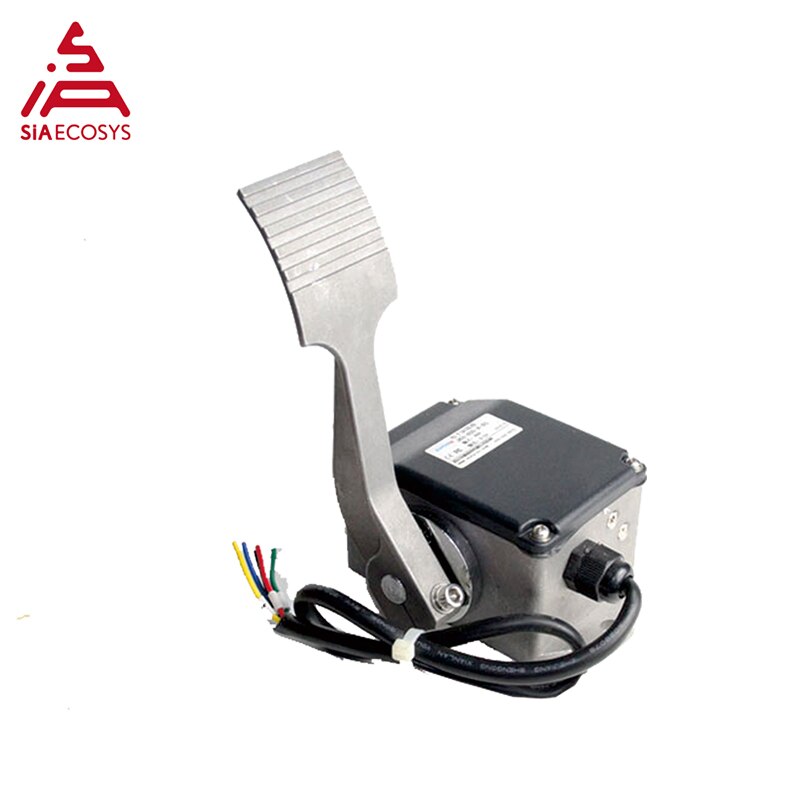

4. 0.8-4.2V Electric Car Throttle Pedal
Hall type: JKH mode
Input voltage: 5V 12V 15V 24V 36V 48V 60V 72V 84V 96V 120V
Output voltage: 0.8V-4.2V
Default: Three wires out(cannot connect with switch), 4.2v input voltage. 0.8-4.2v output voltage.

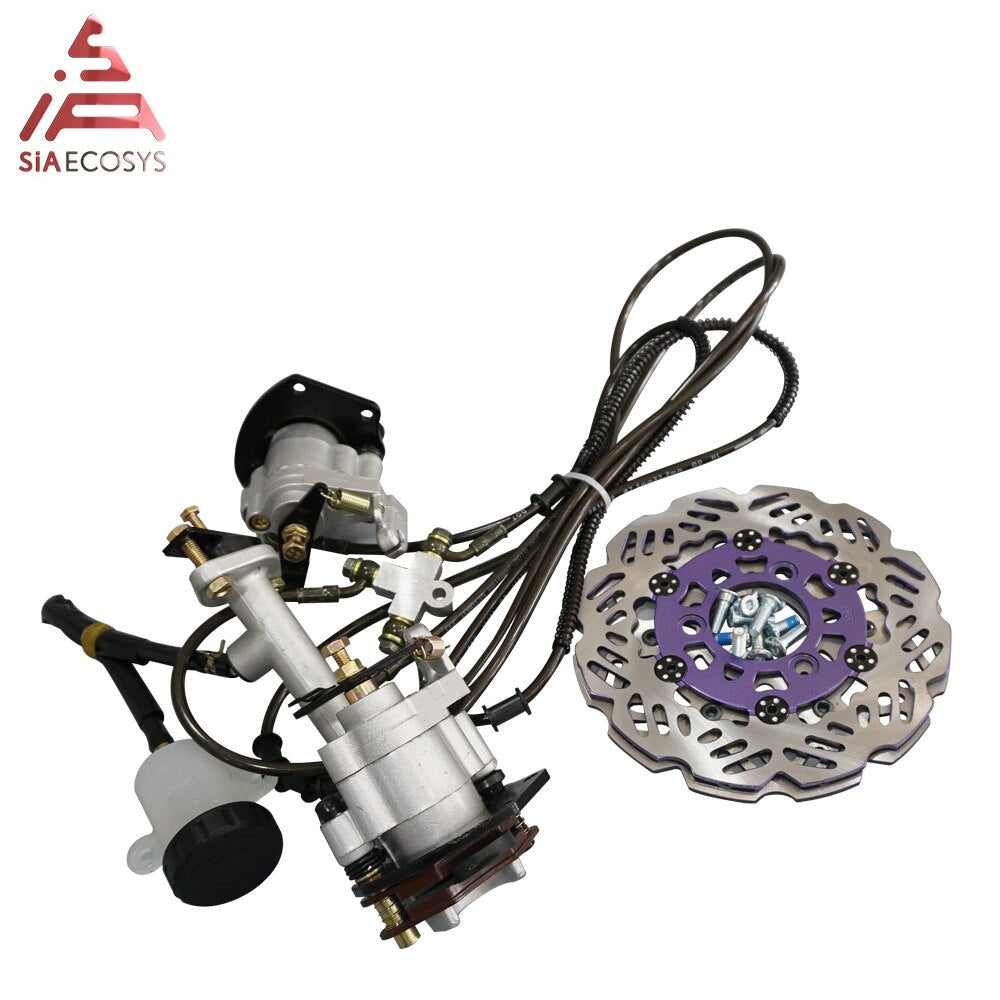

5. 1 tow 2 Hydraulic Disc brake system
One main master cylinder with two calipers
03 Caliper with mechanical parking brake (in grey), 34mm plunger, pitch of mounting 80 or 45mm(as default)
Foot brake master cylinder
Hoses 220cm X1 + 80cm X2
Mechanical parking brake cable 42cm + 2 x 140cm
220mm disc brake plate and screws (PCD 3*80mm, CB58mm, thickness 4mm)
Without brake oil
Suitable for QS Motor 205 Single Shaft Hub Motors
N.W. approx 3.4 kg (Without brake disc)
Please noted:
Optional appearance, drawing, performance curve/test report are available.
If you need more technical information, please feel free to contact us.
We will give you reply in 12hours.
Conversion kits
We're able to supply adaptable more motor kits, e.g. speedometer, throttle. Please contact with us for details.
Application of 205 e-car single shaft hub motor
