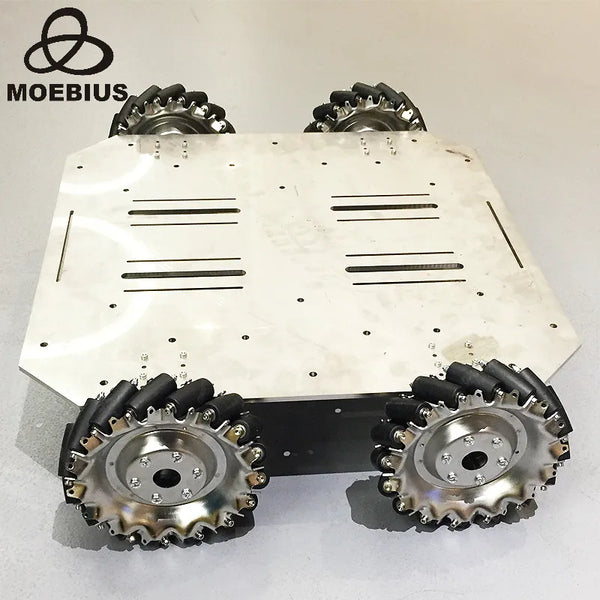

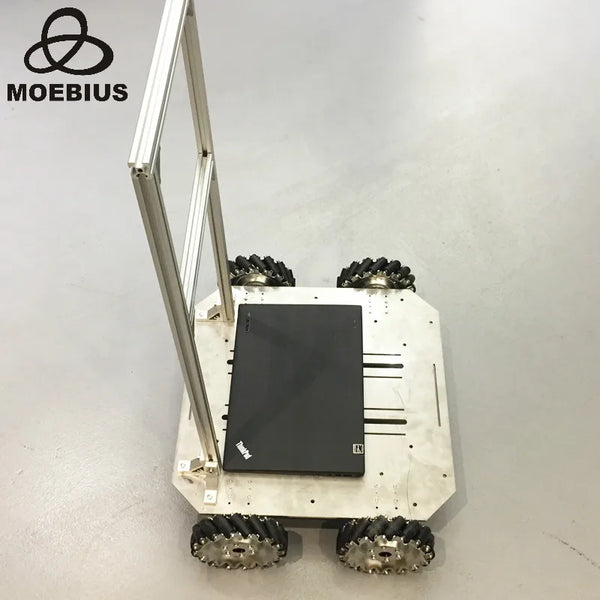

70kg Heavy-Duty Mecanum Wheel Trolley Omnidirectional Wheel Mobile Robot Metal Chassis for Research
Package Included:
450*450*5mm Aluminum Alloy plate*1
152mm mecanum wheel*4
24V Motor*4

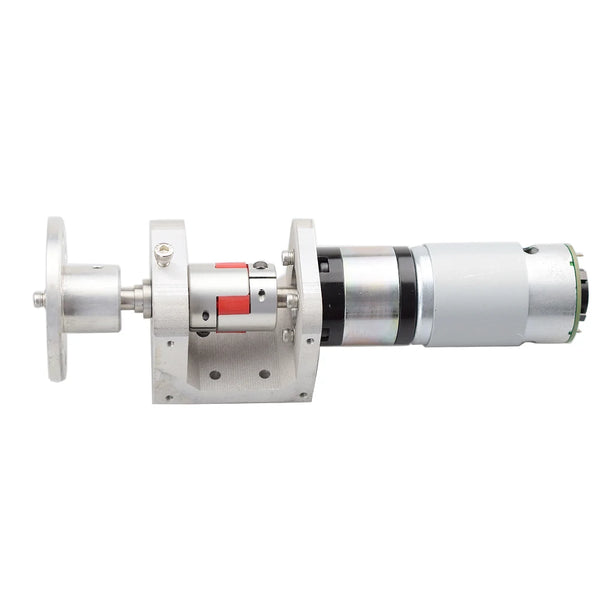

Motor Bracket*4
Motor Wires* 1set
Screws* 1 set

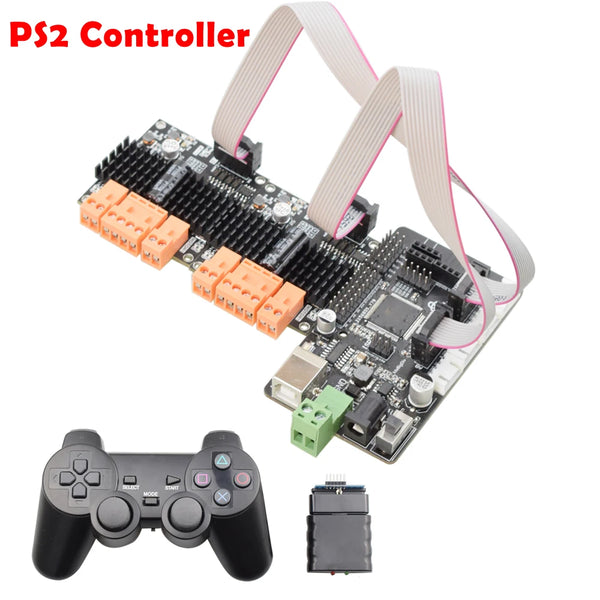

Bluetooth APP controller Kit*1 set
Parameters:
Controller: ATmega2560
Bluetooth control distance: anout 50m
Warm Prompt:
The product is unassembled, we offer the PDF manual to you.
Not included the battery
Power suggest: 24V lipo battery

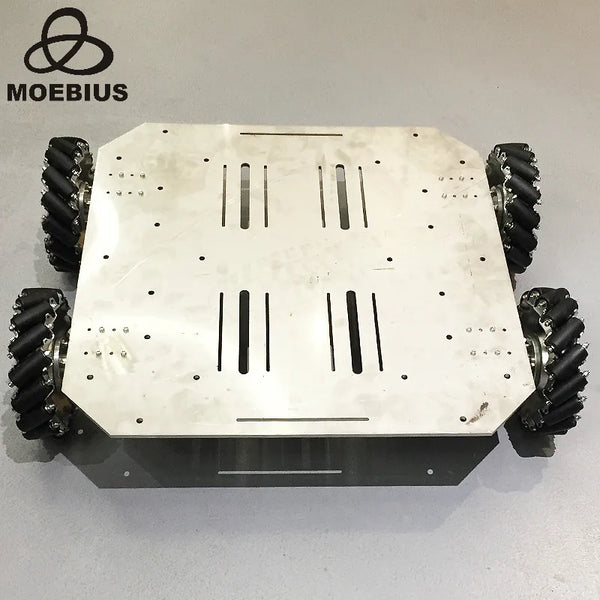

Plate Chassis:
Chassis plate size: 450 * 450 * 5mm (length * width * thickness)
Chassis plate material: Aluminum alloy(Surface blasting oxidation)

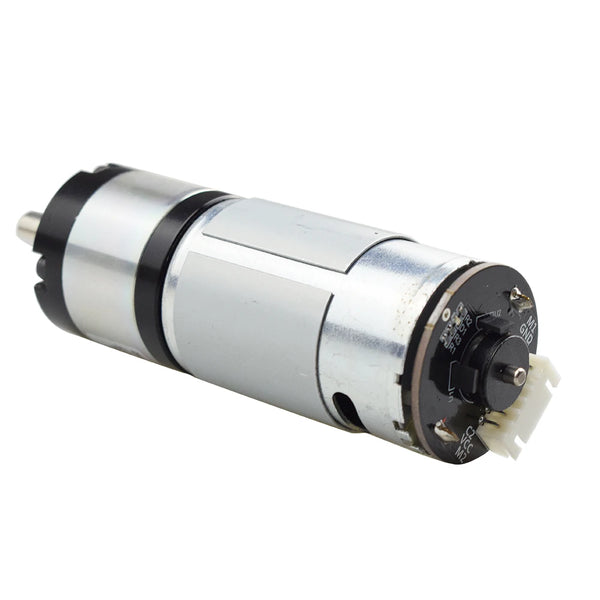

Motor:
Model: 36GP-555 Permanent Magnet Planetary Geared Motor
Size: 36 * 114mm (excluding output shaft and terminal)
Shaft length: 20.0MM unidirectional shaft
Shaft diameter: 8mmD-shaped shaft double ball bearing positioning structure
Voltage: 24v
Weight: about 480g
Wiring specifications: PH2.0-6PIN terminal connector
Encoder specifications: AB dual-phase encoder 11-line basic signal voltage 3.3V or 5.0V
Mecanum Wheel:
Size: 6 inch diameter / 152.4mm
Weight: about 700g / piece
Small roller: full bearing structure, very smooth. A set of four bearing 150Kg
The diameter of the middle hole is 20mm, surrounded by a 6-division distribution circle with a diameter of 45mm, and the size is 5.20mm in diameter
Overall wheel thickness: 45mm
Updated Motor connector:
