4WD Robot Car Chassis With Omni Wheel Support Obstacle Avoidance RC Car for Arduino Robot DIY Kit Ps2 Programmmable Robot Kit

4WD Robot Car Chassis With Omni Wheel Support Obstacle Avoidance RC Car for Arduino Robot DIY Kit Ps2 Programmmable Robot Kit

【 Read carefully before buying 】

Note:

1.Before placing an order, please confirm that each option has corresponding shipping list images. If not, please refer to the following product description. Except for quality issues, our store does not support "free returns". Please consider carefully before purchasing.

2. If the product involves installation instructions, we will send them through Cloud services link or Email. Buyers are requested to contact our customer service directly through the AliExpress chat interface.

5kg Load 58mm Omnidirectional Wheel Chassis With Dc Motor 3-Wheel Omni Mobile Robot Omnirobot Smart Car for Arduino

Product parameter:

GA25 plastic wheels (Shock absorbent)

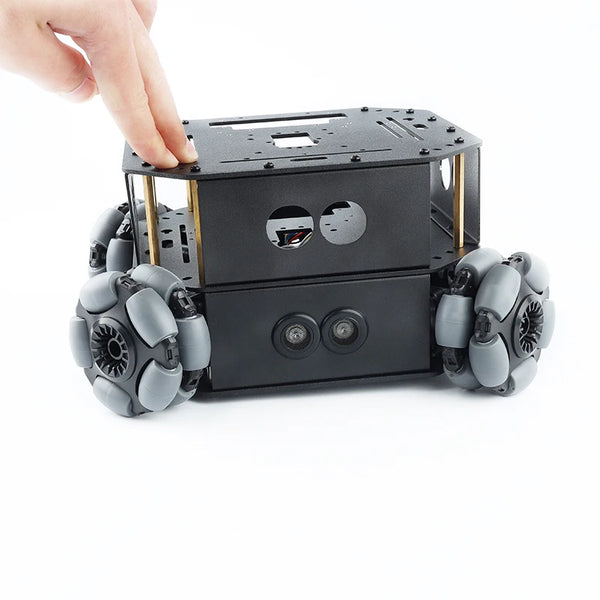

1. Only car chassis

Weight: 1.4Kg

Product load: 1.5kg

Ground clearance: 8-15mm

Operating voltage: 6-12v

Gear ratio: 1:74.8

Rated speed: 133rpm

Lock current: 2.2A*4

Reference speed: 0.5m/ s@12v

Code voltage: 3.3-5v

Encoding type: incremental

Coding accuracy: 12cpr(360 or other, batch can be customized)

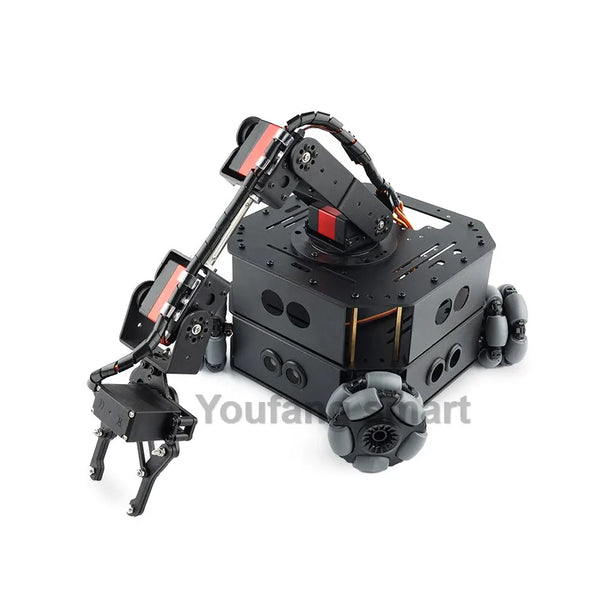

2, Car with arm

Weight: 2.1kg

Product load: 1kg

Ground clearance: 8-15mm

Operating voltage: 6-12v

Gear ratio: 1:74.8

Rated speed: 133rpm

Lock current: 2.2A*4

Reference speed: 0.5m/ s@12v

Code voltage: 3.3-5v

Encoding type: incremental

Coding accuracy: 12cpr(360 or other, batch can be customized)

Robotic arm: 5 degrees of freedom

Steering torque: 25kg*4+10kg

Grab weight: 100g

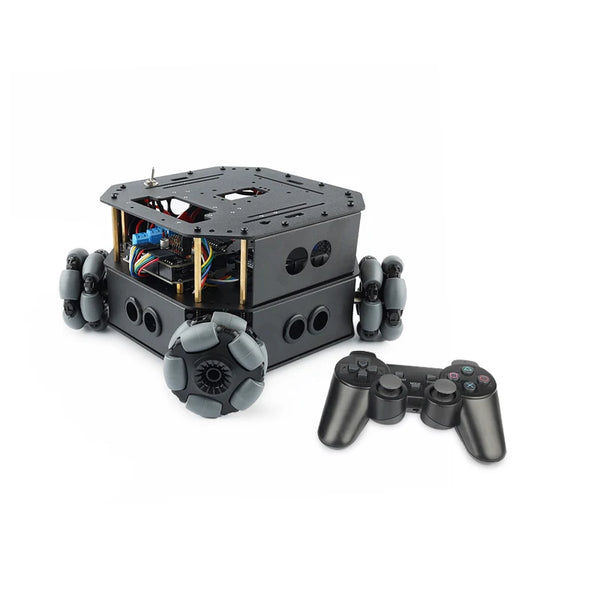

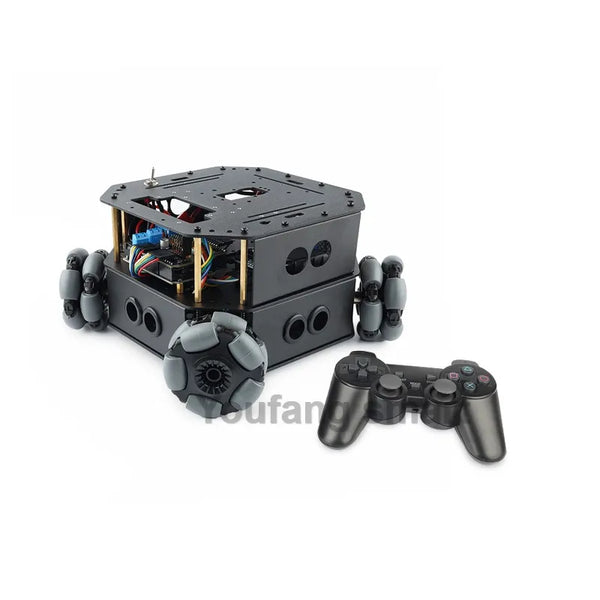

3. RC Car full set:

Product weight: 2.0kg

Product load: 1.5kg

Ground clearance: 8-15mm

Operating voltage: 12v

Gear ratio: 1:74.8

Rated speed: 133rpm

Lock current: 2.2A*4

Reference speed: 0.5m/ s@12v

Code voltage: 3.3-5v

Encoding type: incremental

Coding accuracy: 12cpr(360 or other, batch can be customized)

Master controller: BlueBird UNo compatible

Motor drive: IIC motor drive module

Power supply specification: 11.1v polymer 2200mah

Remote control model: PS2 wireless handle 8-20 meters away

Duration: Lasts 1 hour

Charging time: about 3h

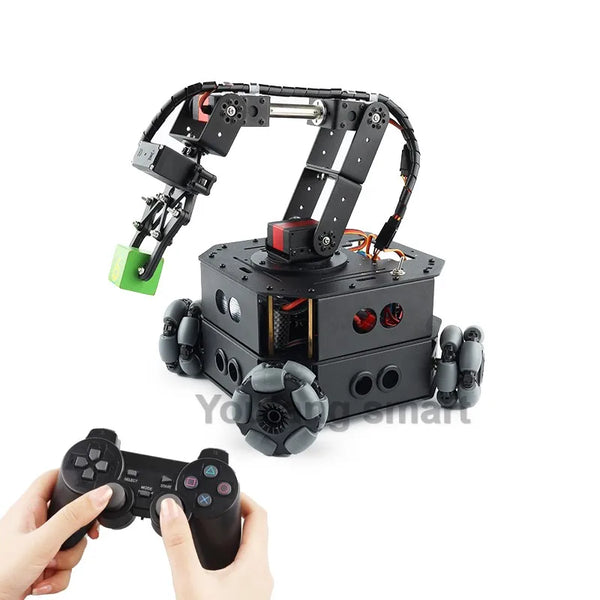

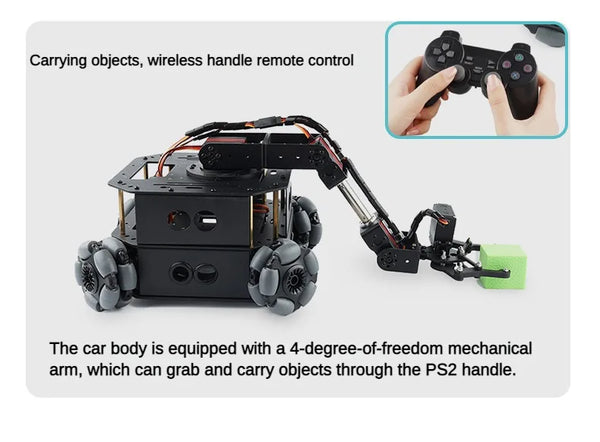

4, RC Car Arm full set:

Weight: 2.6kg

Product load: 1kg

Ground clearance: 8-15mm

Operating voltage: 12v

Gear ratio: 1:74.8

Rated speed: 133rpm

Lock current: 2.2A*4

Reference speed: 0.5m/ s@12v

Code voltage: 3.3-5v

Encoding type: incremental

Coding accuracy: 12cpr(360 or other, batch can be customized)

Master controller: BlueBird UNo compatible

Motor drive: IIC motor drive module

Power supply specification: 11.1v polymer 2200mah

Remote control model: PS2 wireless handle 8-20 meters away

Voltage regulation parameter: 5V5A

Robotic arm: 5 degrees of freedom

Steering torque: 25kg*4+10kg

Grab weight: 100g

Duration: 30 minutes

Charging time: about 3h

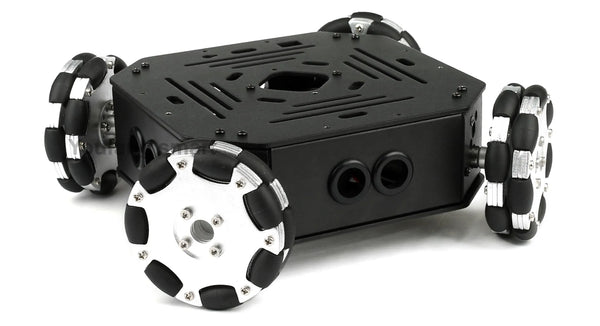

GB37 metal wheels

1. Metal wheel chassis:

Weight: 2.4Kg

Product load: 4-10Kg

Ground clearance: 18mm

Operating voltage: 6-12v

Gear ratio: 1:43.8

Rated speed: 200rpm

Lock current: 6.5A*4

Reference speed: 0.85m/ s@12v

Code voltage: 3.3-5v

Encoding type: incremental

Coding accuracy: 16/448cpr

Note: the product is unassembled, we offer the PDF Manual and source code.

We can provide technical documents to our customers, please leave your email address.
