Free shipping 36v 250w Electric Bicycle Motor Ebike Brushless,Gear Hub Motor for E-bike conversion kit

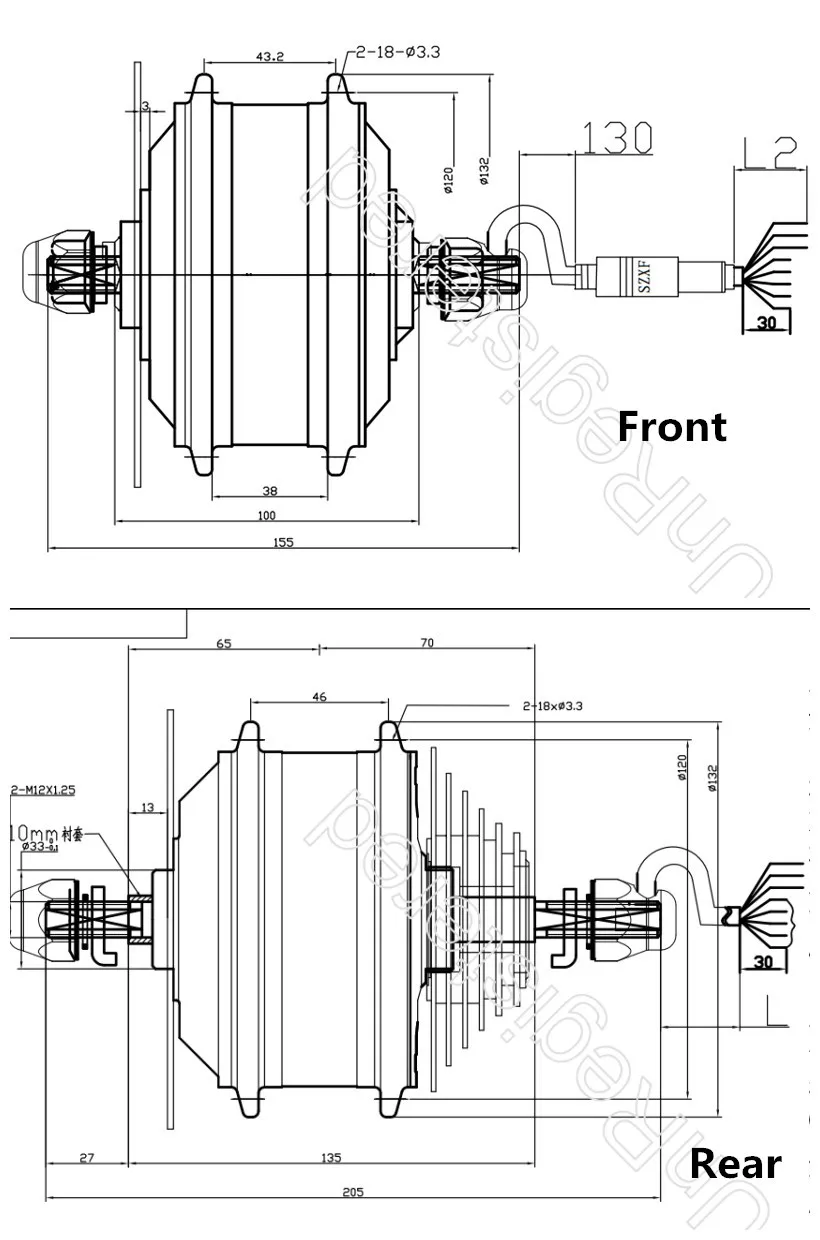

Drawing photo
PRODUCT SPECIFICATIONS
|
Model |
Model |
|
Motor power |
250w |
|
Axle |
10mm* 12mm |
|
Freewheel |
6s or 7s if you choose rear motr . |
|
Voltage |
36v |
|
Magnet Height |
24mm |
|
Design |
Brushless gearless dc |
|
Windings |
5*12 |
|
Waterproof grade |
IP54 |
|
RPM/min |
270 |
|
Cable size |
1.5mm2 |
|
Max torque |
20N.M |
|
Max Efficiency |
>=85% |
|
Open size |
100mm for front motor, 135mm for rear motor |
|
Wheel size |
16-28inch |
|
Hall sensor |
Optional |
|
Hall sensor angle |
120 degrees |
|
Integrate speed sensor |
Optional |
|
Brake |
Disc brake |
|
Surface color |
dark black |
|
Temperature sensor |
Yes |
|
N.W |
2.7kgs |
PRODUCT FEATURES

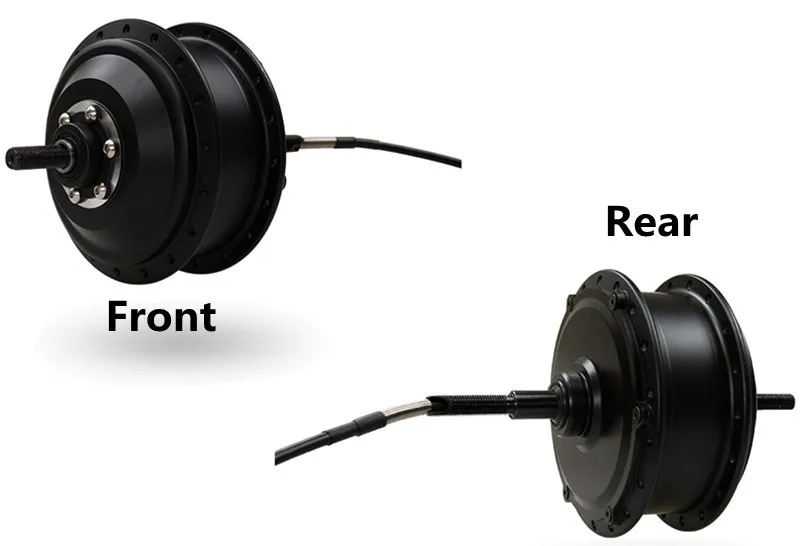

Ncycle NC48500,CE certifacte 36v250w electric ebike hub motor
l Low noise
l Electricity saving
l High torque
l High strength
l High safety coefficient, high efficiency
l Long service life
l Not easy to be hot
l Big power
l Warranty : 2 years
l OEM

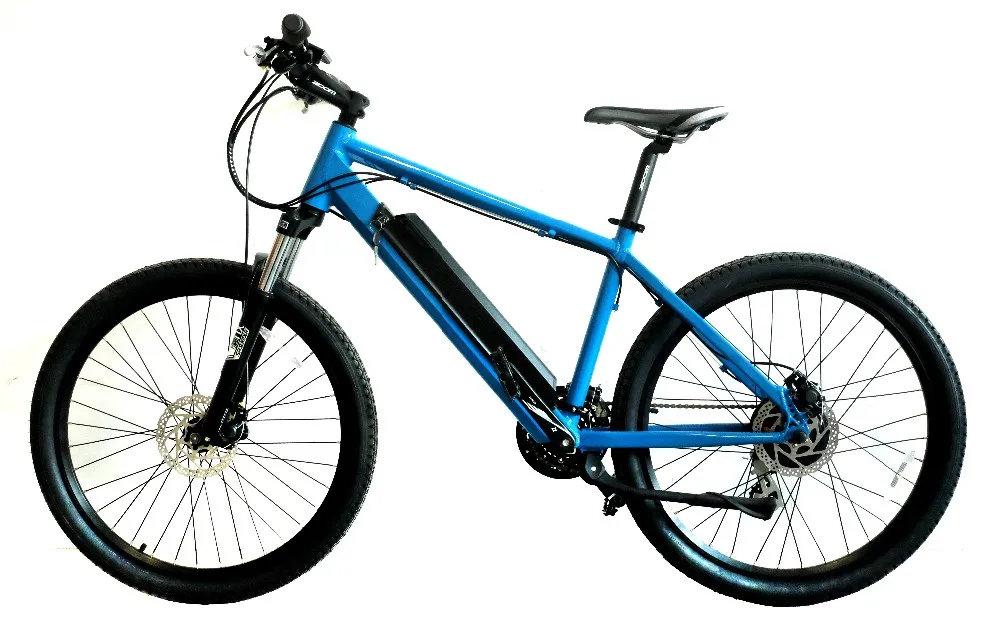

PRODUCT APPLICATION
NC36250,CE certifacte 36v 250w high quality electric ebike hub motor
PRODUCT PACKING
