Free shipping 48v 500w electric bicycle hub motor front or rear motor types
Drawing photo
PRODUCT SPECIFICATIONS
Model |
Model |
Motor power |
500w |
Axle |
10mm* 14mm |
Freewheel |
6s or 7s if you choose rear motr . |
Voltage |
48v |
Magnet Height |
24mm |
Design |
Brushless gearless dc |
Windings |
11*5 |
Waterproof grade |
IP54 |
RPM/min |
470 |
Cable size |
1.5mm2 |
Max torque |
30N.M |
Max Efficiency |
>=88% |
Open size |
100mm for front motor, 135mm for rear motor |
Wheel size |
16-28inch |
Hall sensor |
Optional |
Hall sensor angle |
120 degrees |
Integrate speed sensor |
Optional |
Brake |
Disc brake |
Surface color |
dark black |
Temperature sensor |
Yes |
N.W |
5.7kgs |
PRODUCT FEATURES
Ncycle NC48500,CE certifacte 48v 500w electric ebike hub motor
l Low noise
l Electricity saving
l High torque
l High strength
l High safety coefficient, high efficiency
l Long service life
l Not easy to be hot
l Big power
l Warranty : 2 years
l OEM
PRODUCT APPLICATION
NC481000,CE certifacte 48v 1000w high quality electric ebike hub motor

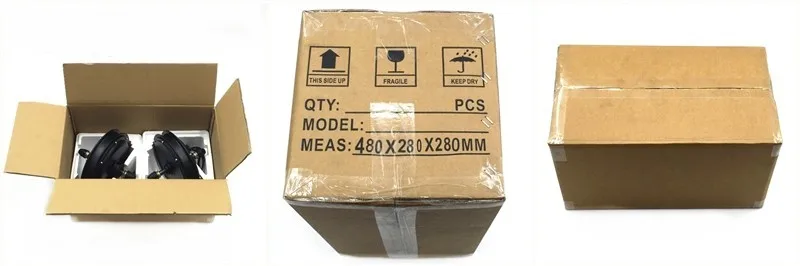

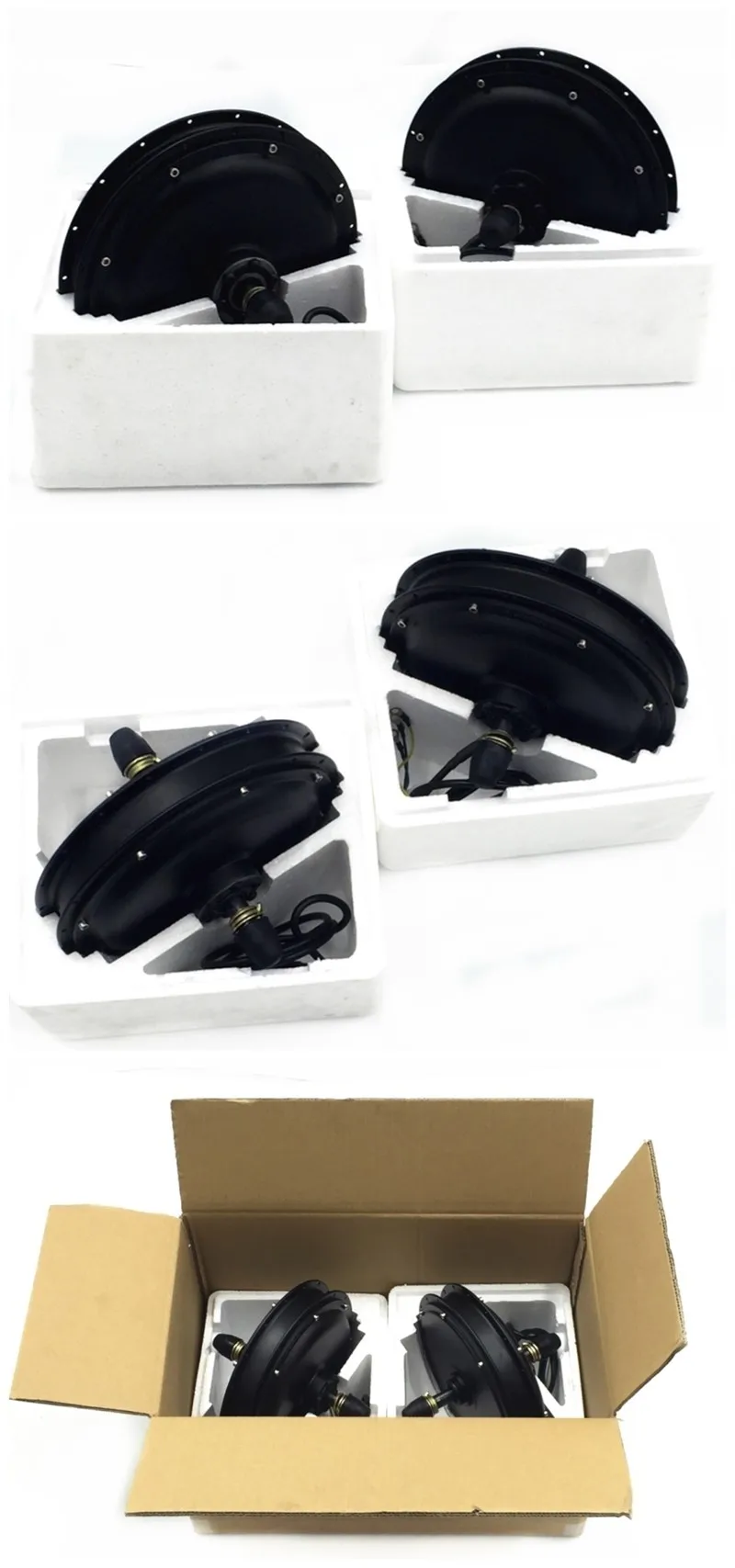

PRODUCT PACKING
