QS Motor 273 Bicycle Hub Motor 4000W V3 110KPH For Electric Bicycle Kits Type Hub Motor 48 60 72V 80KPH 96V 4T 5T 70-100KPH

QS Motor 273 Bicycle Hub Motor 4000W V3 110KPH For Electric Bicycle kitsType Hub Motor 48 60 72V 80KPH 96V 4T 5T 70-100KPH 4000W  Electric Bicycle kits

For this 273 4000W  Electric Bicycle kits spoke hub motor, the dropout is 152mm, it could be used for electric bike, high power electric bicycle.

273 motor means the diameter of iron ring of rotor is 273mm

One set including below kits

1. 1pc X QSMOTOR 273 4kW electric spoke hub Motor

2. 1pc X Motor Spacer(Free part)

3. 1pc X Sabvoton controller (Customized for TFT speedometer) with bluetooth adapter

4. 1pc X H6 speedometer

5. 1pc X Half Twist Throttle

6.1pc X PAS sensor

Product description

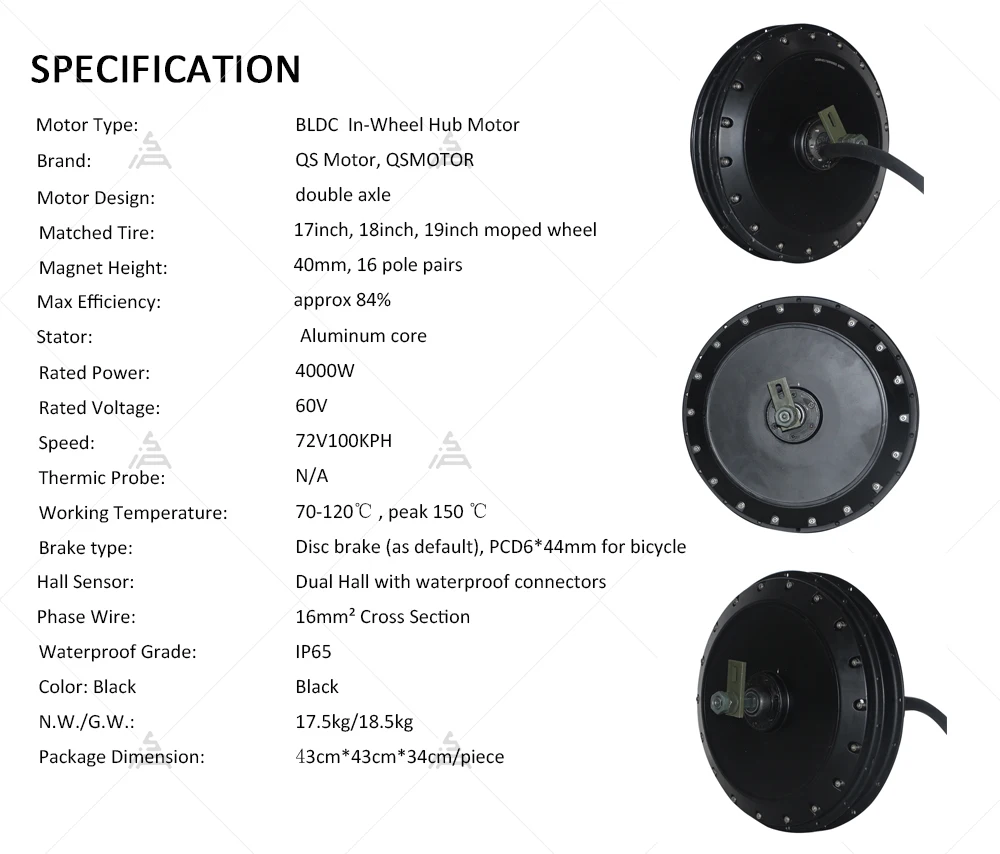

Genearlly Spec:

Dimension Drawing:

• QS 273 152mm drop-outs e-bike spoke hub motor

1.2 Drawing

To protect motor phase wire

3. Sabvoton 72150 motor controller (customized for H6 speedometer)

Product Description of Controller

1). Sine wave controller, programmable, with regen function

2). DC Current Limit: 150A

3). Max. Phase Current: 350A

4). Protect Phase Current: 450A

5). Battery Voltage: 24V-72V rated, Max. 95V

6). Including one controller

7). controller size: 247mm*146mm*62mm

8). Net weight: 2kg

9). Default including bluetooth adapter.

10). Default function: Hall, Throttle, Electric brake, High Brake Level, speed switch

11). Special functions: Waterproof

PS. Please note there is no temp sensor for motor.

3.2. TFT H6 Color Speedometer Display

· 3.2 inch color TFT screen

· 48V/60V/72V power supply

· Shutdown leakage current <1Ua

· Supply controller terminal operating current 100mA

· Normal operating temperature of the instrument -20～65°C

Function of display screen

1. Battery display: 5 segments of power indication, the voltage value of each segment can be set according to customer requirements;

2. Speed mode: real-time speed RT SPEED, maximum speed MAX SPEED, average speed AVG SPEED;

3. Speed display: display range 00.0. ~ 99.9, unit Km / h km per hour, MPH miles per hour;

4. Assist gear position: 0～9 files, of which 0 gear is neutral and no boost, 1～9 corresponds to boost gear, and P is displayed in 6Km push mode;

5. Headlight display: displayed when the headlights are on;

6. motor temperature: monitor motor temperature in real time;

7. Mileage mode: cumulative mileage ODO, single mileage Trip

8. WH.KM: the controller power consumption ,wh/km

9. Motor temperature.

10. Regen Ah:Cumulative Ah while controller in regen mode .

11. Clock: Built-in battery, user set up;

12. Clock: Built-in battery, user set the year, month, day, hour, minute and second.

Pictures

4. Half Twist Throttle with 3 speed toggle switch
