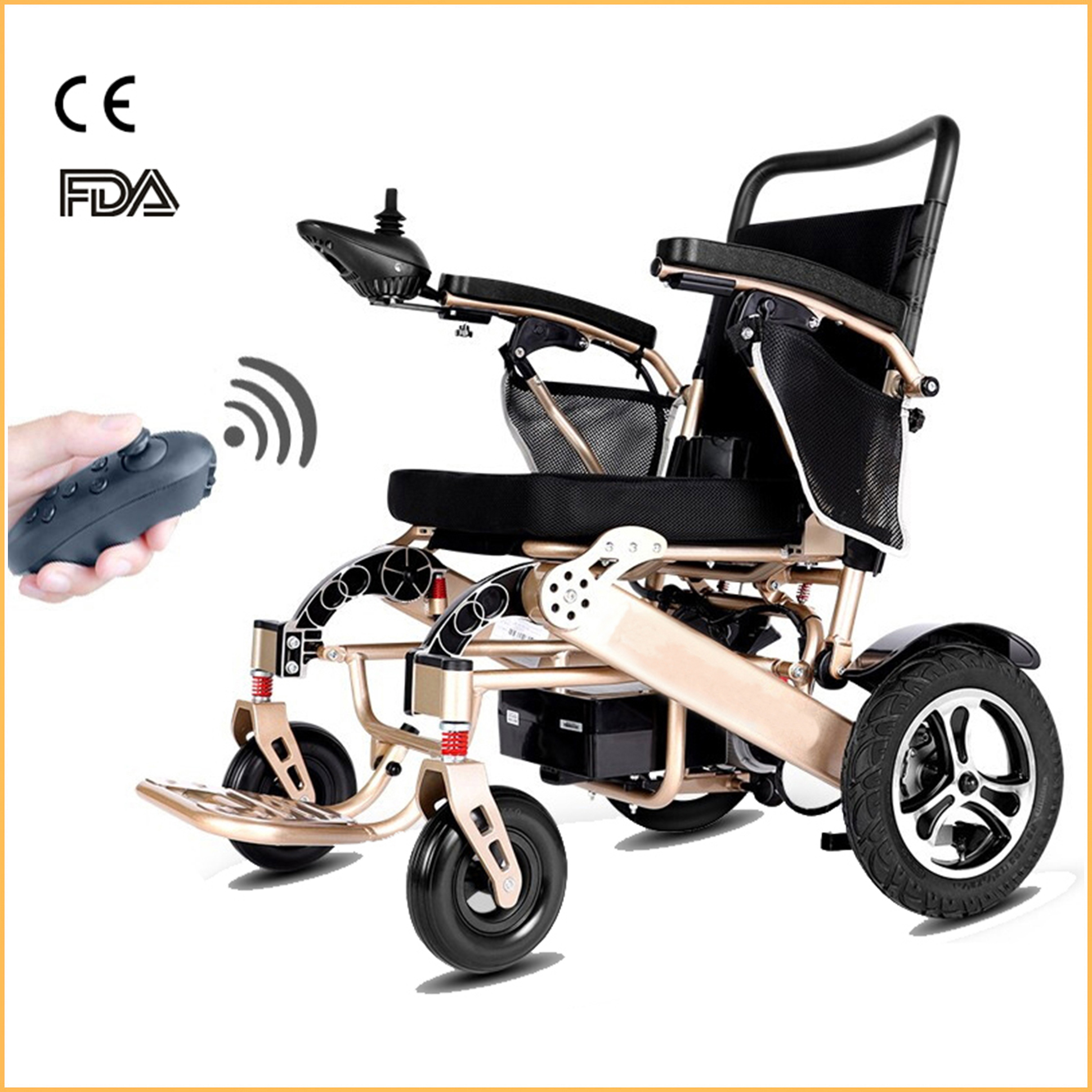

Foldable Newest LCD Joystick Controller Reclining Aluminum lightweight folding wheelchair
|
Model
|
B01
|
Imperial
|
Metric
|
|
Specification
|
Unfolded Dim(LxWxH)
|
38.8x23.6x37.4inch
|
985×600×950mm
|
|
Folded Dim(LxWxH)
|
23.6x14x31.1inch
|
600×355×790mm
|
|
|
Width of Armrests
|
19''
|
480mm
|
|
|
Seat Width
|
19''
|
480mm
|
|
|
Seat Depth
|
16.5'
|
420mm
|
|
|
Seat Height
|
19.7''
|
500mm
|
|
|
Pedal High
From Ground |
3.2''
|
13.5mm
|
|
|
Packing Carton(LxWxH)
|
27.2x16.9x34.6inch
|
690x430x880mm
|
|
|
Weight
|
N.W. (Without Battery)
|
51.7lbs
|
23.5kg
|
|
N.W. (With battery)
|
58.3lbs
|
26.5kg
|
|
|
GW
|
32kg
|
70.4lbs
|
|
|
Performance
|
Max Speed
|
3.75mph
|
6km/hr
|
|
Loading Capacity
|
396lbs
|
180kg
|
|
|
Climbing Slope
|
Max 12°
|
||
|
Motor
|
Type
|
DC Brushless motor
|
|
|
Motor
|
250W×2pc (500W)
|
||
|
Battery
|
Type
|
Lithium Battery
|
|
|
Voltage
|
24V
|
||
|
Current
|
24V /12AH/6AHx2pcs/20AH/26AH
|
||
|
Power
|
144WH
|
||
|
Range
|
15.5miles
|
25KM
|
|
|
Weight
|
3.3lbs
|
1.5kg/pc
|
|
|
|
Intput Voltage
|
100~240VAC 50/60Hz
|
|
|
Charger
|
Output Voltage
|
24V
|
|
|
Charging Time
|
6~8H
|
||
|
Tires
|
Front Tires
|
8" PU solid tires
|
|
|
Rear Tires
|
12" PU solid tires
|
||
|
Brake System
|
Brake
|
Electromagnetic Brake
|
|
|
Others
|
Material
|
Aluminum Alloy
|
|
|
Drive Mode
|
Rear Drive
|
||
|
Color
|
Silver, Black, Blue, Yellow, Red &Pink
|
||
|
Container
|
one 20FCL=98pcs, one 40HQ=250pcs
|
||
|
Warranty
|
3 months for cushion and tires
12 months for motor, battery and controller 36 months for frame |
||
