5000W 205 QS Motor Bicycle Spoke motor (50H) V3 Type Hub Motor 48V/60V/72V 80KPH 96V 3.5T/5T 70-100KPH ready shipping

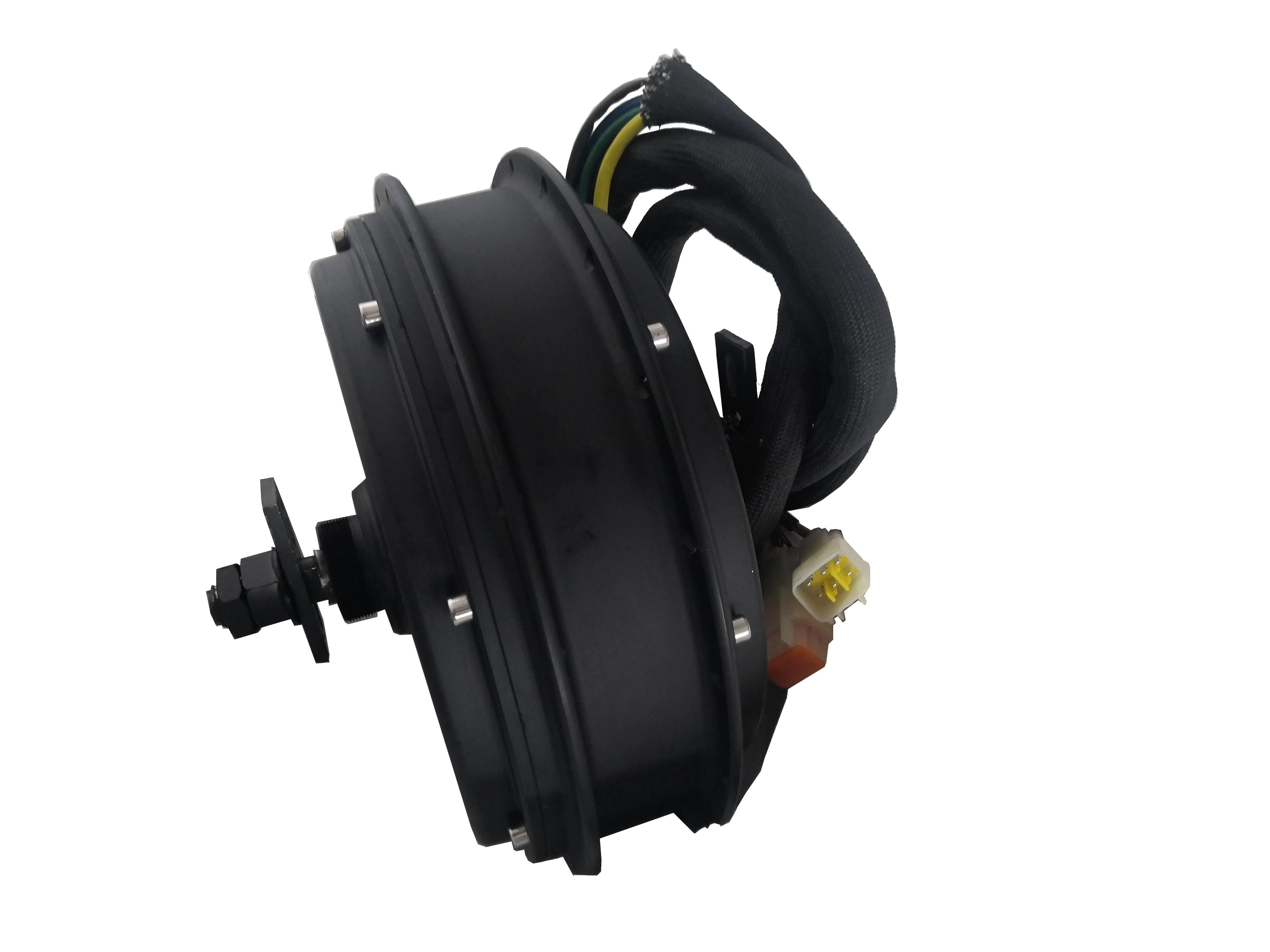

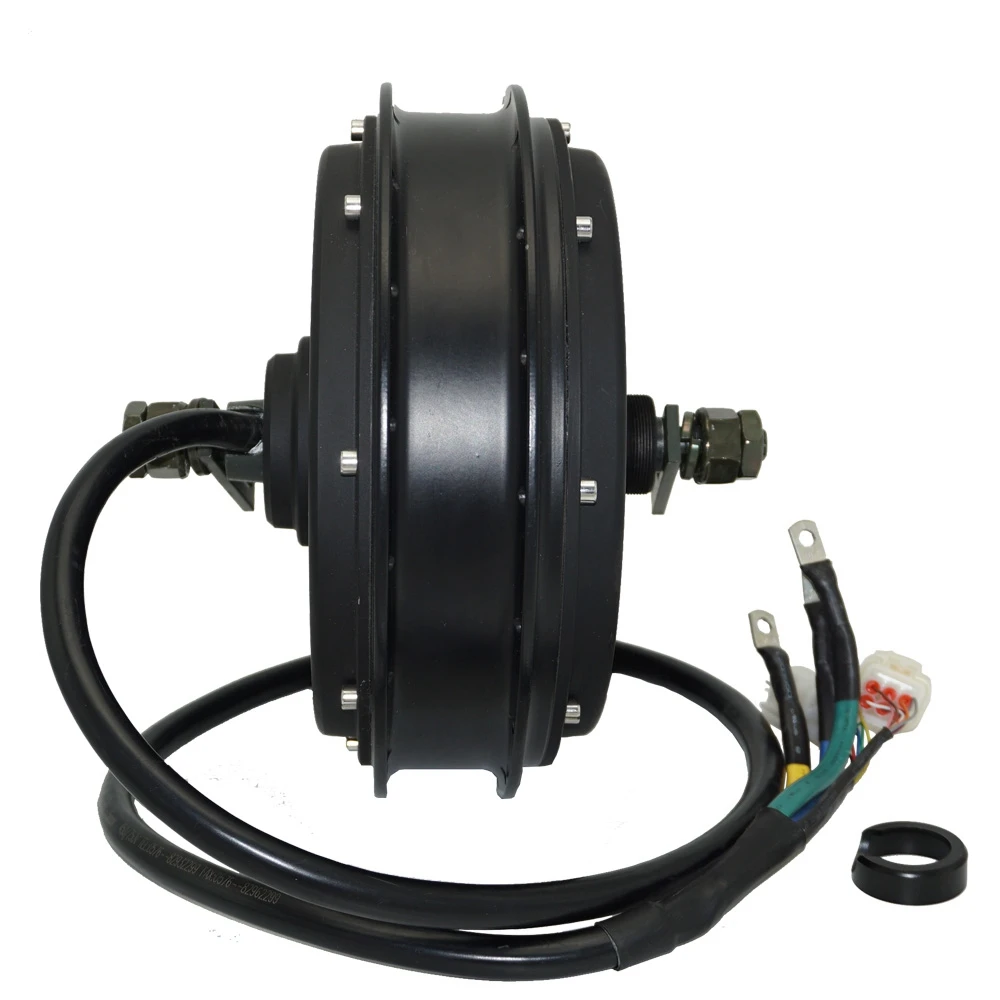

QS Motor E-spoke 5000W 205 50H V3 Hub Motor
1. Generally SPEC
Motor Type: BLDC In-Wheel Hub Motor
Motor Design: Double Axle with Rim(integrated)
Matched Tire: ≥17inch
PCD: 6*44mm
Stator: Aluminum Core
Rated Power: 5000W
Peak Power: 10000W in few seconds
Rated Voltage: 72V
Speed: 850rpm 3.5t
Drop-outs: 150mm
Max Torque: approx 181N.m
Max Efficiency: approx 91%
Suggest Peak Phase Current: N/A
Thermic Probe: KTY83/122(as default)
Working Temperature: 70-120℃, peak 150℃
Brake Type: Disc Brake
Hall Sensor: Dual hall set with waterproof connector
Phase Wire:2*5mm²Cross
Hall Sensor Phasing Angle: 120 degree
Waterproof Grade: IP65
Color: Black
Pole Pairs: 16
PS. 1. Above quotation base on 205 electric bike spoke hub motor.
2. For 205 motor, the voltage is 48V~96V.
3. Above configuration is suggested for mass production,
for EV enthusiast, V2 & V3 motor could be over-voltaged to gain more speed (customizable).
4.There are more powerful e-bike standard hub motor, 8000W 273 Spoke Hub Motor, 152mm dropout, PDC6*44mm, 12mm axle flats.
For the option of Seller's shipping method, It is sea or rail shipping, usually take 1.5months to arrive, please noted.
Inventory Last Updated: Sep 10, 2024
